Product Description

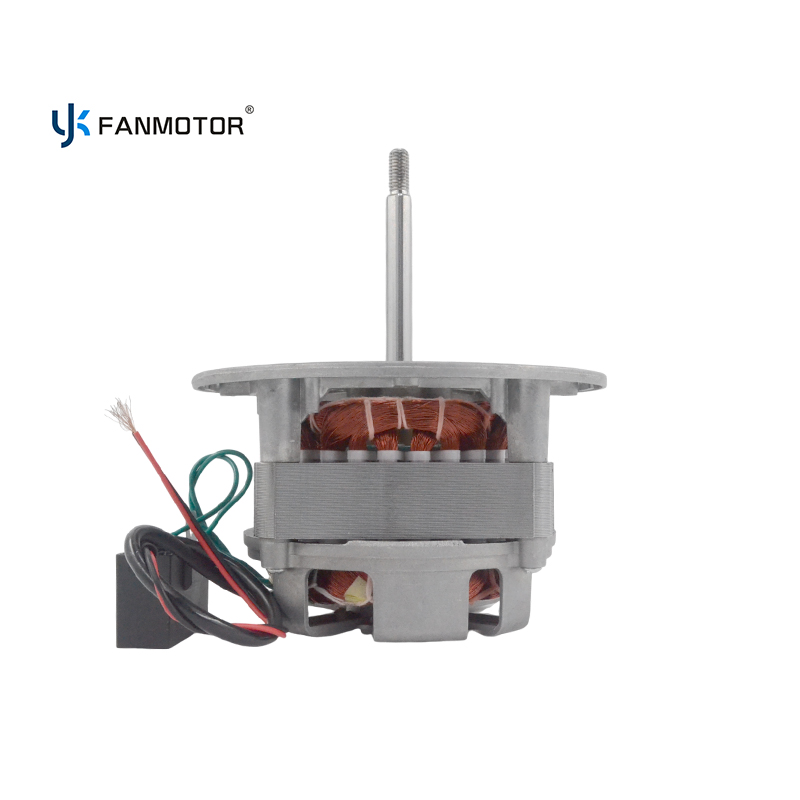

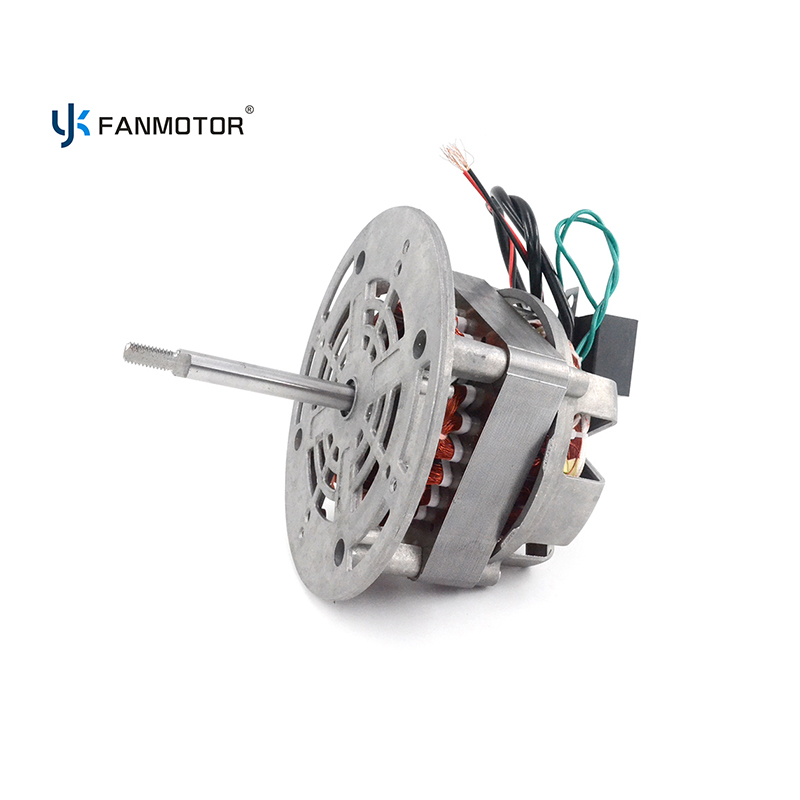

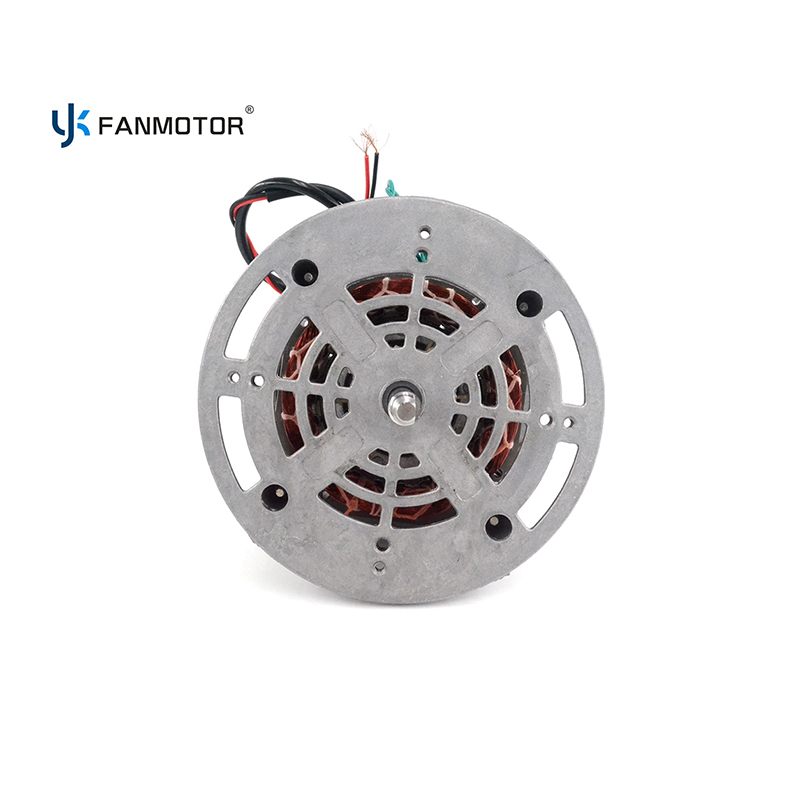

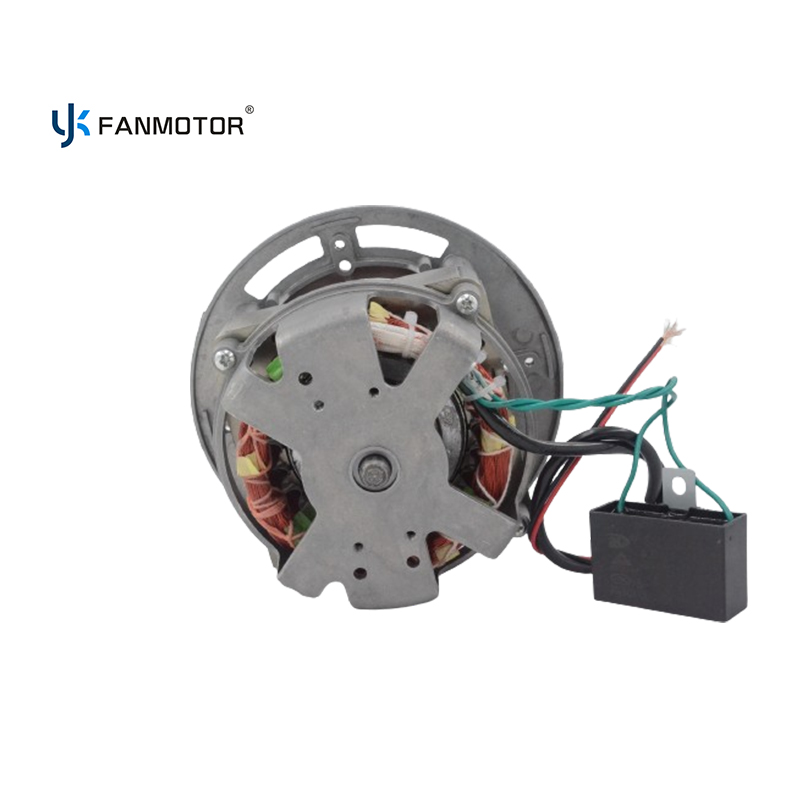

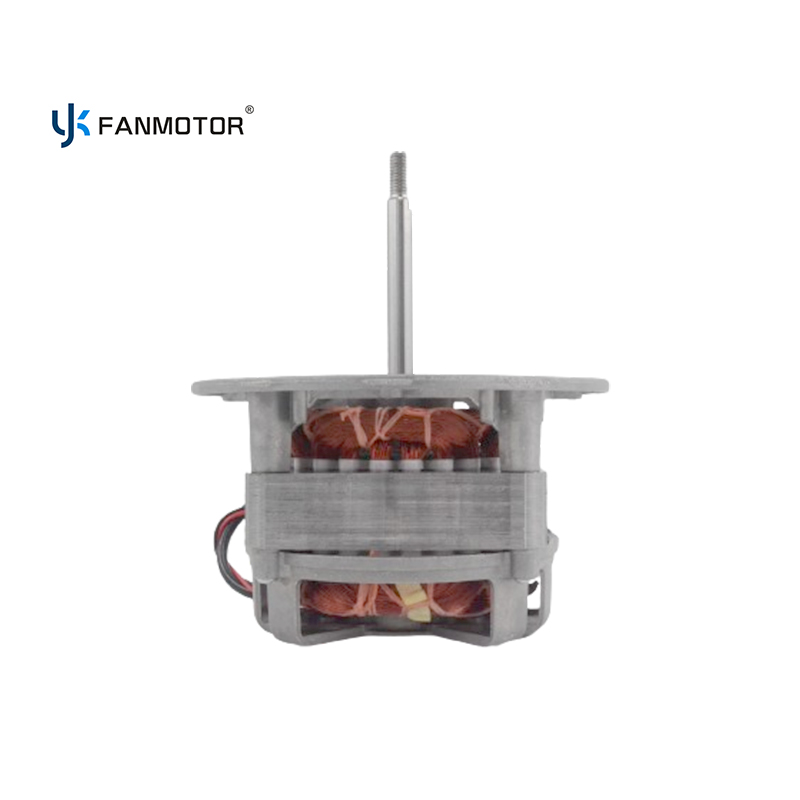

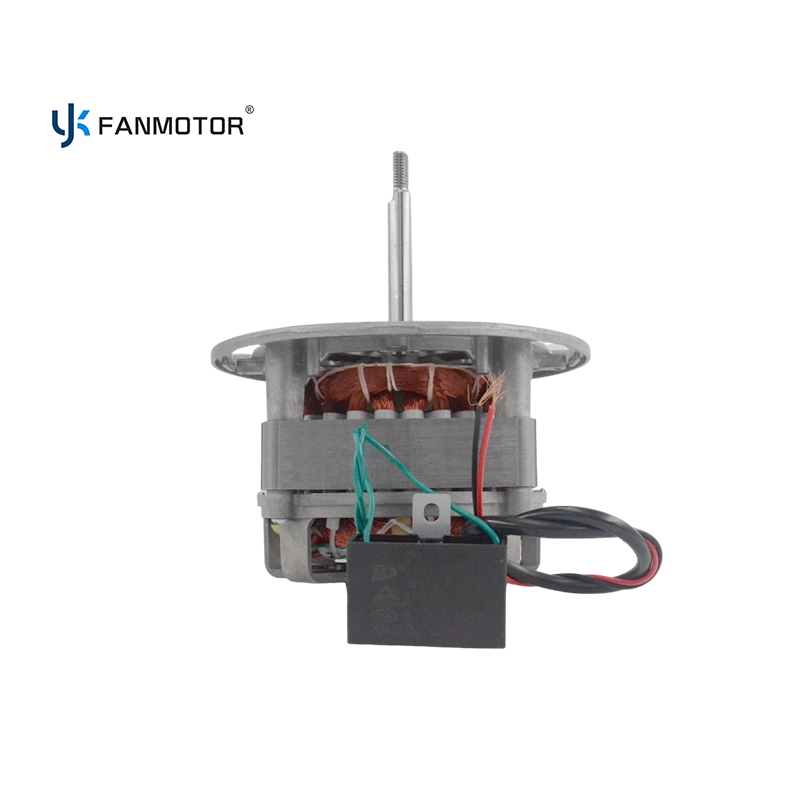

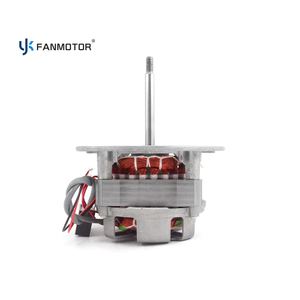

Designed for Bangladesh's hot, humid climate and coastal salt spray, this 20" motor (24" compatible) features a 98x24mm stator with Class E insulation. Options include copper, aluminum, or CCA windings: copper for durable industrial use (textile factories, markets), aluminum/CCA for cost-effective home/shop ventilation. Operates at 220V/50Hz, 60-85W power, 1350-1500 RPM with 2.5μF capacitor, delivering <60dB noise for residential areas. Corrosion-resistant clockwise rotation suits outdoor/indoor spaces like factory workshops and greenhouses, addressing local heat and humidity challenges.
Product Advantages
1. High-power performance for large spaces
This high-speed fan motor (60-85W, 1350-1500 RPM) drives 20-24-inch mesh fan motors, making it ideal for ventilation of large areas such as factory floors and warehouse ceilings. Its strong airflow effectively reduces moisture and heat build-up in tropical climate conditions. The motor's torque maintains the momentum of the blades even in high-resistance environments, reducing cooling costs by 20-30% compared to systems that rely on AC power.
2. Multiple winding options for cost flexibility
Tailored for the budget-sensitive market, this motor is available with copper windings (high efficiency), aluminum windings (balanced cost), or CCA windings (light-load energy saving). Copper wire is suitable for all-weather industrial mesh fan motors, while aluminum/CCA is suitable for home or workshop ventilation.
3. Low noise, stable operation
This high-speed fan motor is optimized to operate at less than 60dB noise, with integrated noise-reducing rotor balancing and 2.5μF capacitors to minimize vibration.
4. Strong and durable for indoor/outdoor use
This mesh fan motor features a corrosion-resistant 98*24mm silicon steel stator that can withstand humidity, dust or light outdoor exposure in coastal areas. It powers semi-outdoor ceiling fan motors in covered terraces, garage workshops, or shaded industrial areas. The rust-proof coating and sealed bearings extend service life by 30% in harsh conditions, reducing maintenance needs in markets, warehouses, or farm sheds.
Product Parameters
Product name | 20 inch net fan motor |
Stator size | 98*24mm |
Voltage | 220V/50Hz |
Wire winding material | Copper,Aluminum or CCA |
Power | 60-85W |
Capacitor | 2.5μF,450VAC |
Speed | 1350-1500RPM |
Noise level | <60dB |
Rotation direction | CW |
Insulation level | Class E |
Product Application
1. Residential: large living room or open-plan house
2. Industrial: production workshop, warehouse, etc.
3. Outdoor: covered terrace or balcony
Product Packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Can be in Whloe set or SKD packing.
