Introduction
Among the various types of electric motors, the universal motor stands out for one remarkable feature: it can operate on both AC and DC power. Unlike CBB61 capacitor motors (which use a capacitor for phase shifting) or shaded pole motors (which use a shading coil), universal motors use a series-wound design with brushes and a commutator.

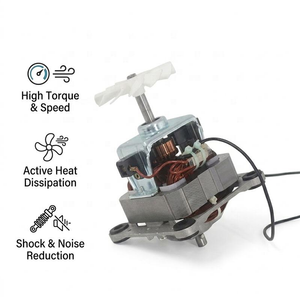

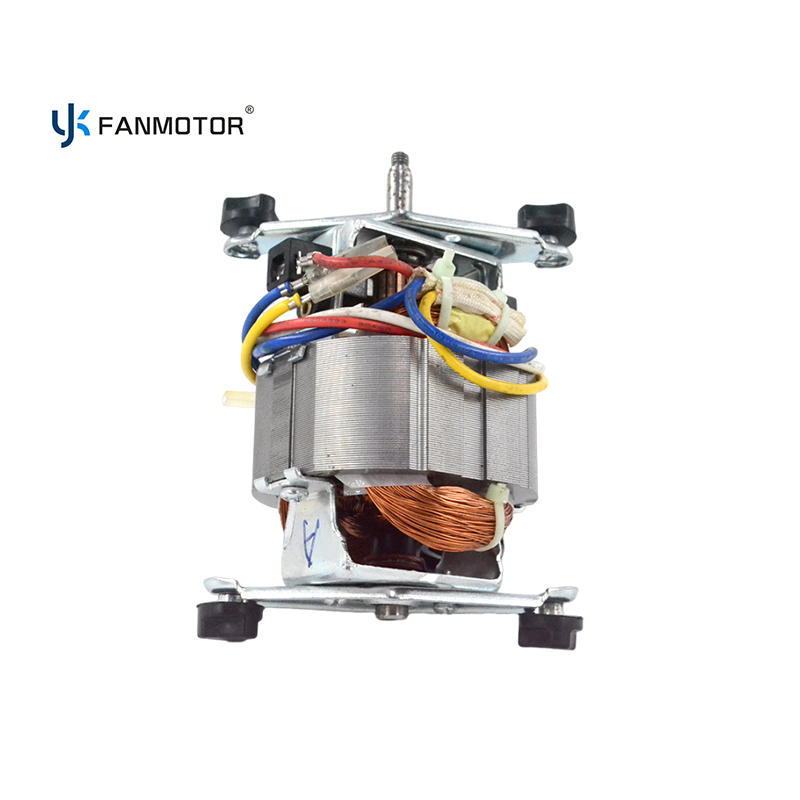

What Is a Universal Motor?
A universal motor is a commutated series-wound motor where the stator field coils are connected in series with the rotor windings through a commutator and brushes. It is essentially a DC series motor specially designed for AC operation.
Working Principle
On DC supply – Current flows through field coils and armature in series, creating magnetic field that produces torque
On AC supply – Current in both field and armature alternates synchronously. Because both reverse at the same time, the mechanical force always occurs in the same direction
Series connection – Field windings connected in series with armature via brushes
Key Characteristics
Characteristic | Detail |
Power supply | Both AC and DC |
Starting torque | High |
Maximum speed | Up to 20,000 RPM |
Capacitor | Not required |
Size | Compact and lightweight |
Noise | Relatively noisy |
Brush wear | Brushes require periodic replacement |
Applications of Universal Motors
Kitchen appliances: Blenders, juicers, mixers, meat grinders, food processors
Power tools: Drills, saws, grinders
Vacuum cleaners, hairdryers, sewing machines
Universal Motor vs. CBB61 Capacitor Motor
Feature | Universal Motor | CBB61 Capacitor Motor |
Capacitor | No | CBB61 run capacitor |
Power supply | AC or DC | AC only |
Speed | High (often exceeding 10,000 RPM) | Low & Stable(typically 1,500 or 3,000 RPM) |
Starting torque | High | Moderate |
Noise | Noisy | Quiet |
Brush maintenance | Required | None(Long Lifespan) |
Best for | High-speed appliances | Fans and ventilation |
Conclusion
The universal motor's high speed and high starting torque make it ideal for kitchen appliances that require rapid, powerful operation. For fan and ventilation applications where quiet, continuous operation is needed, the CBB61 capacitor motor remains the better choice.
