Introduction
Household fans are essential cooling appliances for summer. In hot weather, when choosing a fan, most people focus on wind speed and the number of gears, but less attention is paid to the motor—the "heart of the engine" that silently drives the blades. However, this often overlooked component is crucial to a fan's performance, affecting its wind speed stability, noise level, and lifespan.
This article focuses on common household AC fan motors to answer the question "What exactly is a household AC fan motor?" and disassembles its core components. It aims to help readers establish a basic understanding of AC fan motors and provide practical reference for daily use, maintenance, and purchase of fans.
What Exactly is a Household Fan Motor?
A household fan motor is essentially a device that converts electrical energy into mechanical energy. It uses the principle of electromagnetic induction to drive the fan blades, ultimately creating air flow and bringing us a cool breeze.
Compared to industrial fan motors (which prioritize high power and high load), household fan motors focus on three core features:
Miniaturization: Occupies minimal space, suitable for home environments with limited placement areas
Low noise: Produces no jarring noise during operation, avoiding disturbing daily life and rest
Low power consumption: Saves electricity costs, reducing the burden of summer energy bills

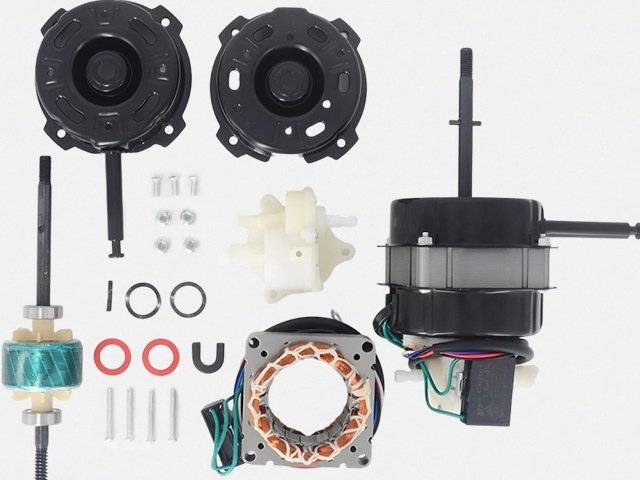

Core Components of a Household AC Fan Motor
Stator: The Fan Motor's "Fixed Magnetic Field Center"
The stator is the core component that lays the foundation for the motor's operation. It consists of two key parts:
Silicon steel core: Constructed by stacking multiple thin silicon steel sheets. This design reduces eddy current losses (energy waste caused by magnetic field changes) and increases magnetic permeability (improves the efficiency of magnetic field transmission). The density of the core laminations directly affects magnetic efficiency—denser laminations mean lower energy losses.
Stator windings: Made of insulated enameled copper wire, wound regularly within the core slots. They are divided into primary and secondary windings:
Primary winding: Responsible for receiving AC power and generating the basic magnetic field
Secondary winding: Cooperates with the starting capacitor to assist the motor in starting and maintaining stable operation
Working principle: When AC power is applied, the primary and secondary windings work together to generate a rotating magnetic field, which provides the driving force for the rotor's rotation. The wire diameter and number of turns of the windings determine the motor's power output—proper design ensures a balance between strong power and effective heat dissipation.
Rotor: The Fan Motor's "Rotating Driving Core"
The rotor is the component that directly drives the fan blades, serving as the core for mechanical energy output. Its structure includes:
Rotor core: Also made of laminated silicon steel sheets, matching the stator's magnetic field characteristics
Squirrel-cage winding: Consists of copper or aluminum bars embedded in the core slots, with metal rings short-circuiting the ends to form a closed circuit. This structure enables efficient induction of current from the stator's magnetic field.
Shaft: A metal rod fixed to the rotor core. One end is connected to the fan blades, and its machining precision directly affects the motor's operational quality.
Working principle: When the stator's rotating magnetic field passes through the rotor, it induces a current in the squirrel-cage winding. The interaction between this induced current and the stator's magnetic field generates electromagnetic torque, driving the rotor and shaft to rotate. The shaft then drives the fan blades to spin, creating air flow.
Key note: High smoothness and coaxiality of the shaft reduce friction with bearings, lower operating noise, and minimize wear—effectively extending the motor's lifespan.
Support and Protection Components
These components ensure the fan motor operates stably and safely, mainly including bearings, end caps, and a housing:
| Component | Material/Type | Function |
| Bearings | Oil bushings, ball bearings | Connect stator and rotor, reduce rotational drag: Oil bushings: Low cost, rely on oil film lubrication (require regular re-lubrication) Ball bearings: Use steel ball rolling motion, low friction, quiet, wear-resistant (common in high-end silent fans)
|
| End caps (front/rear) | Plastic or metal | Fix the stator and rotor in place; seal against dust to prevent damage to internal windings |
| Housing | High-temperature-resistant insulating iron/steel | Surround the motor to prevent electric shock; dissipate heat through heat dissipation holes to avoid overheating damage |
Mechanical Transmission and Starting Components
These components ensure the fan motor can start normally and transmit power as needed, with two core parts:
Gearbox: Adjusts the transmission ratio through an internal gear train. It converts the motor's high-speed rotation into a speed and torque that matches the fan blades, enabling functions such as fan oscillation (left-right swinging) and multi-speed regulation.
Starting capacitor: Essential for single-phase AC motors (the most common type in household fans). Connected in series with the secondary winding, it generates a magnetic field that is 90° out of phase with the primary winding's magnetic field. The superposition of these two magnetic fields forms a rotating magnetic field, which drives the motor to start.
Warning: A damaged starting capacitor is a common fault cause. If the capacitor is faulty, the motor may make unusual buzzing noises but not rotate—prompt replacement is required to avoid further damage.
The Relationship Between Core Components and Fan Usage
How Components Affect Fan Experience
| Component | Impact on Fan Performance | Practical Suggestions |
| Bearings | Affects noise level and lifespan: Ball bearings: Quiet, maintenance-free (suitable for bedrooms, studies) Oil bushings: Low cost but noisy if unmaintained (suitable for kitchens, balconies)
| Choose ball bearings for quiet needs; select oil bushing for cost-sensitive scenarios |
| Stator windings | Determines wind speed and power consumption: Proper design: Strong wind, low energy consumption Inadequate design: Weak wind, easy overheating | Check fan power parameters when purchasing; avoid products with excessively low power (may have winding defects) |
| Starting capacitor | Crucial for starting: Good quality: Fast, smooth start Damaged: Difficult to start, abnormal noise
| Test the fan's start speed when purchasing; if it starts slowly or makes noise, check the capacitor |
Simple Maintenance Tips for Core Components
Proper maintenance of core components can significantly extend the fan's lifespan. Here are practical tips:
Bearings:
Oil bushings: Add 2-3 drops of special lubricant (e.g., sewing machine oil) every 6-12 months
Ball bearings: Only need regular dust removal (no lubrication required under normal use)
Dust cleaning:
Disconnect the power supply first
Use a soft brush or dry cloth to clean dust from the motor end cap and housing (avoid water to prevent short circuits)
Fault troubleshooting (fan stops spinning or freezes):
Step 1: Check the starting capacitor for bulging, leaking fluid, or other damage (replace if faulty)
Step 2: If the capacitor is normal, check the shaft for foreign matter or bearing wear (remove foreign matter or replace bearings as needed)
Conclusion
A household AC fan motor is a key device that operates on AC power and converts electrical energy into mechanical energy. Its core components—stator, rotor, bearings, and starting capacitor—collectively determine the motor's performance, which in turn affects the fan's wind speed, noise level, and lifespan.
In daily use, you can initially assess the motor's operating status by observing the condition of these core components. If any anomalies occur (e.g., abnormal noise, difficulty starting), promptly troubleshoot and maintain to prevent further problems.
When choosing a traditional household AC fan, consider your specific needs for noise (e.g., quiet for bedrooms) and wind speed (e.g., strong wind for living rooms) to select a more durable and suitable product—ensuring a cool and comfortable summer.
