Introduction
A cross flow fan—also known as a tangential blower or transversal fan—operates on a unique principle: air enters perpendicular to the axis of rotation and is discharged tangentially across the width of the fan. This design enables a broad, uniform distribution of air.
Because of this long, slim profile, crossflow fans seamlessly fit into tight, flat spaces—making them the go-to choice for applications like air curtains, HVAC units, and electronic cooling.
Many cross flow fans are powered by shaded pole motors, which provide the quiet, efficient and satble operation needed for ventilation applications.

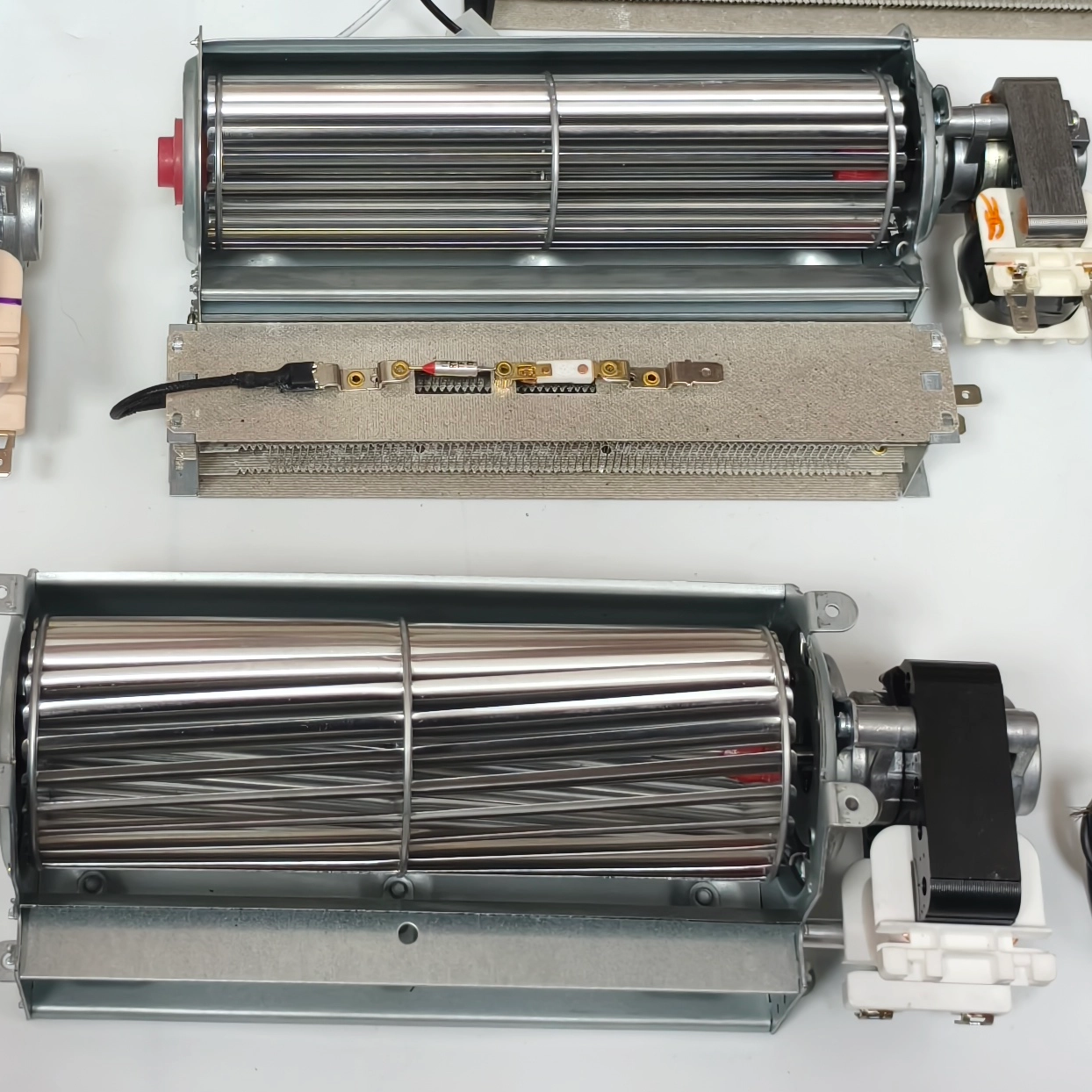

Design of a Cross Flow Fan
Long cylindrical impeller – spanning the full width of the fan
Curved or radial blades – arranged around the impeller
Scroll housing – surrounds the impeller and guides airflow
Drive motor – typically a shaded pole motor
Working Principle
The operation of a crossflow fan relies on a continuous, dynamic fluid process divided into four key stages:
Air Intake: Ambient air is drawn into the outer diameter of the rotating impeller, entering uniformly over the entire length of the intake side.
Vortex Formation: As the air enters, the guide scroll and eccentric housing force the air to "stir" in concentric circles, establishing a stable internal vortex.
Air Acceleration: The air is continuously swirled, compressed, and accelerated by this powerful vortex as it crosses the interior blade structure.
Discharge: Finally, the air is straightened and discharged tangentially as a smooth, continuous air curtain from the opposite side of the housing.
Cross Flow Fan vs. Axial Fan
Feature | Cross Flow Fan | Axial Fan |
Airflow Direction | Perpendicular to axis | Parallel to axis |
Air distribution | Wide, uniform, flat "sheet" of air. | Focused, cone-shaped column of air. |
Noise level | Lower | Higher |
Installation | Compact, rectangular | Round, requires more depth |
Common Uses | HVAC split units, air curtains, bladeless tower fans, and slim electronics cooling. | PC cooling fans, ventilation exhaust, room cooling fans, condenser units. |
Applications
Exhaust fans – for kitchens, bathrooms, factories
Air curtains – creating barriers between environments
HVAC systems – space-saving ventilation
Electronics cooling – computers, servers
Household appliances – dryers, air cleaners
Why Shaded Pole Motors for Cross Flow Fans?
For the vast majority of small and medium-sized crossflow fans (such as indoor units of household air conditioners, small heaters, electric fireplaces, and small air curtains), shaded-pole motors are the oldest and most widely used preferred choice.The core advantages are as follows:
Ultra-Low Maintenance: A minimalist design with fewer moving parts and a proven manufacturing history ensures long-term durability and minimal downtime.
High Cost-Performance Ratio: Delivers high reliability at a fraction of the cost, perfectly tailored for mass-produced, economical household electronics.
Acoustic & Operational Stability: Features smooth ignition and low electromagnetic interference (EMI), ensuring quiet, seamless operation in close-range indoor settings.
Conclusion
The cross flow fan, powered by a reliable shaded pole motor, offers a versatile and space-efficient ventilation solution. For B2B buyers sourcing ventilation components, this combination delivers the uniform airflow and quiet operation that modern applications demand.
Need cross flow fans with shaded pole motors for your ventilation project? [Get in touch →]
