1. At a Glance
The volume motor for fan programmes that are priced per container.

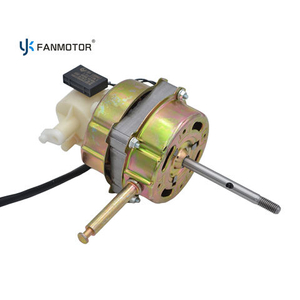

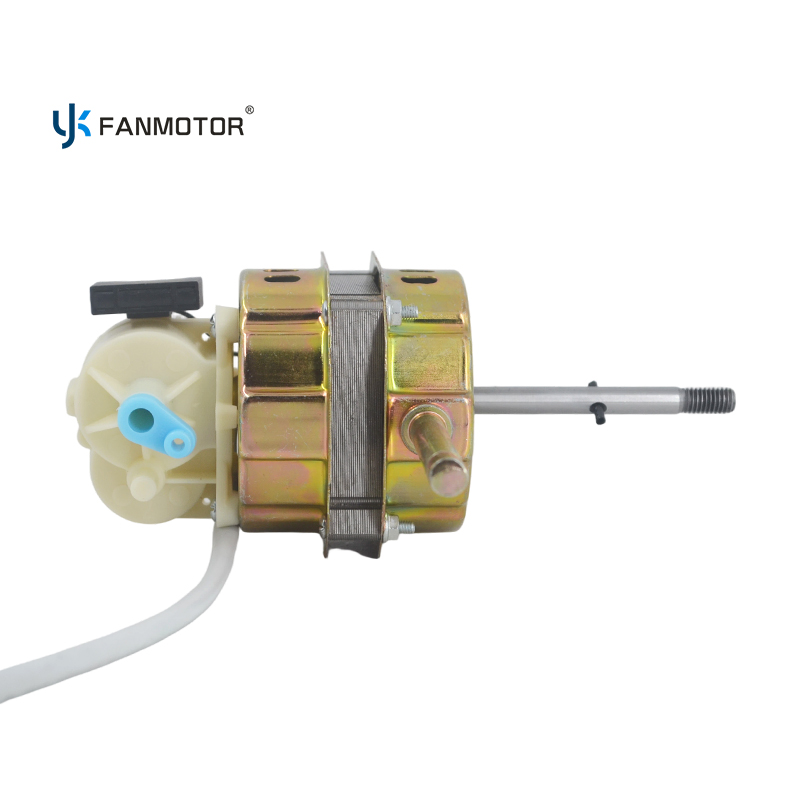

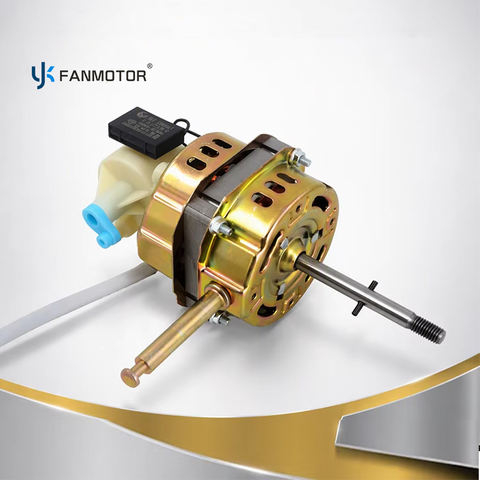

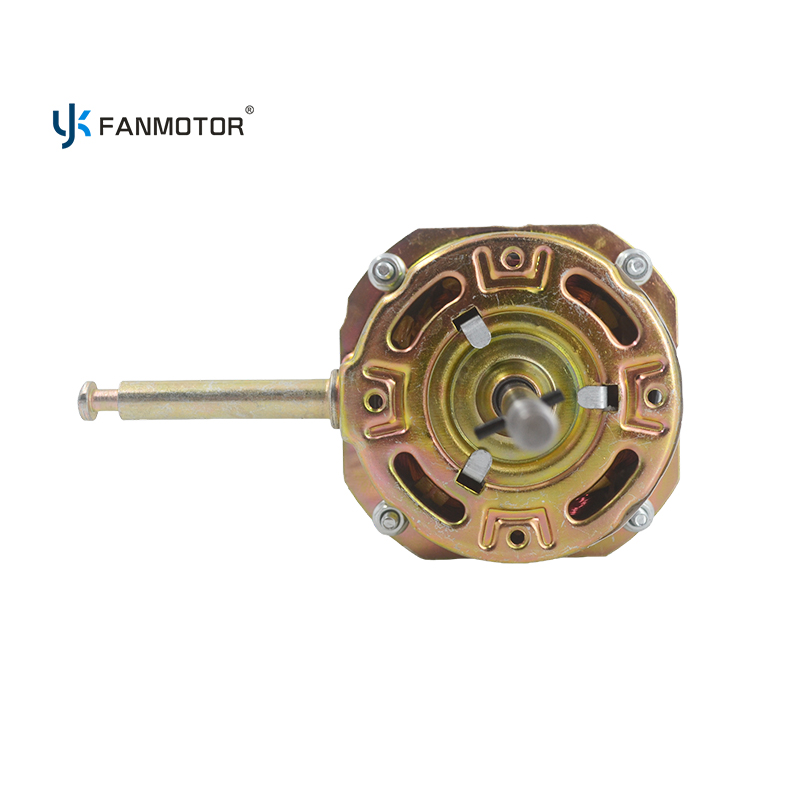

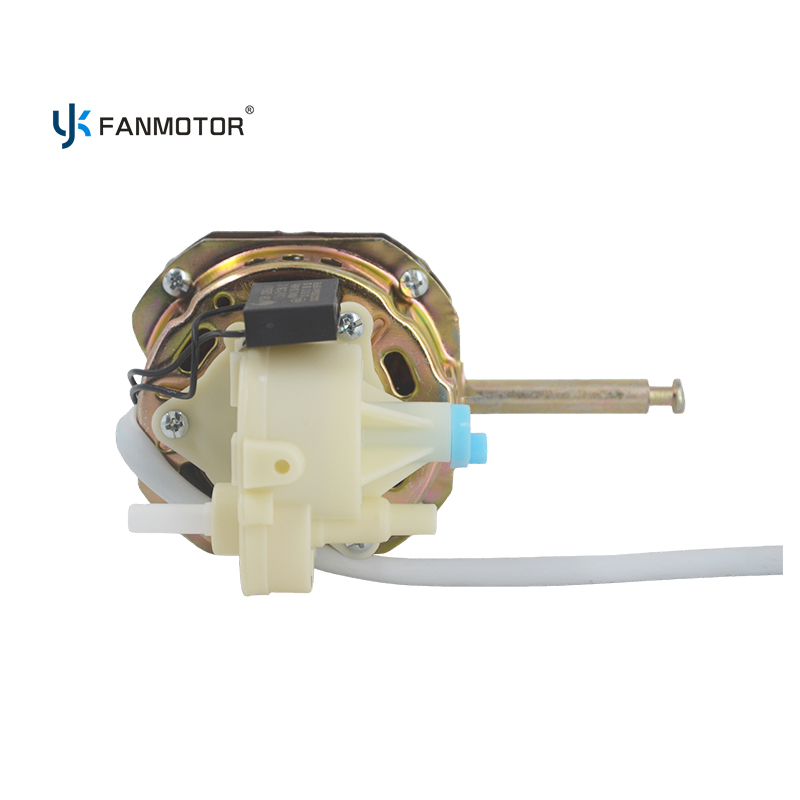

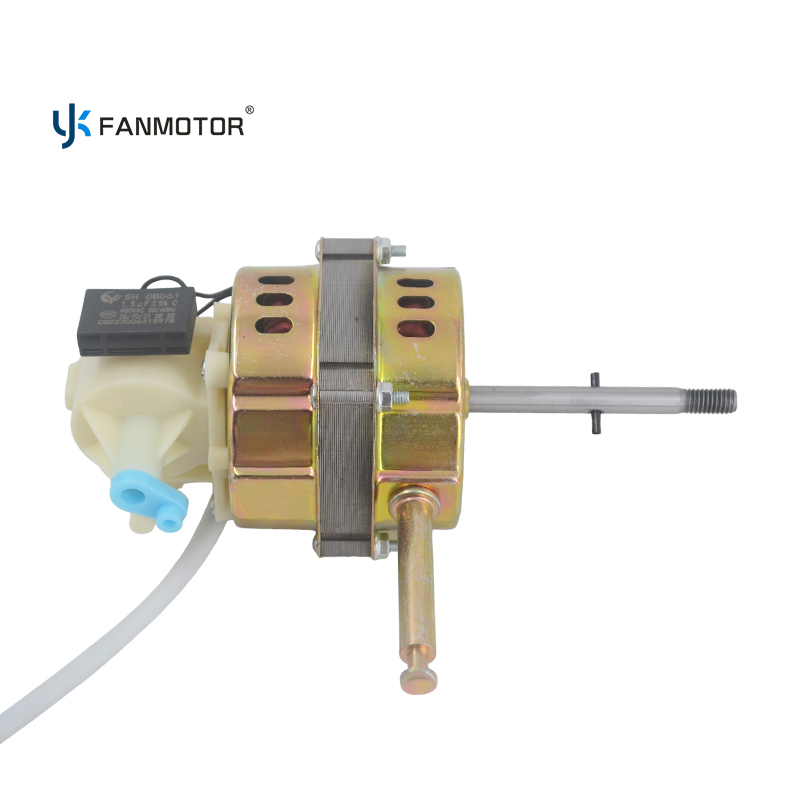

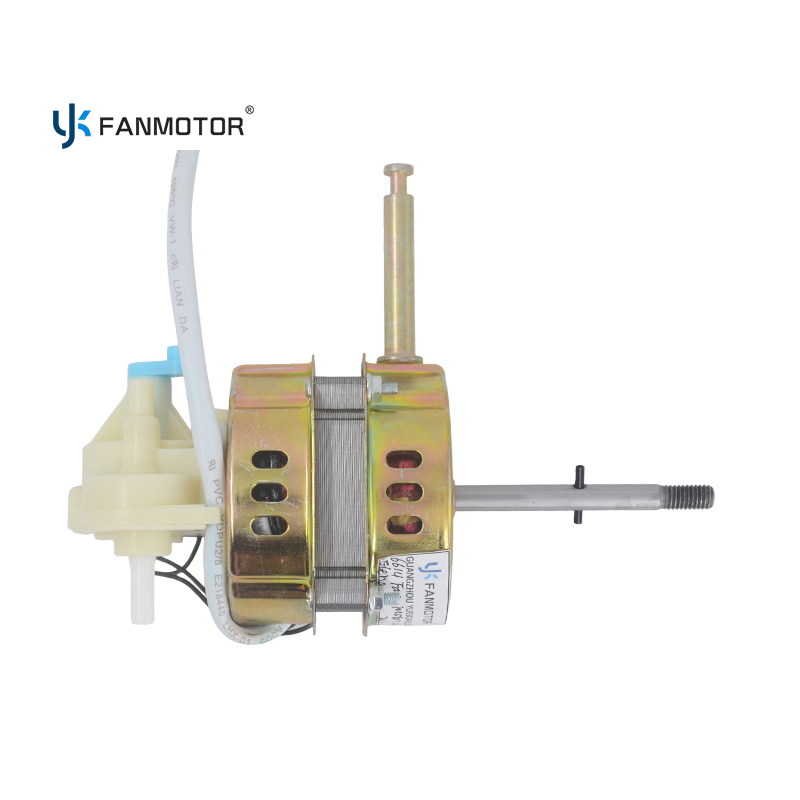

YKF-6614 is a 4-pole, 45-60W motor on the 6614 stator, turning 1200 RPM through an 8mm shaft. Aluminum winding and an oil-impregnated bearing keep the unit cost low, while the slotted metal housing keeps it stable in hot, humid markets. The minimum order is 5,000 pieces, which is what makes both the price and the batch-to-batch consistency possible.
Customization: voltage, lead length, shaft geometry and label.
Applications: 16-inch and 18-inch table fans and stand fans.
Supply: 5,000 piece minimum, 22-day production for up to 10,000 pieces.
2. Why Fan Makers Buy 6614 in Volume
Cost Structure: aluminum winding on a proven lamination set gives a low and stable unit price at container volume.
Thermal Headroom: the slotted metal housing lets heat escape around the stator, which is why the same motor works in tropical markets.
Repeatability: drawings, winding data and packing specifications stay on file, so the fifth order matches the first.
A Realistic Minimum: 5,000 pieces keeps the line in one configuration - below that, cost and lead time both rise, and we will tell you before you commit.
3. Technical Specifications
Model | YKF-6614 |
|---|
Motor type | AC single-phase asynchronous |
|---|
Stator size | 6614 |
|---|
Shaft diameter | 8mm |
|---|
Poles | 4 |
|---|
Rated voltage | 110V / 220V |
|---|
Frequency | 50/60Hz |
|---|
Rated power | 45-60W |
|---|
Rated speed | 1200 RPM |
|---|
Speed settings | 3, 4-wire lead |
|---|
Winding | Aluminum wire |
|---|
Bearing | Oil-impregnated bearing |
|---|
Housing | Metal with cooling slots |
|---|
Capacitor | CBB61 1.5uF / 450VAC |
|---|
Protection | Drip-proof |
|---|
Warranty | 2 years |
|---|
4. Deep Customization & OEM Services
Electrical: 110V/60Hz or 220-240V/50Hz, dual rating available; copper winding on request.
Wiring: lead length, connector and colour sequence matched to your switch.
Mechanical: shaft length, flat, keyway and bracket drilling.
Compliance and branding: CE, RoHS and ISO9001 documents optional with the shipment; nameplate and carton under your brand.
5. FAQ
Q: Why is the minimum order 5,000 pieces?
A: This platform runs on dedicated winding and assembly set-ups. A 5,000-piece run keeps the line in one configuration, which is what protects both the price and the consistency between batches.
Q: Can one order mix 110V and 220V builds?
A: Both are standard builds on this platform. Send the split with your enquiry and we confirm the lead time for the combined order.
Planning a container of 6614 motors? Send your target price, blade size and destination port - we will come back with a quotation and a packing plan.
Request a Bulk Quote | Get a Free Sample
