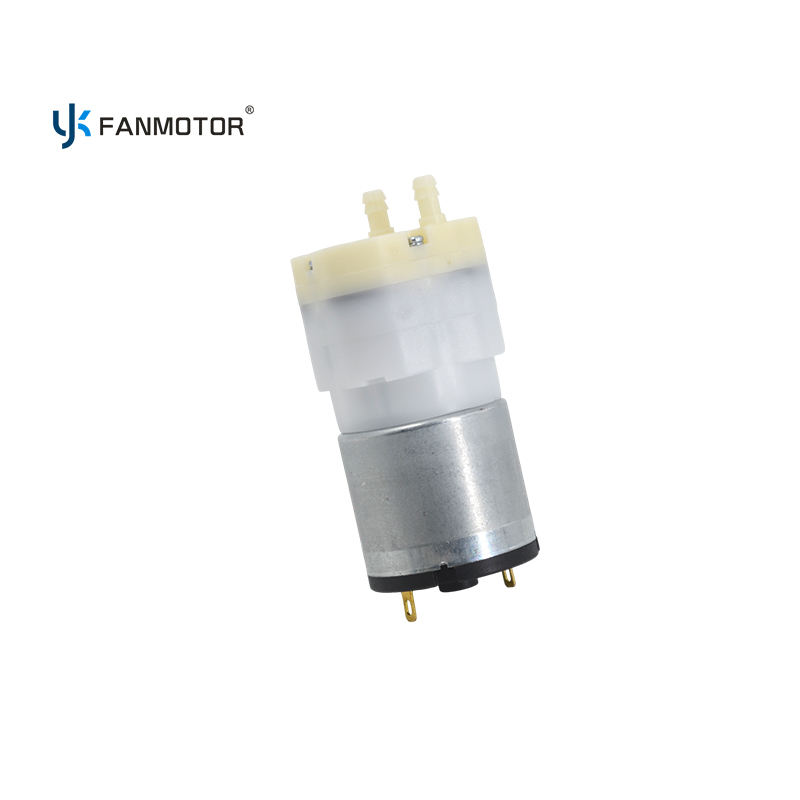

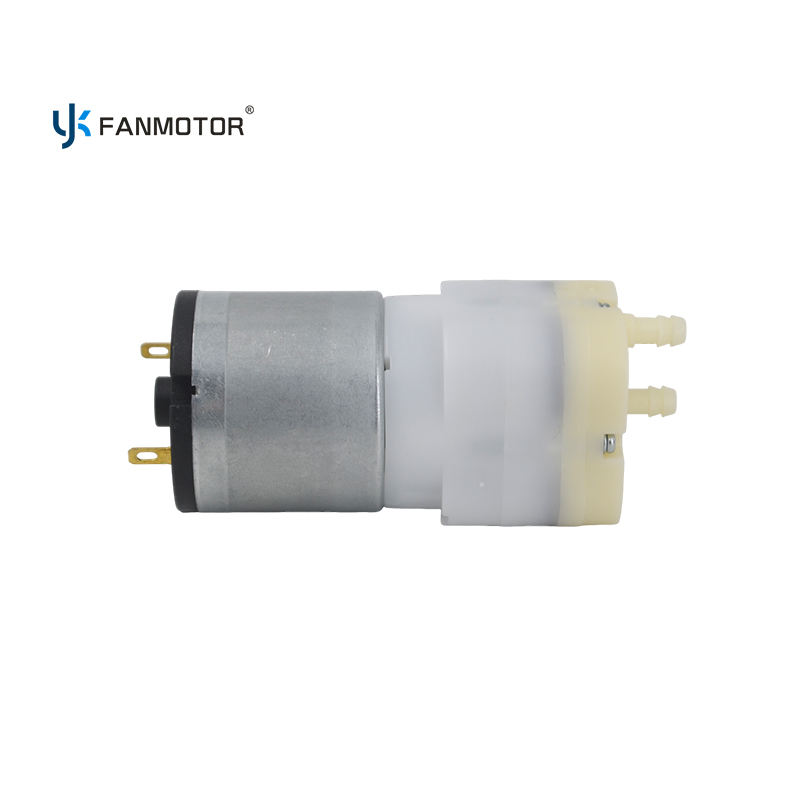

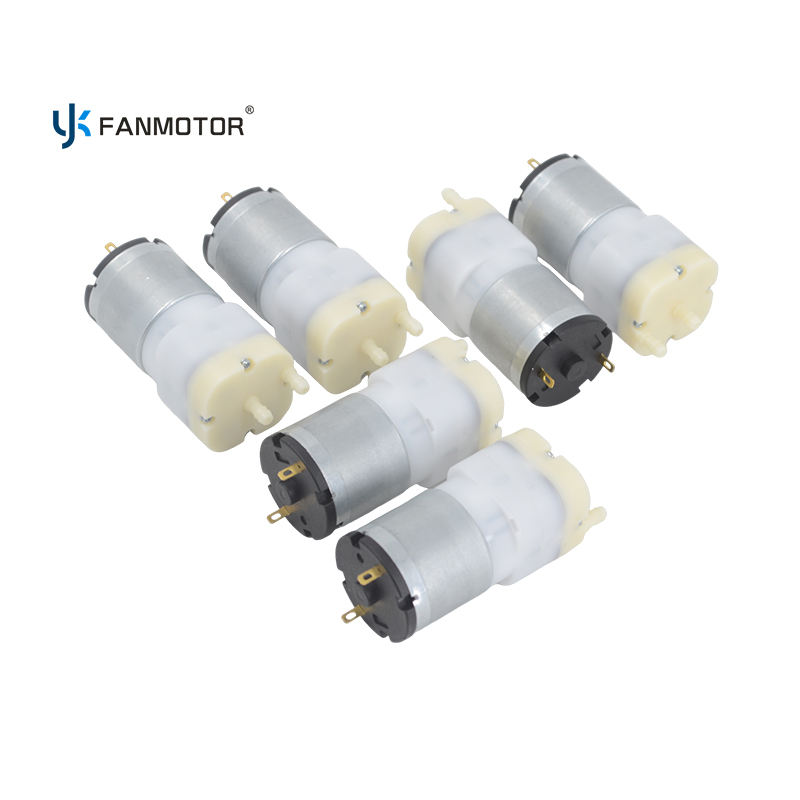

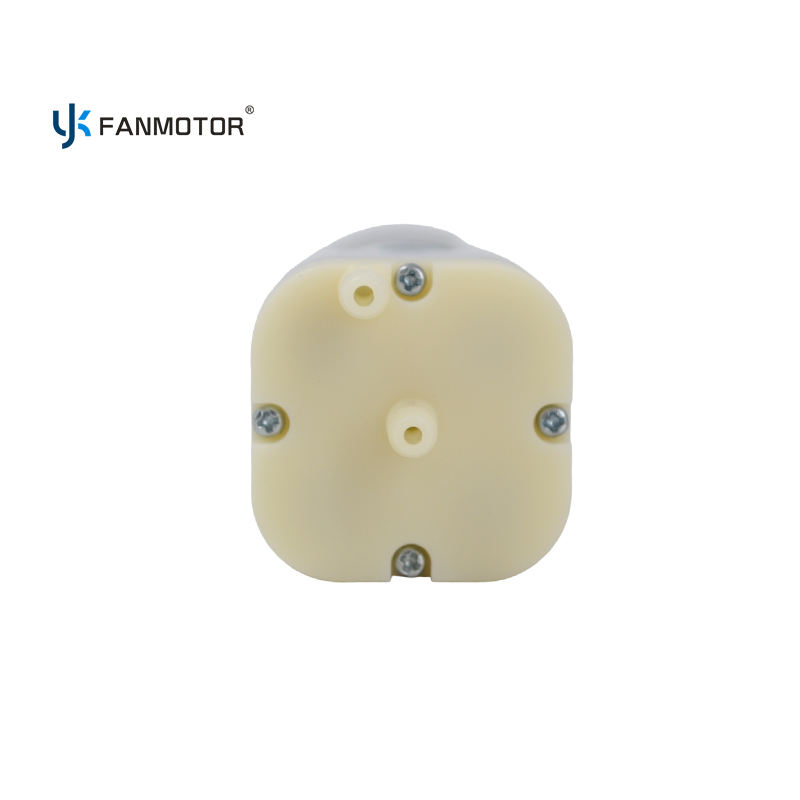

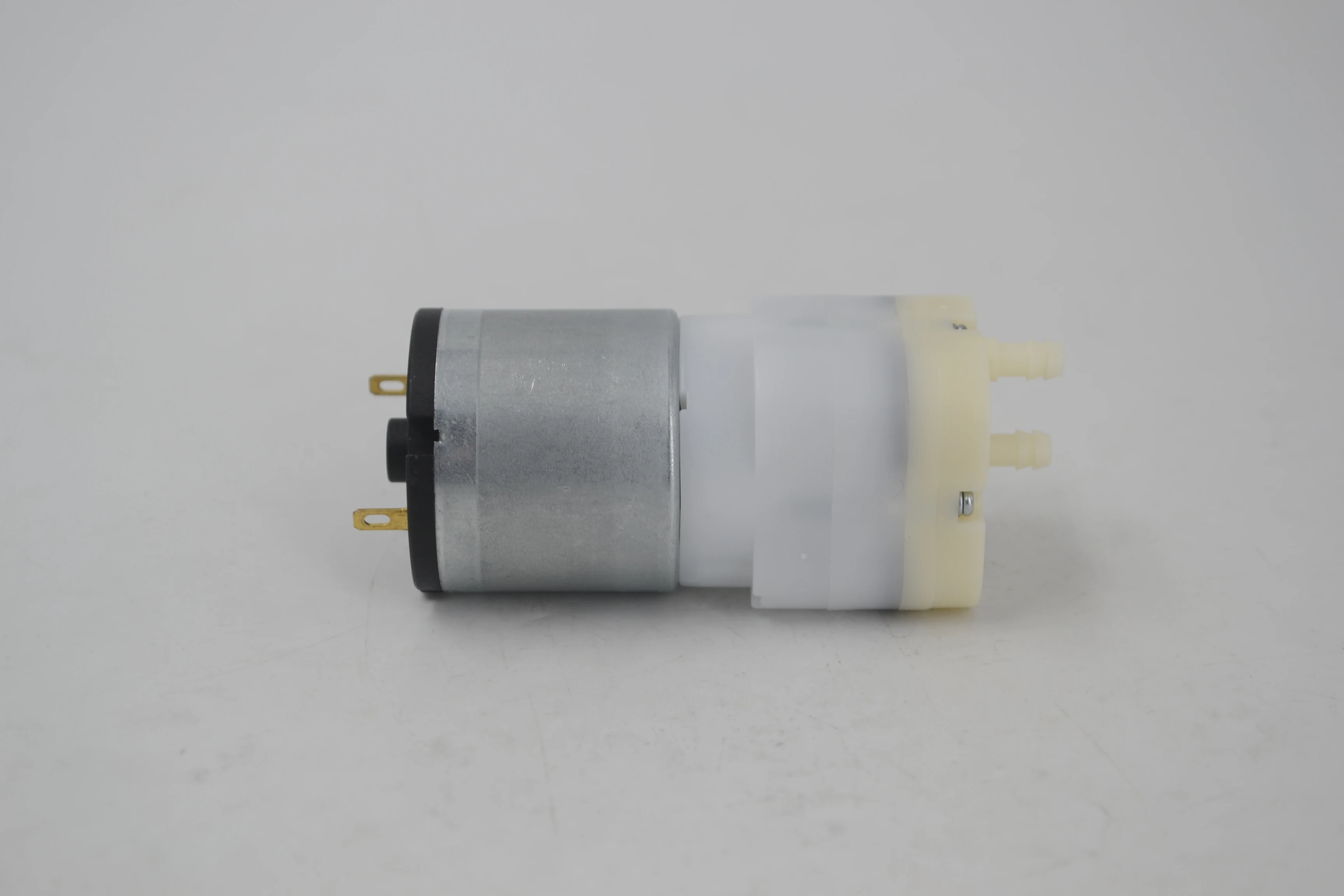

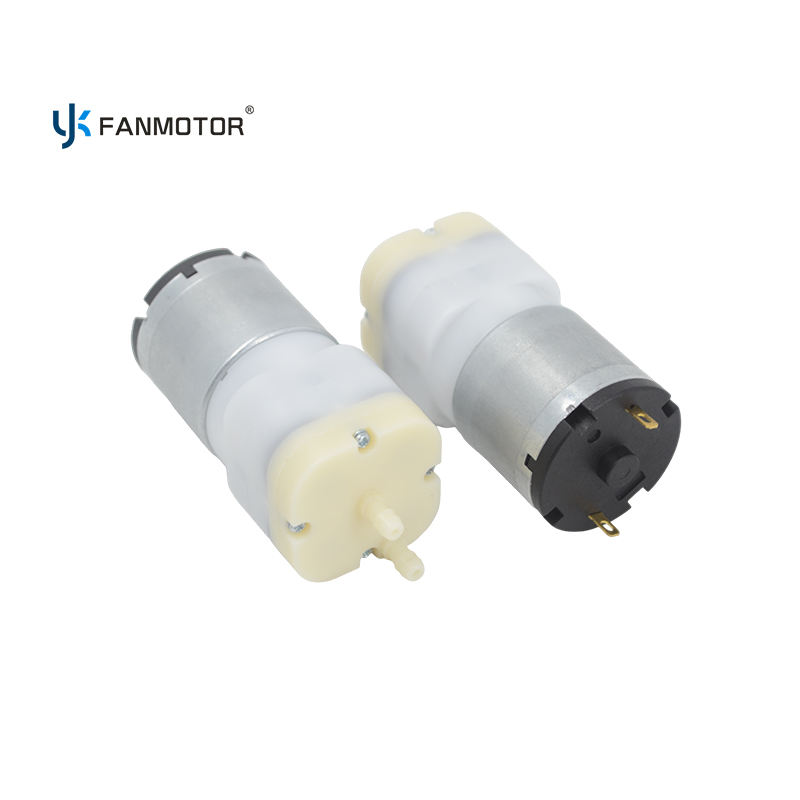

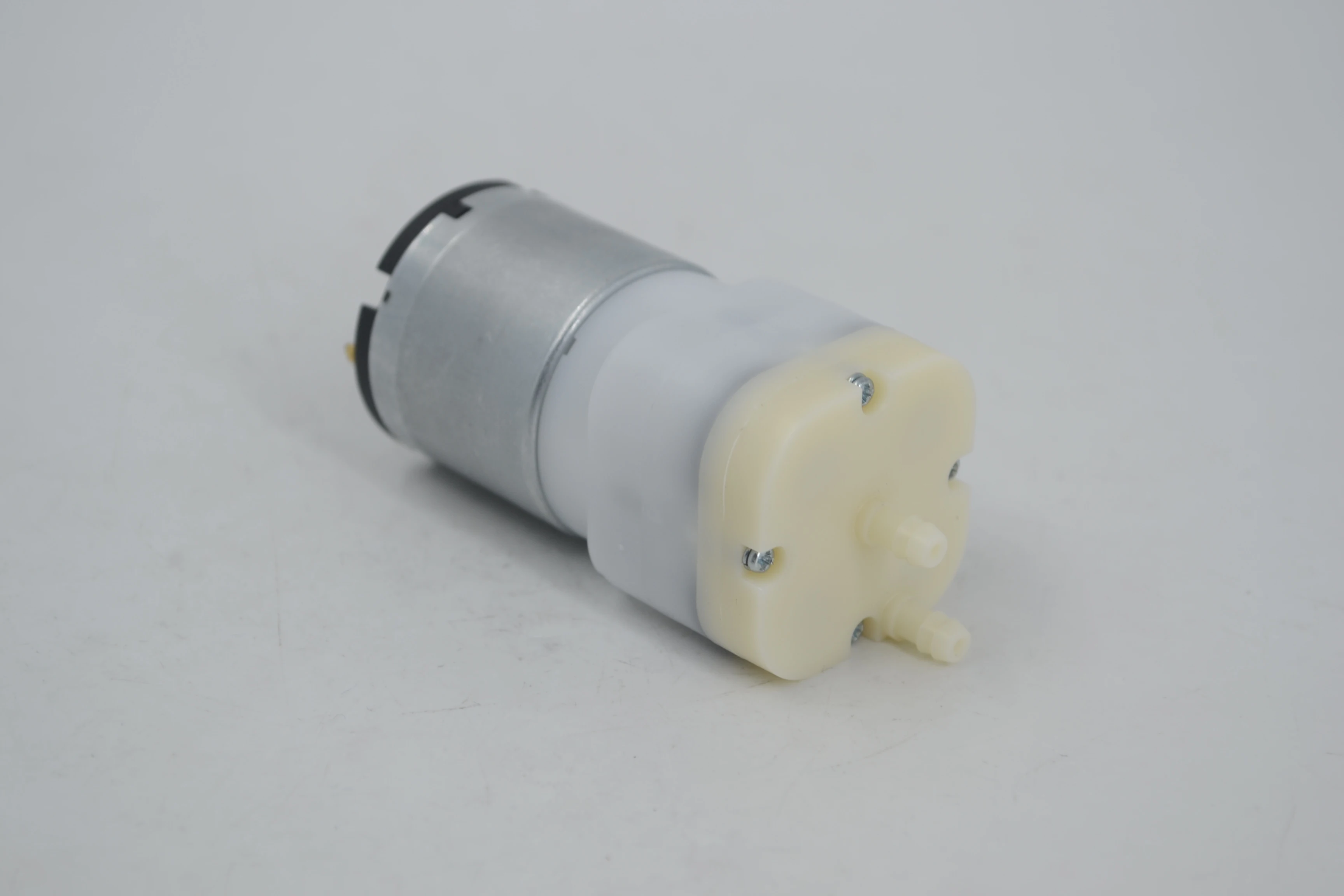

6V DC Micro Diaphragm Pump Motor for Nebulizer Compressor

High-torque 300mmHg DC brush motor design.
Reliable 5L/min airflow drive capacity.
Compact size for portable devices.
Low noise and low electromagnetic interference.
Professional OEM/ODM custom services.
Availability:

Product Overview

The YKFANMOTOR 6V DC miniature brushed motor is a high-performance core component of miniature diaphragm pumps.

This motor is specifically designed for medical nebulizers and portable vacuum equipment,

providing stable torque and speed under continuous load, maintaining a stable flow rate of 5 liters/minute and a pressure of 300 mmHg.

Product Details

粘贴的图片
粘贴的图片
粘贴的图片
粘贴的图片

Easy Installation

Longer Lifespan

Precision Performance

Quiet & Stable

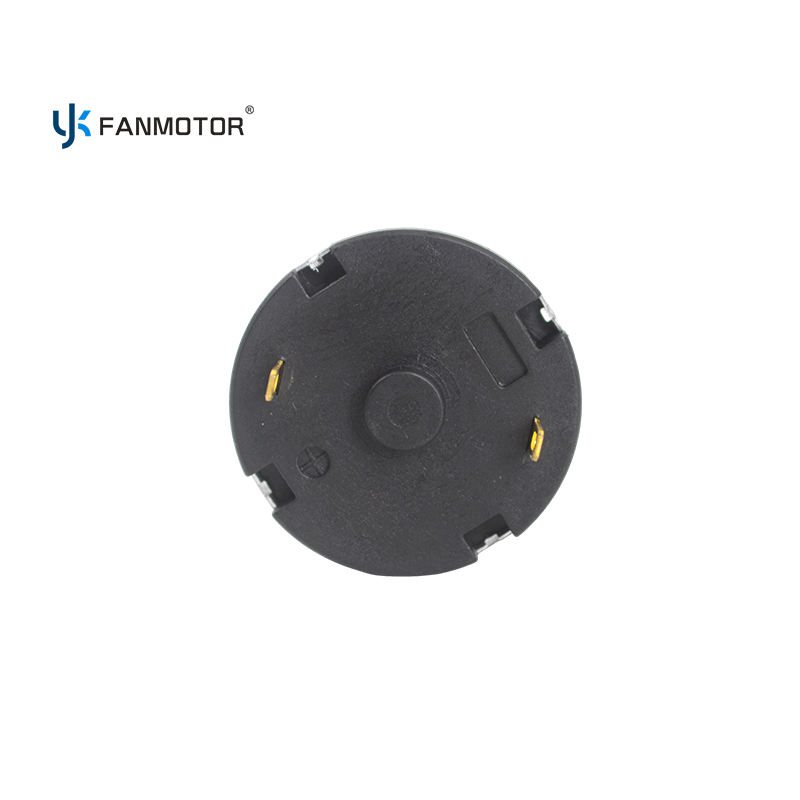

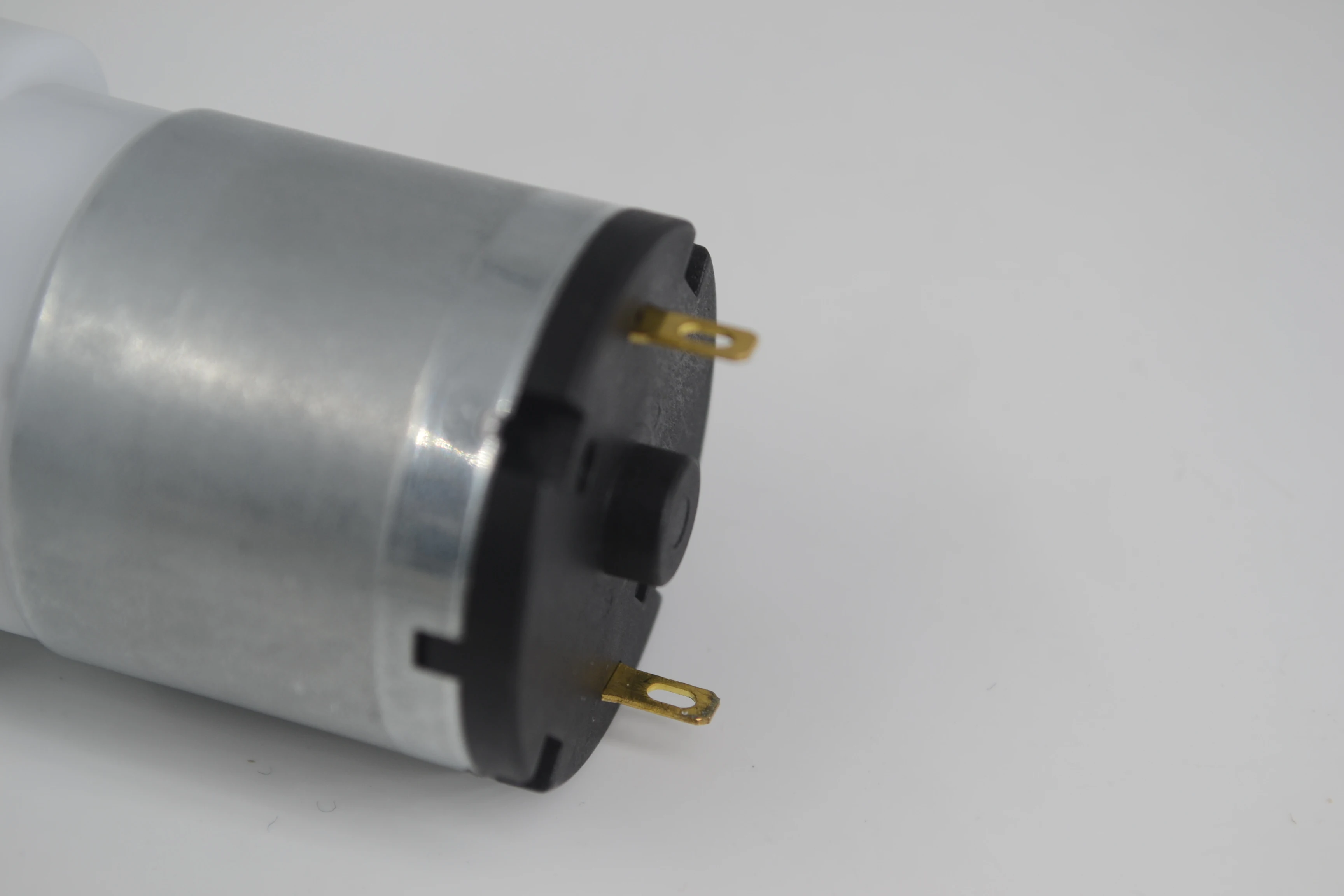

Standard pin connection for quick installation and stable power delivery.

Metal + ABS construction for excellent wear and heat resistance.

Customized interface, perfectly matching your airflow and pressure needs.

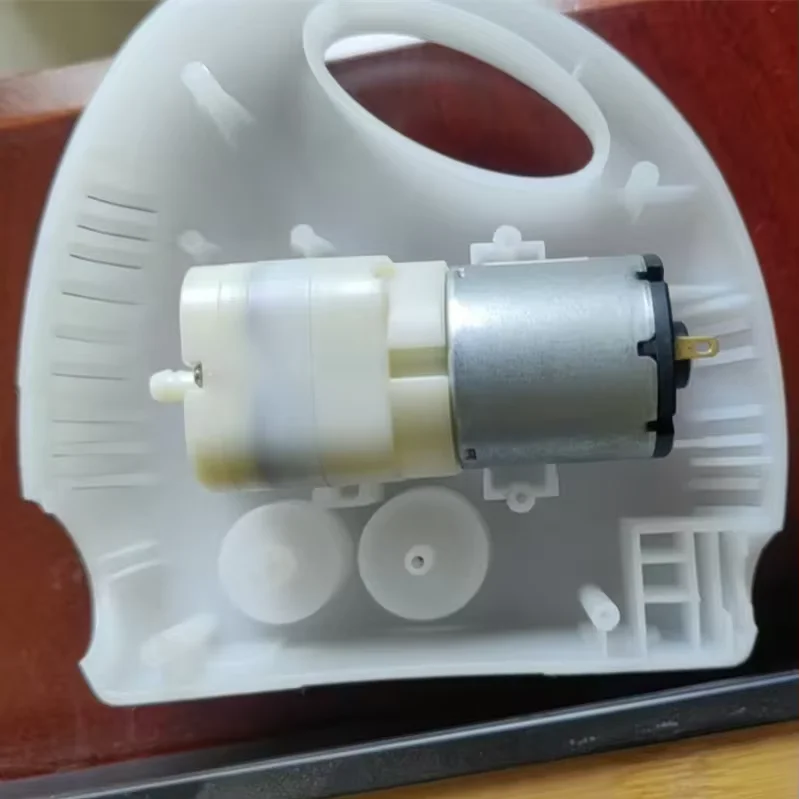

Panel mount design for easy installation, reduced vibration and noise.

Technical Specifications

Parameter

Specifications

Type

Brush Motor (DC)

Rated Voltage

DC 6V (4.5V-7.5V)

Rated Power

15W

Air Flow

>5L/min

Max Vacuum

>70kPa

Air Pressure

300mmHg

Mount Type

Panel Mount

Continuous Current

2.5A

Speed

5000-6000 RPM

Protection Grade

IP40

Applications

This micro DC brush motor is versatile for compact and portable electronics, with common applications including:

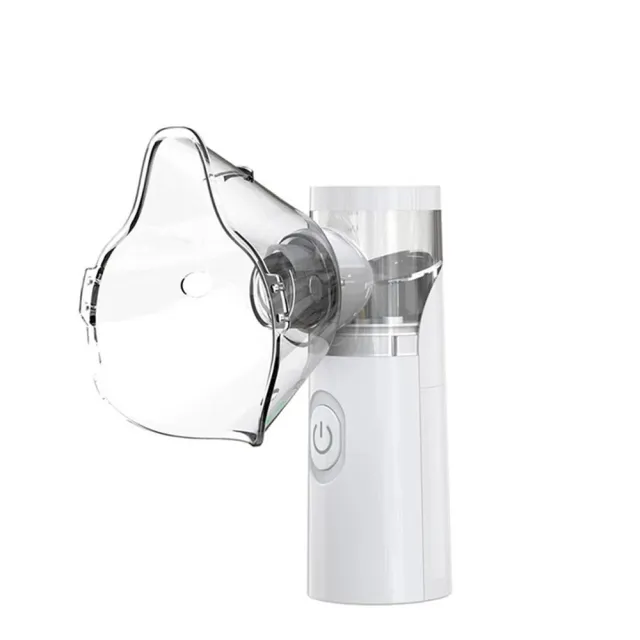

✅ Medical Nebulizers: Reliable power for consistent nebulization performance

✅ Beauty Devices: Smooth, quiet operation for facial/skincare tools

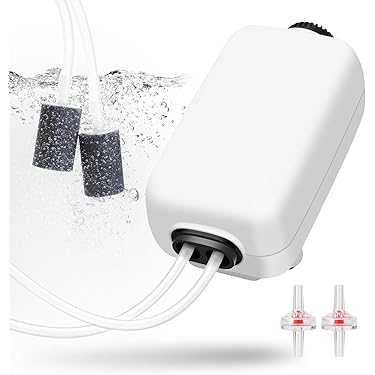

✅ Small Air Pumps: Steady airflow for aquariums, inflatables, and more

✅ Aroma Diffusers: Stable motor performance for continuous mist output
