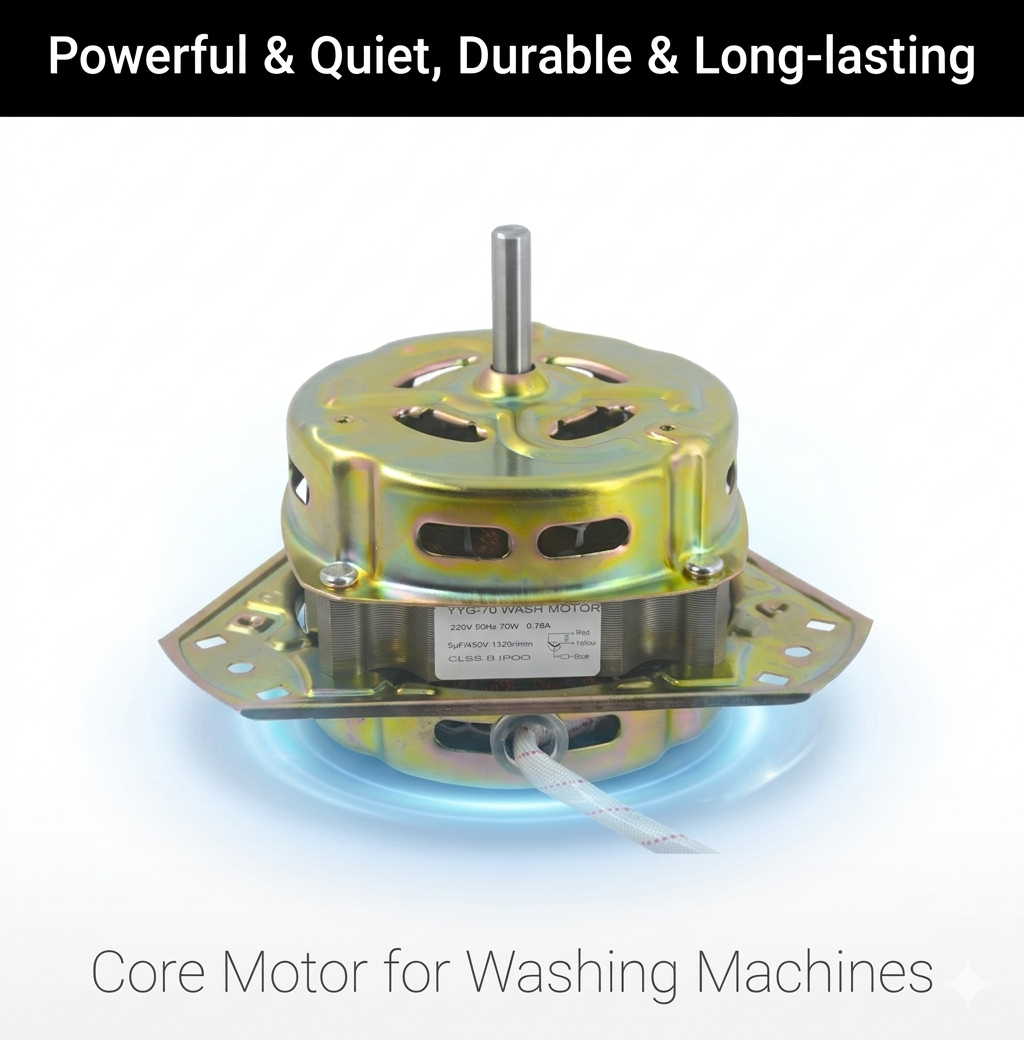

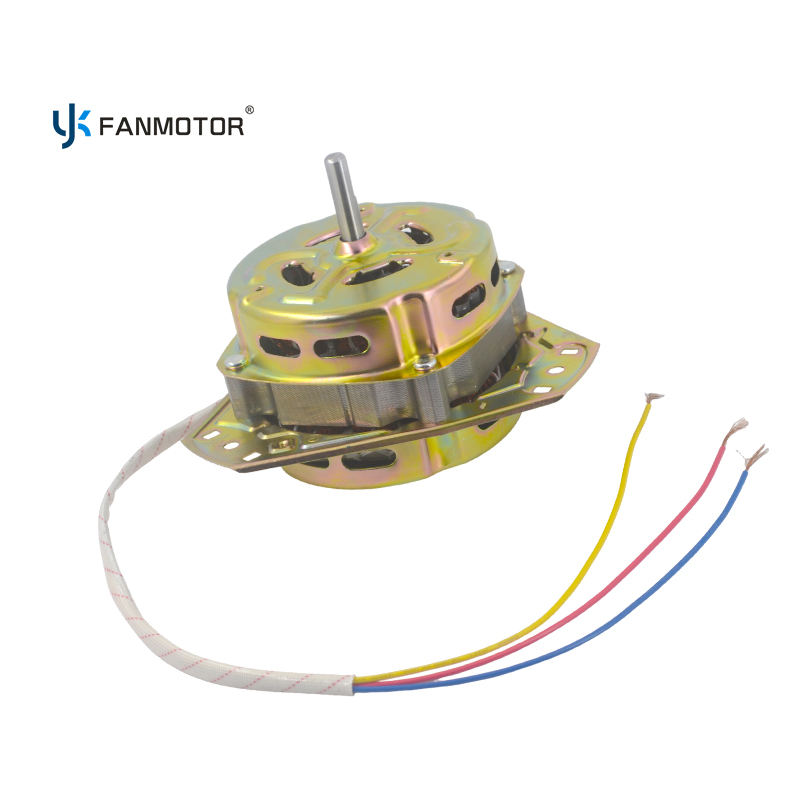

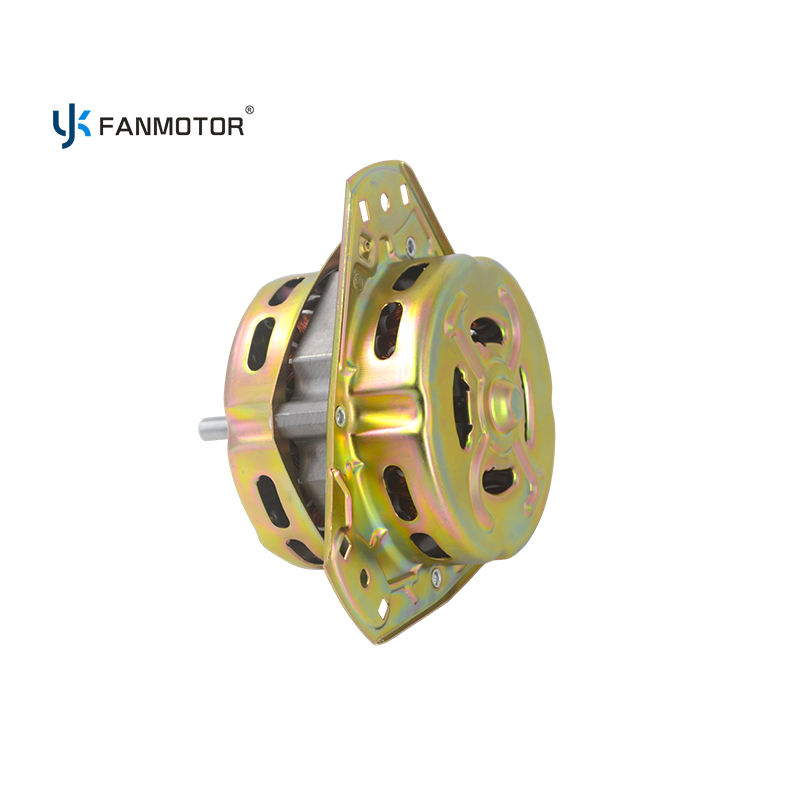

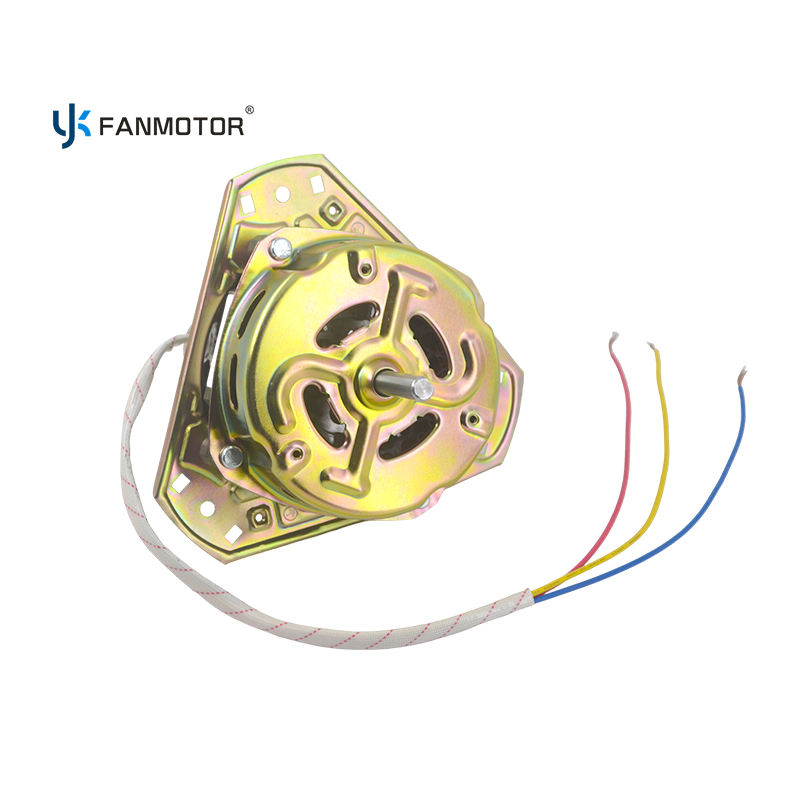

The YKFANMOTOR 70W equilateral rotary spin dryer motor is designed specifically for high-performance semi-automatic washing machines. This motor uses high-quality pure aluminum wire, achieving reliable rotational power while controlling costs, and meets global appliance standards.

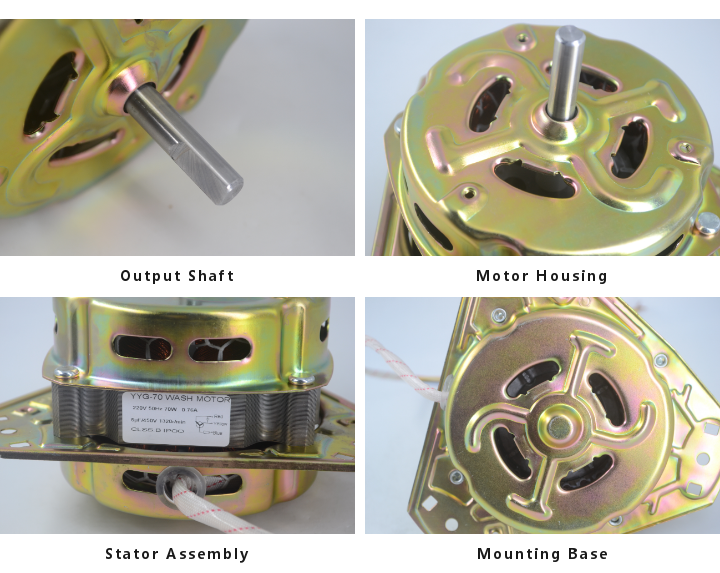

Product Details

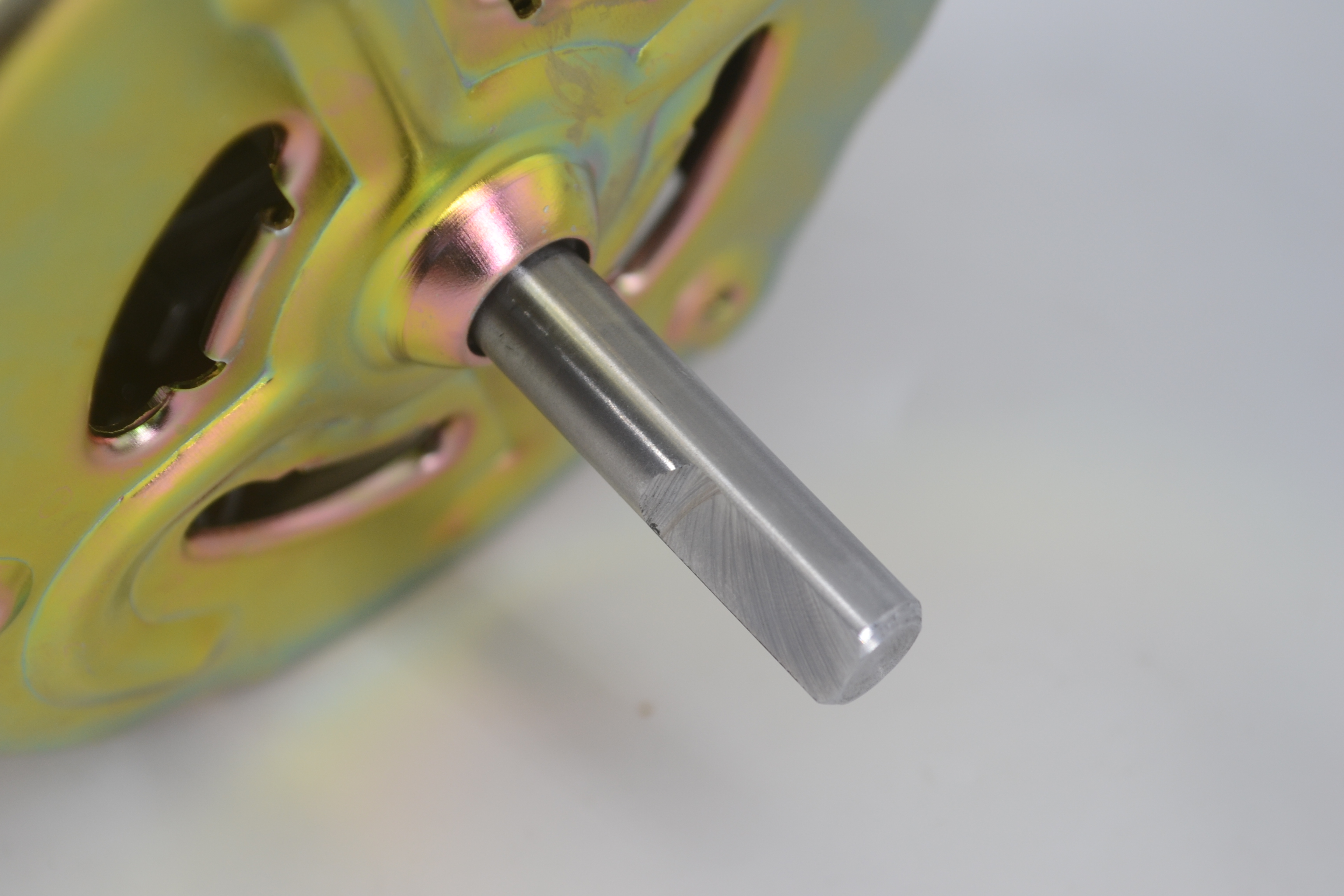

Precision Output Shaft: Smooth & Reliable Power
High-strength steel designed for high-frequency rotation. It ensures a perfect fit with drive structures, eliminating slippage and noise for seamless operation.

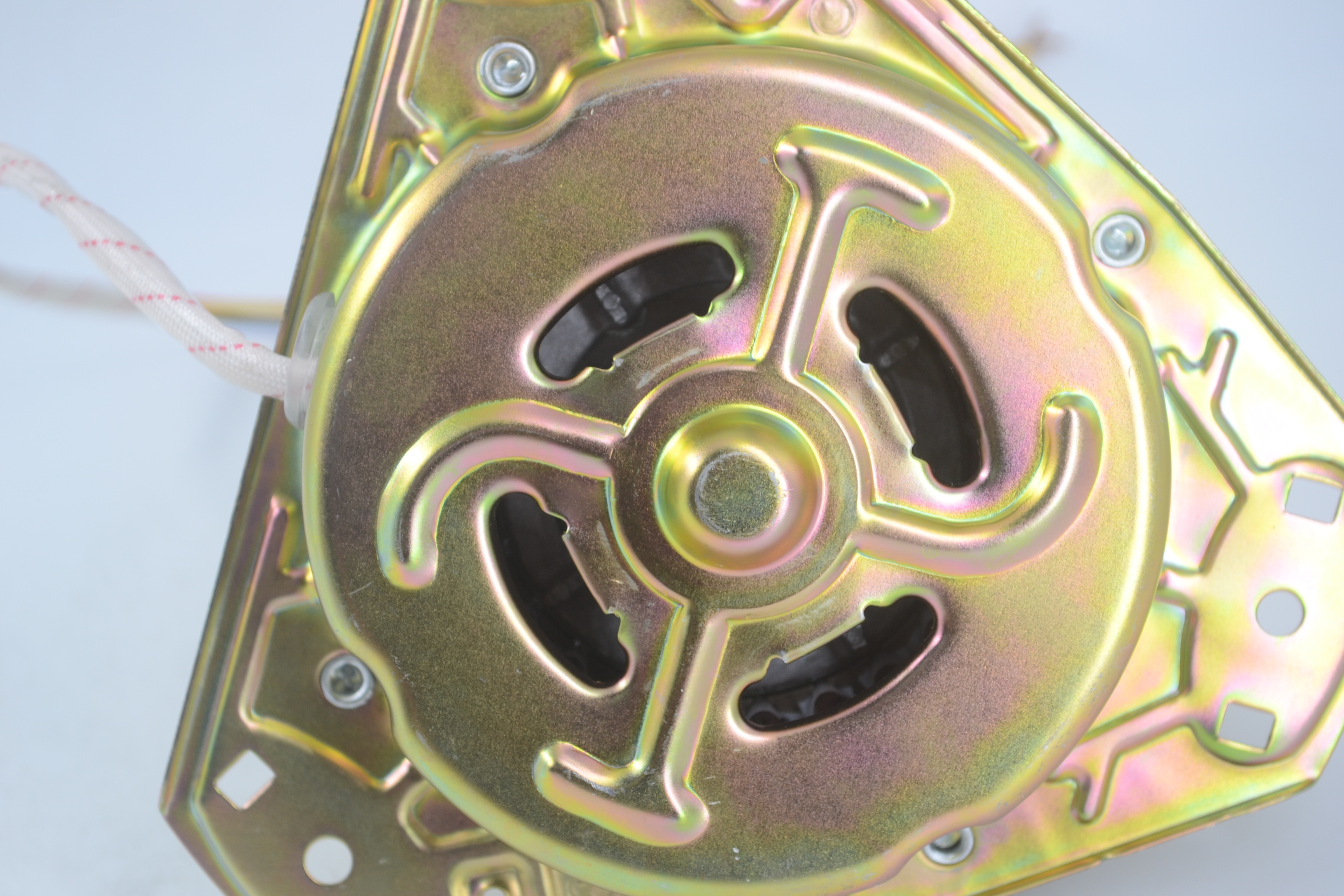

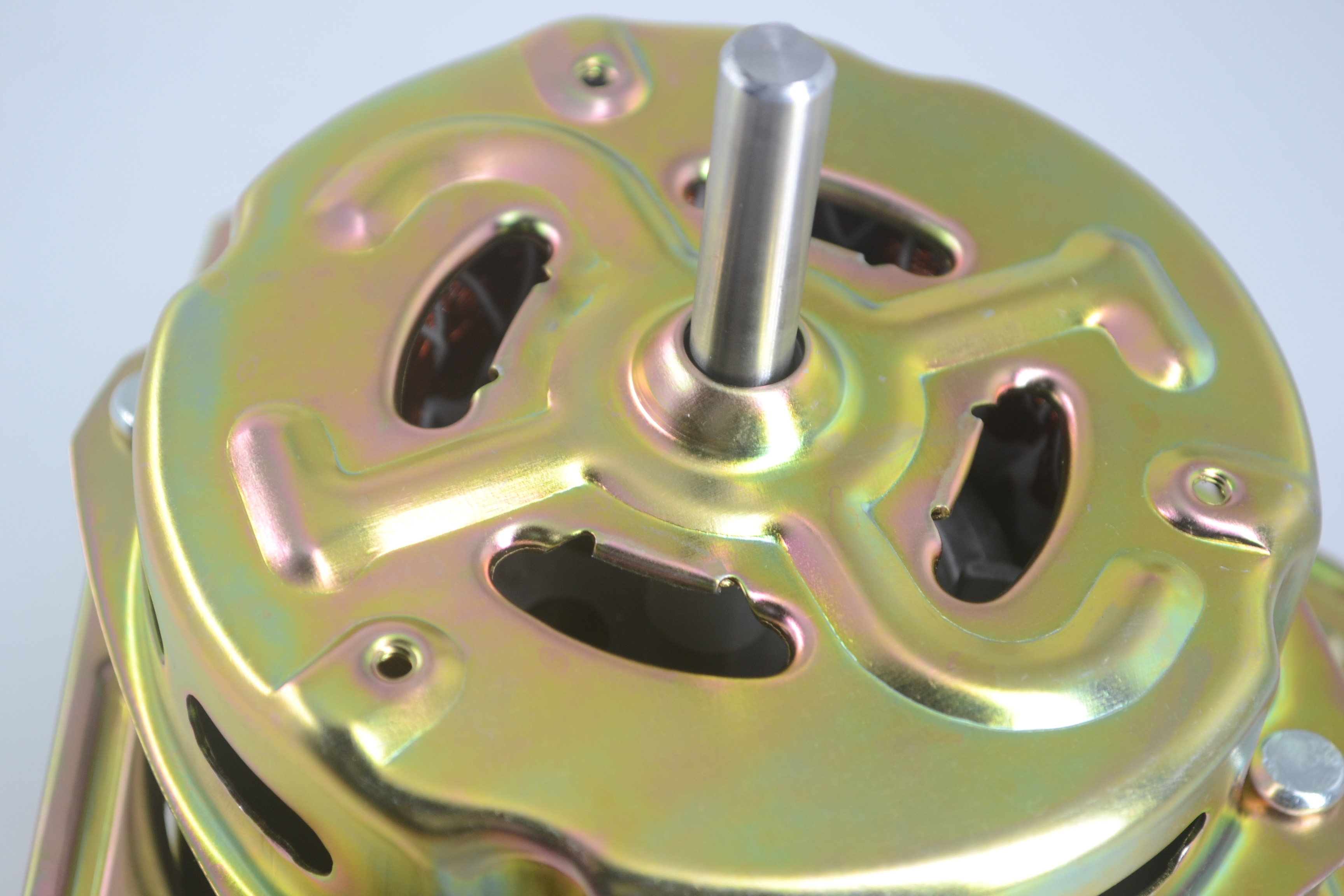

Reinforced Housing: Superior Cooling & Protection
Premium zinc-coated steel offers excellent rust resistance. The multi-hole ventilation design ensures rapid heat dissipation, keeping the motor cool under high loads.
High-Performance Stator: The Powerhouse Core
A premium combination of silicon steel and quality windings. It delivers low energy loss and high torque, providing a stable, powerful core for your machines.

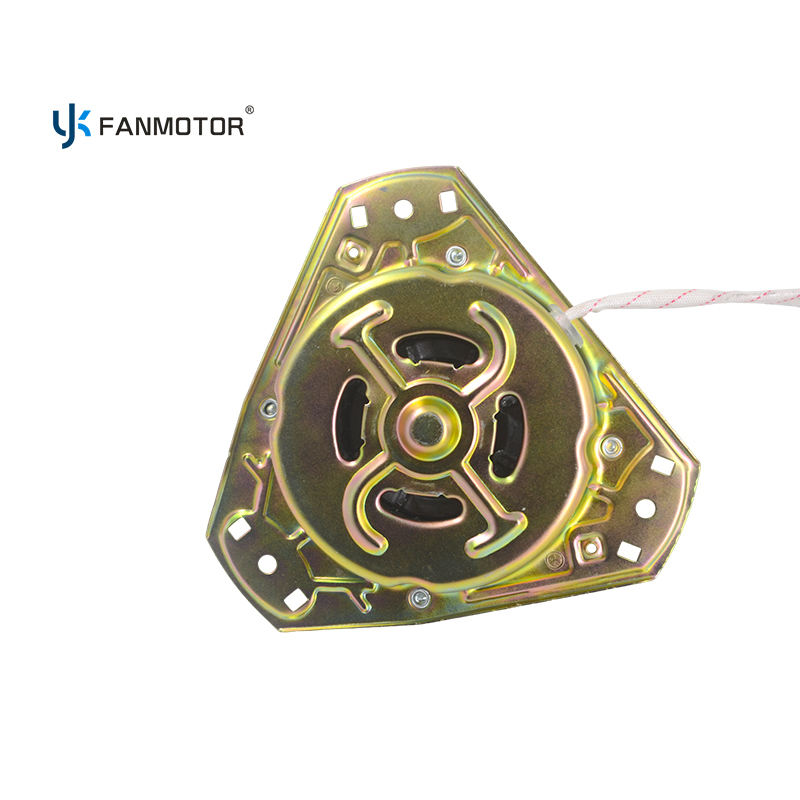

Universal Triangle Base: Rock-Solid Installation
Optimized for mainstream designs with standard mounting holes. It ensures a fast, perfect fit, significantly reducing installation time and labor costs.

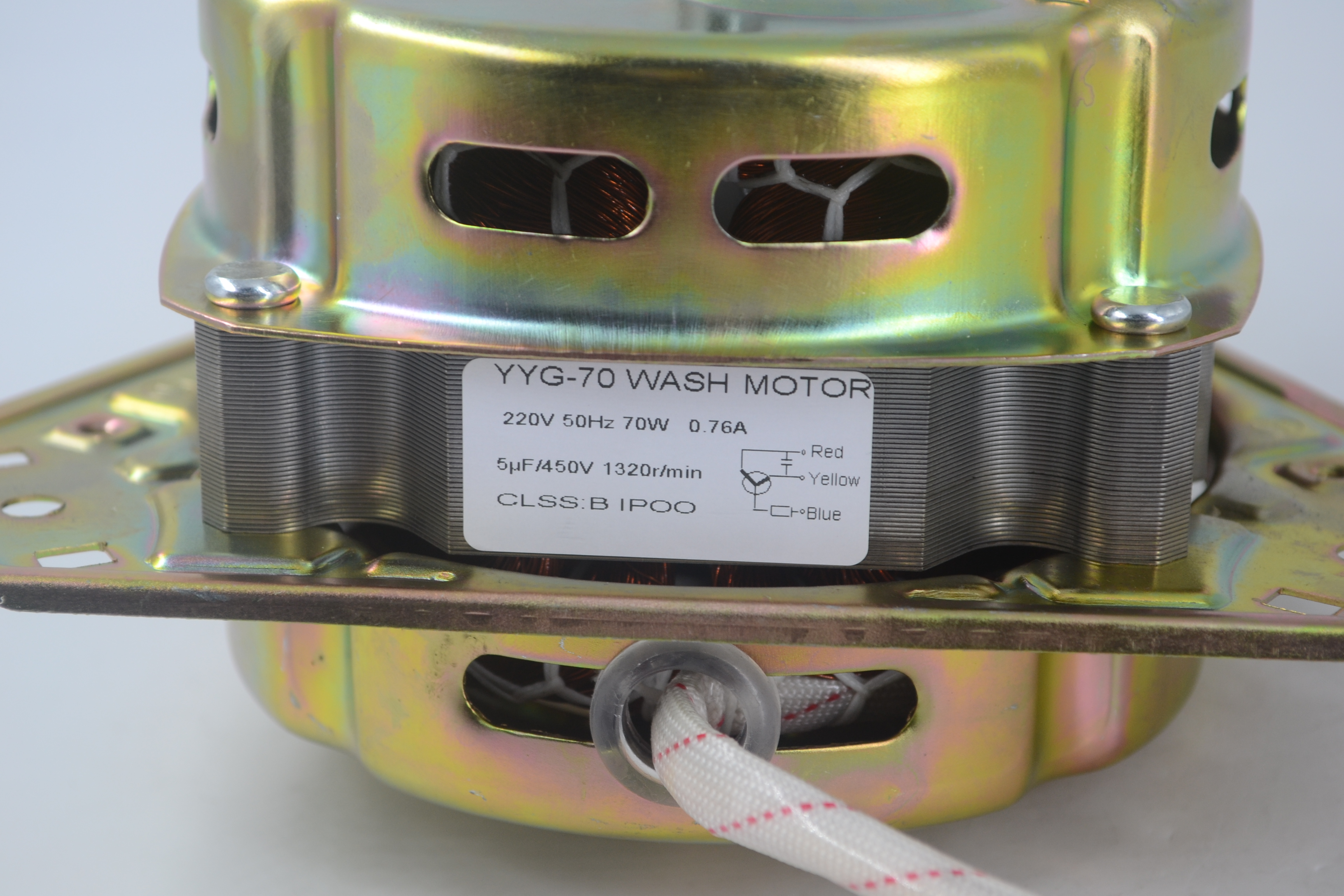

Technical Specifications
Model Number
YYG-70
Application
Semi / Full Automatic Washing Machine
Phase
Single-Phase
Protect Feature
Water-proof
AC Voltage
220V AC
Rated Power
70W
Frequency
50Hz
Rated Speed
1320 RPM
Stator Size
108*22mm
Wire
Pure Aluminum Wire(Copper Optional)
Capacitor
5μF / 450V
Protection Class
IP00
Insulation
Class B
Certification
CE / RoHS / ISO
Applications
This motor is ideal for semi-automatic twin-tub washing machines and freestanding spin dryers, and is suitable for the manufacture and after-sales maintenance of household appliances.
FAQ
Q: Can this motor be customized for different voltages? A: Yes, we provide full OEM/ODM services to match your local market voltage and frequency requirements.
Q: Is pure aluminum as reliable as copper for this application? A: Our pure aluminum motors are specifically designed with optimized heat dissipation to ensure durability that meets industry standards for spin dryers.
Q: What is the minimum order quantity (MOQ)? A: As a manufacturer, we prefer bulk orders, but please contact our sales team to discuss specific requirements for your project.
