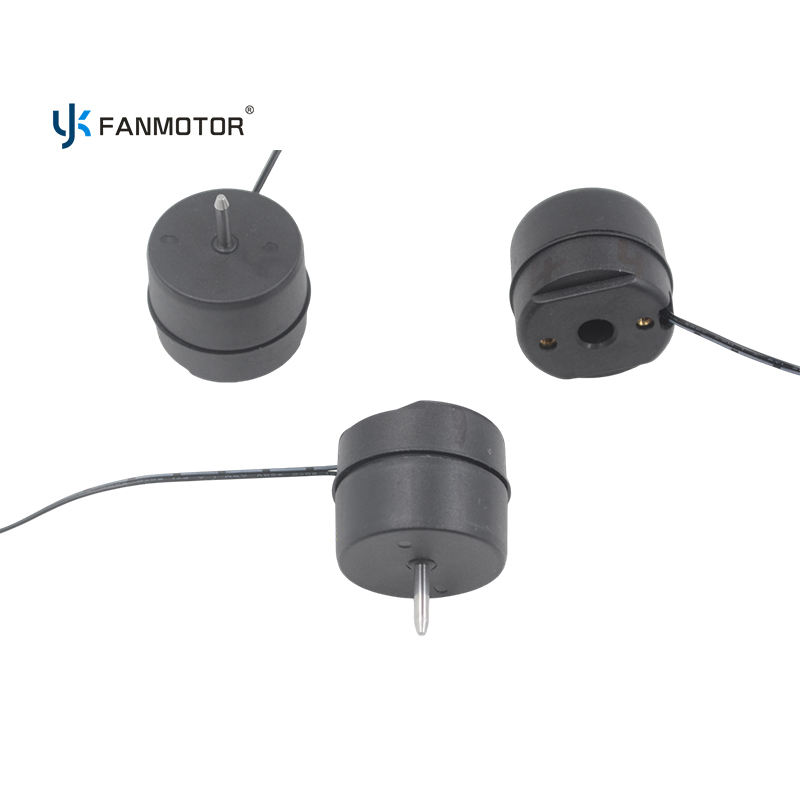

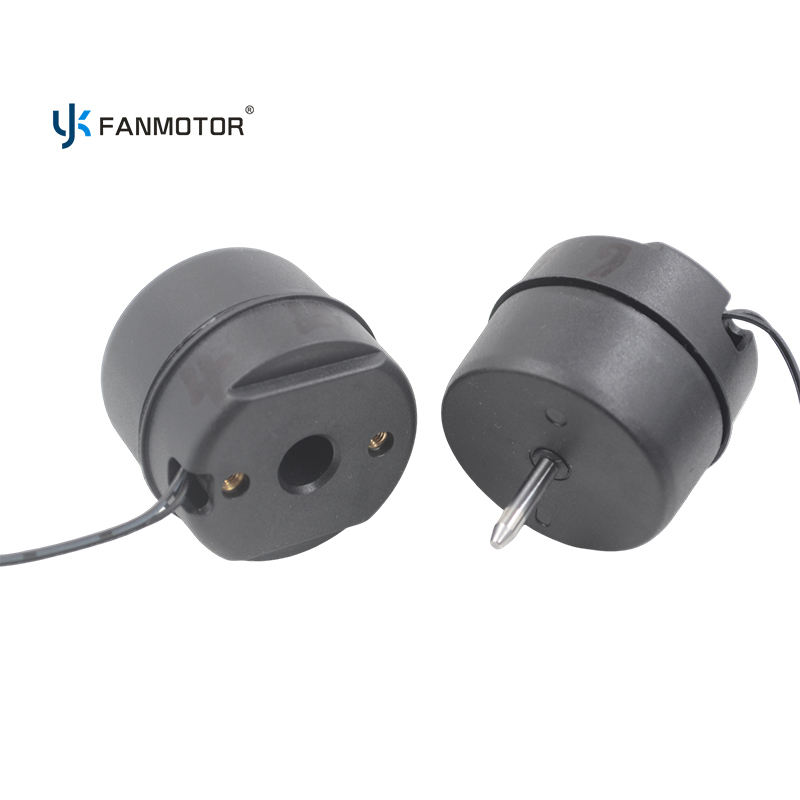

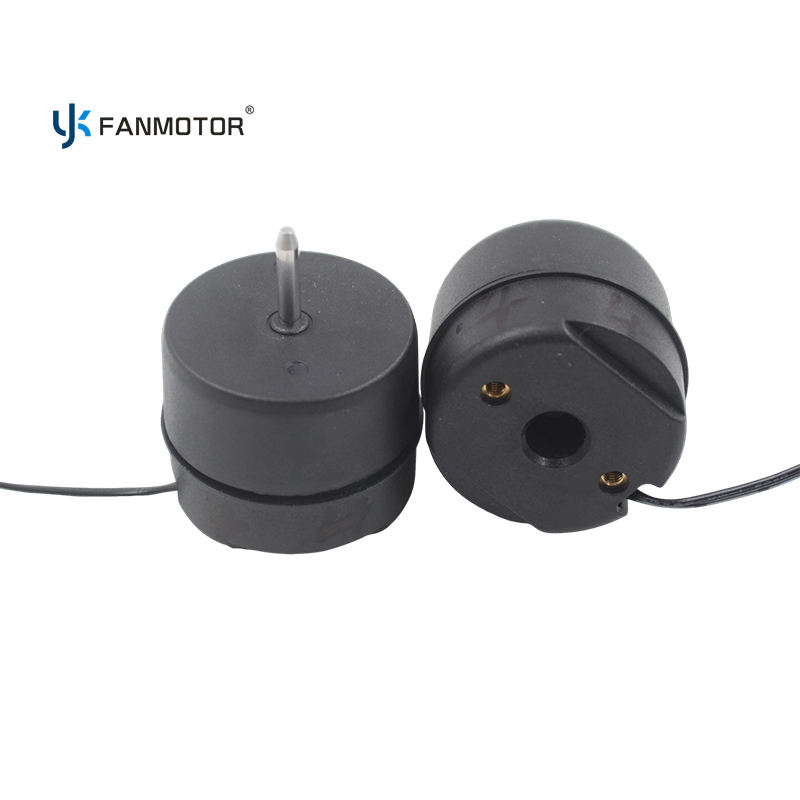

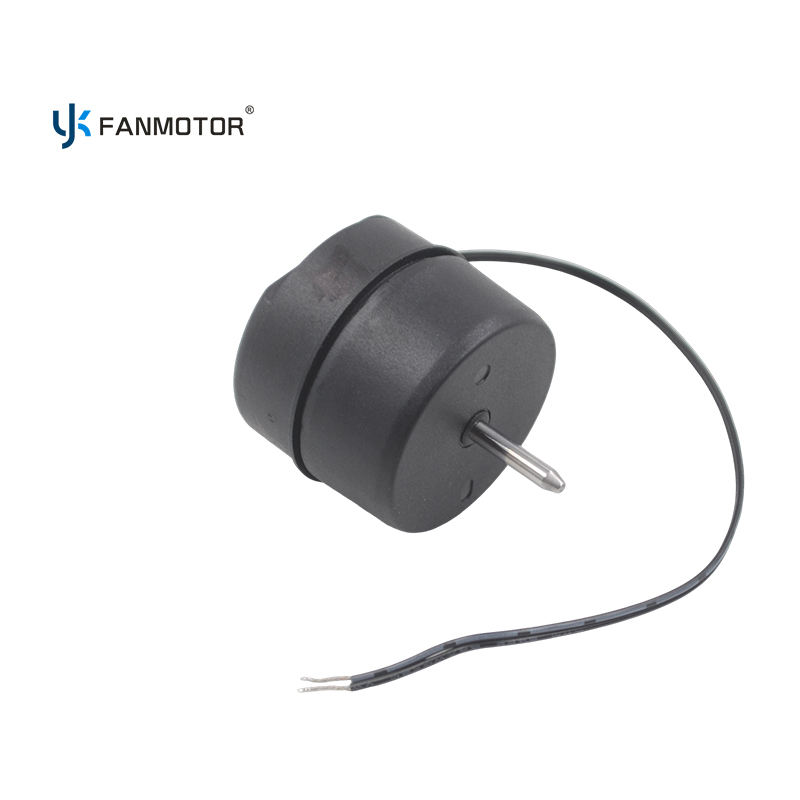

YKFANMOTOR EC series brushless DC motors are designed specifically for ventilation and exhaust fans. These motors combine high torque with ultra-low energy consumption, making them an ideal power source for residential and commercial exhaust solutions.
Product Details

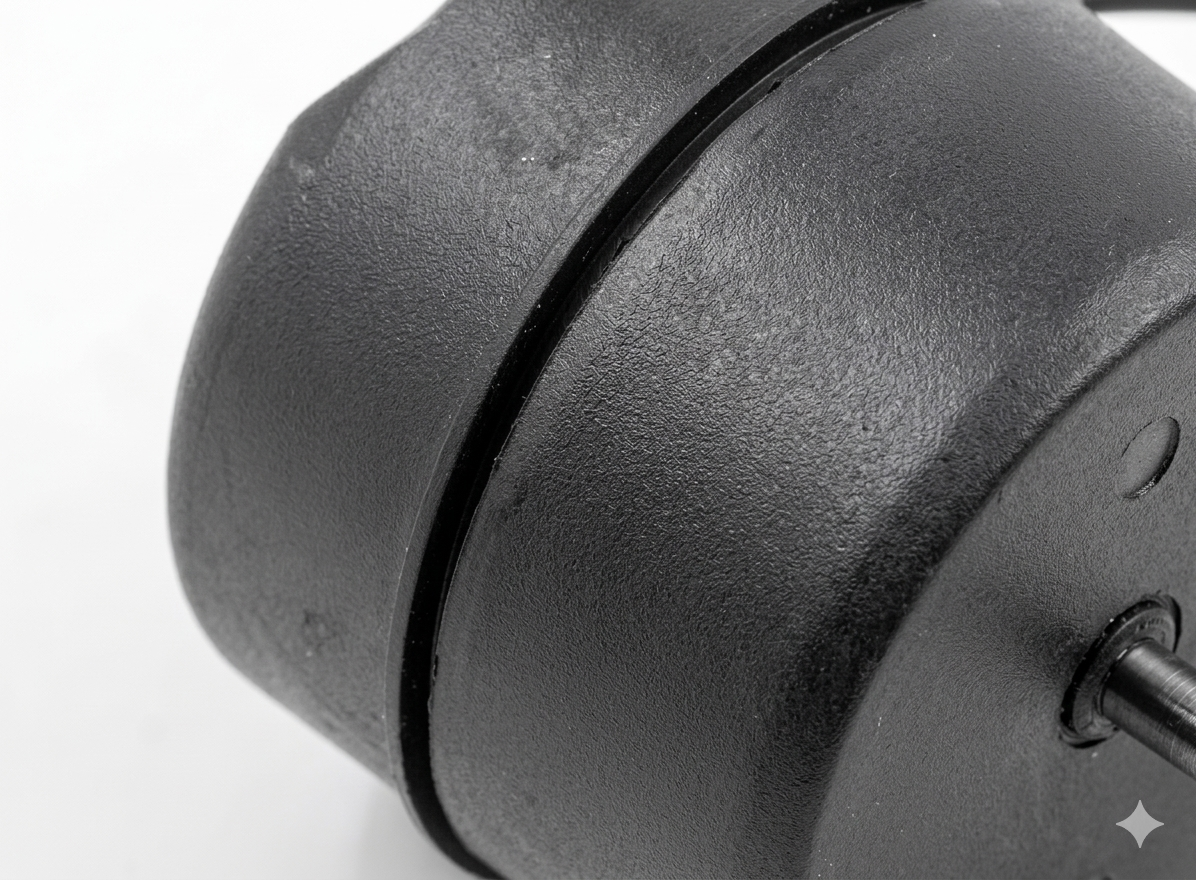

V-0 Grade Flame-Retardant Housing
Made of high-quality V-0 grade ABS plastic, it is corrosion-resistant and impact-resistant, and can withstand temperatures up to 180°C, ensuring maximum safety in use.

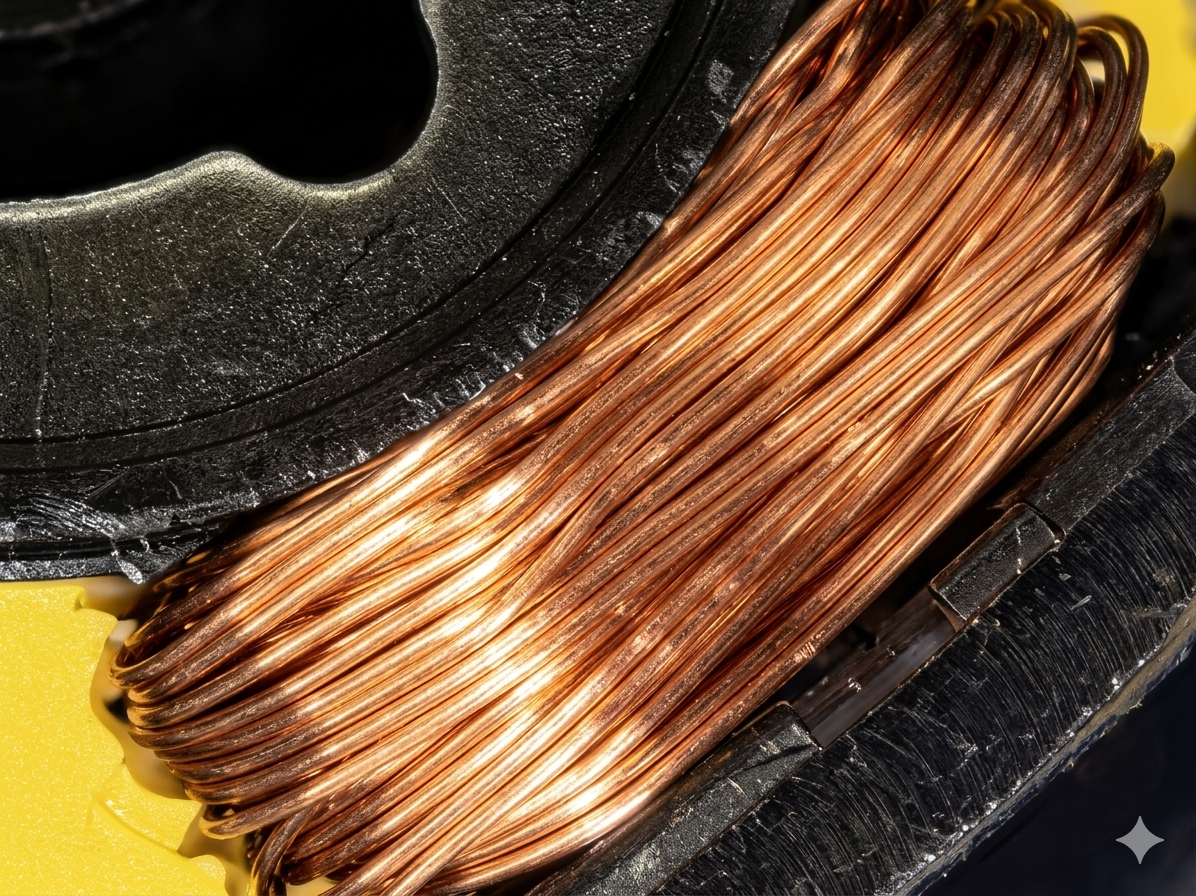

High-Precision Pure Copper Winding
Winded using advanced automated equipment, it boasts high precision and conductivity, improving energy efficiency while ensuring stable current and significantly reducing heat generation.

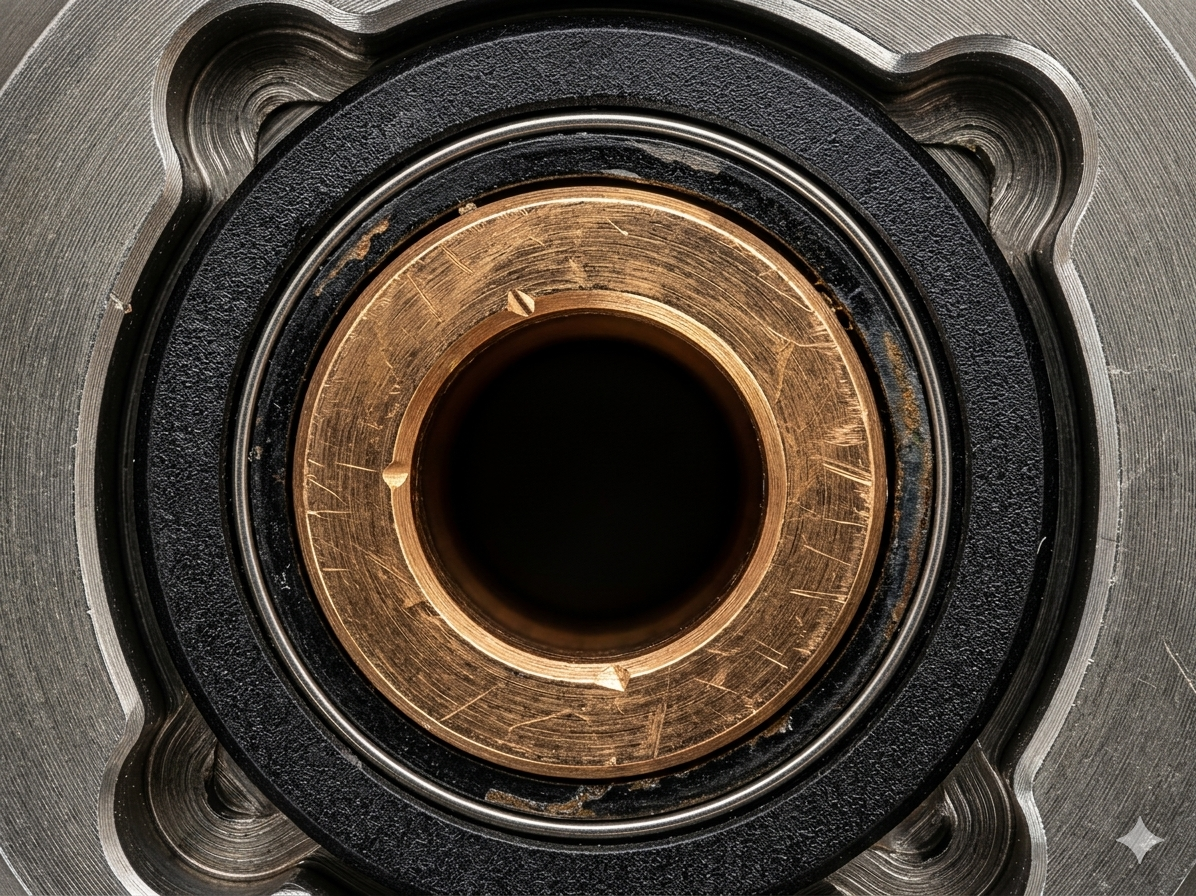

Self-Lubricating Maintenance-Free Bushing
Self-lubricating oil-impregnated bearings with low-friction design ensure smooth and quiet operation, requiring no maintenance even under continuous heavy load cycles.
Technical Specifications
Feature
Specification
Motor Type
EC / DC Brushless
Input Voltage
90V - 260V AC/DC
Power Range
2W - 10W
Compatible Size
4 Inch / 6 Inch Exhaust Fans
Winding Material
Pure Copper Wire
Rotation Direction
CW (Clockwise)
Efficiency Class
IE4 / High-Efficiency
Speed
1800-2800 RPM
Bearing
Oil-impregnated Bushing
Insulation Class
Class B
Noise Level
≤40 dB(Low Noise)
Applications
Residential: Bathroom and kitchen ventilation fans.
Commercial: Hotel bathroom exhaust fans and small office air circulation systems.
Industrial: Heat dissipation for localized electronic equipment cabinets.
FAQ
Q: Can the motor speed be customized?
A: Yes, as an original manufacturer, we offer customized RPM settings to match your airflow requirements.
