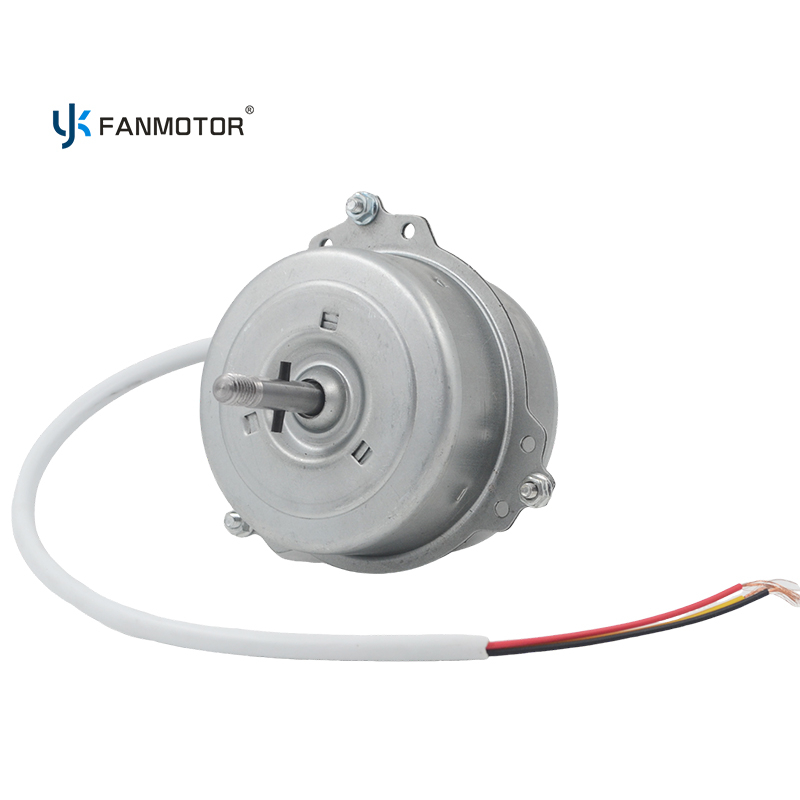

8/10/12Inch Copper Wire Exhaust Fan Motor Replacement for Kitchen&Bathroom

Energy-Efficient, Durable & Customizable Ventilation Solution
Availability:

Product Description

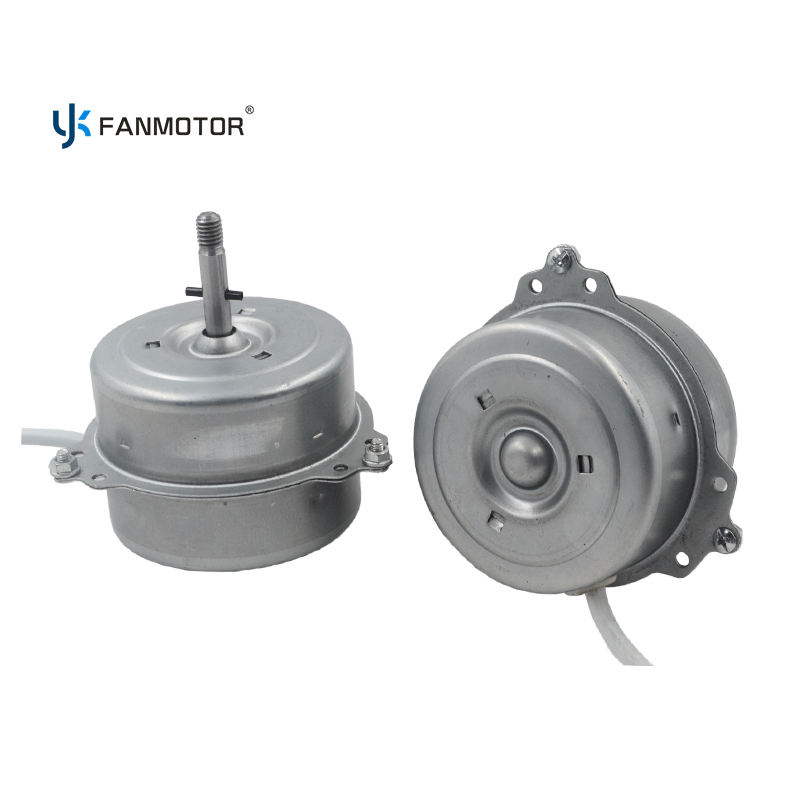

The YKFANMOTOR exhaust fan motor is tailored for bathroom and kitchen use.It fits 8-inch and 10-inch exhaust fans, ensuring efficient air circulation.With single-phase power supply and explosion-proof design, it's safe and reliable.Choose between copper or aluminum windings based on your budget and needs.Customizable stator size allows it to match specific fan requirements.Ideal for home ventilation, it helps remove moisture, odors and smoke effectively.7818铜线8 10寸排气扇电机 220-240V 50HZ 35-38W主推巴基斯坦印度 -20250604 (10)7818铜线8 10寸排气扇电机 220-240V 50HZ 35-38W主推巴基斯坦印度 -20250604 (9)

Technical Specifications

Parameter Value
Brand YKFANMOTOR
Motor Type AC Asynchronous Motor
Voltage 220-240V AC
Phase Single-Phase
Frequency 50Hz
Power 35-38W
Stator Size 78*18mm (Customizable)
Winding Material 100% Copper Wire / Aluminum Wire
Bearing Type Oil-Impregnated Bushing
Protection Feature Explosion-Proof
Efficiency Standard IE 1
Mounting Type Housing Mount
Warranty Period 2 Years
Certifications

RoHS, Green Product


Key Features

  • Explosion-Proof Protection

Safe for humid and high-temperature environments like kitchens.

  • Customizable Design

Stator size can be adjusted to fit specific fan models.

  • Efficient Performance

35-38W power consumption with stable operation.

  • Durable Materials

Copper/aluminum windings for long service life.

  • Smooth Operation

Oil-impregnated bearings reduce noise and friction.

  • Easy Installation

Single-phase power supply for simple setup.


Application Scenarios

Perfect for various ventilation needs in residential and small commercial spaces:

  • Bathroom Exhaust Fans

  • Kitchen Range Hoods

  • Small Restaurant Kitchens

  • Office Pantries

  • Hotel Bathroom & Kitchens


64x64 64x64 64x64

FAQ

  • What is the difference between copper and aluminum windings?

Copper windings offer better conductivity and longer life, while aluminum windings are more cost-effective. Both meet standard performance requirements.

  • Can I get a custom stator size?

Yes, we support stator size customization. Please provide your required dimensions or drawing for a quote.

  • What is the lead time for bulk orders?

Lead time is 20 days for 1-5000 pieces, 25 days for 5001-10000 pieces. For orders over 10,000 pieces, lead time is negotiable.
