Introduction
Motor selection for kitchen equipment depends on four variables: duty cycle, ambient temperature, grease/heat exposure, and maintenance regime. They vary widely across appliances, so one motor cannot serve them all. This article takes the commercial exhaust motor as its main case, with oven convection and small-appliance motors as contrasts.
A household hood motor runs about 2 hours a day; a commercial exhaust motor runs 12–16 hours continuously, at 60–70°C at the motor position, with a continuous grease load. Same motor type, completely different duty — and that is where most commercial kitchen warranty claims come from.
1. Grease is an electrical problem
Grease ends in motor replacement through three paths:
It insulates, then conducts. The film first traps heat and raises temperature rise; combined with moisture and dust, it later becomes a tracking path at the terminals.
It unbalances the impeller. Uneven build-up produces vibration, and vibration destroys bearings long before the winding fails — the most reported symptom in commercial kitchens.
It cooks the capacitor. A capacitor in a hot, greasy housing runs at the top of its rating; an 85°C part bulges, loses capacitance, and the motor loses starting torque and hums.
Fixes: 105°C capacitor mounted away from the winding; sealed 2RS bearings with wash-out-resistant grease plus a shaft lip seal; a smooth, cleanable housing; Class F/H winding with double varnish.
2. Duty cycle changes the specification
Parameter | Household hood | Commercial hood |
|---|
Continuous run | 1–3 h/day | 12–16 h/day |
Annual hours | ~500 | ~4,500–5,500 |
Ambient at motor | 50–60°C | 60–70°C |
Failure cost | One replacement | Kitchen shutdown, contract penalty |
The annual-hours gap is what buyers underestimate: a bearing rated for "years" in a household hood is asked for roughly ten times the running hours per year in a restaurant.
3. Selection checklist
Duty: 12–16 h/day continuous; state measured ambient at the motor;
Power: 230 V 50 Hz or 220 V 60 Hz;
Insulation: Class H preferred; Class F with documented derating;
Varnish: double dip-and-bake, high-temperature compatible;
Lead wire: silicone or high-temperature rated, sealed exit;
Bearing: sealed 2RS, high-temperature grease, C3;
Shaft: stainless or plated, lip seal;
Capacitor: CBB61, 105°C, 450 VAC;
Protection: auto-reset bimetal, trip temperature stated;
Enclosure: IP44 minimum; IP54 where washdown is used nearby;
Validation: temperature rise at rated ambient + 3 thermal cycles.
4. Oven and convection motors: materials are the limit
An oven convection motor runs inside or behind a 200–250°C cavity, so the constraint is material temperature resistance: PVC lead wire is not acceptable inside an oven; the bearing is the limiting component and standard lithium grease is unsuitable — specify high-temperature grease and, where needed, a heat barrier or shaft extension to move the bearing out of the hot zone; a protector buried in the winding may not see the true hot spot when heat comes from outside; at 1,300–1,450 rpm a warped blade loads the bearing unevenly and produces noise the customer reports as "the oven is broken."
5. Air fryers and small appliances
Typically 15–30 W compact shaded-pole motors in a hot recirculating air path with oil mist. Key points: insulation and lead-wire temperature rating, a bearing that tolerates continuous heat, a shaft seal against oil mist, and a protector that does not nuisance-trip on a 20-minute cycle.
Constraint comparison
Appliance | Main constraint | Specification focus |
|---|
Commercial exhaust | Long hours + grease + 60–70°C | Capacitor rating, bearing sealing, double varnish, cleanable housing |
Oven / convection | 200–250°C heat exposure | High-temp lead wire and varnish, high-temp bearing grease, protector placement, balance |
Air fryer / small appliances | Hot air + oil mist + short cycles | Lead-wire rating, bearing, shaft seal, nuisance-trip-proof protector |
Maintenance is part of the product
For commercial buyers: quarterly cleaning of impeller and housing, with the capacitor checked at the first sign of slow starting rather than at failure. Pressure-washing the motor is never acceptable, even at IP55 — jets at the shaft seal push water past the lip. Documenting the interval protects both sides: the operator knows what to do, and the warranty has a defined basis.
Selection index by application
Application | Product line |
|---|
Range hood | Capacitor / shaded-pole range hood motor, 3-speed |

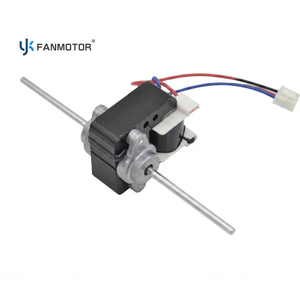

Oven, steam oven, heater | Class F double-shaft convection motor |
Holding cabinet, plate warmer | 230 V 50 Hz, 15 W, 60×13 mm shaded-pole motor, heat resistant |
Air fryer | Compact shaded pole, high-temperature build |
Blender, juicer, grinder | Universal motor |
All available with the buyer's nameplate, lead length and connector, plus test records for the destination market.
FAQ
Why do hood capacitors fail so often?
An 85°C capacitor is used in a housing that runs above that, next to a winding heating the air. A 105°C part plus a cooler mounting position solves most of it.
Can a standard fan motor be used in an oven?
No. Ovens demand high-temperature lead wire, varnish and bearing grease; a standard motor may run for weeks, then fail from insulation embrittlement.
How often should a commercial hood motor be serviced?
Quarterly cleaning of impeller and housing with a bearing noise check; replace the capacitor at the first sign of slow starting.
Do you supply 60 Hz versions?
Yes — hood and oven motors are available on 220 V/60 Hz windings, tested at that frequency.
Conclusion
Motor selection for kitchen equipment is, in essence, writing four variables into the specification: duty cycle, ambient temperature, grease/heat exposure, and maintenance regime. Hood, oven and small-appliance motors are not "heavy-duty" versus "standard" versions of the same thing — they are three different sets of design constraints. Define the duty, select insulation class, bearing and capacitor configuration accordingly, and require temperature-rise test records. That is the reliable path to avoiding in-warranty failures.
