1. Why Do Fan Motors Fail in Riyadh or Dubai? (The 10K Rule)
Every fan motor sold into the Gulf is measured against one crucial benchmark: what temperature the winding reaches at 50°C ambient, rather than under 25°C lab conditions.
A standard motor designed for 40°C ambient temperature won't burn out on day one, but it loses most of its thermal life before the first summer ends.
Key Engineering Principles:
The 10K Rule: In motor insulation physics, for every 10°C (10 K) increase in sustained winding temperature, the insulation lifespan is halved.
The Class F Trap: A standard Class F motor (rated for a maximum temperature of 155°C operating under a 105K temperature rise reaches 155°C (50°C + 105°C) in a 50°C environment. It sits exactly at its thermal limit with zero safety margin. Any dust accumulation or voltage drop will cause immediate thermal overload.
2. Two Solutions for 50°C Environments
To survive GCC ambient temperatures, manufacturers must choose one of two valid engineering paths:
Feature | Strategy A: Output Derating | Strategy B: Upgrade to Class H |
|---|
How it Works | Keep Class F insulation, but reduce motor load to drop temperature rise by ≥ 10 K. | Upgrade copper wire enamel and varnish to Class H (180°C). |
Frame Size | Usually requires +1 larger frame size. | Keeps the existing frame size. |
Best For | Low-duty or budget household fans. | Continuous duty, rooftop units, enclosed cabinets. |
Relative Cost | Baseline | Moderate increase (wire and varnish materials). |
Design Warning: Never keep a Class B or un-derated Class F winding and rely on a thermal protector to "auto-shut down" the fan during hot afternoons. That results in a fan that stops working when the end user needs it most.
3. The Weak Links: Grease, Capacitors, and Protectors
Winding burnout is dramatic, but peripheral component failures cause quiet warranty spikes:
High-Temperature Bearing Grease: Standard lithium grease rated to 120°C degrades rapidly when bearing housings reach 90-110°C under 50°C ambient. Polyurea or lithium-complex high-temp grease is essential.
C3 Bearing Clearance: Hot inner rings on motor shafts expand. C3 clearance prevents internal preloading and bearing seizure at 100°C operating temperatures.
105°C Capacitors (CBB61): Standard capacitors rated at 85°C bulge and fail inside sun-exposed fan housings. Specify 105°C rated capacitors rated at 450 VAC.
Calibrated Thermal Protectors: Auto-reset bimetal protectors must open before winding degradation occurs, without triggering false trips during normal 50°C afternoon operations.

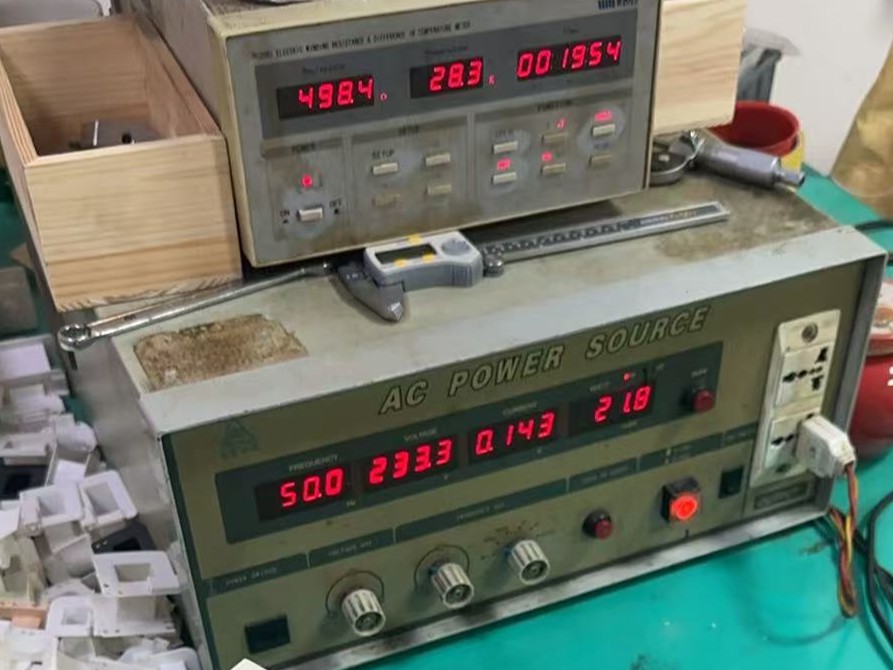

4. Verification: The Soak-Start-Run Protocol
Bench tests at room temperature fail to catch desert-specific failure modes. In hot climates, a fan often soaks at 60-70°C while powered off, then must start with hot bearings, hot windings, and low grid voltage.
Recommended Test Sequence for Samples:
Soak: Keep the motor at 60°C ambient for 2 hours (Power OFF).
Start: Apply minimum expected voltage (e.g., 198 V for a 220 V Saudi system).
Run: Run at full load until temperatures stabilize; record winding, bearing, and capacitor temperatures.
Repeat: Complete 3 cycles and test insulation resistance.
5. What to Include in Your RFQ (Request for Quote)
When specifying fan motors for Gulf installations, include these parameters:
Application: [Wall fan / Exhaust fan / Cabinet fan / Rooftop unit]
Ambient Rating: 50°C continuous, 60°C thermal soak
Operating Voltage: 220 V / 60 Hz (Saudi Arabia) or 230 V / 50 Hz (UAE, Qatar, Kuwait, Oman, Iraq)
Insulation Class: Class H (or Class F with documented temperature rise derating)
Bearings: Sealed 2RS, C3 clearance, high-temperature synthetic grease
Capacitor: CBB61 type, 105°C temperature rating, 450 VAC
Thermal Protection: Calibrated auto-reset bimetal protector
Frequently Asked Questions (FAQ)
Q: Is Class F insulation sufficient for Saudi Arabia?
A: For intermittent household use in conditioned or shaded rooms, Class F with proper derating can work. For continuous outdoor, rooftop, or enclosed cabinet applications, Class H is the recommended standard.
Q: Why are 105°C capacitors necessary?
A: Solar radiation on metal or plastic fan housings elevates internal temperatures far above ambient air temperature. Standard 85°C capacitors swell, leak, and cause premature motor failure.
