In coastal Southeast Asia, fan motors rarely fail because the bearing wore out. They fail for three reasons: moisture in the winding, salt on the shaft and terminals, and not enough starting torque at 180V. You cannot eliminate all three, but you can get most of the way there at the specification stage.
If you buy fans for Indonesia, Vietnam or the Philippines, you have probably seen this: a motor that worked fine in the sample room dies in the warehouse, or trips its protector the moment the grid sags. The causes are predictable, and so are the practical countermeasures.
Scope note: this guide covers environmental corrosion and low-voltage starting. Sand and dust ingress is a separate failure path.
At a glance
Climate driver | Often 75–90% RH for most of the year; salt-laden air within a few km of the coast |
|---|
Grid driver | ±10% swings are routine; 180–190V events are common in Indonesia and Vietnam |
Typical failure | Insulation breakdown, rusted shaft or bearing, protector tripping on start, capacitor failure |
Cost of fixing it | Usually a small multiple of the component cost — far below one warranty replacement |
Failure mode 1: moisture in the winding
Water vapour gets into the winding and condenses when the motor cools, gradually lowering insulation resistance. Insulation resistance is the usual field check: a dry, new motor typically reads in the hundreds of MΩ when tested at 500V DC, while a motor that has absorbed moisture reads much lower — and that is when leakage current and turn-to-turn shorts begin.
Three specification levers, in order of effect:
Double dip-and-bake varnish. Single-pass varnish leaves voids between turns; a second impregnation and cure fills them. This is generally the most effective moisture measure per unit of cost.
Sealed lead exit. Where the lead wires leave the winding is where moisture gets in. Silicone grommets and a sealed exit help; full encapsulation is usually reserved for high-value models.
Class F insulation as the baseline. Not because it runs hotter, but because the margin gives a moisture-degraded motor more room to survive.
Failure mode 2: salt fog on shaft, bearing and terminals
Component | Standard practice | Coastal-oriented specification |
|---|
Shaft | Carbon steel (e.g. C45#), oiled | C45# with anti-rust treatment, or stainless / zinc-nickel where the budget allows |
Bearing | Open or single-shielded | Sealed 2RS |
Terminal block | Exposed brass | Tinned or plated, with insulating cover |
Lead wire | PVC | Silicone or PTFE, heat-shrink at the crimp |
Housing / bracket | Painted steel | Zinc-plated plus powder coat, or aluminium |
Packaging | Carton only | Sealed carton; desiccant where available |
Anti-rust options and what they cost
Absolute prices move with copper and freight. The ranking does not:
Option | Relative cost | What it actually buys |
|---|
Oiled carbon steel shaft | Baseline | Little in a coastal warehouse — the oil film is gone in weeks |
C45# shaft with anti-rust treatment | Low | A practical baseline for indoor and light coastal use |
Zinc-nickel plated shaft | Low–medium | Better for indoor fans; plating thickness is what matters |
304 stainless shaft | Medium | Often the practical choice for wall, exhaust and outdoor units |
Sealed 2RS bearing + high-temp grease | Low | Helps with both rust and grease wash-out; high value per cent |
Full encapsulation | High | Bathroom, kitchen and washdown positions |
Storage is part of the specification too. A container that sits for months in a non-air-conditioned warehouse in Surabaya will corrode even if the motors are built correctly. Sealed cartons and desiccant help where available.
Failure mode 3: the brownout that kills torque
Induction motor torque is proportional to the square of applied voltage:
Supply voltage | Relative torque | What happens to the fan |
|---|
220V | 100% | Normal |
200V | 83% | Starts, runs warmer and slower |
180V | 67% | Struggles to start on the high tap; protector trips |
170V | 60% | Will not start under load; hums and overheats |
A motor that cannot start does not simply "not start". It draws locked-rotor current, heats fast, and either trips its protector or burns the winding.
Specification responses:
Define a minimum starting voltage — typically around 187V for a 220V market — and check start-up on the highest speed tap at that voltage.
Consider an auto-reset bimetal protector, with open/close temperatures chosen for 45°C ambient rather than a 25°C bench.
Prefer a 450 VAC CBB61 capacitor over a 250 VAC part. Capacitors are the most common field failure in low-voltage markets, and the failure is usually a swollen can.
Do not chase starting torque with a larger capacitor. It raises auxiliary-winding current and shortens capacitor life.
A practical specification checklist
This is a guide, not a guarantee — not every item will fit every budget or application. Use it to start the conversation with your supplier.
Application: household table / stand / wall fan, coastal market
Rated: 220V, 50Hz, 1 ph, 4-pole
Insulation: Class F, double dip-and-bake varnish where available
Insulation resistance: tested at 500V DC; agree the acceptance value with the buyer (a dry new motor typically reads in the hundreds of MΩ)
Lead exit: sealed, silicone grommet, silicone lead wire
Shaft: C45# carbon steel with anti-rust treatment as the baseline; 304 stainless or zinc-nickel for harsher positions
Bearing: sealed ball bearing, 2RS, high-temperature grease
Protection: auto-reset thermal protector, rated for 45°C ambient where the application calls for it
Starting voltage: check start-up at around 187V on the highest speed tap
Capacitor (PSC): CBB61, 450 VAC, matched to the winding
Enclosure: IP44 minimum; IP54 for bathroom, kitchen or wall-mounted
Packaging: sealed carton; desiccant where available
Validation: humidity conditioning, low-voltage start; salt-spray testing where available
The insulation-resistance figures are industry practice, not a mandated number. Agree the acceptance value with your customer and write it into the specification, so a field reading has something to be measured against.
Where our range fits

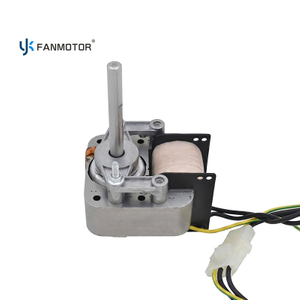

Our shaded pole range (YJ48, YJ58, 14–15W) uses copper windings, with auto-reset thermal protection standard on the YJ58 series. For coastal buyers we can configure double varnish, sealed bearings, anti-rust shafts and IP-rated enclosures. For bathroom and kitchen exhaust we move to IP-rated 66×14 mm and 74×20 mm motors.

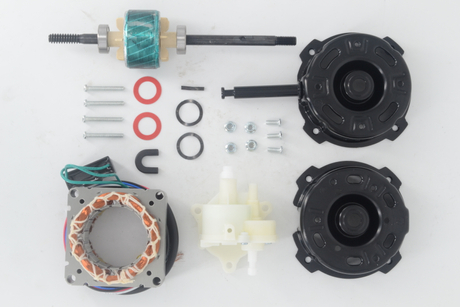

Because shaft, bearing, rotor and stator are made in-house, many of these are configuration changes on an existing platform rather than new development. Tell us your target market and budget, and we will tell you honestly which items are worth adding.
FAQ
Is a bushing acceptable in humid markets?
For low-cost, low-duty table fans, a quality oil-impregnated bronze bushing works and runs quieter. For wall, exhaust or continuous-duty fans, a sealed ball bearing is usually safer — bushings tend to tolerate rust and intermittent duty poorly.
How often should insulation resistance be checked in the field?
At goods-in for the first three shipments, then quarterly. A very low reading on a new unit usually points to a packaging or storage problem rather than a manufacturing defect.
Does IP54 cost much more than IP44?
On a shaded pole fan motor, the difference is usually modest — mainly seals, a gasket and a drain detail. Far cheaper than replacing motors in coastal installations.
Can you supply 60Hz versions for the Philippines?
Yes. Frequency is a separate specification from humidity; we build both windings on the same frames.
Next step
Tell us the destination port and the mounting position — indoor table fan, bathroom ceiling, kitchen wall, outdoor exhaust. We will propose the enclosure, bearing and shaft configuration that matches your budget, with the validation you need for your market.
