Here's the short version: If the fan motor you're shipping to the Philippines or Saudi Arabia was wound for 50Hz, it will run about 20% faster on a 60Hz grid — and the impeller will demand roughly 73% more power. Nothing fails in week one. By the end of the first hot season, the thermal protector trips and the winding burns. That's not bad luck. It's physics.
The problem in one table
| 50Hz grid (China/Europe) | 60Hz grid (Philippines/Saudi Arabia) |
4-pole motor speed | 1,300–1,420 rpm | 1,560–1,700 rpm |
Power the impeller demands | baseline | About 73% higher |
Power the motor can deliver | baseline | can't — it runs at higher slip and current |
Result | normal temperature rise | overheating → protector trips → winding fails |
Quick check: If the nameplate says "50Hz" only, or says "50/60Hz" but your supplier can't provide a temperature-rise test record at 60Hz, treat it as a risk until proven otherwise.
Why "just running a bit faster" burns the motor
A fan impeller is a squared-cube load: at 1.2× speed, absorbed power rises with roughly the cube of speed — 1.2³ ≈ 1.73, or about 73% more shaft power.
The motor is still the same motor. Same copper, same stack, same cooling. It can't deliver 73% more, so it runs at higher slip, draws more current, and runs much hotter. In a 35–40°C room in Manila, or on a 45–50°C roof in Riyadh, the thermal margin is gone before the first summer ends.
There's a second failure point: the capacitor. Capacitive reactance drops as frequency rises, so a CBB61 sized for 50Hz pushes more current through the auxiliary winding at 60Hz. In the field, that shows up as swollen or burst capacitor cans — not a capacitor quality issue, a frequency mismatch.
Three supplier approaches — which one are you buying?
What the supplier does | What's actually inside | Your risk |
|---|
Relabel: 50Hz motor, "50/60Hz" nameplate | Same copper, same capacitor, same stack | Fails in the first hot season; warranty cost lands on you |
"Dual-rated" design: slightly larger stack and capacitor | Usable, but higher temperature rise | OK for low-duty, low-ambient products; marginal for continuous duty in Manila or Riyadh |
Dedicated 60Hz winding: turns, wire gauge and capacitor recalculated, sample tested at 60Hz | Performance at 60Hz is verified, not assumed | Slightly higher cost, but no burned units and no return freight |
The real difference is validation. Ask for a temperature-rise record: motor run at 60Hz, rated load, destination ambient, for at least one typical operating cycle. A supplier who can't produce that hasn't characterised the winding.
Philippines vs Saudi Arabia: same frequency, different thermal job
Both markets are 220V/60Hz, but the thermal environment is not the same.
| Philippines | Saudi Arabia |
|---|
Design ambient | 35–40°C | 45–50°C, higher in cabinets and on roofs |
Dominant buyer | Repair-part traders, fan assemblers | Private-label importers, project distributors |
Extra requirement | Drop-in dimensions for the replacement trade | High-temperature build, SABER documentation |
Practical build | 60Hz winding, Class F, sealed bearing | 60Hz winding, Class H (or derated F), 105°C capacitor, IP54 |
Bottom line: A motor that solves Manila will still struggle in Riyadh in July.
What we can do for you

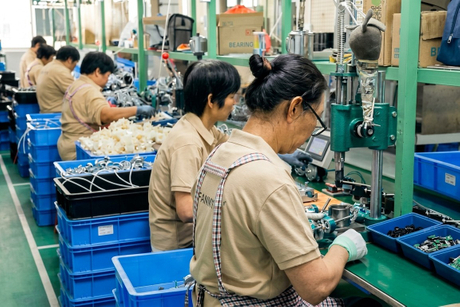

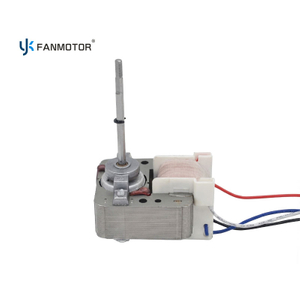

We build shaded-pole and CBB61 capacitor fan motors in both 50Hz and 60Hz windings, 14W to 65W. For 60Hz markets, here's what we deliver as standard:
Dedicated 60Hz winding — turns, wire gauge and capacitor value recalculated for 60Hz, not a relabel
Matched capacitor — CBB61 value selected for 60Hz operation, 105°C rated for Gulf ambient
Temperature-rise test record — at rated load, at destination ambient, shipped with the sample
No-load current report — measured value with a defined tolerance band, so you know the winding was characterised
Insulation options — Class F standard; Class H or derated F for Saudi and high-ambient cabinets
IP-rated enclosures — optional IP54 for outdoor and roof-mounted installations
Auto-reset thermal protection — bimetal protector with specified open/close temperatures
Sealed ball bearings — high-temperature grease for continuous duty
Motor + impeller matching — if the 60Hz speed point sits above your original design, we can quote motor and impeller together
We also build a 120V/60Hz 30W shaded-pole motor for bathroom ventilation — same winding practice, different voltage.
FAQ
Can I run a 60Hz motor on a 50Hz grid?
It runs about 17% slower. For a fan load, absorbed power drops sharply, so overheating is less likely than the reverse case — but airflow falls below the product rating, and the motor's own cooling drops too. It's a compromise, not a solution.
Is a dual-rated 50/60Hz motor a safe shortcut?
For intermittent, low-ambient products, yes. For continuous-duty fans in Manila or Riyadh, a dedicated 60Hz winding with a matched capacitor gives a lower temperature rise.
Does the fan blade need to change?
Often yes. If the 60Hz motor's loaded speed is well above the original design point, either accept higher airflow and noise, or adjust impeller diameter or pitch. We can quote motor and impeller together.
How do we validate a 60Hz build before ordering?
Ask for a temperature-rise record at rated load and destination ambient, plus no-load current with a tolerance band. Both should travel with the sample.
Next step
Send us your target airflow, mounting drawing and destination country. We'll confirm whether your current motor is a 50Hz design being sold into a 60Hz market, and quote a corrected 60Hz build with a test report.
