Introduction

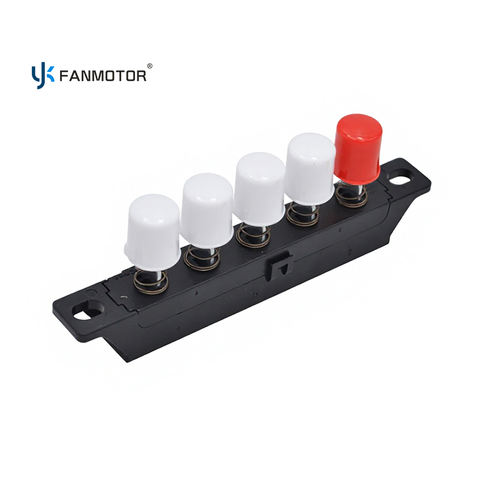

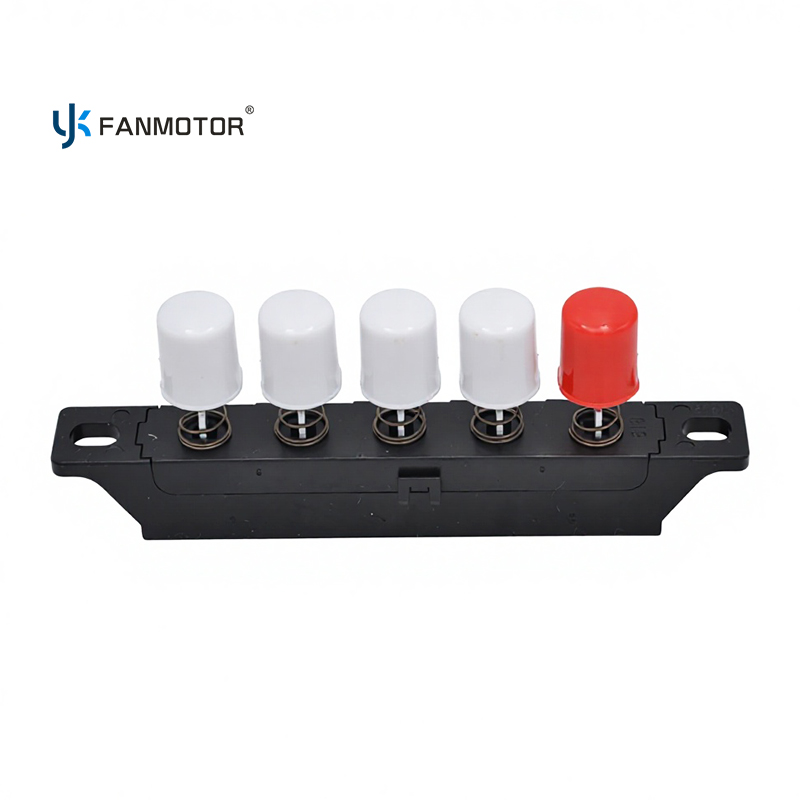

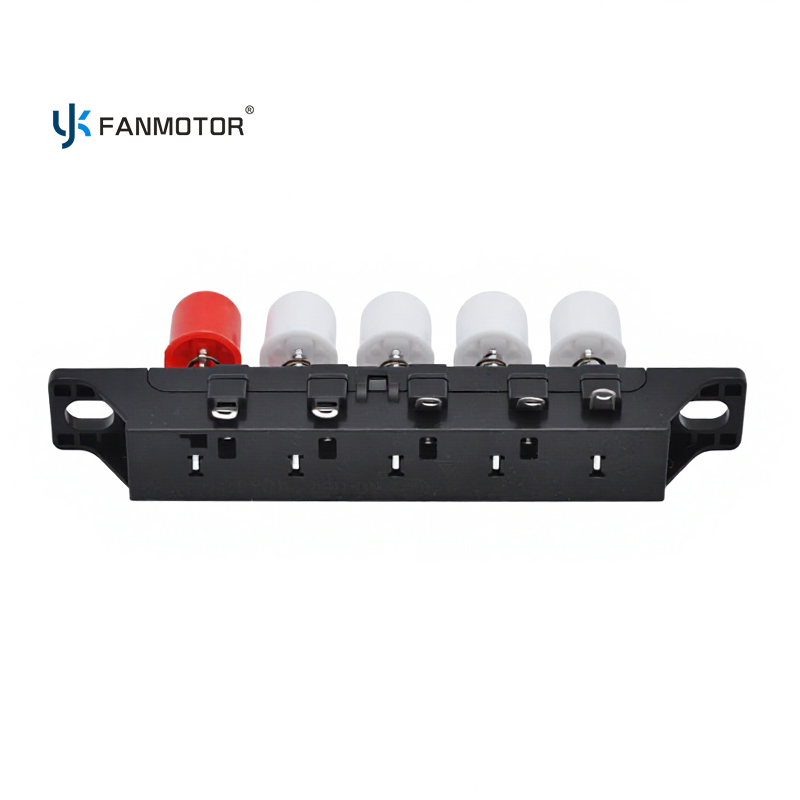

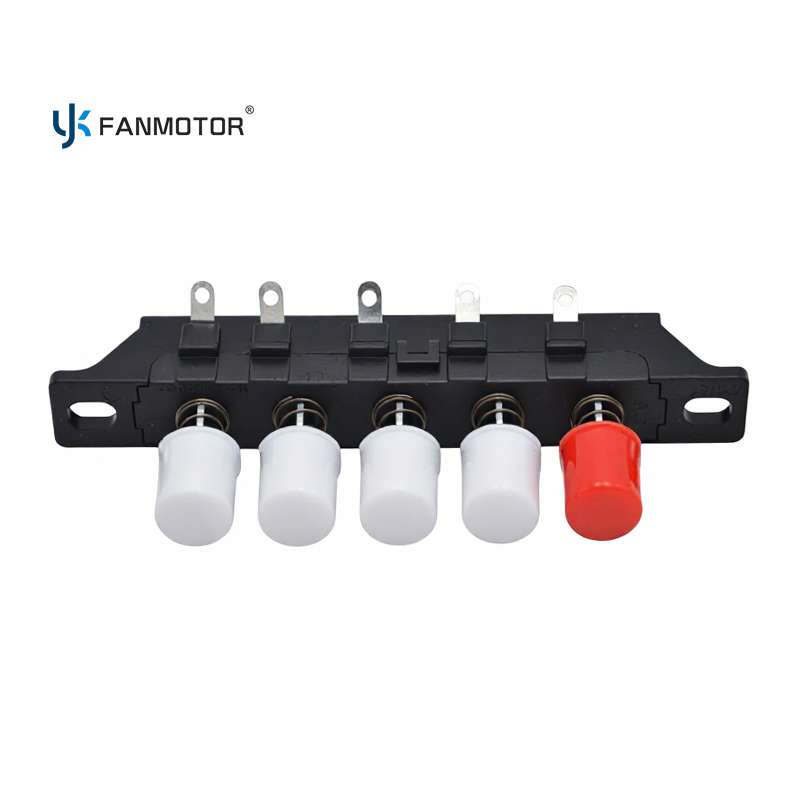

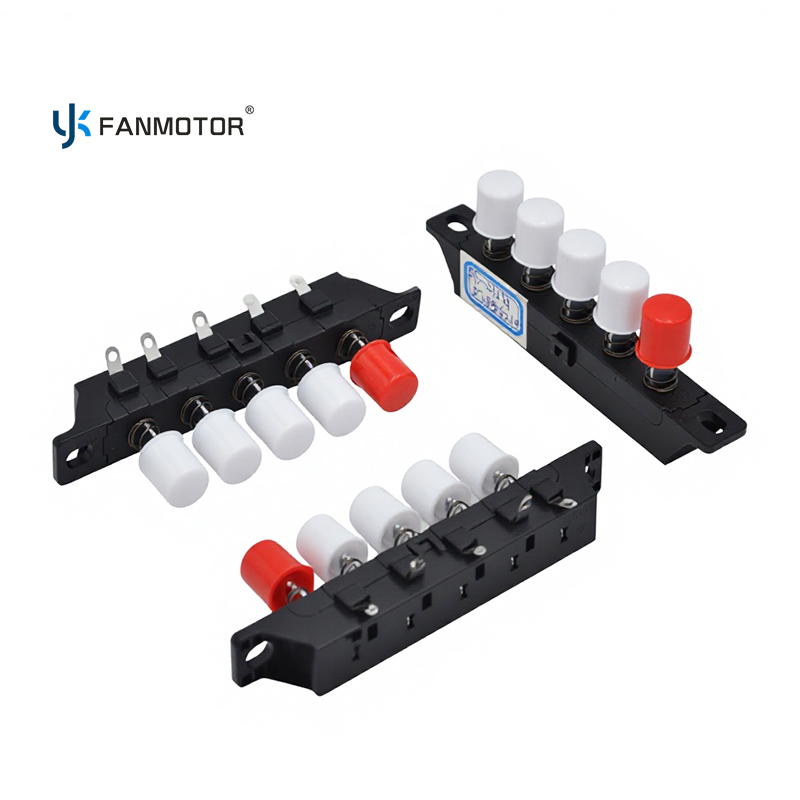

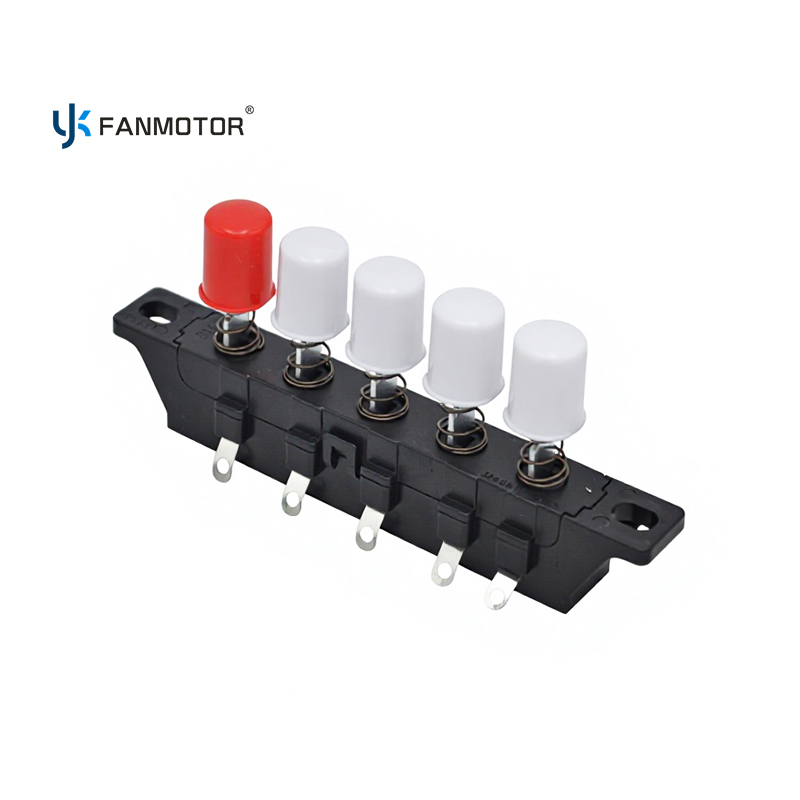

A 5-key piano speed controller with built-in light control, made for fans that include a lamp or night light. Four keys handle the fan itself - OFF plus speeds 1, 2 and 3 - while a fifth red key switches the light. The dual-slide, master-reset interlock holds only one speed at a time and returns the mechanism cleanly, an arrangement that suits higher-duty fan models. The switch is rated 1A at 125V and 250V and uses 5-pin solder terminals. White ABS caps and a red light key make the panel easy to read.
Key Features
5 keys: OFF / 1 / 2 / 3 plus a dedicated red LIGHT key for fan lamp or night light control
Dual-slide master-reset interlock keeps only one speed engaged at a time
5-pin solder terminals, rated 1A at 125V and 250V
White ABS button caps with a red light key for easy identification
Mechanical life over 10,000 cycles
Specifications
Model Number | YK516-032 |
Product Name | Fan Push Button Switch with Light Control |
Switch Type | KQ-165C series push button / piano switch |
Material | Plastic |
Positions / Keys | 5 keys (OFF / 1 / 2 / 3 / LIGHT) |
Latching Mechanism | Dual-slide master-reset interlock |
Button Cap | Cylindrical, ABS white + red light key |
Terminal Type | 5-pin solder terminals |
Electrical Rating | 1A / 125V ~ 250V |
Mechanical Life | Over 10,000 cycles |
Application | Electric fan with night light / lamp function |
Warranty | 1 year |
After-sales Service | Free spare parts |
Applications & Customization
Applications:
- Electric fan with night light / lamp function
- Fit: standard fan assemblies - send us your fan model to confirm the matching switch
Customization:
- Colour / finish options: Cylindrical, ABS white + red light key
- Custom colours and OEM / ODM supported - send us your drawing or sample
- Samples can be provided for evaluation
FAQ
How do I know which fan switch fits my fan?
Our fan switches are universal replacement parts for household table and stand fans. In addition to three fan speed settings, this switch includes a separate control button for lighting. Send us your fan model or a photo of the original switch and we will confirm the matching part.
Can you print our logo or produce to our own drawing?
All models on this page are rated 250V AC / 1A. The KQ-165C 5-key switch is rated 1A at both 125V and 250V AC, which makes it suitable for 110–120V as well as 220–240V markets.
Can you customise the colour of the switch?
Yes. We support OEM/ODM, including drawing-based and sample-based customisation. Send your drawing, sample or artwork and we will confirm feasibility, tooling requirements and MOQ before quoting.
Can I get a sample before placing a bulk order?
Yes — samples can be arranged for evaluation. For other models please confirm the sample arrangement with our sales team.
What warranty and after-sales support do you provide?
The switches carry a 1-year warranty, and free spare parts are provided after delivery on selected models. If a unit fails, send us the order number and photos of the defect and we will assess it under the warranty terms.
