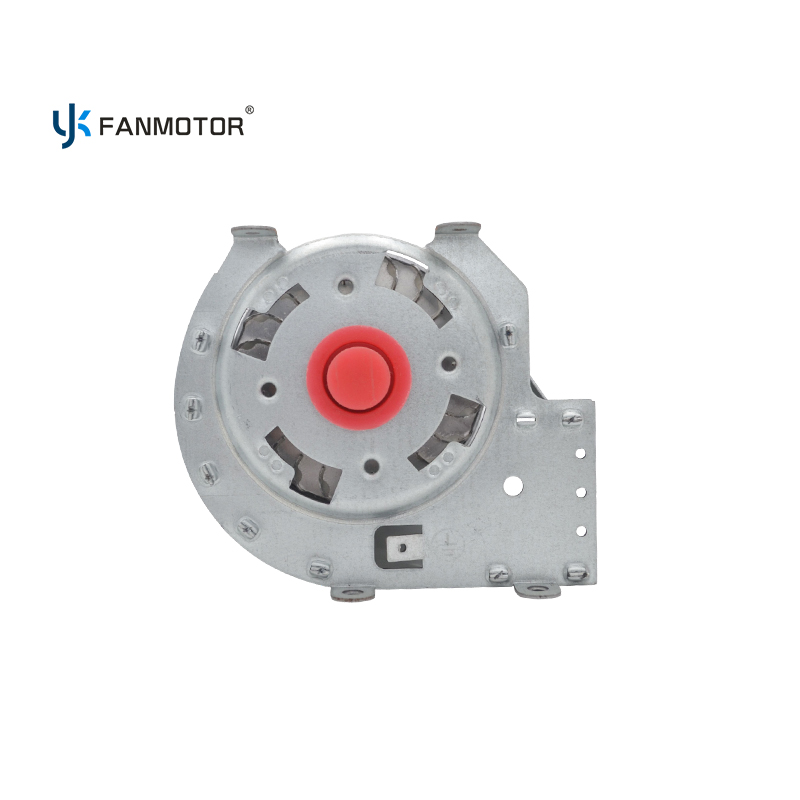

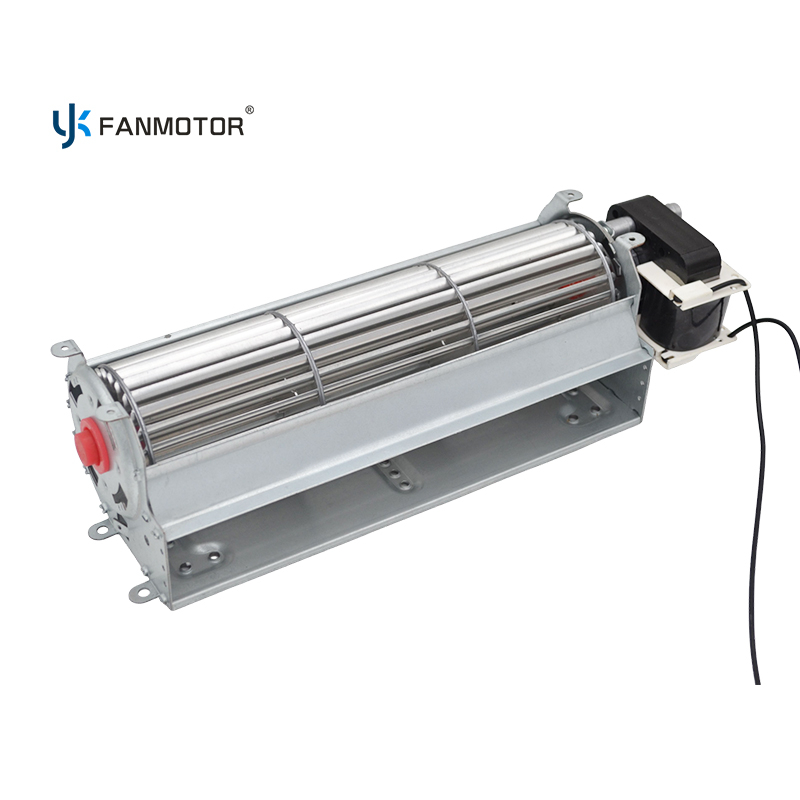

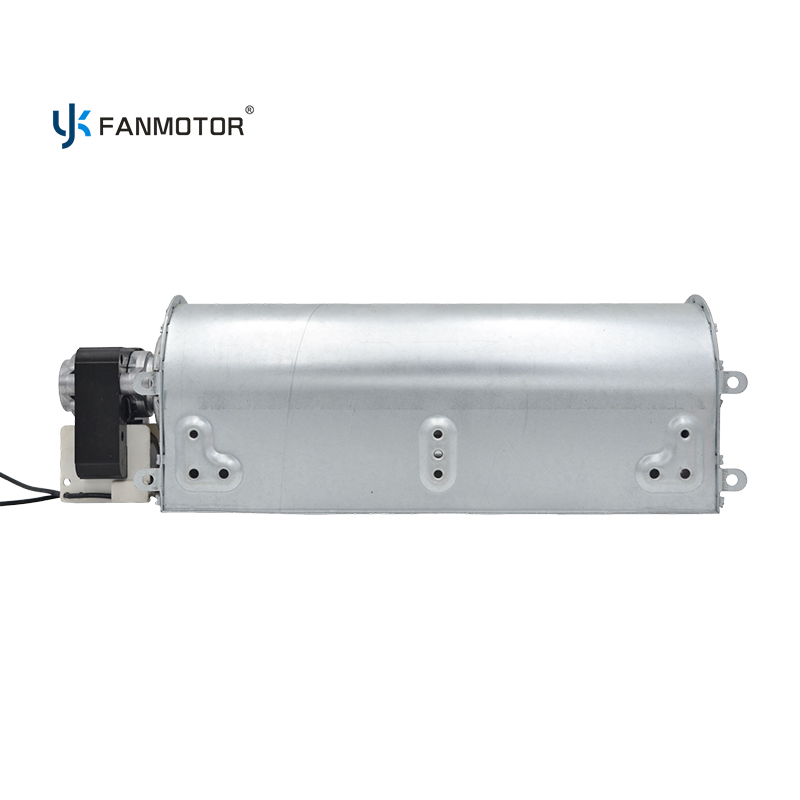

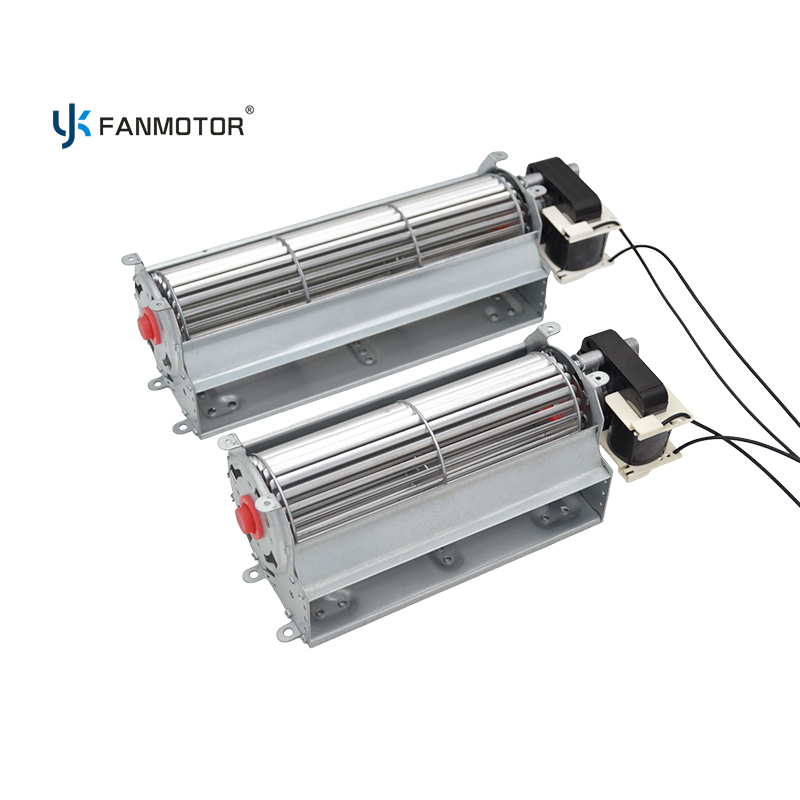

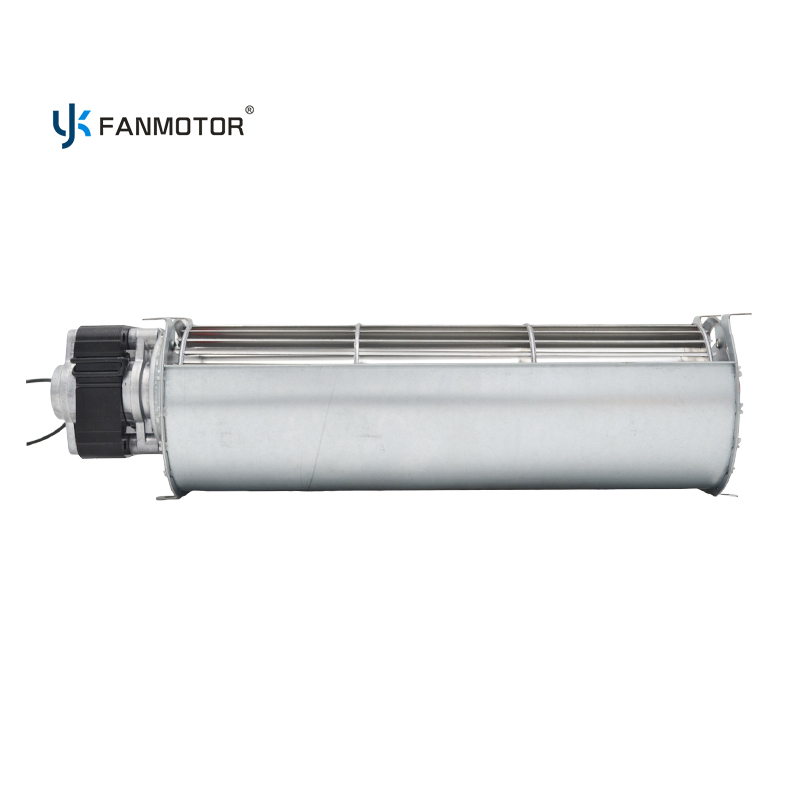

60x240mm Cross Flow Fan 32W Ball Bearing Tangential Blower for Air Curtains and Heaters

The values below are the specification we build the YK-CF60240B-6020A to. Airflow is measured at free discharge and rated voltage; with a grille, filter or heat exchanger in the airflow path, expect a reduction of 15-25 percent.

Ordering

1,000 pieces for the standard 60x240 build. Mixing 6020 and 6016 motor sizes on one purchase order is possible above 3,000 pieces total.

Typical duties for the YK-CF60240B-6020A. Air curtain, electric fireplace, heater.

• Air curtains - 180-260 m³/h over a 240 mm slot holds a stronger door-line seal than a 180 mm barrel, with lower noise than a 300 mm barrel at the same duty.

• Electric fireplaces and stoves - The 240 mm length suits 1,200-1,500 mm inserts where one barrel must cover the full flame width.

• Convection and fan heaters - Ball bearings survive the warm, dusty air above a heating element and the seasonal idle period between winters.

• Drying and curing cabinets - Even tangential discharge keeps temperature uniform across a shelf stack.

Matching the fan to the duty

Choose the 240 mm barrel when the discharge slot is 200-260 mm wide. Below that, most of the airflow is throttled at the housing lip and a 180 mm barrel performs better for less power.

The YK-CF60240B-6020A is built in our own plant, so the specification can be adjusted to your appliance rather than the other way round. Options below are quoted against the base build.

What can be customized

• Impeller lengths of 180, 240 and 300 mm on the same 60 mm platform.

• Motor size 6020 or 6016 to trade airflow against power draw.

• Winding material confirmed per order: copper, aluminium or CCA.

• 110 V / 60 Hz build for North American programmes.

• Custom lead length, connector and terminal block.

• Private label.

MOQ and tooling

1,000 pieces for the standard 60x240 build. Mixing 6020 and 6016 motor sizes on one purchase order is possible above 3,000 pieces total.

Manufacturer

Manufactured by Guangzhou Yuexun Electric Appliance Co., Ltd. (YKFANMOTOR) in Guangzhou, China, part of a family motor business with more than 28 years of manufacturing experience. CE and RoHS documentation is supplied where the model carries those marks; IEC test reports can be arranged for custom builds.

Frequently asked questions

Q: What is the airflow of a 60x240 cross flow fan?
A: This model delivers 180-260 m³/h (about 106-153 CFM) at 2,000-2,300 RPM with 32 W input. Airflow is quoted at free discharge; a grille or heat exchanger reduces it by 15-25 percent.

Q: Why is the noise rating higher than the 60x180 model?
A: The 240 mm barrel moves roughly 25 percent more air at a similar tip speed, so blade-pass sound rises to 52-58 dB(A). If noise is the constraint, specify the 2,000 RPM winding rather than 2,300 RPM.

Q: Can the impeller be 180 mm instead of 240 mm?
A: Yes. The 6020 motor accepts either barrel, so one motor drawing covers both lengths. That is useful when the same appliance is sold in two widths.

Q: Is a capacitor needed?

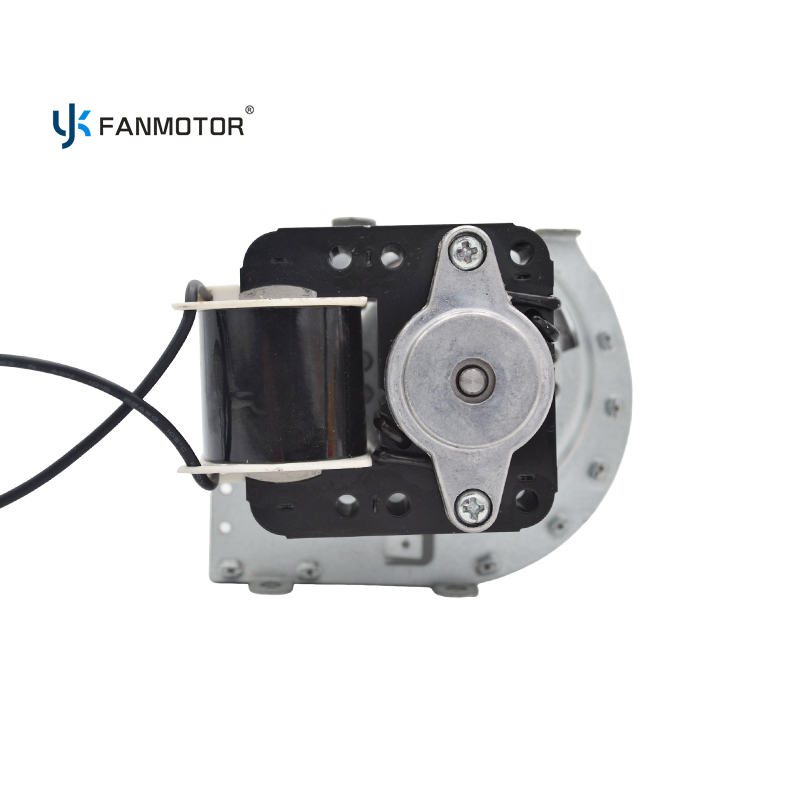

A: No. The motor is shaded pole, so it connects directly to the AC supply with two leads.

Q: What is the MOQ and price?
A: 1,000 pieces at US$4.99-5.27 per piece depending on quantity and winding material. Volume pricing starts at 3,000 pieces.
