Introduction
When sourcing or designing single-phase AC motors for household appliances—especially residential fans like table fans, standing fans, and wall fans—choosing the right motor type is critical.
While both capacitor-start and capacitor-run (Permanent Split Capacitor, or PSC) motors use capacitors to create the phase shift needed for single-phase operation, their internal designs, torque profiles, and efficiencies vary significantly. Using the wrong motor can result in excessive noise, energy waste, or premature failure.
This guide breaks down the technical differences between these two motor types and explains how they apply to modern appliance fan manufacturing.
1. Capacitor-Start Motors: Engineered for Heavy Starting Loads
A capacitor-start motor is a modified split-phase motor that utilizes a large starting capacitor in series with the auxiliary winding to deliver high starting torque.
How It Works: At startup, both the main winding and the auxiliary winding (paired with the starting capacitor) are energized to produce a powerful starting magnetic field. Once the motor reaches about 75% to 80% of its rated speed, a centrifugal switch automatically disconnects the starting capacitor, and the motor runs solely on the main winding.
Key Characteristic: Massive starting torque (often 200% to 350% of rated torque).
Relevance to Fans: While rarely needed for standard household table or standing fans (which start under near-zero load), capacitor-start designs are sometimes evaluated for heavy-duty industrial blowers or large commercial exhaust fans that must overcome high initial inertia.
2. Capacitor-Run Motors (PSC): The Gold Standard for Household Fans
A capacitor-run motor, widely known as a Permanent Split Capacitor (PSC) motor, keeps its run capacitor permanently wired in the circuit during both starting and running phases.

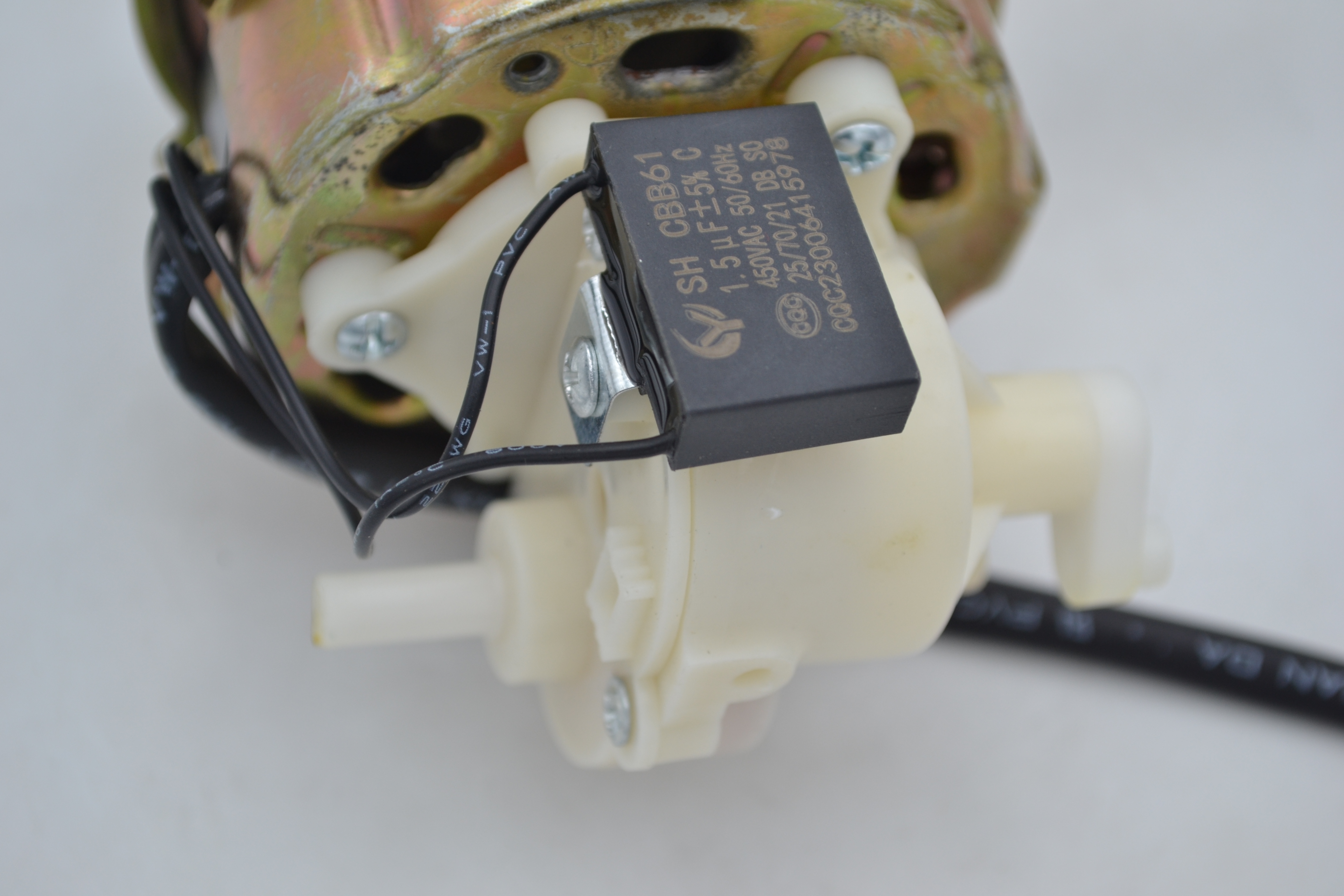

How It Works: There is no centrifugal switch. A smaller, continuous-duty run capacitor stays connected to the auxiliary winding at all times, ensuring a balanced, smooth magnetic field throughout operation.
Key Characteristic: High running efficiency, low noise, and exceptional reliability.
Relevance to Fans: This is the absolute industry standard for residential fans—including table fans, standing fans, and wall fans. Because fans start under very light mechanical load, they do not need the massive initial torque of a capacitor-start motor; instead, they thrive on the quiet efficiency and multi-speed adaptability of a PSC motor.
3. Head-to-Head Comparison Table
Performance Metric | Capacitor-Start Motor | Capacitor-Run (PSC) Motor |
Starting Torque | Very High (200%–350%) | Low to Moderate (50%–100%) |
Running Efficiency | Moderate (runs on main winding only) | High (continuous capacitor assistance) |
Mechanical Reliability | Lower (contains wearing centrifugal switches) | High (no mechanical switches) |
Noise & Vibration | Higher electromagnetic hum | Quiet and Smooth (Ideal for Fans) |
Speed Control Flexibility | Difficult to adjust continuously | Easy (supports winding taps for multi-speed) |
Typical Fan Application | Heavy industrial blowers, high-inertia fans | Table fans, standing fans, wall fans, household blowers |
4. Why Household Fans Rely on Capacitor-Run (PSC) Motors
When engineering portable or mounted household fans—such as standing fans or desk table fans—manufacturers evaluate three main factors where PSC motors excel:
Low Operating Noise: Consumers expect home fans to run quietly. PSC motors maintain a smooth, circular magnetic field that minimizes acoustic hum and vibration.
Multi-Speed Capability: By incorporating auxiliary winding taps (High, Medium, Low speed), capacitor-run fan motors easily deliver multi-speed control for users.
Continuous Duty Reliability: Since household fans often run for hours uninterrupted during hot seasons, the absence of mechanical centrifugal switches ensures a long, maintenance-free operational life.
5. Sourcing Considerations for Fan Manufacturers
When partnering with a motor supplier for your fan production line, keep these technical requirements in mind:
Stator and Winding Customization: Ensure the manufacturer can adjust copper or aluminum windings to meet your target RPM and airflow output.
Thermal Protection: Integrate built-in thermal fuses to protect the fan motor against overheating under blocked-rotor or extreme ambient conditions.
Shaft and Mounting Precision: Verify exact shaft lengths and bearing types (sleeve vs. ball bearings) to guarantee smooth blade rotation and durability.
Conclusion
Choosing between capacitor-start and capacitor-run motors comes down to understanding your application's load requirements. While heavy industrial systems may demand capacitor-start technology, capacitor-run (PSC) motors remain the undisputed choice for efficient, quiet, and reliable household fans like table, standing, and wall fans.
