Product Description

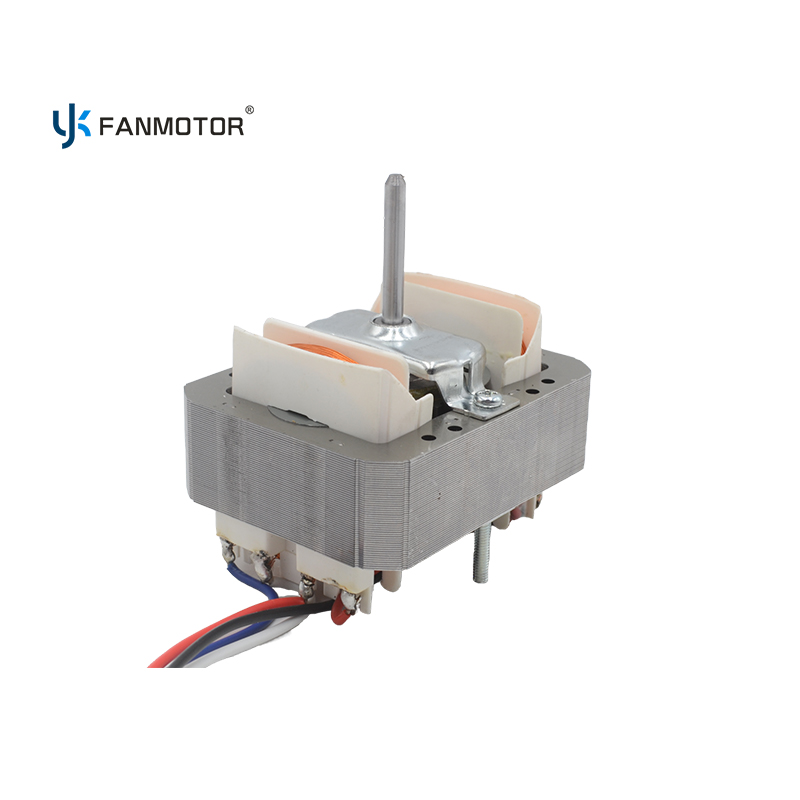

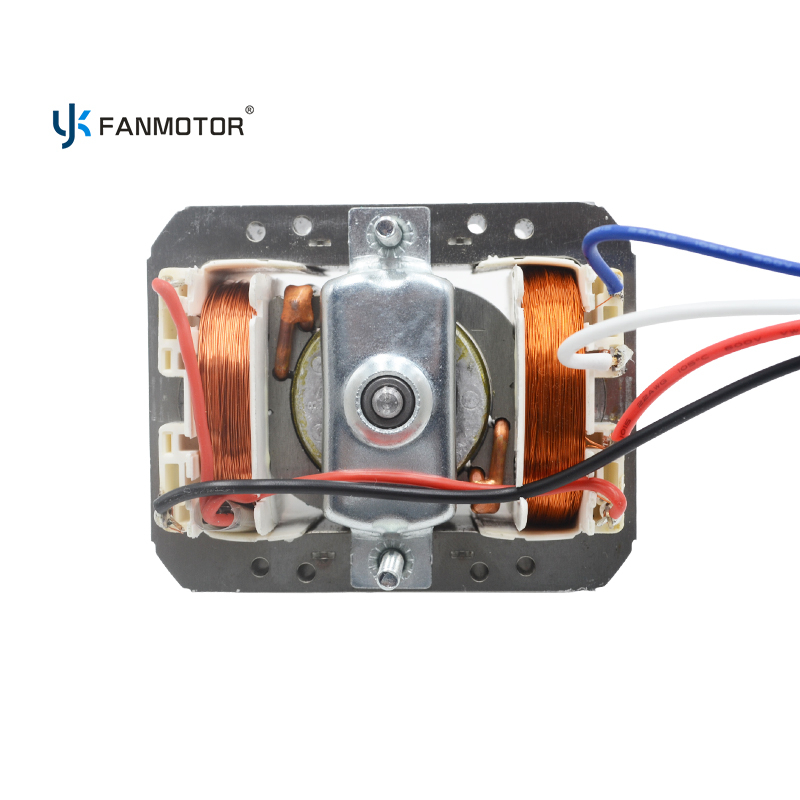

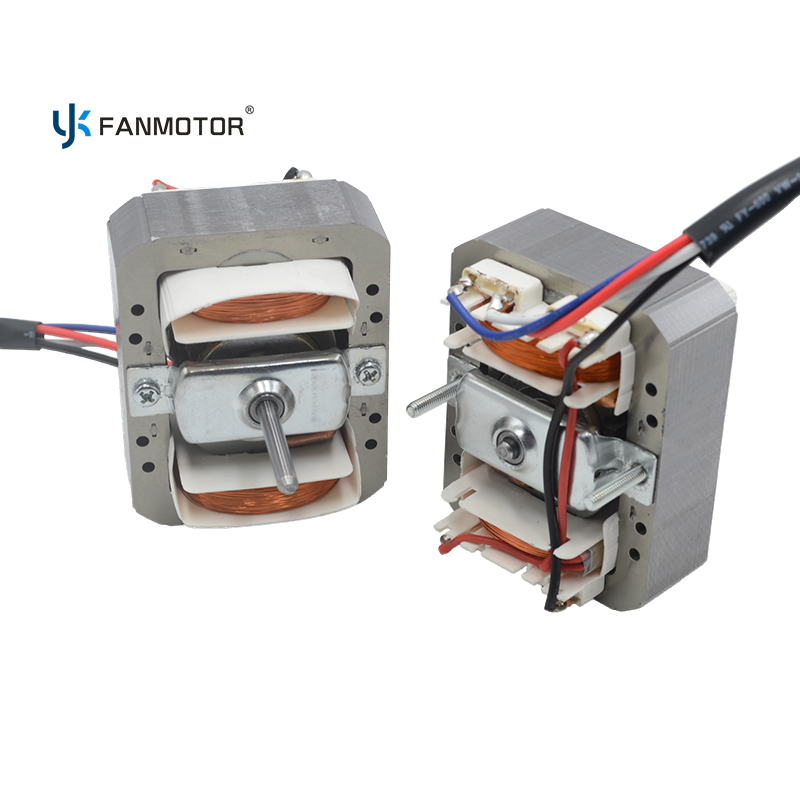

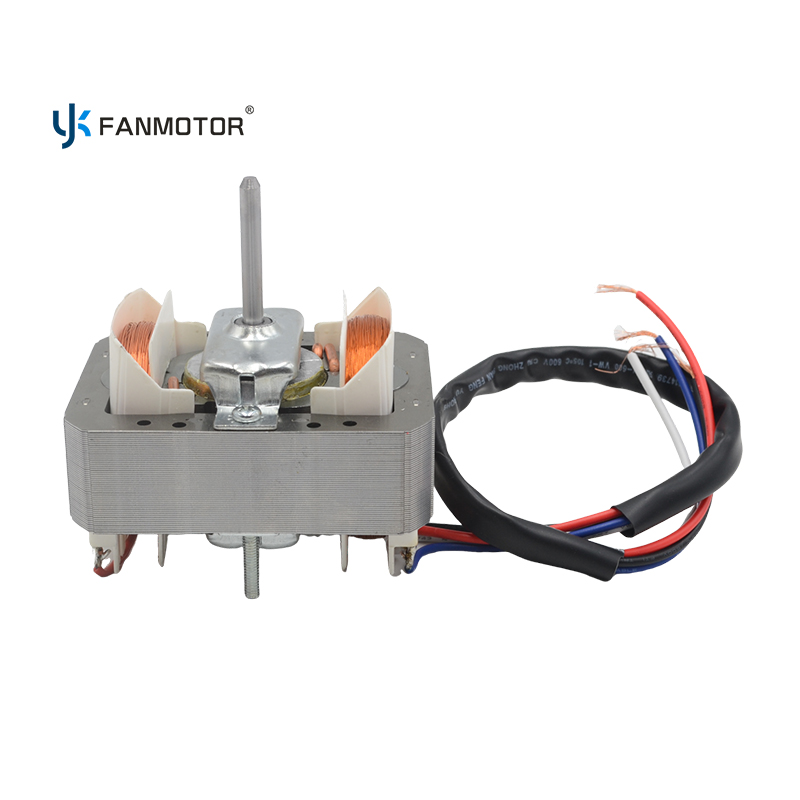

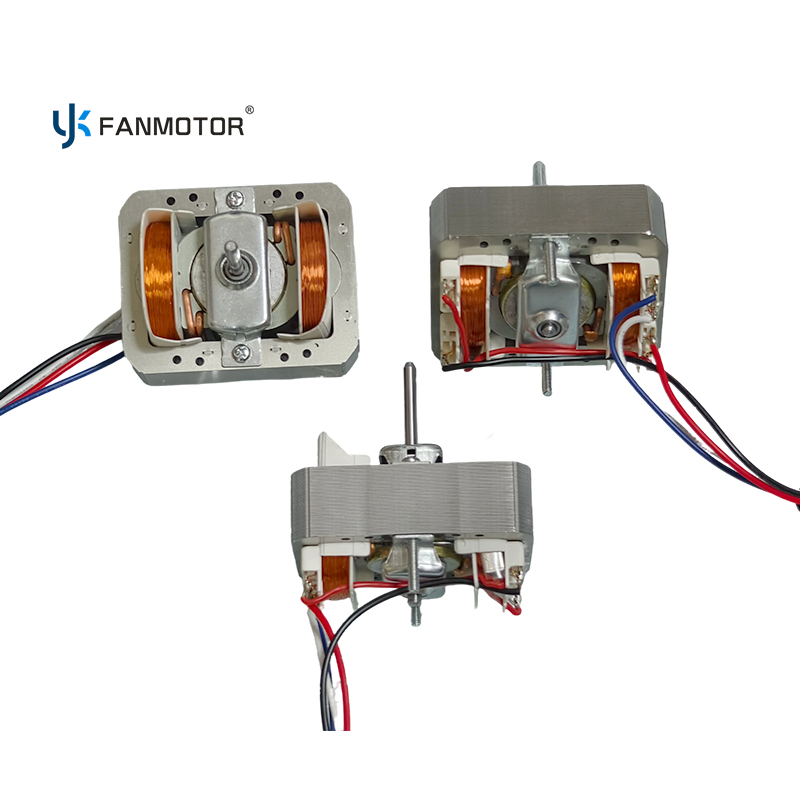

YK-8425-90 high-performance shaded pole range hood motor engineered for efficient extraction, this 220V 50Hz motor delivers 75W of power at speeds up to 2900 r/min. Built with durable aluminum wire and a robust iron bracket , it prioritizes safety with V0 fire-resistant materials and a 150°C resettable thermal protector to prevent overheating. Ideal for direct replacement or OEM use.
Key Features
High-Performance Extraction
Rated at 75W with a high speed of 2900±100 r/min, ensuring instant air clearing for kitchen environments.
Safety First Design
Equipped with a HKW 9700 150°C Resettable Thermal Protector and V0 Fire Resistance grade materials for maximum safety.

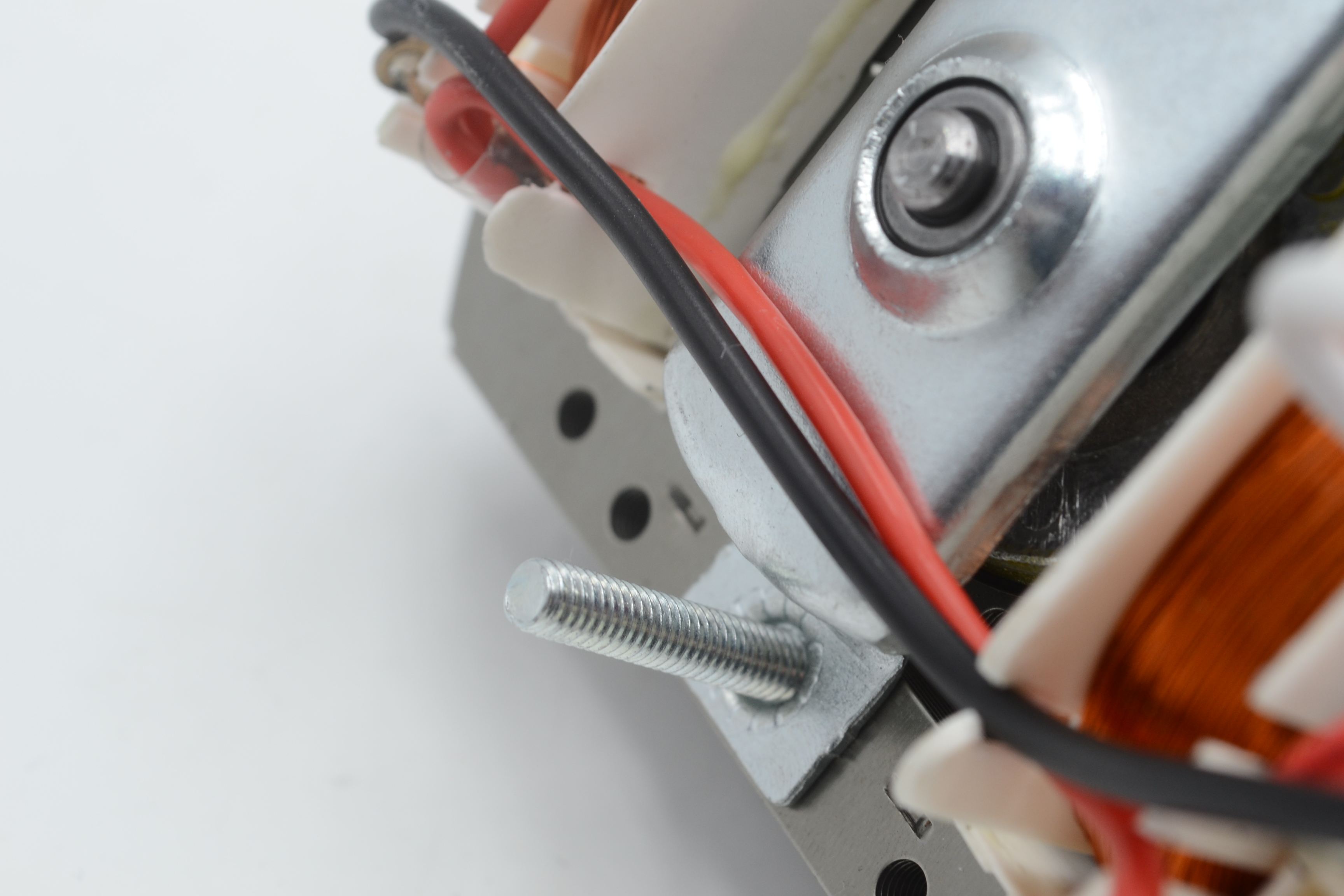

Durable Construction
Features a sturdy Iron Bracket Structure and Class B Insulation for reliable long-term operation.
Versatile 3-Speed Control
Supports Low, Medium, and High-speed settings to adapt to different cooking fumes.
Certified Quality
CE Certified motor meeting international safety standards.
Technical Specifications
| Specification | Detail |
| Model | YK-8425-90 |
| Application | Kitchen Range Hood |

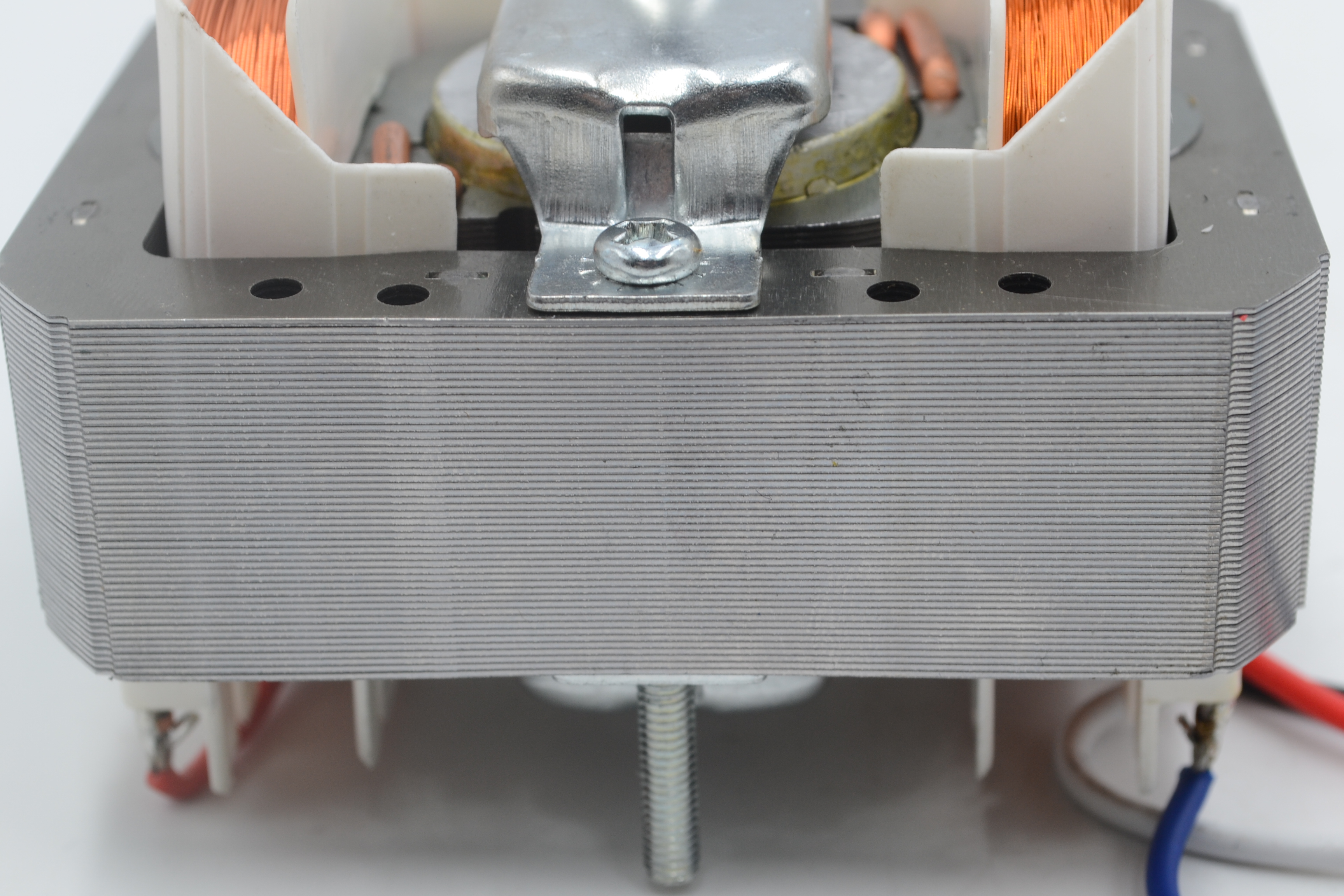

| Stator Size | 68×84×25mm
|
| Winding Material | Aluminum Wire |
| Rated Voltage | AC 220V |
| Frequency | 50Hz |
| Output Power | 75W |
| Rotation Direction | CCW (Counter-Clockwise) |
| Insulation Class | Class B |
| Thermal Protection | HKW 9700 150°C (Resettable) |
| Certification | CE |

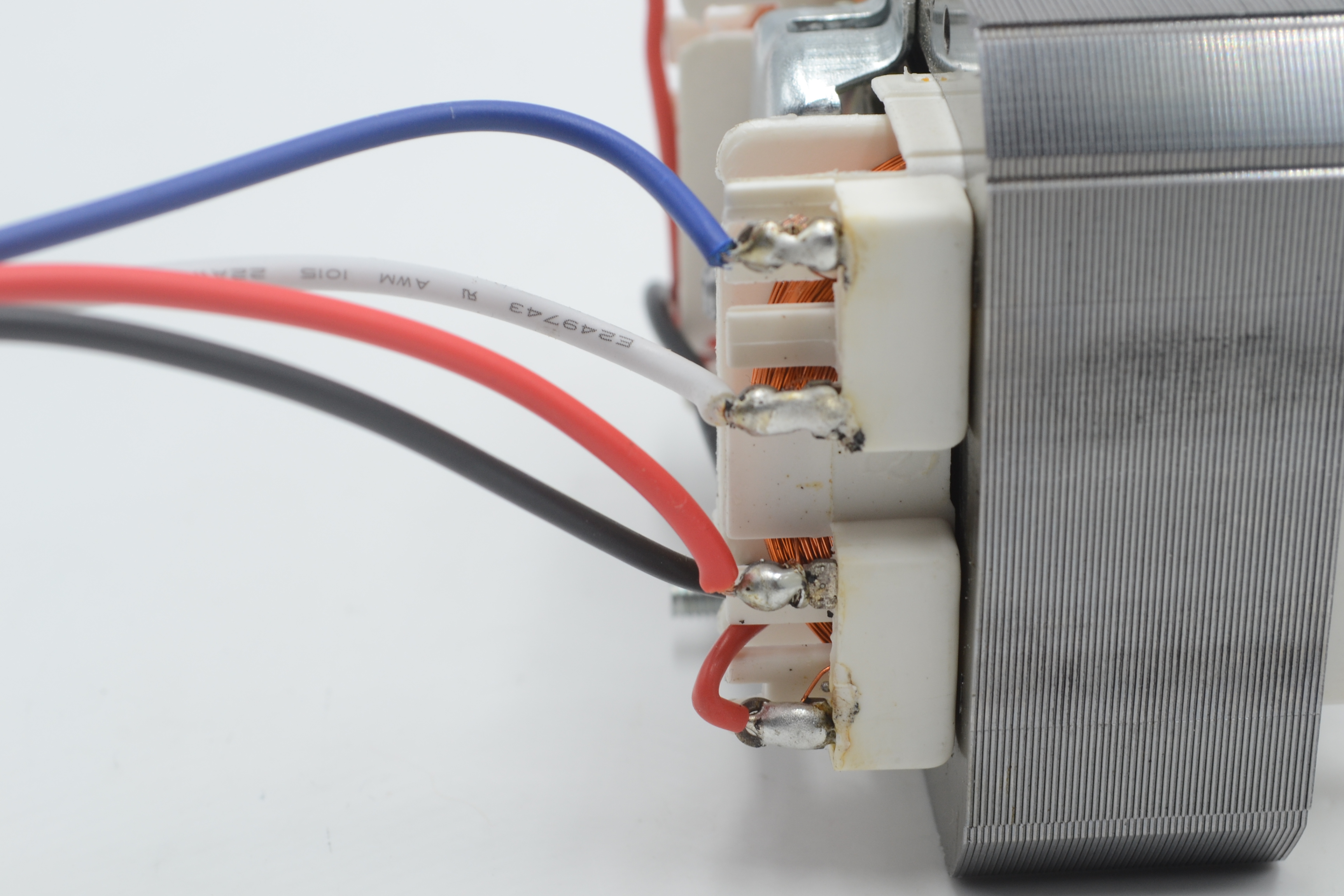

Wiring Diagram & Performance Data

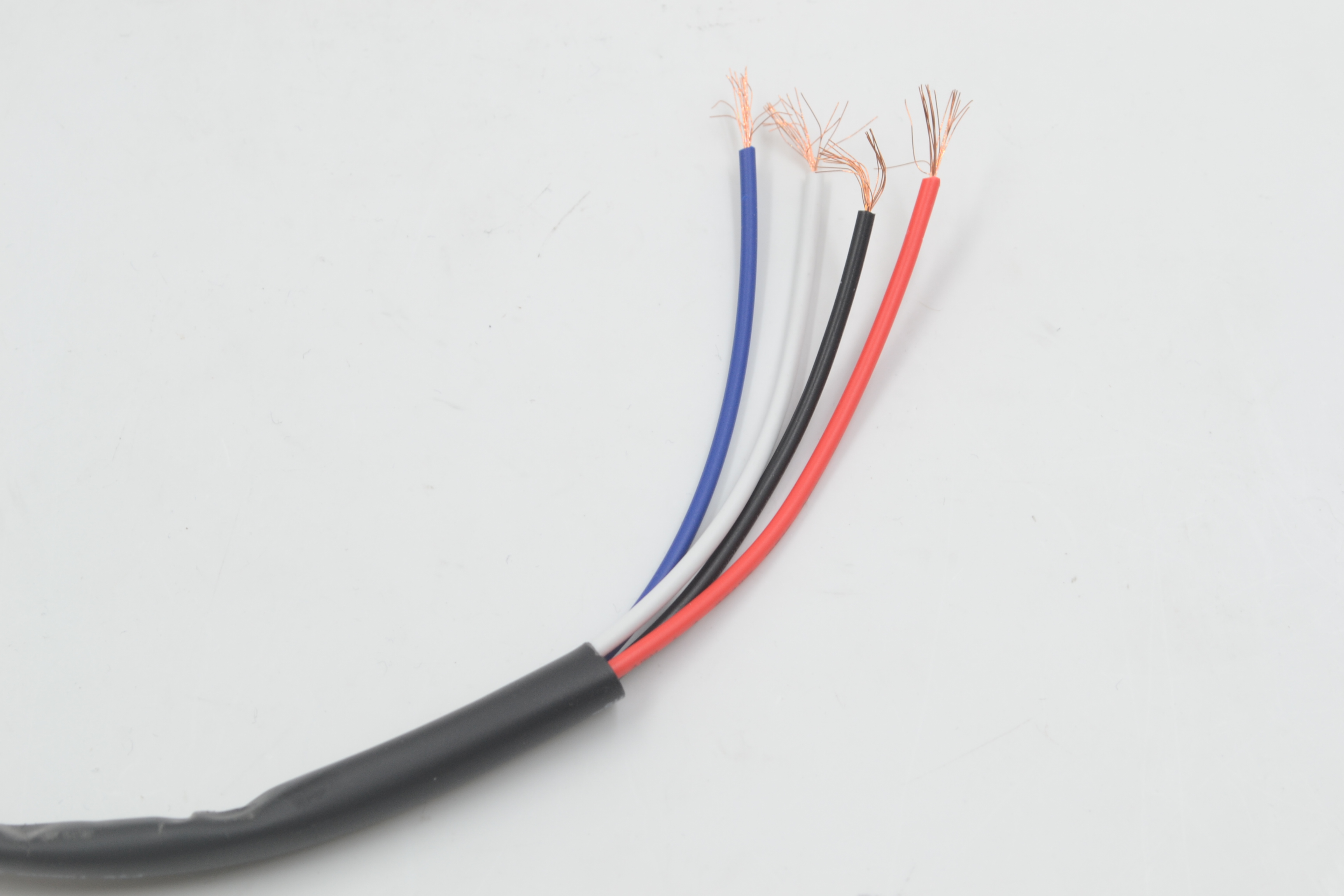

Please refer to the color codes below for correct installation:
Black: Common Terminal (Public Line)
Red: High Speed
White: Medium Speed
Blue: Low Speed
Note: Wire length is approximately 400mm-450mm depending on the terminal. Ensure power is disconnected before installation.
| Performance Data(220V/50Hz No-Load Test) |
| Gear Setting | Current (A) | Power (W) | No-Load Speed (r/min) |
| High | 0.619A | 76.8W | 2900±100r/min |
| Medium | 0.424A | 53.3W | 2930±100r/min |
| Low | 0.324A | 41.1W | 2930±100r/min |
More details/quotation/sample,pls contact us
Product Application
The YK-8425-90 shaded pole motor is specifically designed for kitchen ventilation domestic range hoods. Its 3-speed functionality makes it adaptable to various cooking scenarios:
Low Speed: Perfect for light steaming or boiling, maintaining air circulation with minimal noise .
Medium Speed: Ideal for standard daily cooking .
High Speed: Delivers maximum extraction power for heavy frying or searing, instantly clearing smoke and grease .
FAQ
What is the direction of rotation for this motor?
The YK-8425-90 rotates in a CCW (Counter-Clockwise) direction when viewing from the shaft extension end . Please verify your fan blade requires CCW rotation before purchasing.

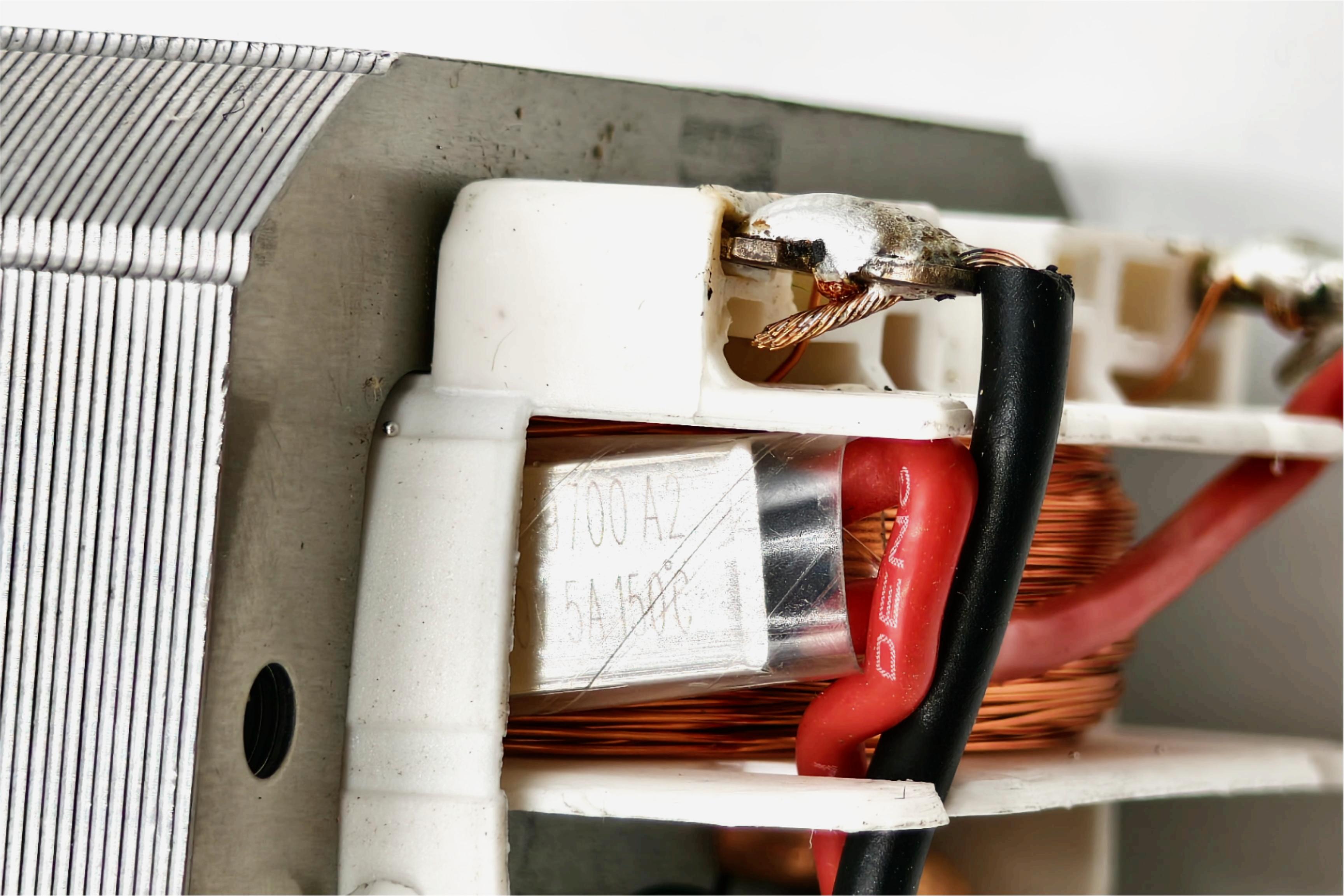

Does this motor have overheat protection?
Yes, this motor is equipped with an HKW 9700 resettable thermal protector, which activates at 150°C. If the motor overheats, it automatically shuts off and resets after cooling, thus preventing fire hazards.

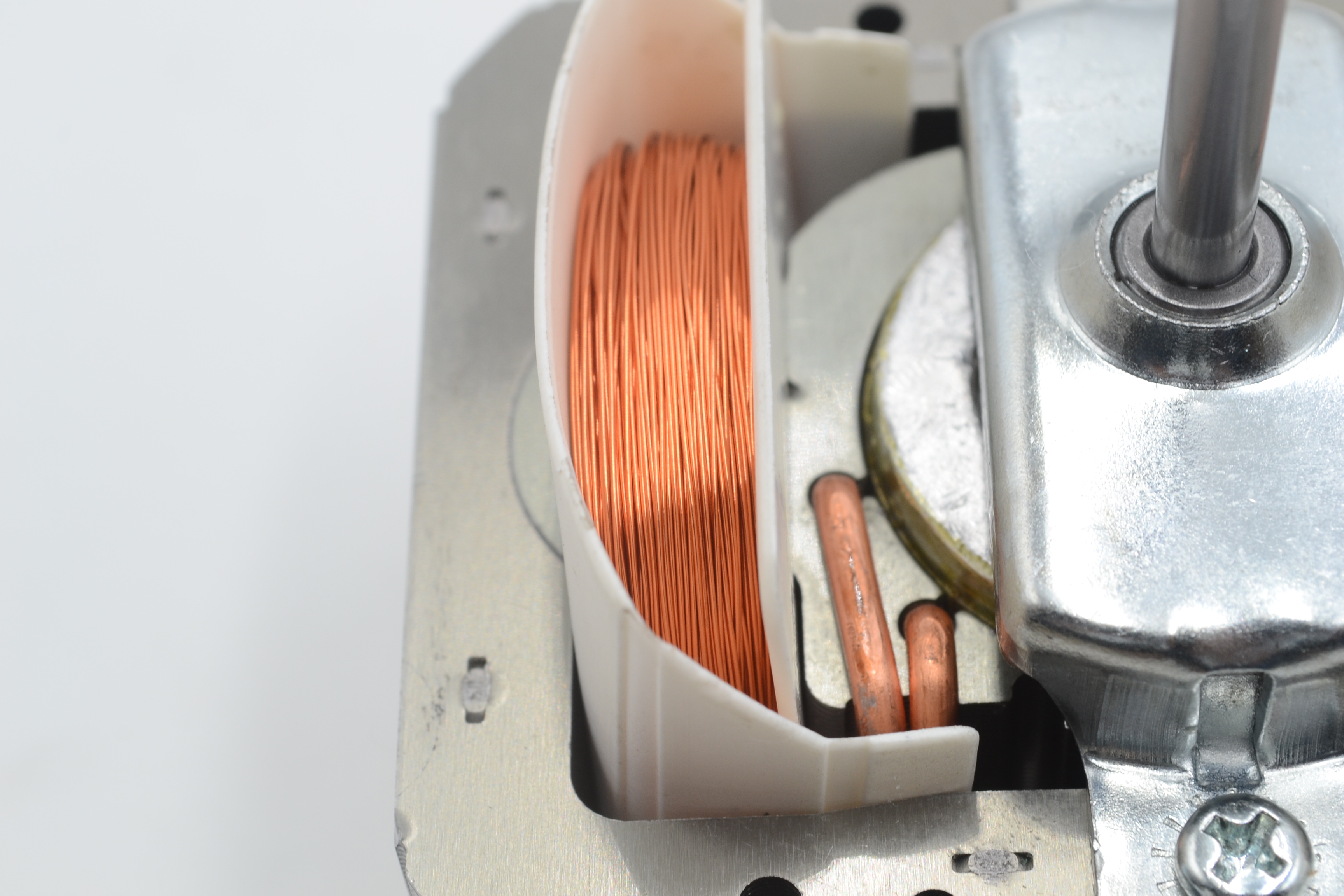

Is the winding copper or aluminum?
This product uses high-performance, cost-effective aluminum wire, which effectively reduces costs while still meeting the performance and lifespan requirements of most household range hoods. Of course, we also support custom copper wire or copper-clad aluminum wire.
