Introduction
In hot appliances, motor failure stems from the wrong insulation class, bearing type, or a lack of thermal protection. Specify Class F (155℃) or Class H (180℃) insulation, dual ball bearings, thermal protection, and varnish-impregnated windings. Confirm the internal ambient temperature and require testing before tooling approval.
Key Specification Steps
1. The Mistake Buyers Make: Specifying Against Room Temperature
The oven cavity reaches 250℃, but the motor lives in a compartment at 60-90℃. Winding temperature is ambient plus temperature rise. Every additional 10℃ above the rating roughly halves service life.
Key Takeaway: Insulation class is a system property. Always ask suppliers for system class certificates rather than relying solely on nameplate statements.
2. Choose the Insulation Class from the Ambient
Class B (130℃): Refrigerators and light ventilation.
Class F (155℃): Ovens, air fryers.
Class H (180℃): Range hoods, convection fans, dehydrators.
Rules: If ambient exceeds 60℃, start at Class F. If closer than ~100 mm to a heating element, use Class H.
3. Match the Bearing to Temperature
Bearing type | Behaviour at temperature | When to specify it |
Sleeve / porous bronze bushing | Oil migrates or oxidises near hot ovens, drying out the bearing and causing noise. | Cool, horizontal, intermittent duty only. |
Dual ball bearings | Grease-sealed, tolerates heat and continuous duty, handles vertical loads. | Ovens, air fryers, range hoods, dehydrators. |
4. Specify Thermal Protection
A blocked rotor turns a 20 W motor into a heater. Specify a thermal fuse or protector in the winding circuit to trip before reaching the insulation limit.
5. Windings, Varnish and Moisture
Use copper magnet wire with vacuum or dip impregnation to lock windings, improve heat transfer, and block moisture. Use shielded or encapsulated windings in greasy environments
6. Shaft, Bracket and Thermal Expansion
Confirm plated or stainless steel shafts for rust resistance, and ensure mounting brackets do not distort at operating temperatures to prevent bearing load issues.
️ Looking for Custom High-Temp Motors? Avoid heat failures and get tailored motor solutions from experts.
[ Request a Free Sample & Technical Proposal]

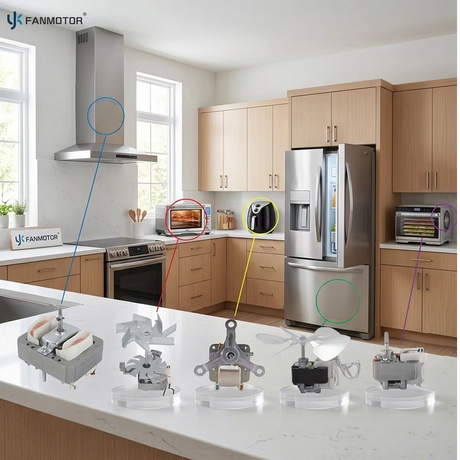

Appliance-by-Appliance Specification Table
Appliance | Typical power | Insulation class | Bearing | Thermal protection | Notes |
Oven convection fan | 10-30 W | Class H | Dual ball | Required | Runs through the whole bake cycle |
Air fryer circulation fan | 15-40 W | Class H | Dual ball | Required | High airflow, long continuous cycles |
Microwave cooling fan | 5-15 W | Class F | Ball or sleeve | Recommended | Short duty, hot compartment |
Food dehydrator/ dry fruit machine | 15-40 W | Class H | Dual ball | Required | Continuous operation at temperature |
Refrigerator/fresh cabinet circulation | 5-20 W | Class F | Ball or sleeve | Recommended | Cold and humid |
Range hood fan | 10-40 W | Class H | Dual ball | Required | Hot, greasy and continuous |
Temperature-rise test.
Blocked-rotor test.
Endurance / life test.
Noise measurement (dB(A)).
Insulation resistance and dielectric tests.
Certification evidence (UL, CE, RoHS/REACH).
Common Field Failures and Their Real Cause
Symptom | Most likely cause | Fix at specification stage |
Motor seizes after months of use | Sleeve bearing dried out in a hot zone | Specify dual ball bearings with high-temp grease |
Winding burnout | Insulation class below actual ambient, no thermal protection | Class F/H plus thermal protector |
Progressive noise increase | Bearing wear, or grease escape | Bearing temperature rating, sealed design, shielded location |
Motor will not restart when hot | Insulation resistance drop, or protector not self-resetting | Varnish impregnation, correct protector type |
Rust and intermittent failure | Condensation and grease ingress | Stainless shaft, sealed lead exit, encapsulated winding |
FAQ
Q1: Can I use a standard shaded pole motor in an oven?
A1: Only if specified for Class F/H, dual ball bearings, and thermal protection.
Q2: Do I need a capacitor motor?
A2: Not necessarily; shaded pole motors are cheaper for small loads in free air.
Q3: How hot is too hot?
A3: If winding temperature is within 20-25℃ of the limit, upgrade the class.
Q4: Does the motor need to be tested in the appliance?
A4: Yes, airflow and ambient inside the assembled product differ from the bench.
Conclusion
High-temperature motors require proper insulation, matching bearings, and thermal protection. Guangzhou Yuexun Electric Appliance Co., Ltd. (YKFANMOTOR) builds custom configurations for various applications.Feel Free to Contact Us.
