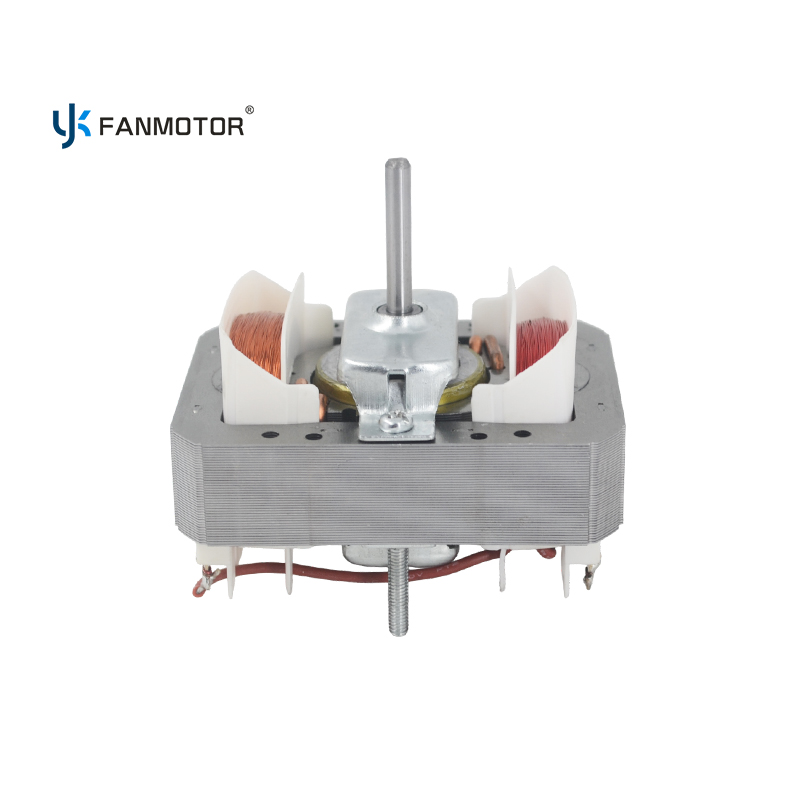

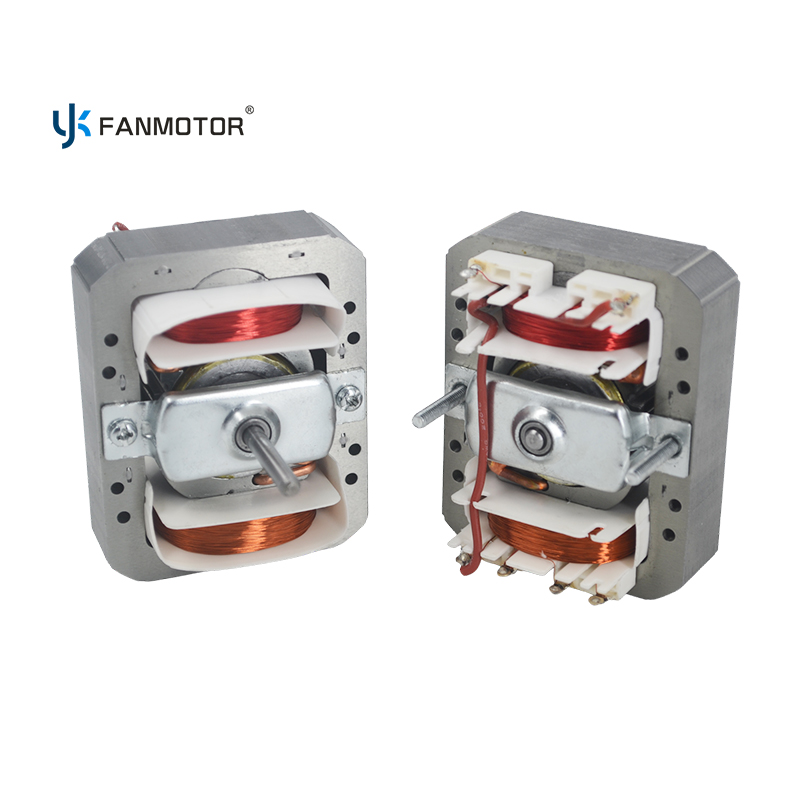

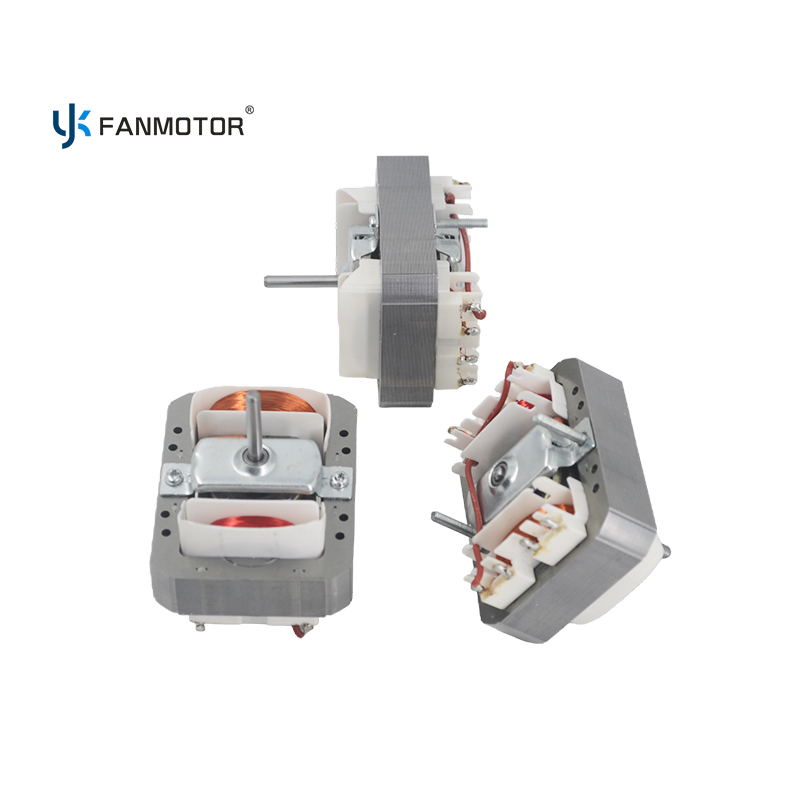

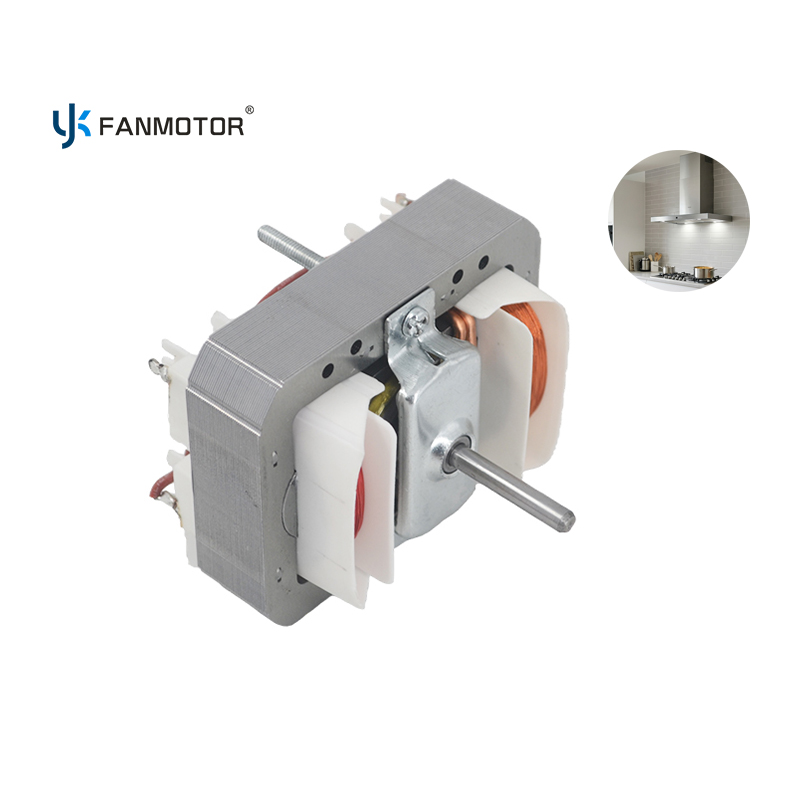

Combining an 80W power rating with a streamlined aluminum wire configuration, the 6820 AC Shaded Pole Motor offers the perfect balance between cost-efficiency and reliable suction performance for modern cooker hoods. It is engineered specifically for high-demand household ventilation.
Product Details
Precision Balanced Power Unit

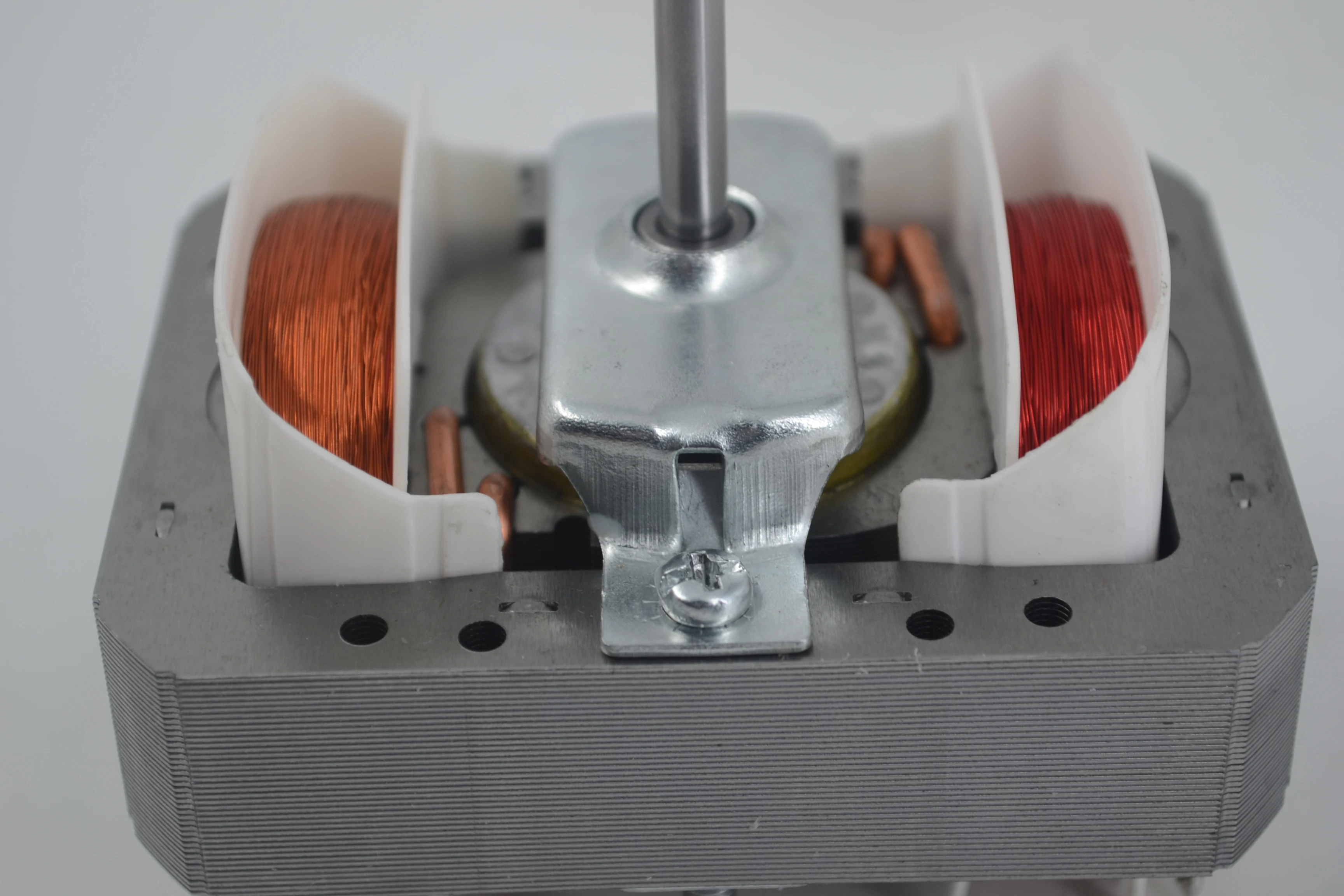

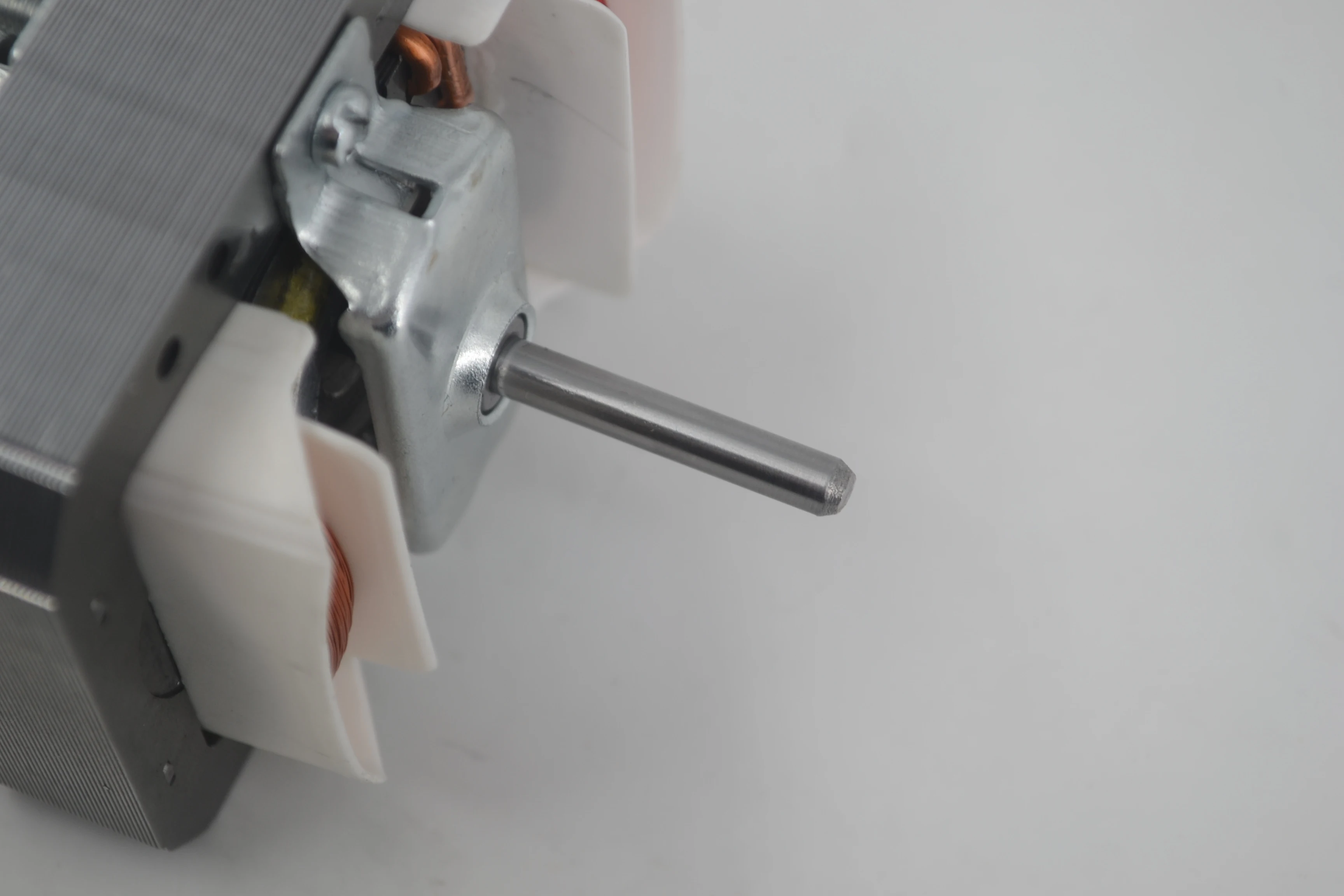

Precision-balanced rotor with anti-vibration bracket and self-lubricating bearings delivers ultra-quiet, low-vibration operation and lasting durability even at high speeds.
Efficient Magnetic Circuit Design
High-grade silicon steel stator + Class B heat-resistant enameled copper coil ensure efficient magnetic circuit performance and stable, reliable insulation.
Integrated Safety & Speed Control

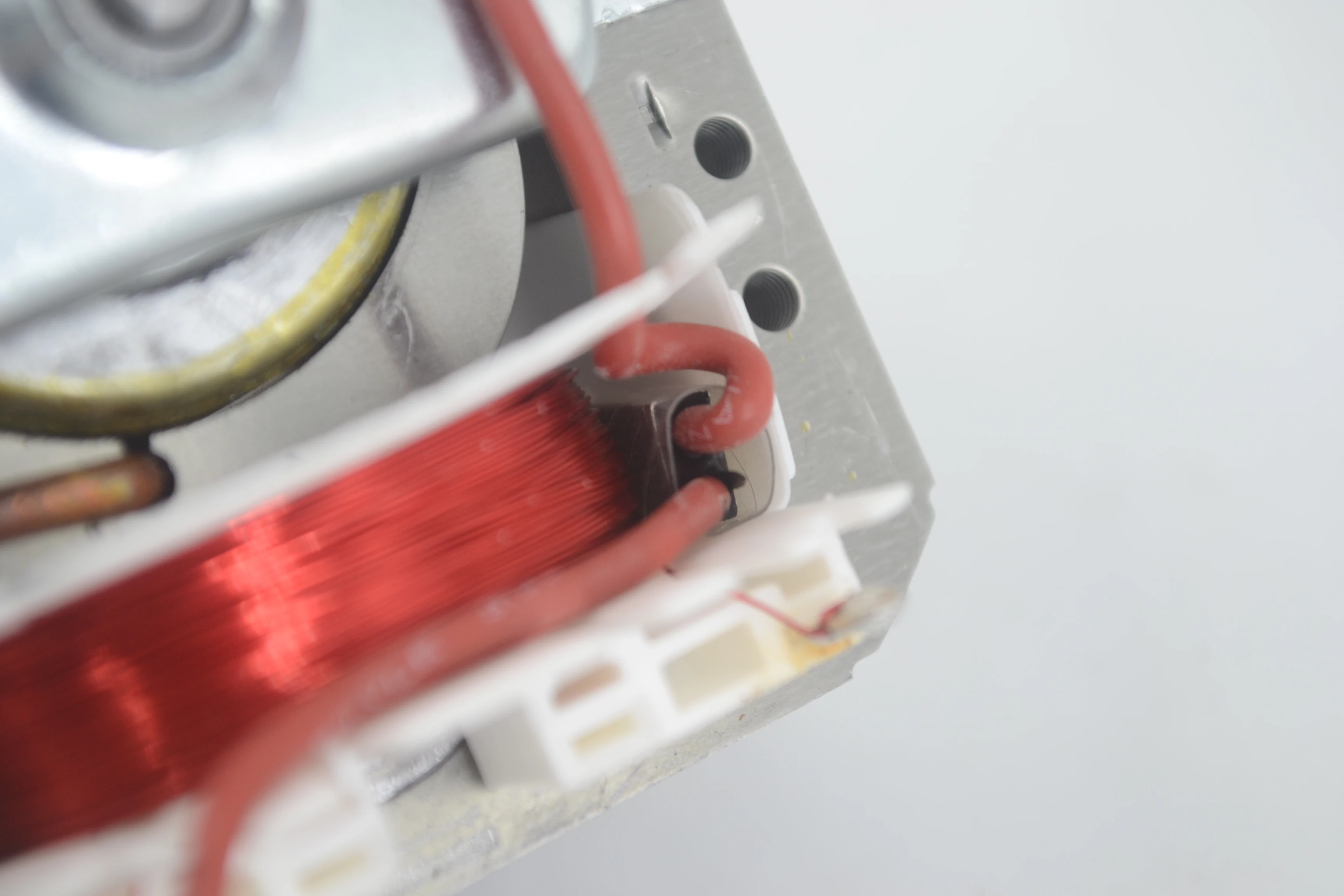

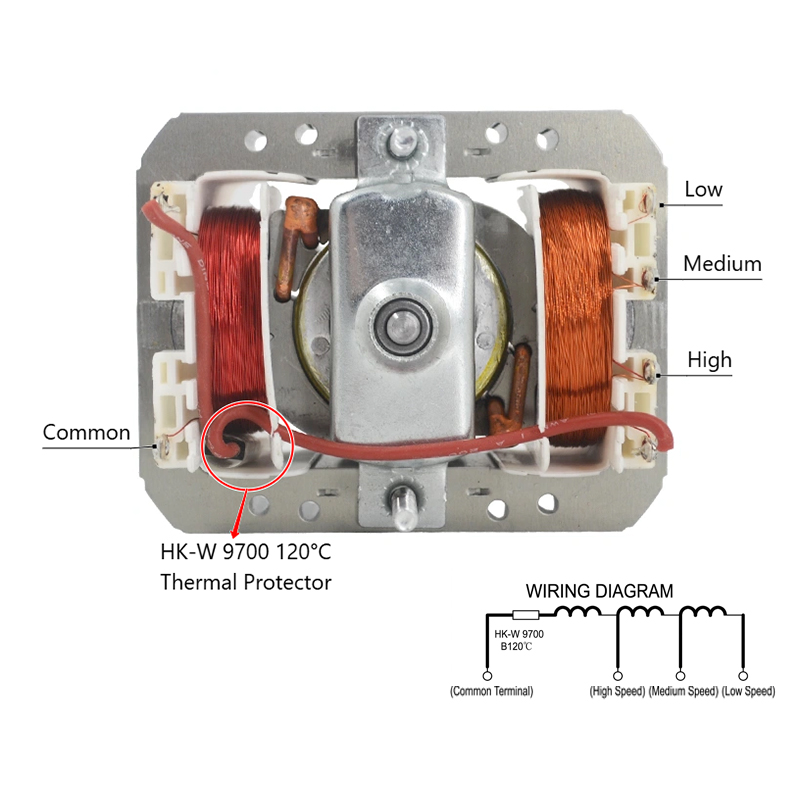

Built-in 120°C auto-reset thermal protector, paired with 6.3mm plug-in terminals for 3-speed adjustment, balances operational safety with easy wiring.

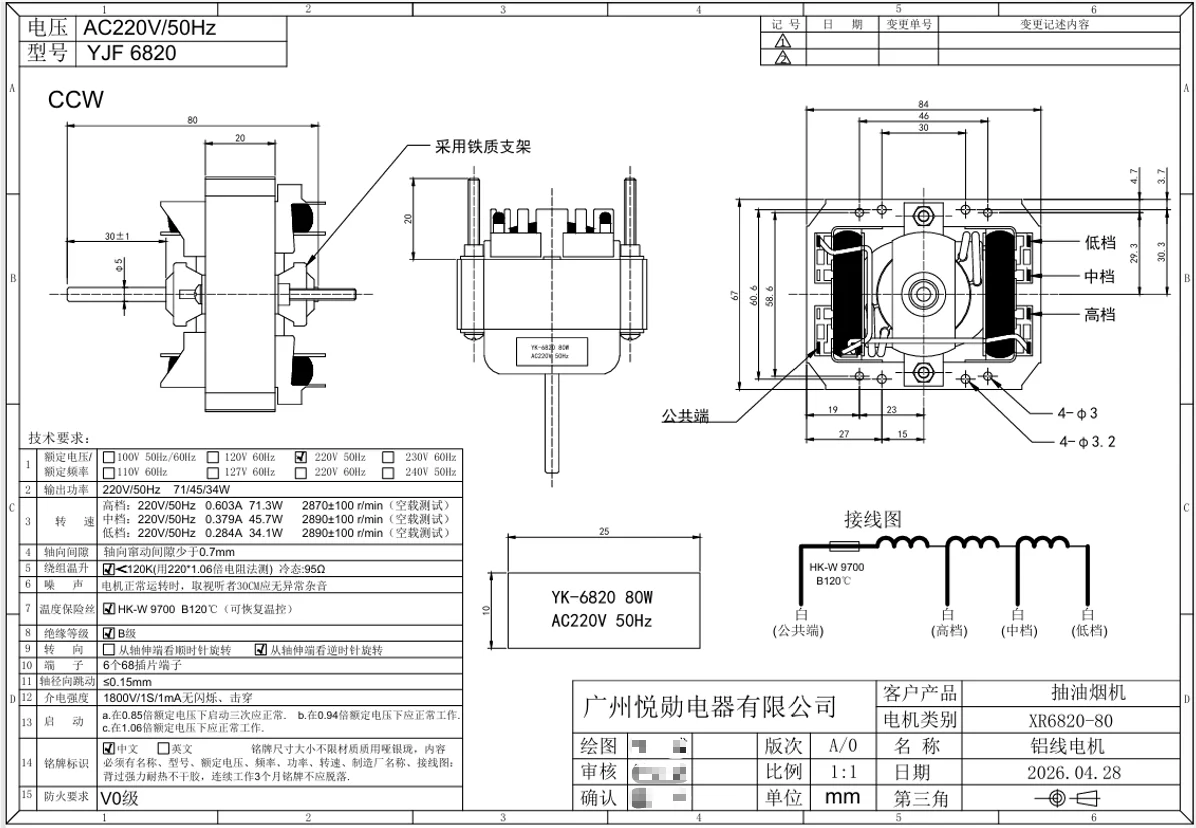

Technical Specifications
Parameter
Specification
Parameter
Specification
Model
YK6820-80
Type
6820 AC Shaded Pole Motor
Material
Aluminum Wire Stator (Cost-effective)
Bearing Type
Oil-impregnated Bushings
Voltage/Frequency
AC 220V/50Hz
Power
80W
Speed
3 Speed
Rotation Speed(RPM)
2770r/min-2990r/min(No-load)
Rotation Direction
CCW (Counter-Clockwise from Shaft End)
Insulation Clas
Class B
Temperature Rise
<120K
Flame Retardancy
V0 Level
Thermal Protector
HK-W 9700 120°C
Certification
CE, RoHS, ISO
Applications

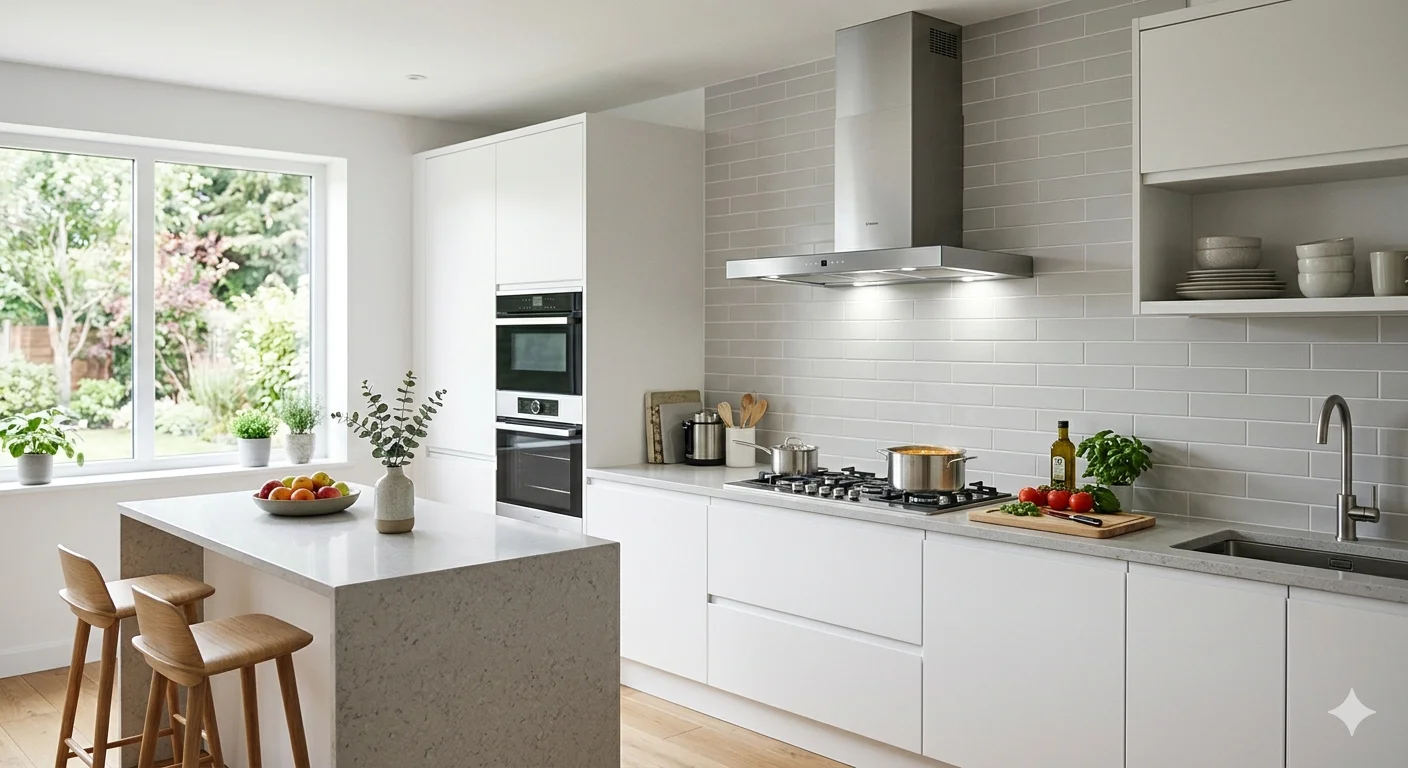

Primarily designed for Household / Commercial Cooker Hoods
FAQ
Q: Can the stator be upgraded to copper wire?
A: Yes, we offer both aluminum and copper wire options based on your budget and performance requirements.
Q: Do you support small batch OEM orders?
A: Absolutely. We provide flexible MOQ options for customized branding and technical adjustments.
