Product Overview

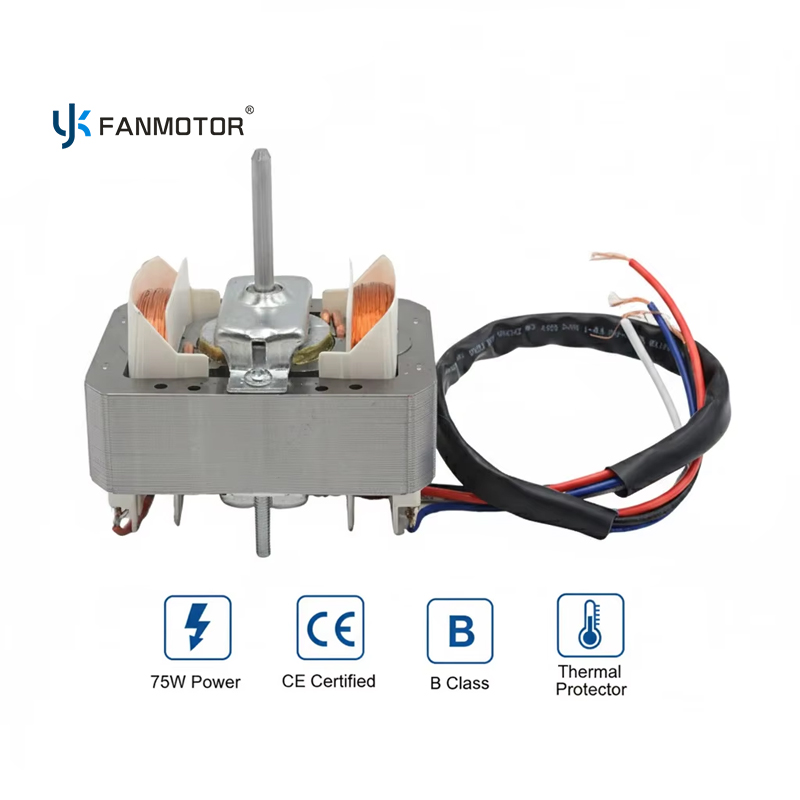

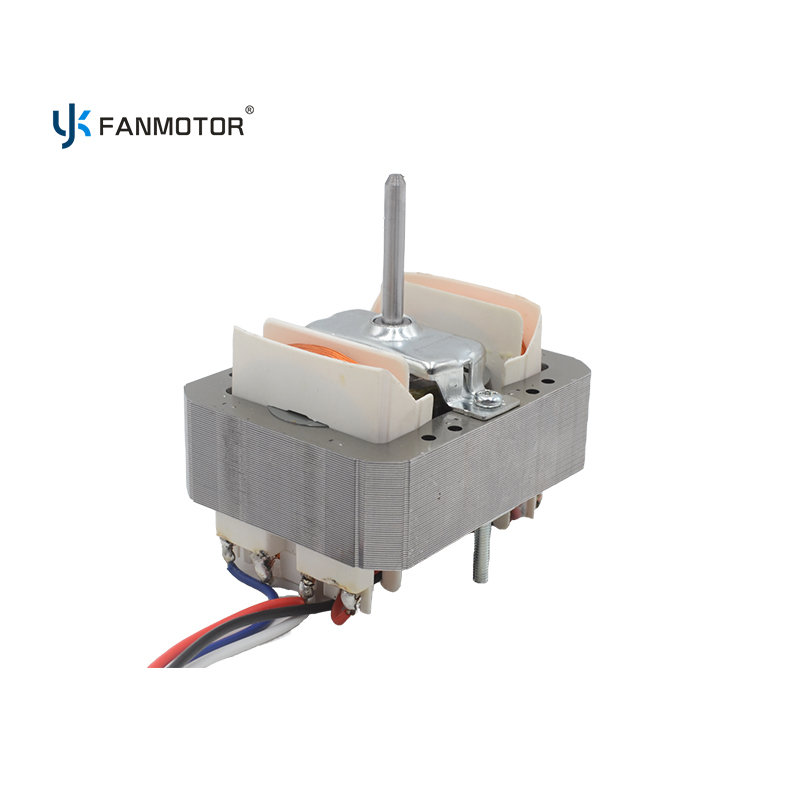

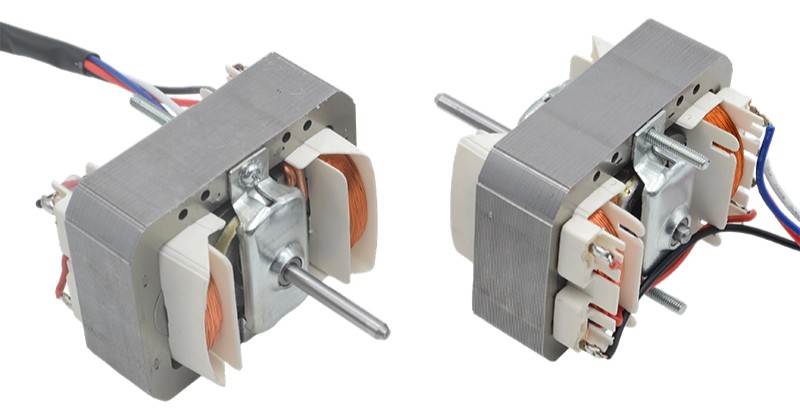

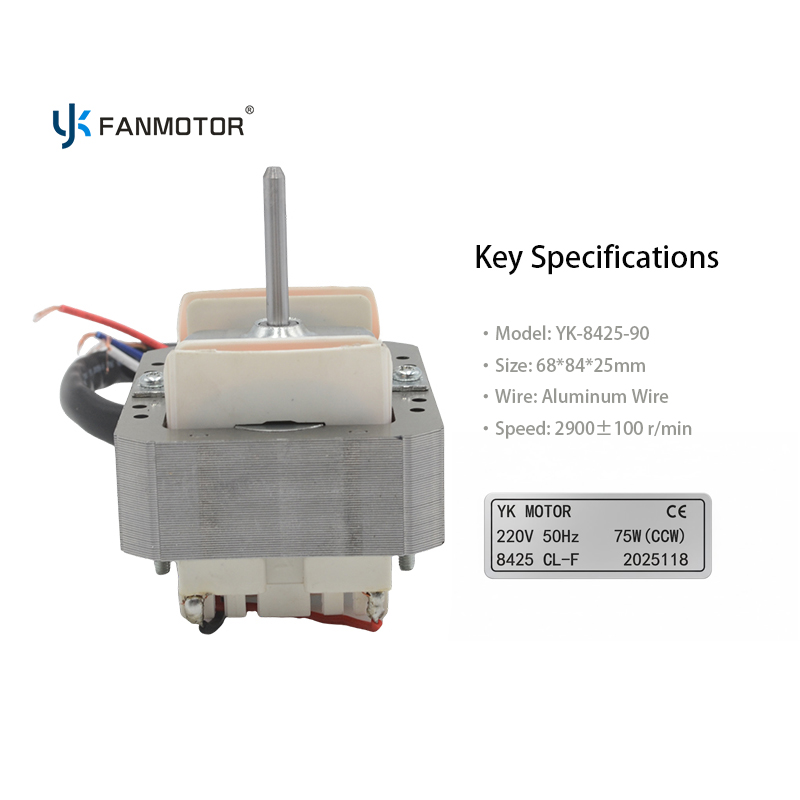

The YK-8425-90 AC Shaded Pole Motor is a 75W (max 76.8W) dedicated solution for kitchen range hoods. Made in Guangdong, China by YKFANMOTOR, it combines 3-speed adaptability, safety, and easy installation – ideal for households, restaurants, and hotels.
Key Features
✅ 3-Speed Adjustment: Fits heavy stir-frying to gentle steaming, efficient ventilation

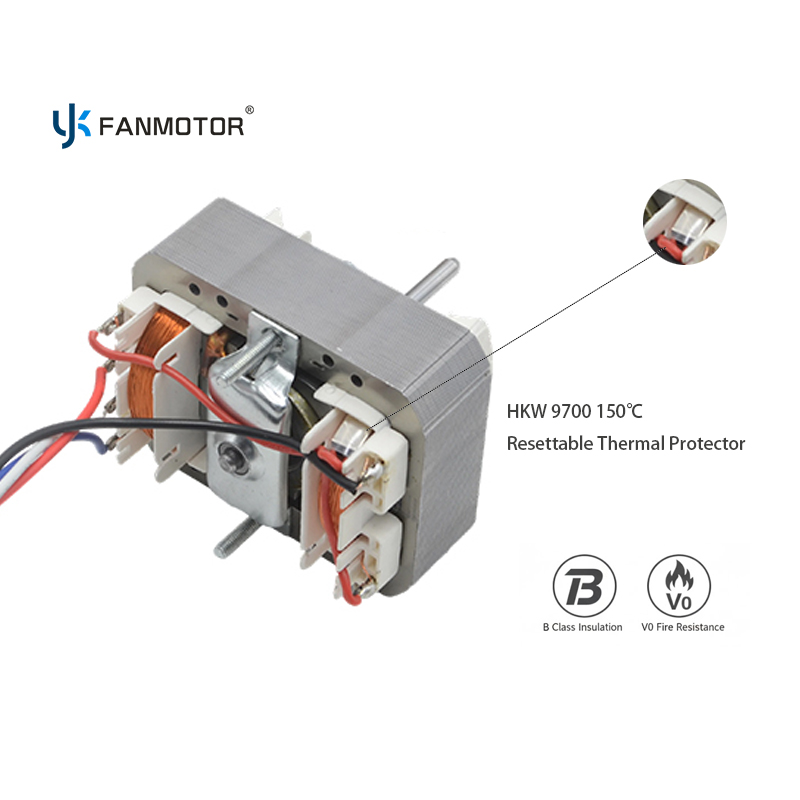

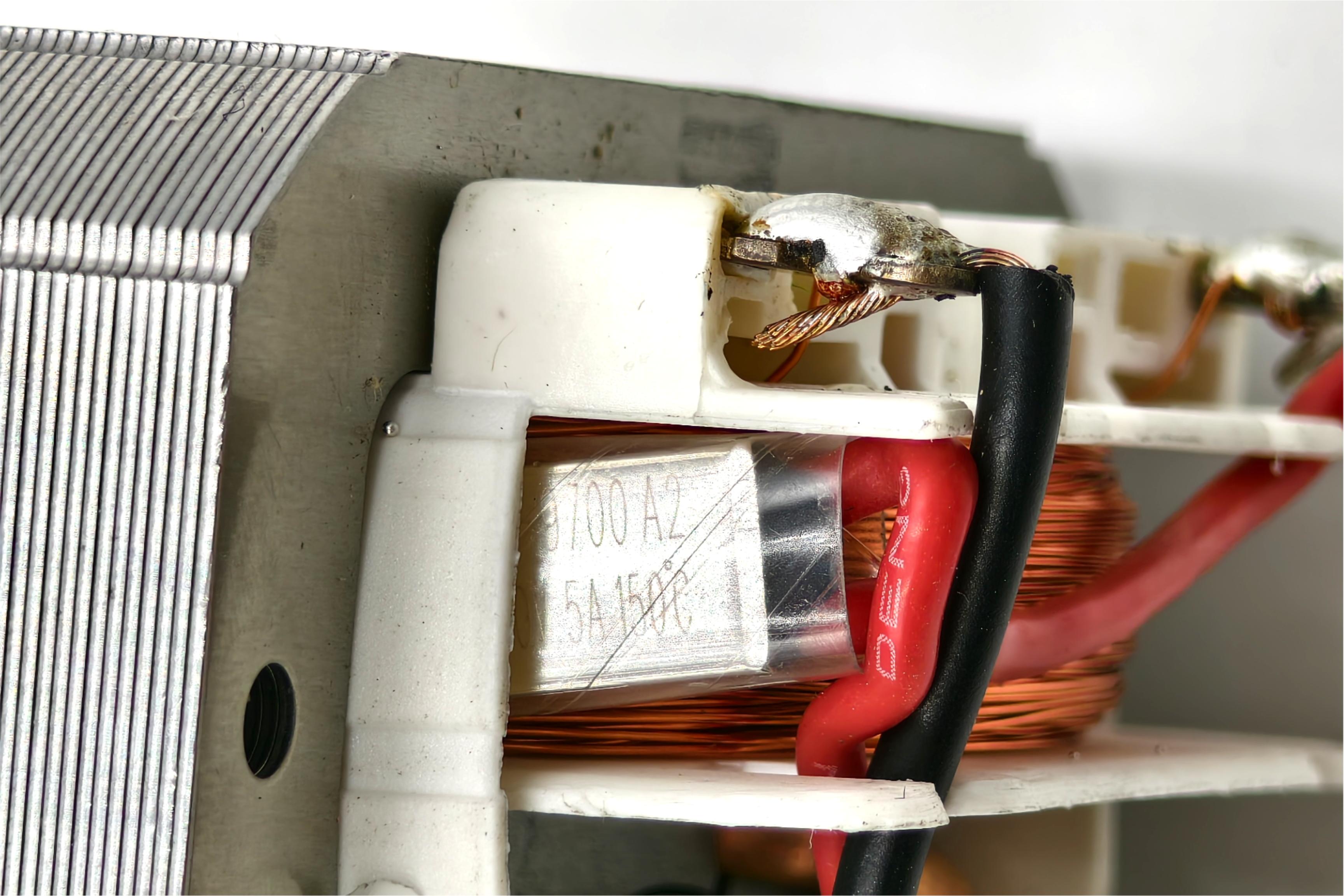

✅ 150°C Thermal Protection: Prevents overheating, extends motor lifespan
✅ Class B Insulation & V0 Flame Retardancy: Passes 1800V dielectric test, safe for kitchens

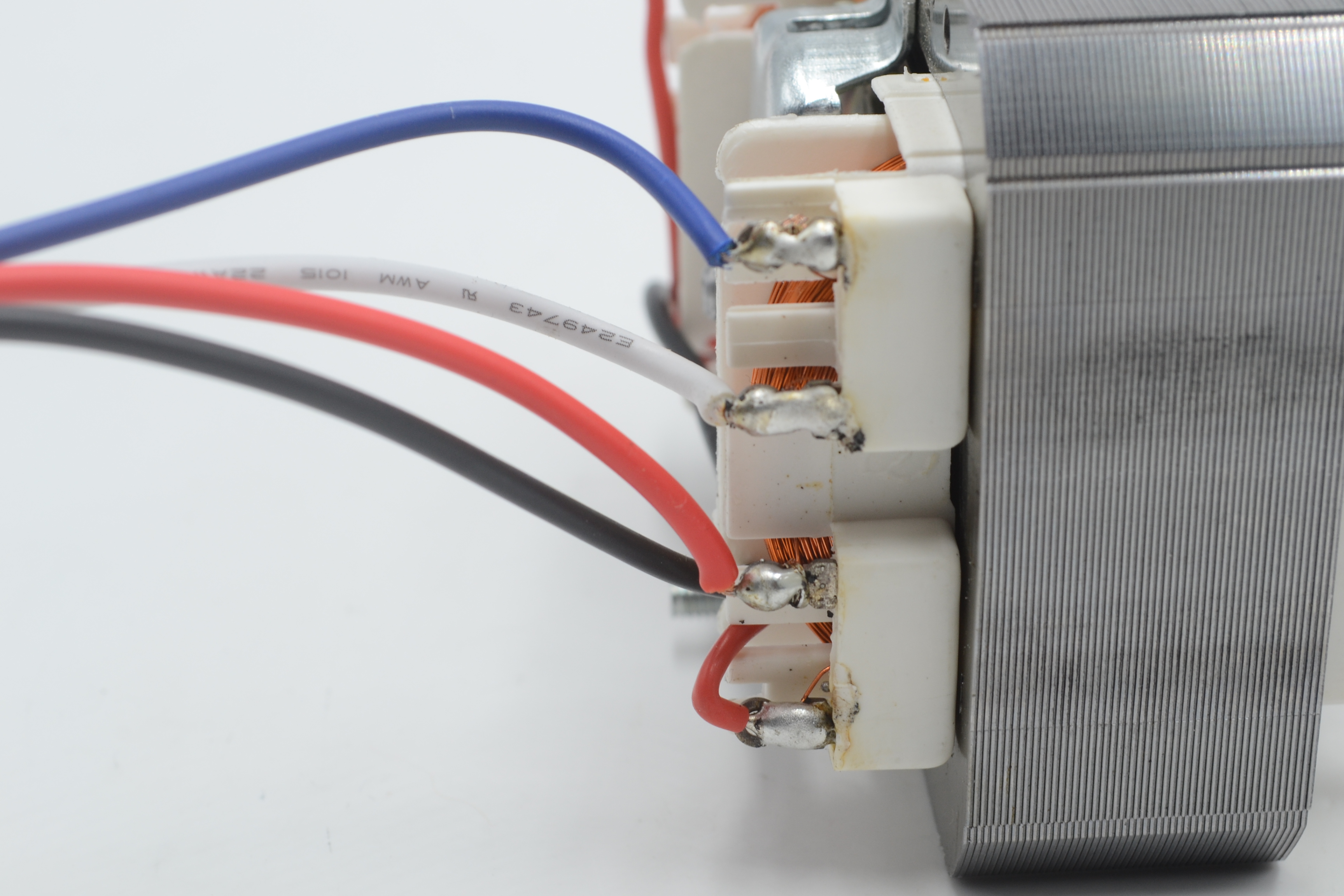

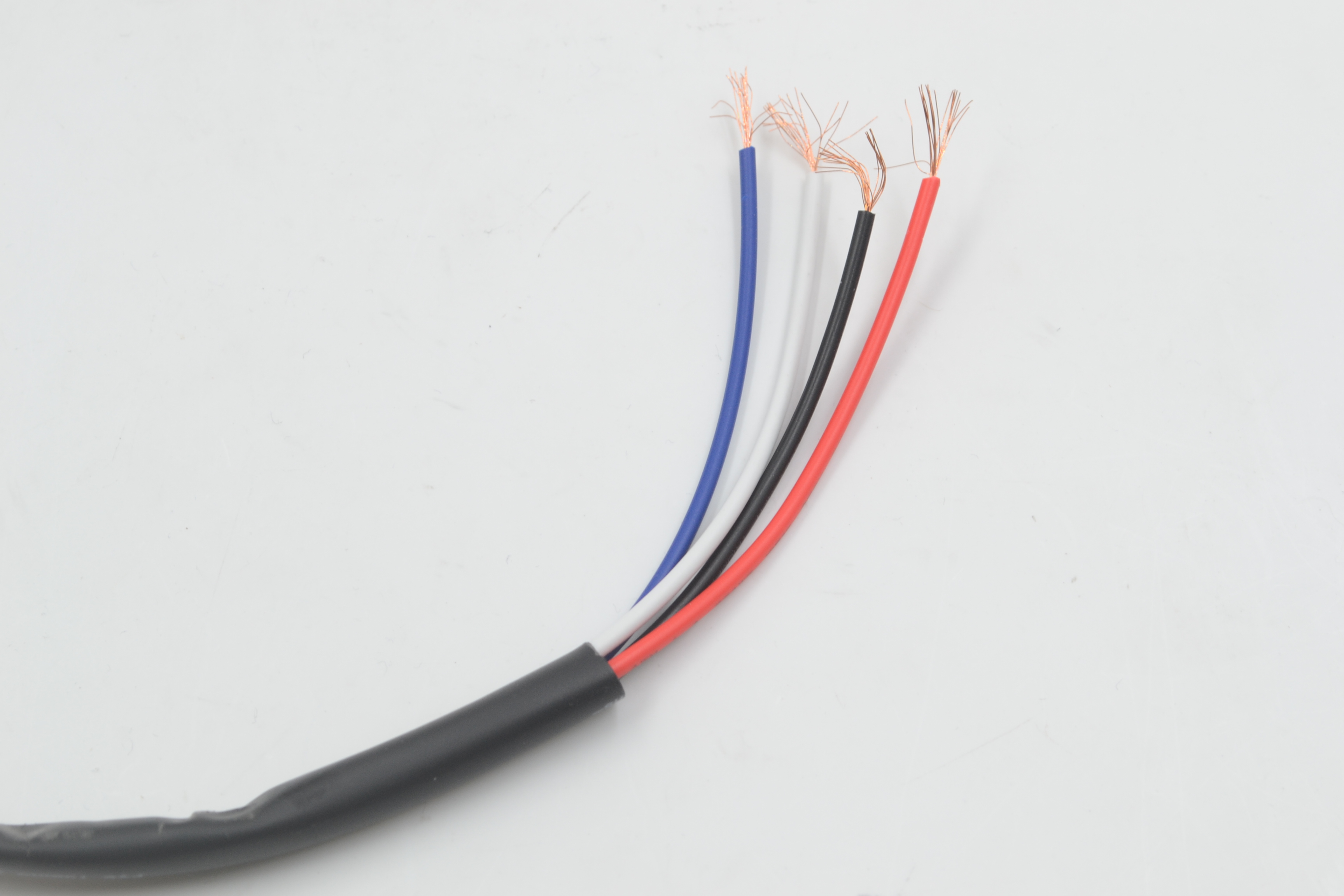

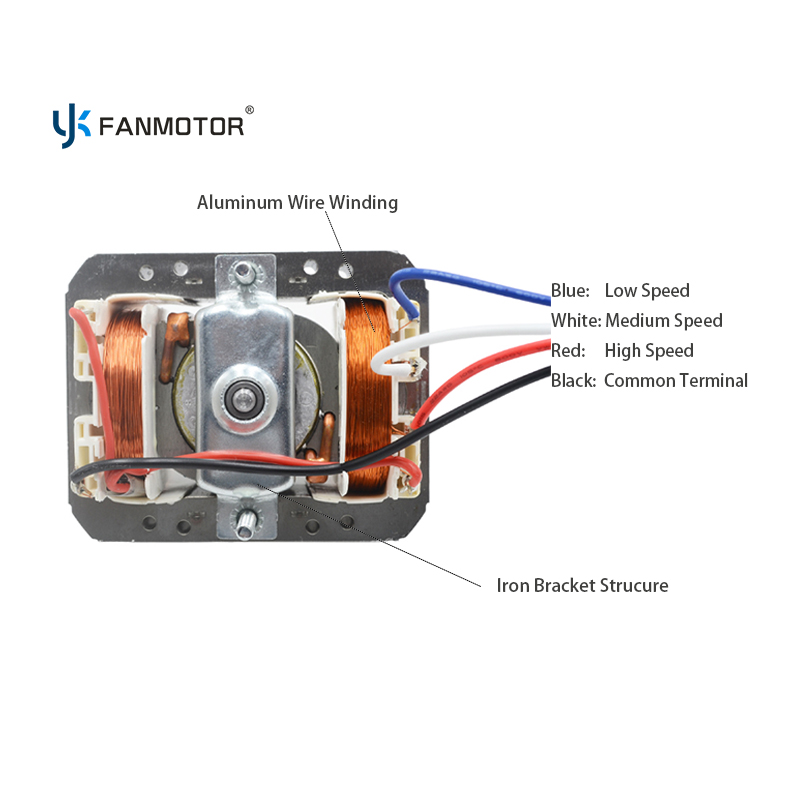

✅ Compact & Easy Install: 688425mm size; color-coded UL1015 22AWG leads (CCW/CW customizable)
Technical Specifications
| Category | Details |
| Model | YK-8425-90 |
| Motor Type | AC Shaded Pole Motor |
| Voltage/Frequency | AC 220V/50Hz |
| Rated Power | 75W (Max 76.8W) |
| No-Load Performance | High: 0.619A, 2900±100r/minMedium: 0.424A, 2930±100r/minLow: 0.324A, 2930±100r/min |
| Insulation/Fire Resistance | Class B / V0 Grade |

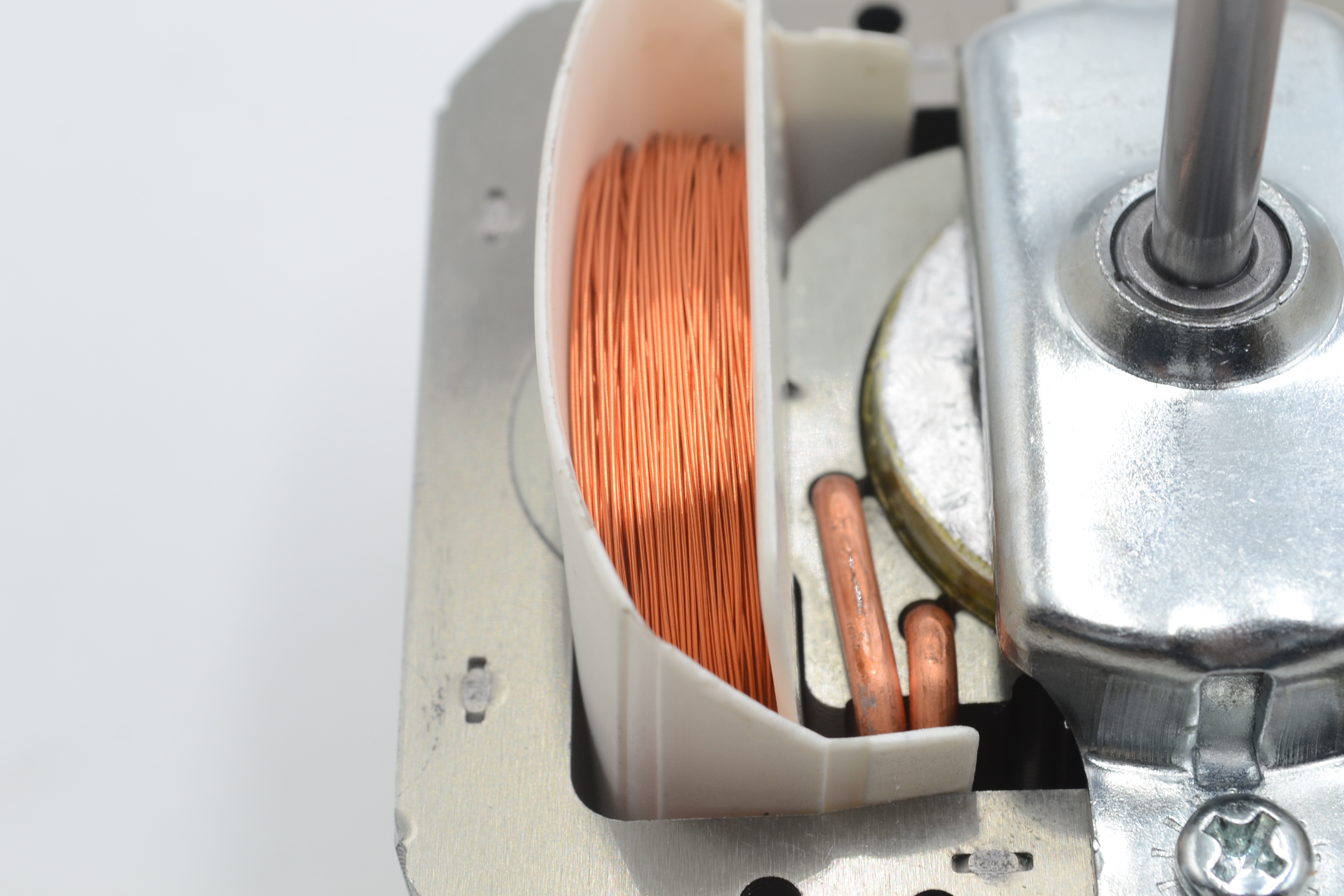

| Material | Aluminum Wire (Copper/CCA optional) + Iron Bracket |
| Size | 68×84×25mm |
| Certification | CE Certified |
Application Scenarios
Households: Smoke-free cooking for stir-frying, simmering, baking
️ Commercial Kitchens: Reliable for continuous high-intensity use
Hotels: Quiet ventilation for guest kitchens/dining areas
Why Choose Us?
Cost-effective aluminum wire design (copper/CCA upgrades available)
Multi-layer safety protection for high-heat kitchen environments
Customizable rotation (CW/CCW) and wire materials
Global support: Free spare parts + online guidance (English/Chinese/Spanish)
FAQ
Q: Aluminum vs. Copper wire? A: Aluminum is cost-effective; copper/CCA for higher conductivity.
Q: What’s the temperature limit? A: Windings stay <150°C above ambient, protecting motor.
Q: Can I get CW rotation? A: Yes, specify when quoting (standard is CCW).
Q: Delivery & payment options? A: FOB/CFR/CIF/EXW/Express; USD/EUR/CNY via T/T/L/C/Card.
Upgrade your range hood with a reliable, efficient motor – contact us for customized solutions!
