Introduction

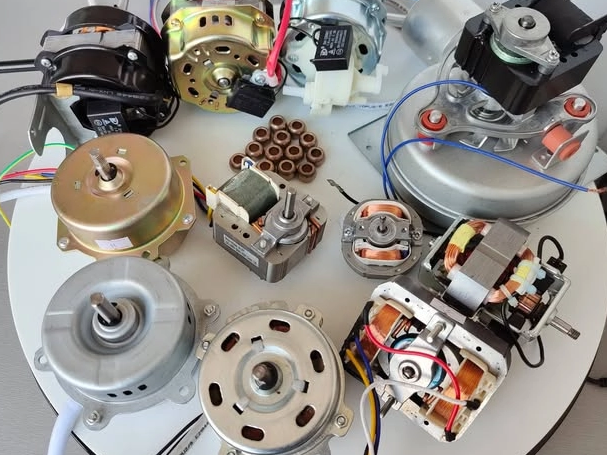

Choosing the right motor for your fan or appliance product is critical to performance, reliability, and cost. Among single-phase AC motors, three types dominate the industry: CBB61 capacitor motors, shaded pole motors, and universal motors. Each has distinct advantages and limitations.
This guide provides a comprehensive comparison to help B2B buyers and manufacturers make informed decisions.
Quick Comparison Table
Feature | Capacitor Motor (CBB61) | Shaded Pole Motor | Universal Motor |
Capacitor | CBB61 run capacitor | None | None |
Efficiency | 60–70% | 20–40% | Moderate |
Starting torque | Moderate | Low | High |
Speed | 900-3400RPM | 1000-2900RPM | 3000-20000RPM |
Speed control | Good (via capacitor) | Limited | Excellent |
Noise | Quiet | Quiet | Noisy |
Brushes | None | None | Yes |
Maintenance | Minimal | Minimal | Brush replacement |
Typical application | Fans, exhaust fans | Small fans, ovens | Blenders, power tools |
1. CBB61 Capacitor Motor
The CBB61 capacitor motor uses a metallized polypropylene film capacitor permanently connected in the circuit to create a phase shift between the main and auxiliary windings. This design delivers 60–70% efficiency and supports multi-speed operation.
Best for: Table fans, stand fans, wall fans, exhaust fans, range hoods, and industrial fans where quiet, efficient continuous operation and speed control are required.

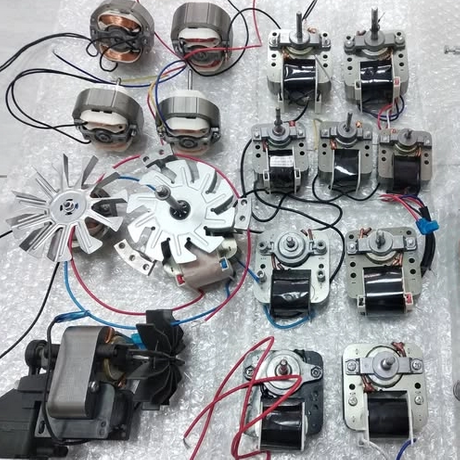

2. Shaded Pole Motor
The shaded pole motor uses a short-circuited copper ring (shading coil) to create a rotating magnetic field—without a capacitor. Its simple construction makes it the lowest-cost motor type, but efficiency is limited to 20–40%.
Best for: Very small fans, oven fans, microwave cooling fans, and low-power kitchen appliances where cost is the primary concern.
3. Universal Motor
The universal motor is a series-wound motor that operates on both AC and DC power. It delivers high starting torque and speeds up to 20,000 RPM, making it ideal for high-speed applications.
Best for: Blenders, juicers, mixers, meat grinders, vacuum cleaners, and power tools where high speed and high torque are essential.
Quick Decision Table
Your Product | Recommended Motor | Why |
Table fan | Capacitor motor | Quiet + speed control |
Stand fan | Capacitor motor | Efficiency + speed control |
Exhaust fan | Capacitor motor | Continuous duty |
Oven fan | Shaded pole motor | Low power, cost-sensitive |
Air fryer fan | Shaded pole motor | Low power, compact |
Blender | Universal motor | High speed |
Juicer | Universal motor | High speed |
Power drill | Universal motor | High torque |
Conclusion
Each motor type serves a distinct purpose. CBB61 capacitor motors are the standard for fans and ventilation equipment. Shaded pole motors remain the cost-effective choice for very small, low-power applications. Universal motors are indispensable for high-speed kitchen appliances and power tools. Use this guide to narrow your options—then dive into the specific selection guide for your chosen type.
