What Is a CBB61 Capacitor Motor and How Does It Work?

Introduction

If you are sourcing motors for fans, exhaust fans, or ventilation equipment, you have likely encountered the term CBB61 capacitor motor. But what exactly does "CBB61" mean, and why is this motor type so widely used in the fan industry?

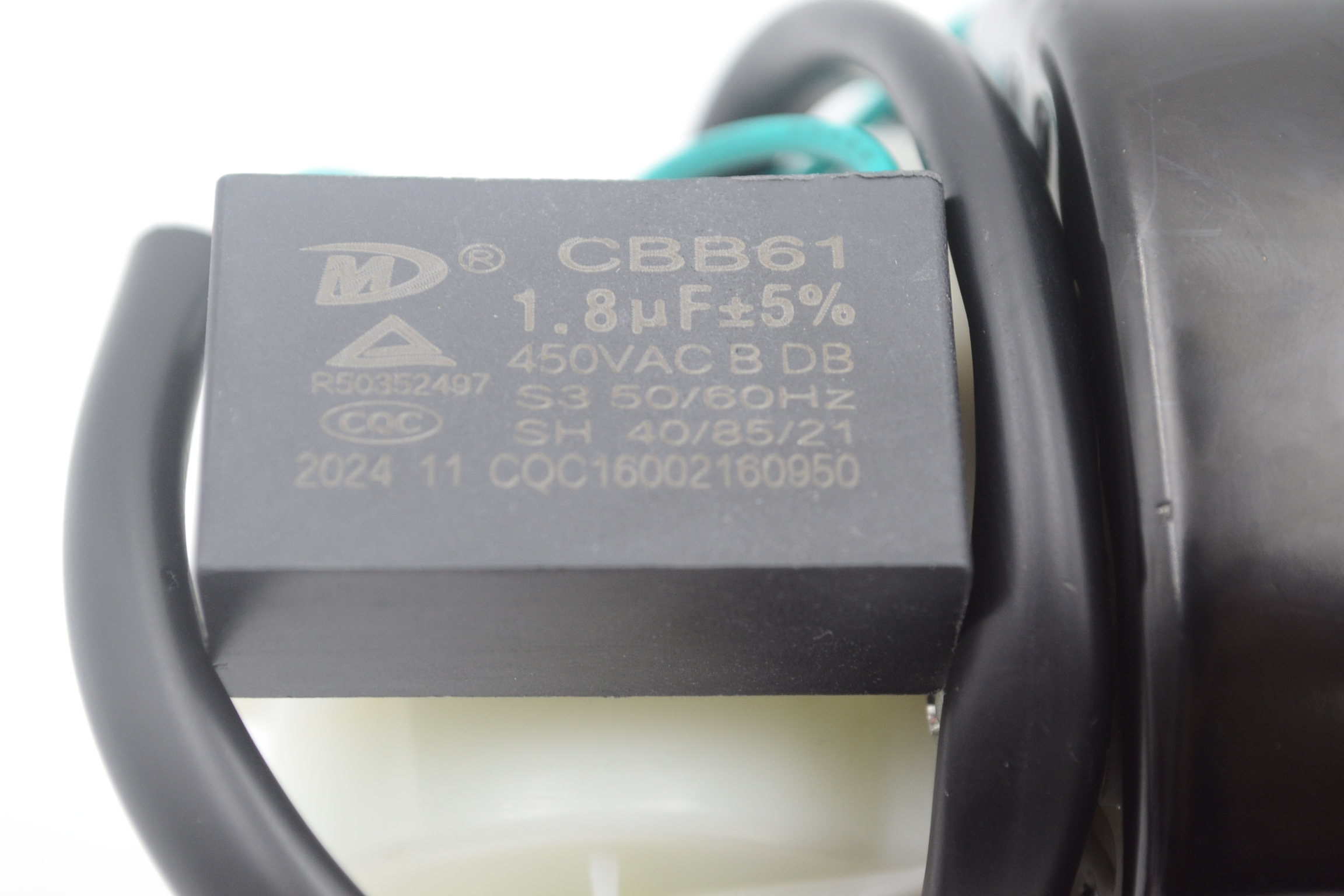

A CBB61 capacitor motor refers to a single-phase AC induction motor that uses a CBB61 run capacitor permanently connected in the circuit. The "CBB" designation indicates a metallized polypropylene film capacitor, while "61" is the manufacturer's series identifier. These capacitors are non-polarized (no positive or negative terminals) and designed specifically for AC motor applications.

What Is a CBB61 Capacitor?

The CBB61 capacitor is a key component that enables the motor to start and run efficiently. Key characteristics include:

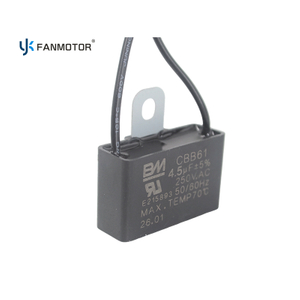

The CBB61 capacitor is available in various capacitance values—common options include 1μF, 1.2μF, 1.5μF, 2μF, 2.5μF, 3μF, and larger sizes up to 25μF. The specific capacitance required depends on the motor's power rating and design.

How a CBB61 Capacitor Motor Works

A single-phase power supply cannot by itself generate a rotating magnetic field—without a rotating field, the motor cannot produce starting torque. The CBB61 capacitor solves this problem.

Here is how it works step by step:

1. Two windings – The motor has a main winding (connected directly to power) and an auxiliary (start) winding (connected through the CBB61 capacitor)

2. Phase shift – When power is applied, the capacitor causes the current in the auxiliary winding to lag behind the current in the main winding, creating a phase difference

3. Rotating magnetic field – This phase difference generates a rotating magnetic field that provides the torque needed to start the motor

4. Continuous operation – Unlike start capacitors that disconnect after startup, the CBB61 run capacitor remains permanently connected in the circuit, improving efficiency during continuous operation

The CBB61 capacitor also serves a speed regulation function for the motor, making it suitable for multi-speed fan applications.

Key Components of a CBB61 Capacitor Motor

Why CBB61 Capacitor Motors Are the Industry Standard

CBB61 capacitor motors are among the most widely used motor types in the fan and ventilation industry for several reasons:

• Higher efficiency – Significantly more efficient than shaded pole motors (60–70% vs. 20–40%)

• Lower current draw – Consumes 50–60% less current than shaded pole motors

• Better power factor – Provides high power factor operation

• No starting switch – Eliminates a common point of failure

• Reliable and maintenance-free – Simple design with few moving parts

• Speed regulation capability – CBB61 capacitors enable motor speed control

Applications of CBB61 Capacitor Motors

CBB61 capacitor motors are the motor of choice for a wide variety of fan and ventilation applications:

• Table fans – quiet operation with good speed control

• Stand fans – reliable performance for household and commercial use

• Wall fans – compact design for space-saving installations

• Exhaust fans – smooth operation with low noise

• Oscillating fans – consistent torque for oscillation mechanisms

• Industrial fans (3-in-1) – higher power capability for demanding environments

• Range hoods – reliable fume extraction

CBB61 Capacitor Motor vs. Other Motor Types

Conclusion

The CBB61 capacitor motor is a workhorse of the electric motor industry. Its simple yet effective design—using a permanently connected CBB61 run capacitor to create a phase shift and enable speed regulation—delivers reliable, efficient operation across countless fan and ventilation applications. For B2B buyers sourcing motors for fans and ventilation equipment, the CBB61 capacitor motor remains the most practical and cost-effective choice.
