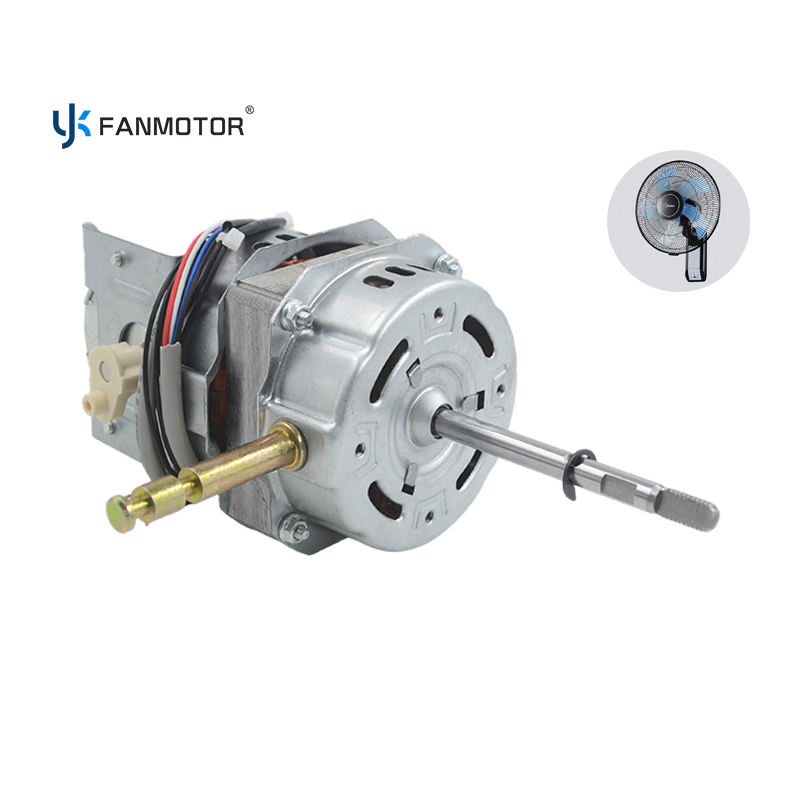

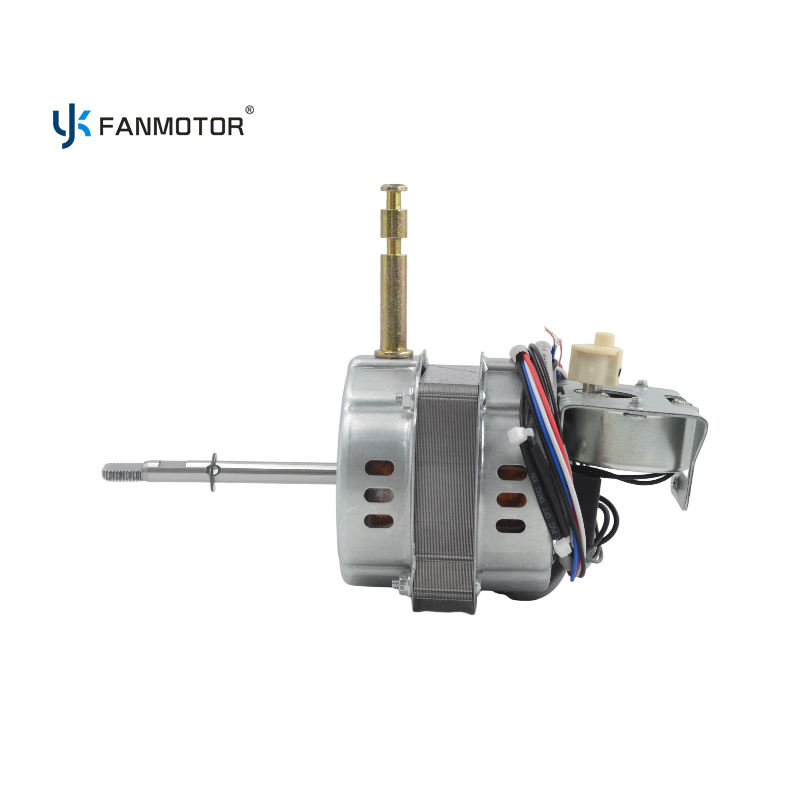

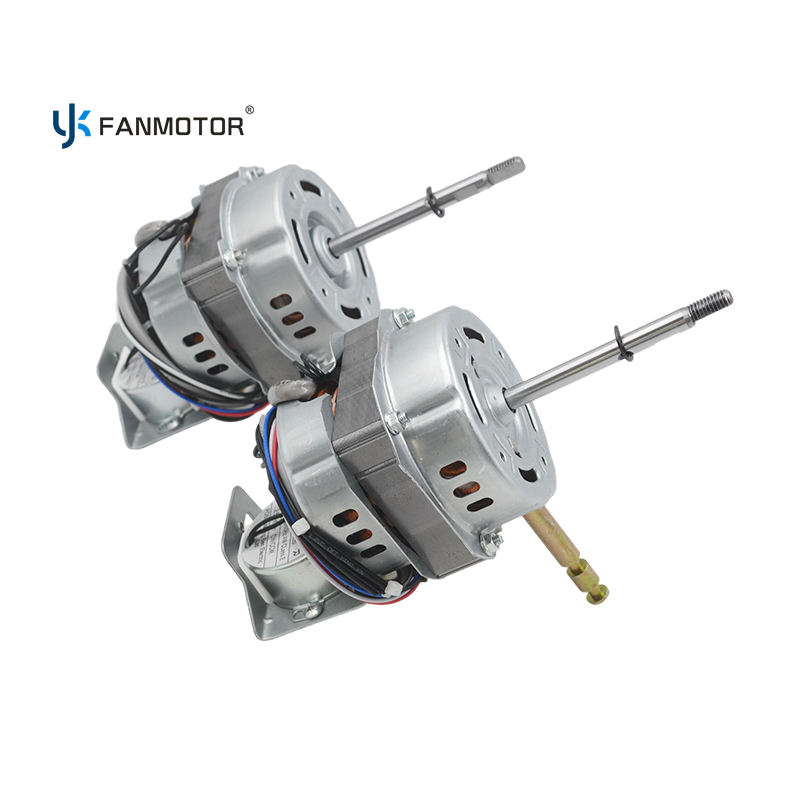

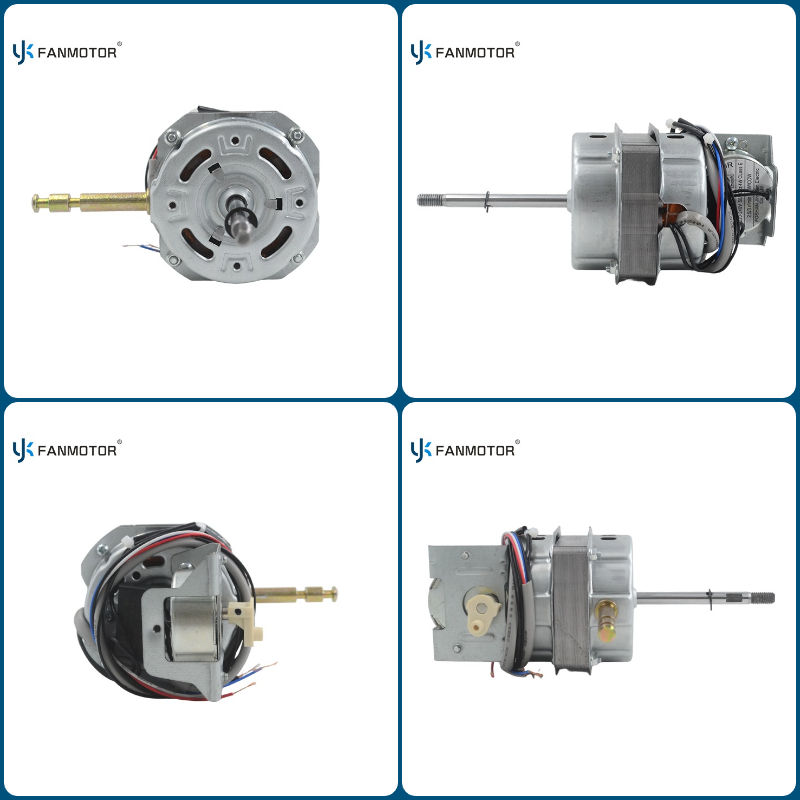

Product Overview
Upgrade your cooling solutions with the YKFANMOTOR 7420 Series—an ultra-durable, energy-saving AC fan motor designed for wall fans, table fans, and stand fans. Engineered to meet global quality standards (RoHS, CE, ISO certified), this motor balances powerful performance and long lifespan, making it ideal for household, commercial, and industrial use.
Key Features
Energy-Efficient & Cost-Saving: Adjustable 45W-60W output reduces electricity bills while delivering strong airflow

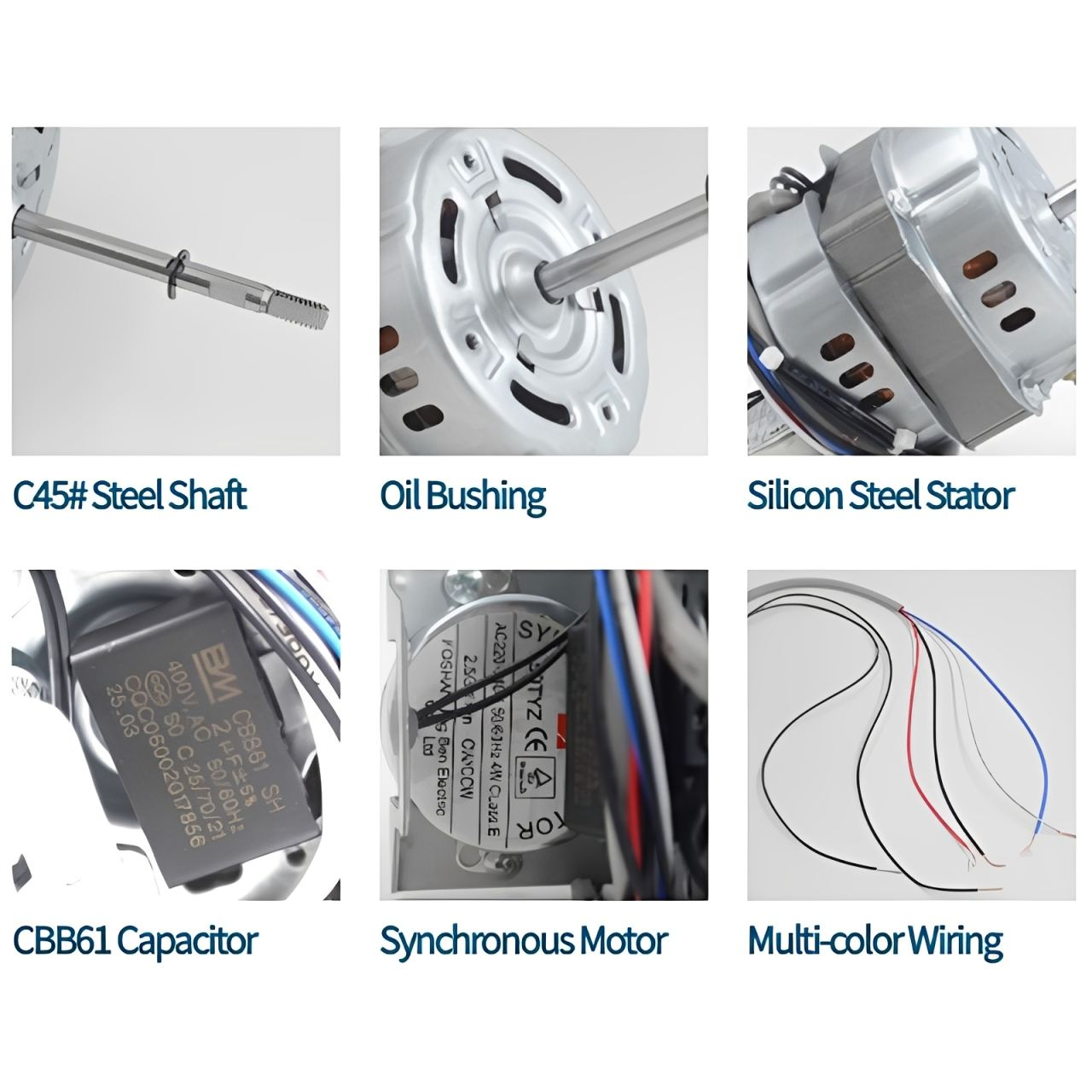

Long-Lasting Durability: C45# steel shaft, silicon steel stator, and self-lubricating oil-impregnated bearings ensure stable operation for years
Flexible Control: 3-speed (Low/Medium/High) adjustment + independent synchronous motor oscillation (2.5/3 RPM, 4W), compatible with remote control
Customizable Design: Standard 74*20mm size (customizable) + material options (MOQ 3000pcs) for diverse fan models
Superior Heat Dissipation: Four-corner bolt structure + multiple shell heat dissipation holes prevent overheating
2-Year Warranty: Free spare parts, defective replacement/refund, and 24/7 online technical support
Technical Specifications
| Specification | Details |
| Rated Voltage | 220V-240V AC (Custom 110V-230V available) |
| Frequency | 50Hz/60Hz |
| Output Power | 45W-60W (Adjustable) |
| Stator Size | 74*20mm (Customizable) |
| Bearing Type | Oil-Impregnated Sintered Bearing |
| Insulation Class | Class E / Class B |
| Rotation Direction | CW/CCW (Clockwise/Counterclockwise) |
| Certifications | RoHS, CE, ISO |
| Warranty | 2 Years |
Application Scenarios
Household: Table fans, stand fans, wall fans for living rooms, bedrooms, kitchens
Commercial: Office fans, restaurant cooling, retail store ventilation
Industrial: Workshop fans, warehouse cooling systems, industrial ventilation equipment
Why Choose YKFANMOTOR?
28 years of professional motor manufacturing experience (R&D, production, sales integrated)
13,000㎡ factory + 10,000 units daily production capacity for timely delivery
Full OEM/ODM support (MOQ 1000pcs; 3000pcs for material customization)
Free samples available (buyer covers shipping; lead time 5-10 working days)
Secure payment: T/T, L/C, Alibaba Trade Assurance supported
FAQs
Q: What voltage/frequency options are available?
A: Standard 220V-240V AC (50Hz/60Hz); custom 110V-230V options on request.
Q: Can I get a free sample?
A: Yes! Free samples are provided—you only pay for shipping. Sample lead time: 5-10 working days.
Q: Do you accept custom orders?
A: Absolutely. We support sample/drawing-based OEM/ODM customization (MOQ 1000pcs for most motors).
Q: What's your after-sales policy?
A: 2-year warranty. Defective products get free replacement/refund + 24/7 online technical support.
Contact Us
Ready to enhance your fan products? Reach out for a custom quote or technical support:
Email: grace@ykfanmotor.com
WhatsApp: 86-13710592354
We're here to deliver reliable motor solutions tailored to your needs!
