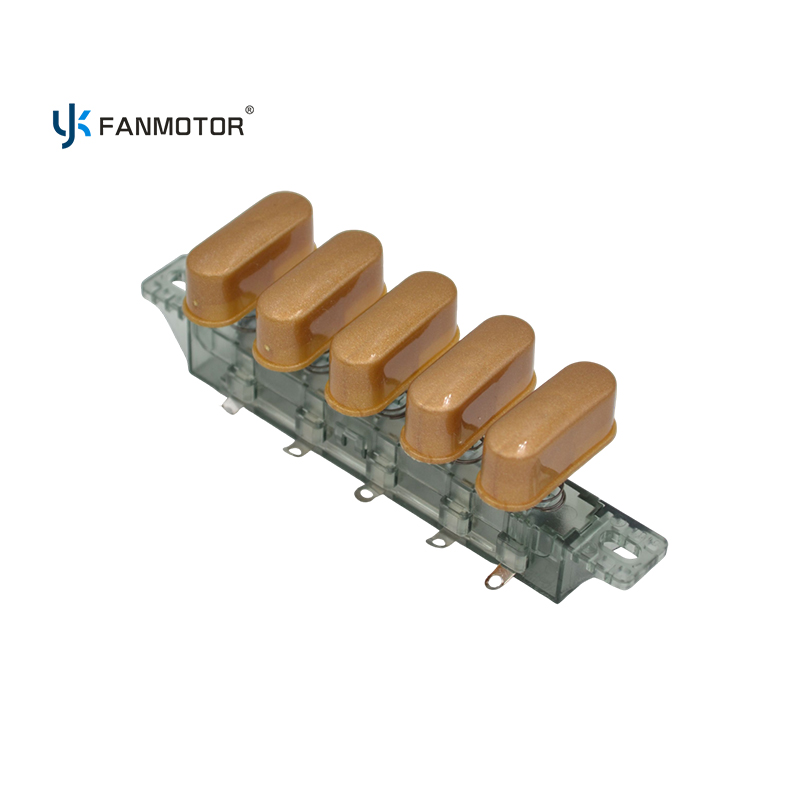

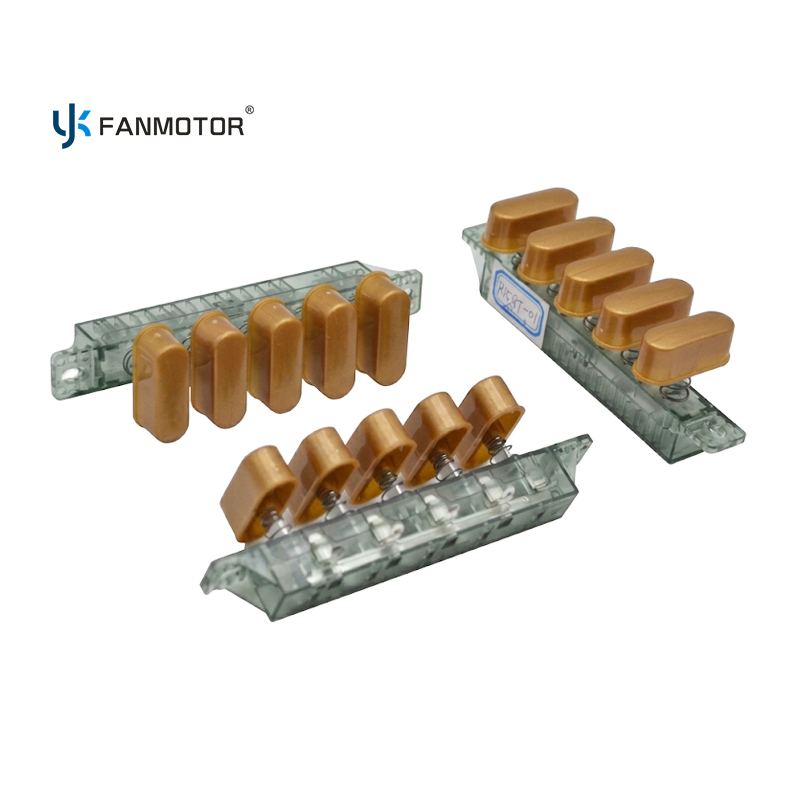

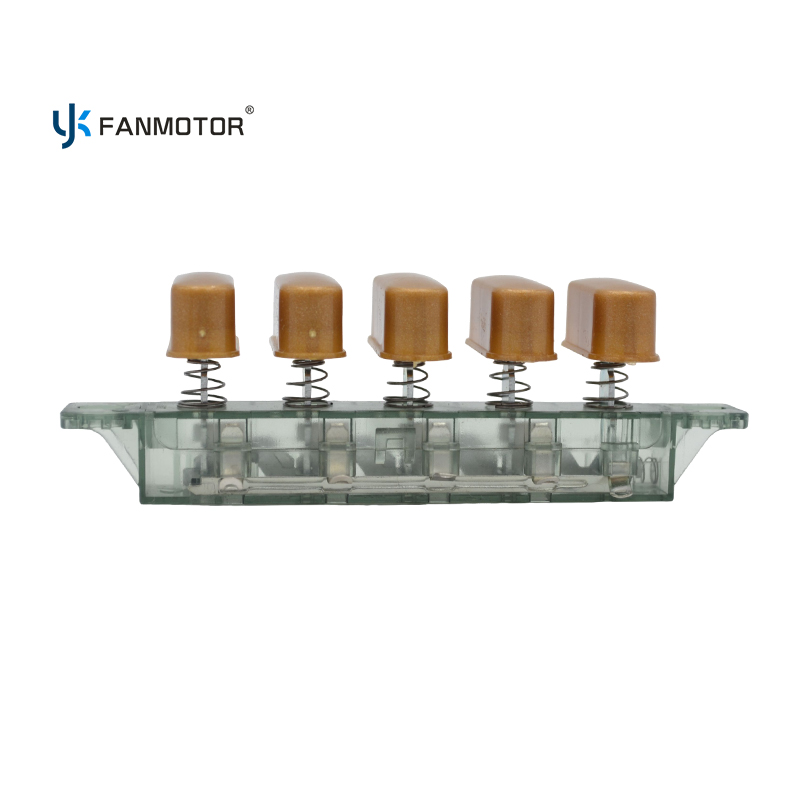

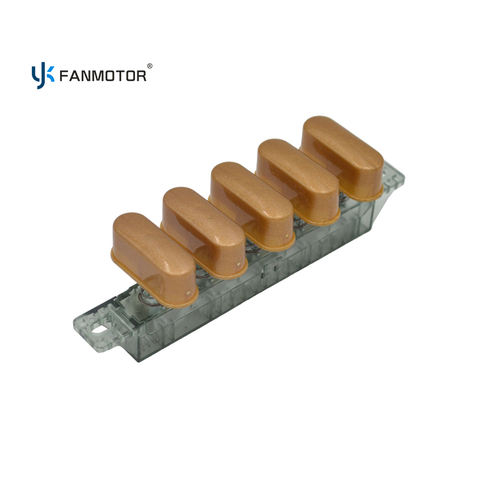

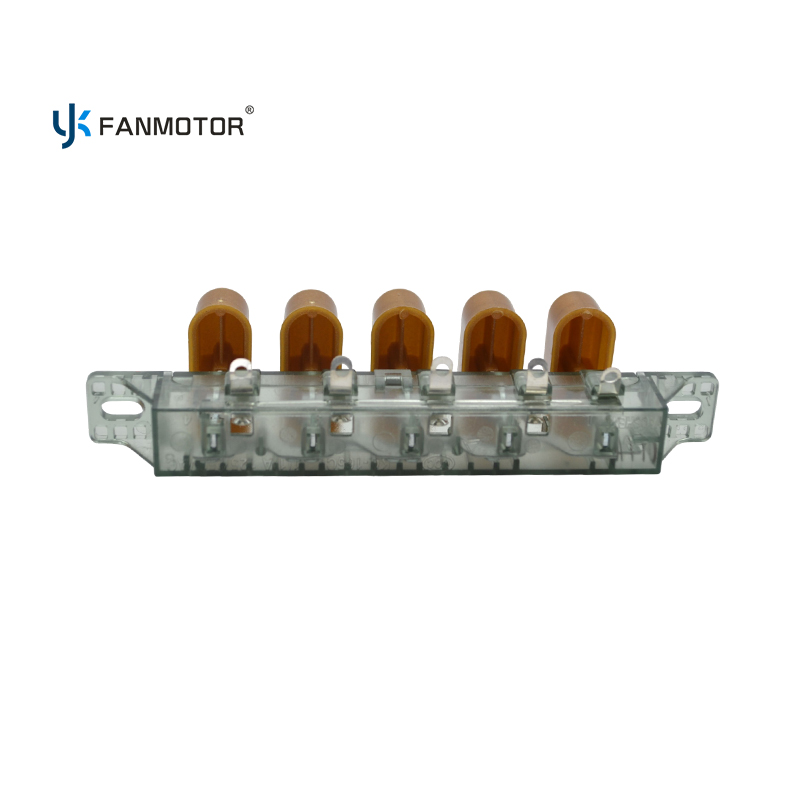

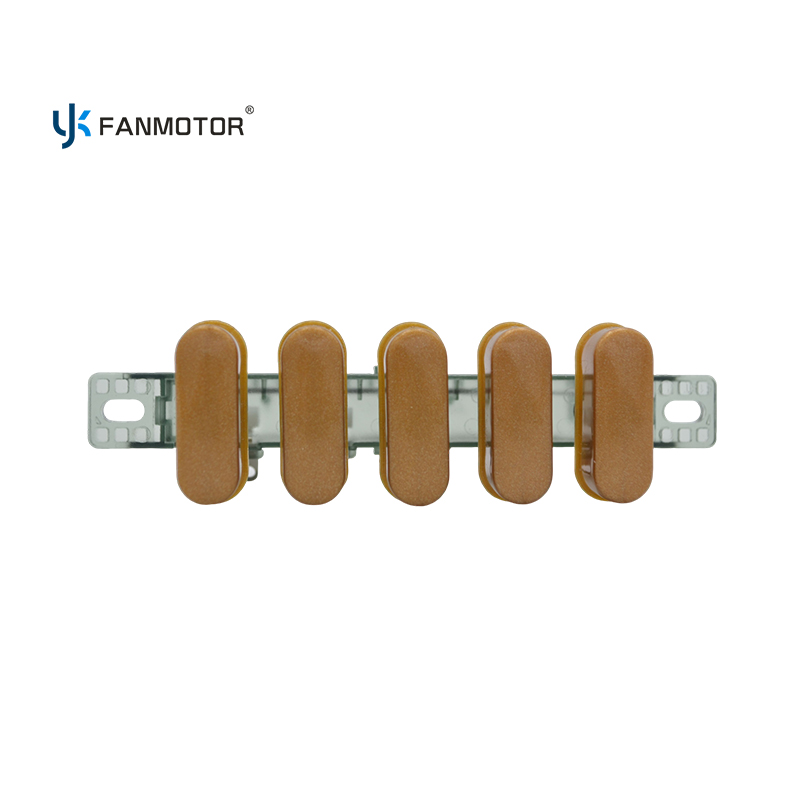

The KQ-165C is a mechanical piano-type fan switch with five keys and four speed steps (OFF / 1 / 2 / 3 / 4). The piano-key action gives a long, positive travel that users can feel, and the dual 1A rating at both 125V AC and 250V AC makes one part usable across different supply standards. The flame-retardant PC housing is rated from -25C to +85C for hot-climate and long-run operation, with an electrical life of 10,000 cycles or more. It fits table and stand fans. OEM / ODM production is accepted and free samples are available for evaluation.
Rated Current / Voltage: 1A / 125V AC; 1A / 250V AC
Housing Material: Flame-retardant PC
Electrical Life: 10,000 cycles or more
Operating Temperature: -25C ~ +85C

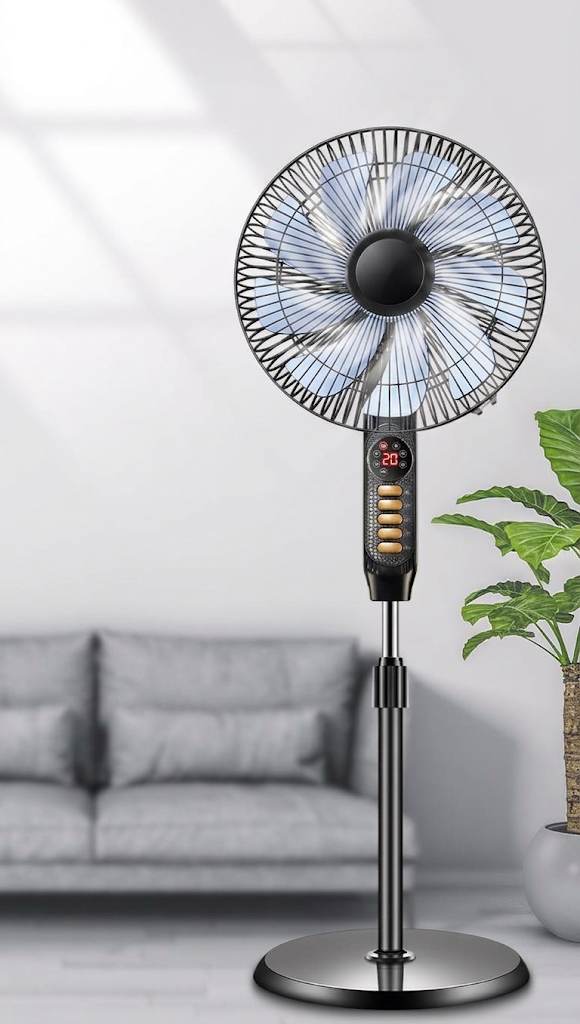

Application: Table fans, stand fans
Service: OEM / ODM, free sample
Warranty: 1 year
After-sales Service: Free spare parts
Applications & Customization
Applications:
- Table fans, stand fans
Customization:
- Custom colours and OEM / ODM supported - send us your drawing or sample
- Samples can be provided for evaluation
FAQ
How do I know which fan switch fits my fan?
Our fan switches are universal replacement parts for household table, wall, and stand fans. Match by function: 4-key piano switches give OFF plus 3 speeds, 5-key versions add a fourth speed, an independent oscillation key or a light key, and pull-cord switches are used on wall fans. Send us your fan model or a photo of the original switch and we will confirm the matching part.
Can you supply switches for 110–120V markets?
Yes. The KQ-165C series is rated for both 125V and 250V AC, so it covers 110–120V and 220–240V markets. The other models on this page are rated 250V AC — tell us your target voltage and we will confirm the right rating.
Can you customise the colour of the switch?
Yes.Colour customisation is subject to the model's minimum order quantity — 10,000 pcs for most push-button models.
Can I get a sample before placing a bulk order?
Yes — samples can be arranged for evaluation. Please confirm the sample arrangement with our sales team.
What is the lead time?
About 20 days for 1–50,000 pcs and 25 days for 50,001–100,000 pcs. Larger orders are scheduled individually — tell us your quantity and required date and we will confirm.
