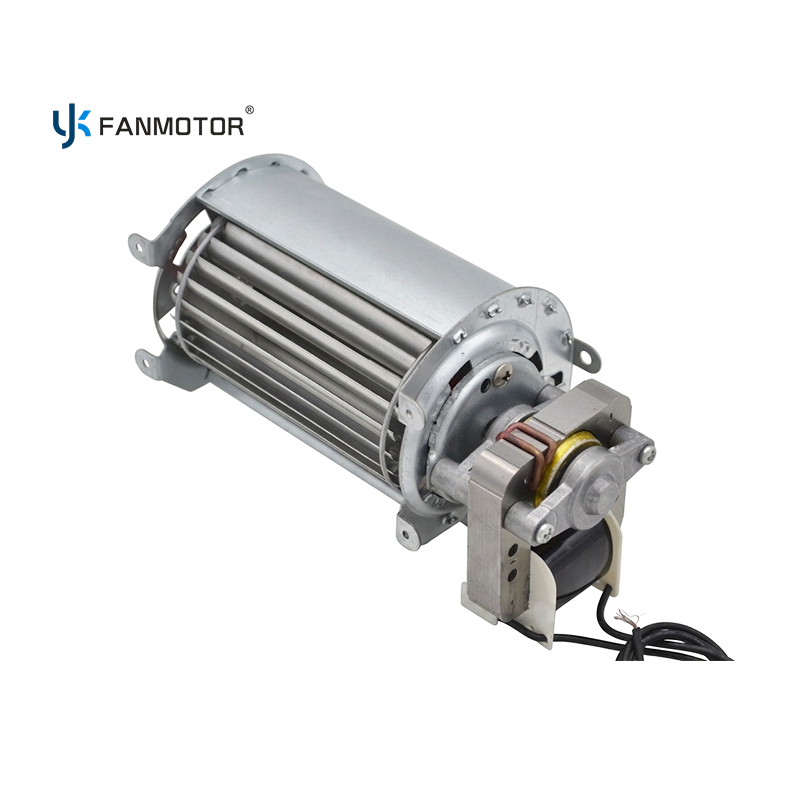

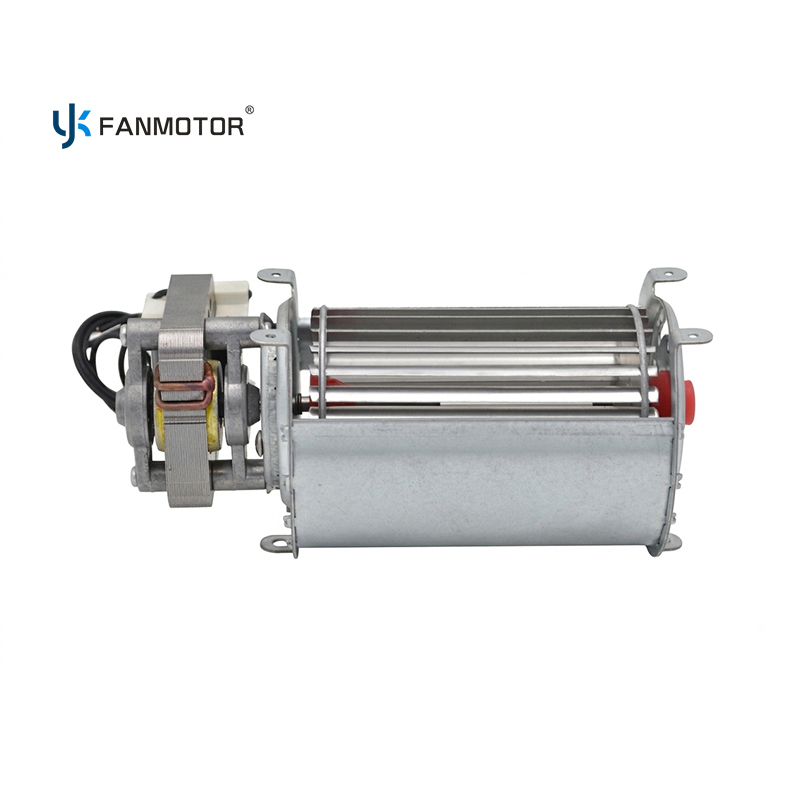

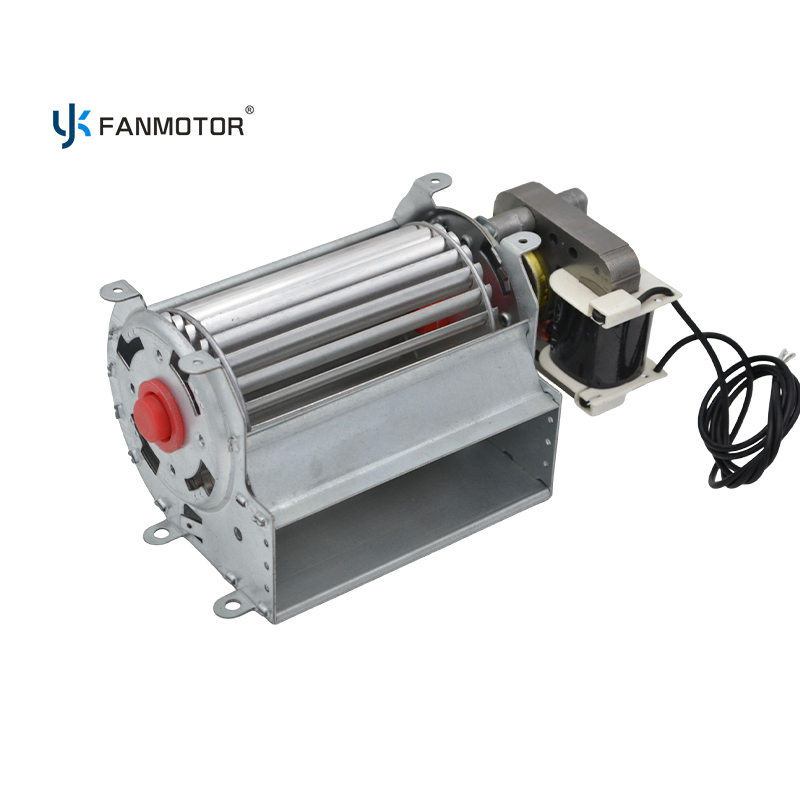

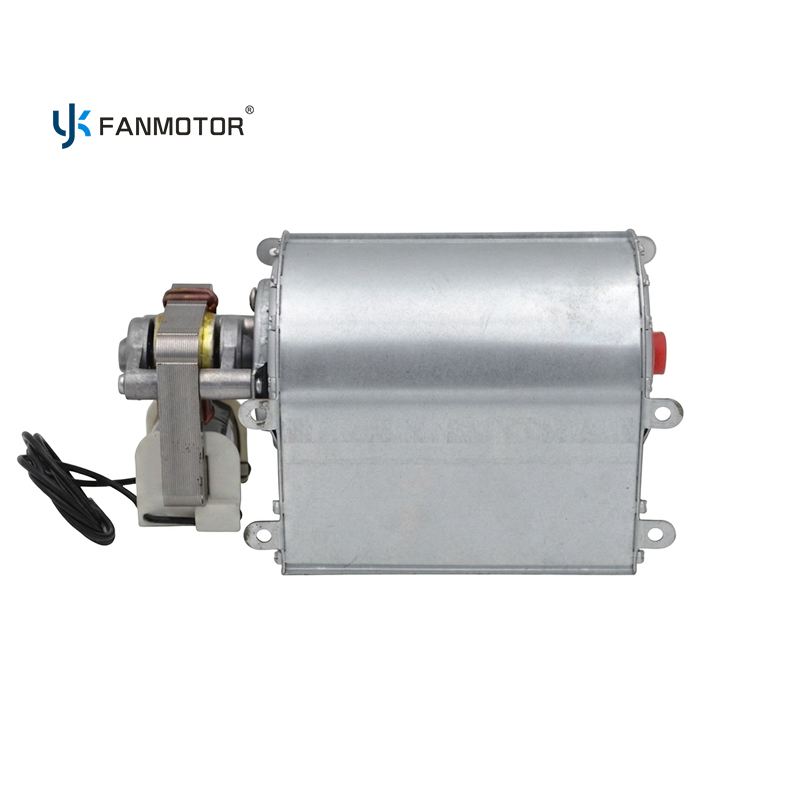

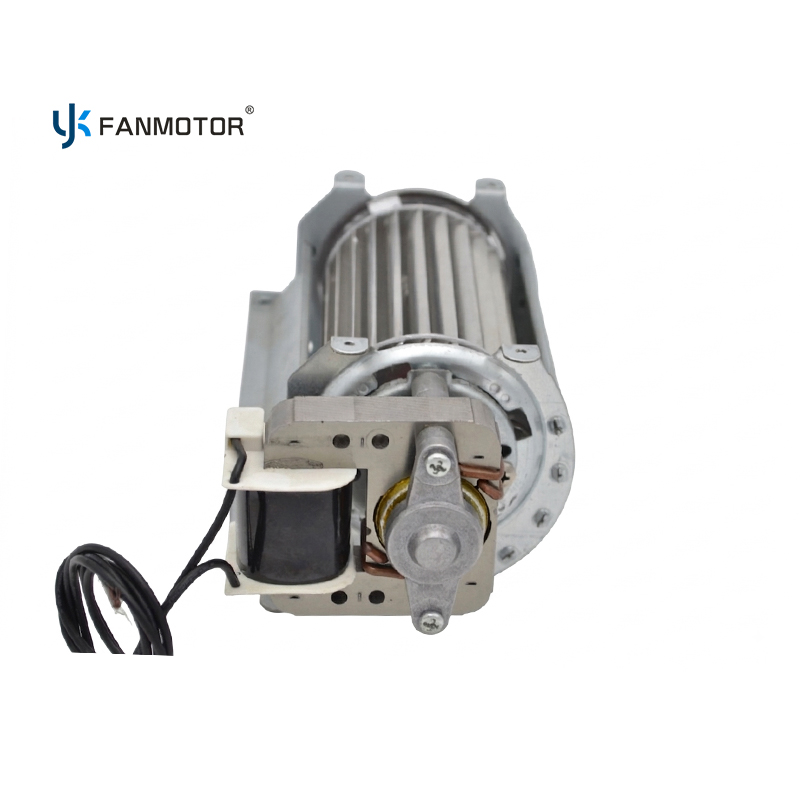

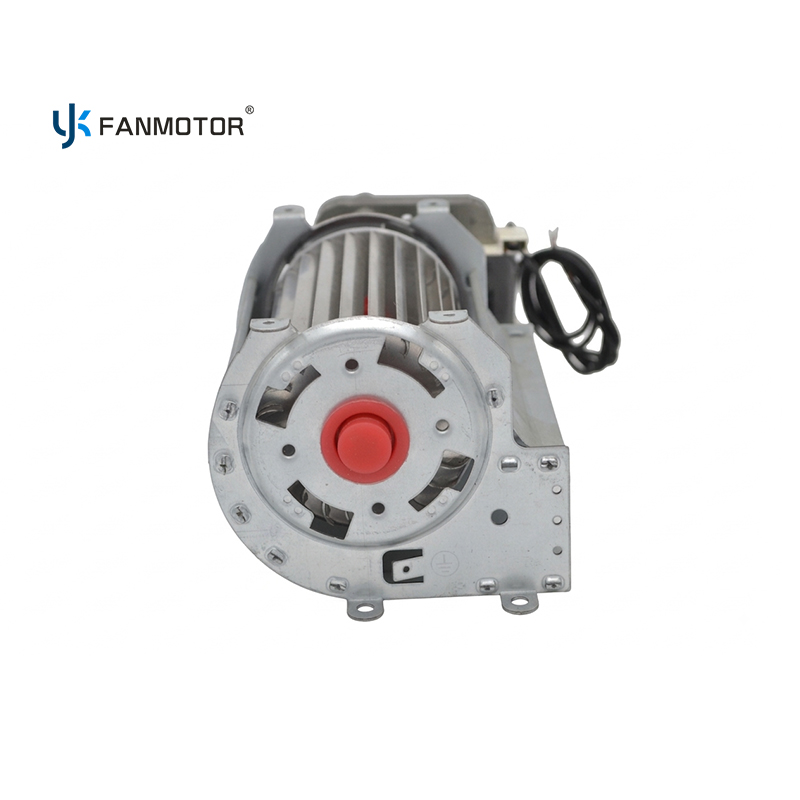

Vertical-mount AC cross flow fan: 25-75 W, 2,200 RPM, 180-390 m³/h, 40-75 Pa static pressure, 2-line motor, aluminium impeller, galvanised shell. For air conditioners, heaters and air curtains.
Key strengths
Vertical mounting orientation with a 2-line motor, for AC units whose airflow path runs top-to-bottom.
3.0-6.5 m³/min (180-390 m³/h) with 40-75 Pa static pressure - enough head for a finned coil and a louvre.
25-75 W power band covers several duty points from one housing family.
Aluminium impeller with a silicon axle connector damps the vibration that vertical mounting amplifies.
Rated life of 6,000 hours, suitable for seasonal air-conditioner duty.
Specifications
Product name | Vertical AC cross flow fan / tangential blower |
|---|
Model | CF-VERT-2200 |
|---|
Mounting | Vertical |
|---|
Motor type | Shaded pole motor, 2 lines |
|---|
Power range | 25 W - 75 W |
|---|
Speed | 2,200 RPM |
|---|
Air volume | 3.0 - 6.5 m³/min (180 - 390 m³/h) |
|---|
Max static pressure | 40 - 75 Pa |
|---|
Noise | 45 - 60 dB(A) |
|---|
Impeller material | Aluminium / aluminium alloy |
|---|
Shell material | Galvanised sheet |
|---|
Axle connector | Silicon |
|---|
Voltage / frequency | AC 220 V, 50/60 Hz |
|---|
Rated life | 6,000 hours |
|---|
Warranty | 1 year |
|---|
Applications
Typical duties for the CF-VERT-2200. Air conditioner, heater, air curtain, fireplace.
Split and cabinet air conditioners - The vertical orientation matches the airflow path behind a front louvre, and 40-75 Pa handles the coil plus grille restriction.
Air curtains - The 3.0-6.5 m³/min range scales across door widths by changing impeller length rather than motor size.
Heaters and fireplaces - 2,200 RPM and a 2-line motor suit appliances where the fan sits below a heat exchanger.
OEM appliance platforms - One housing family covers 25-75 W, which simplifies spare-part management across a product range.
What can be customized
Impeller length and housing height built to the appliance envelope.
Power point selected between 25 W and 75 W.
Copper, aluminium or CCA winding.
Custom mounting brackets and anti-vibration grommets.
OEM marking and bulk or retail packaging.
FAQ
Q: What is a vertical cross flow fan?
A: It is a tangential blower whose housing and motor are arranged for vertical airflow, typically top-to-bottom behind an air-conditioner louvre. The impeller runs horizontally but the discharge slot is oriented vertically.
Q: What does 3.0-6.5 m³/min mean in m³/h?
A: Between 180 and 390 m³/h. The range corresponds to different impeller lengths and power points within the same housing family.
Q: Why is static pressure important here?
A: An air conditioner presents a finned coil and a louvre in the airflow path. The 40-75 Pa rating is what allows the fan to hold its volume against that restriction, unlike a free-discharge blower.
Q: What is the rated life?
A: 6,000 hours for this build, which suits seasonal air-conditioner duty. For continuous-duty applications, specify a copper winding and a ball-bearing motor variant.
