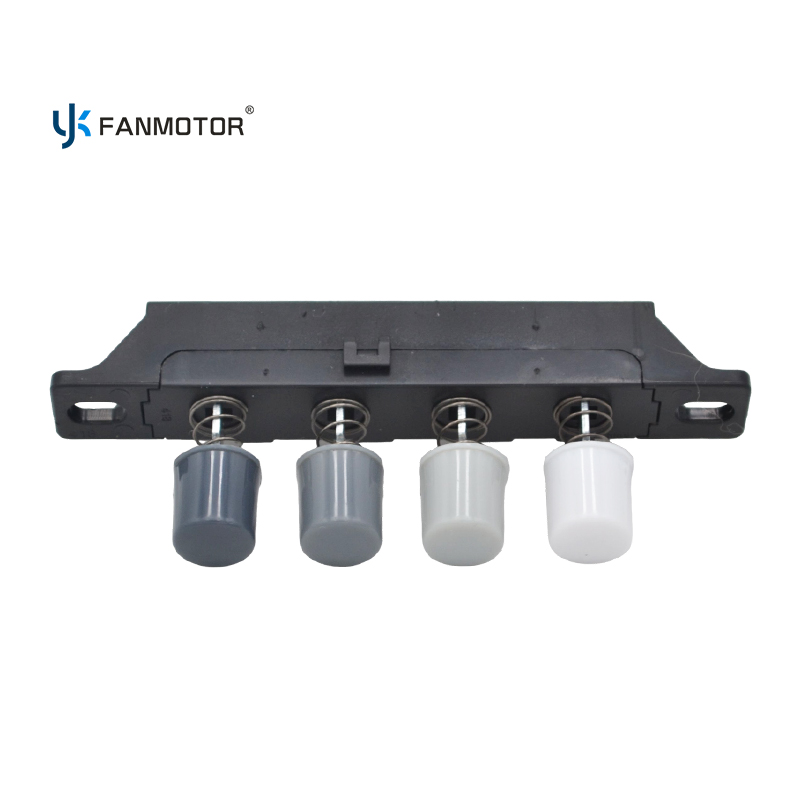

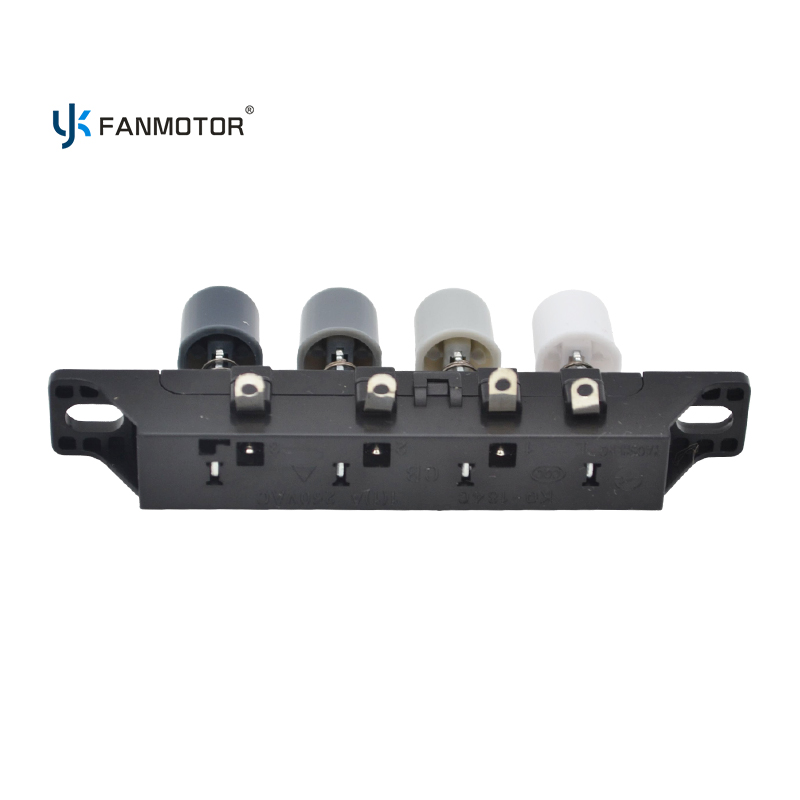

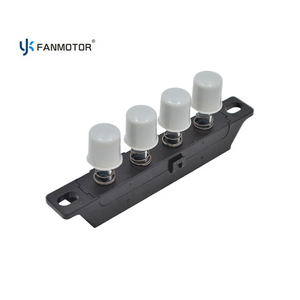

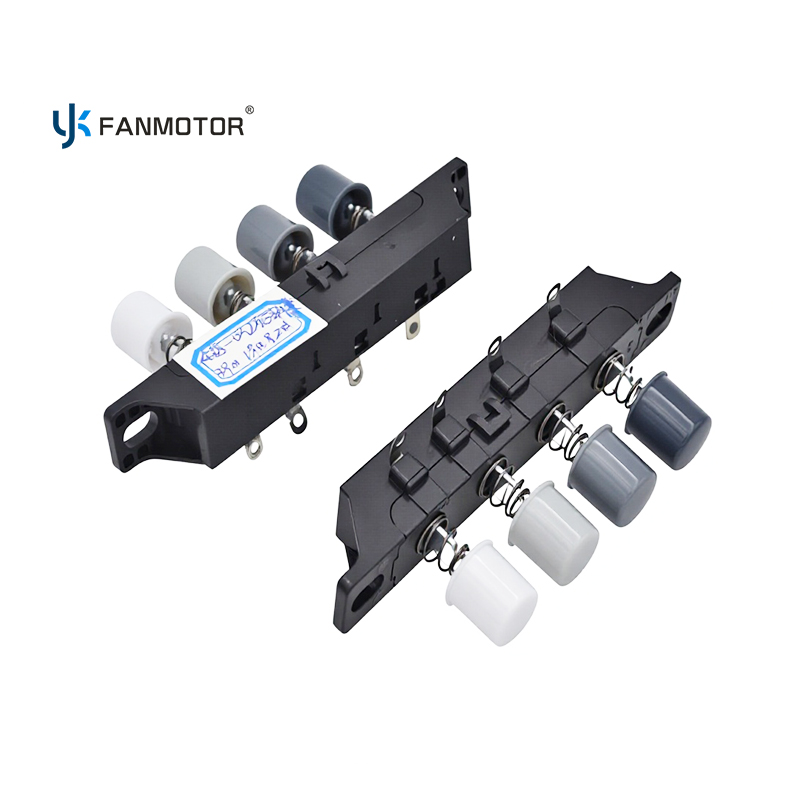

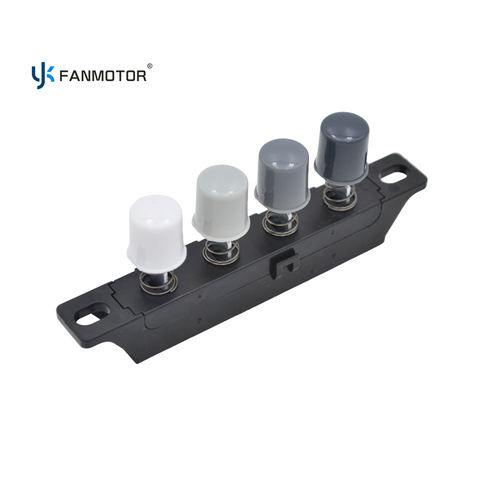

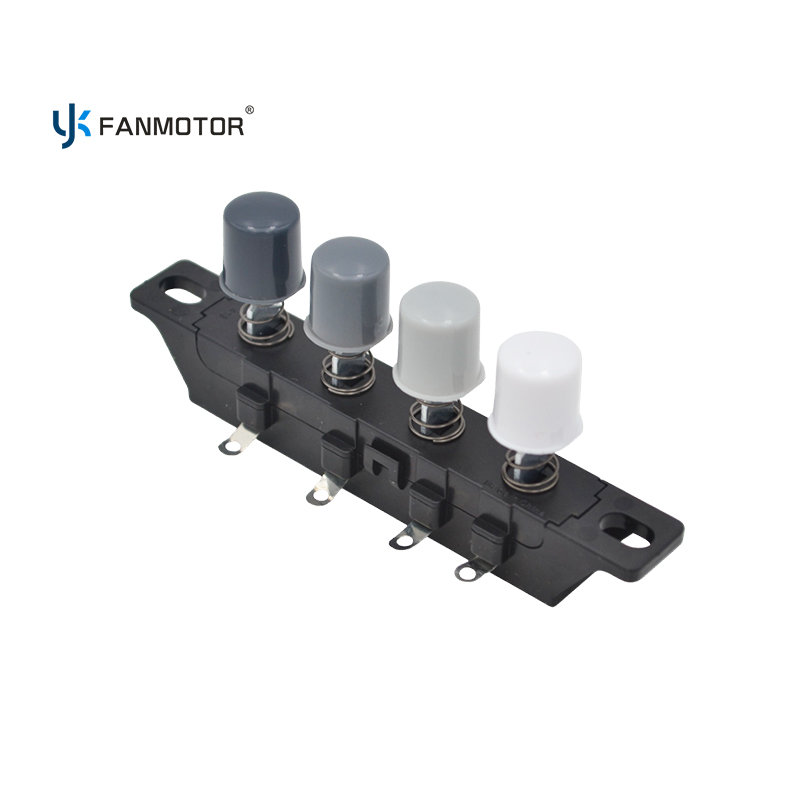

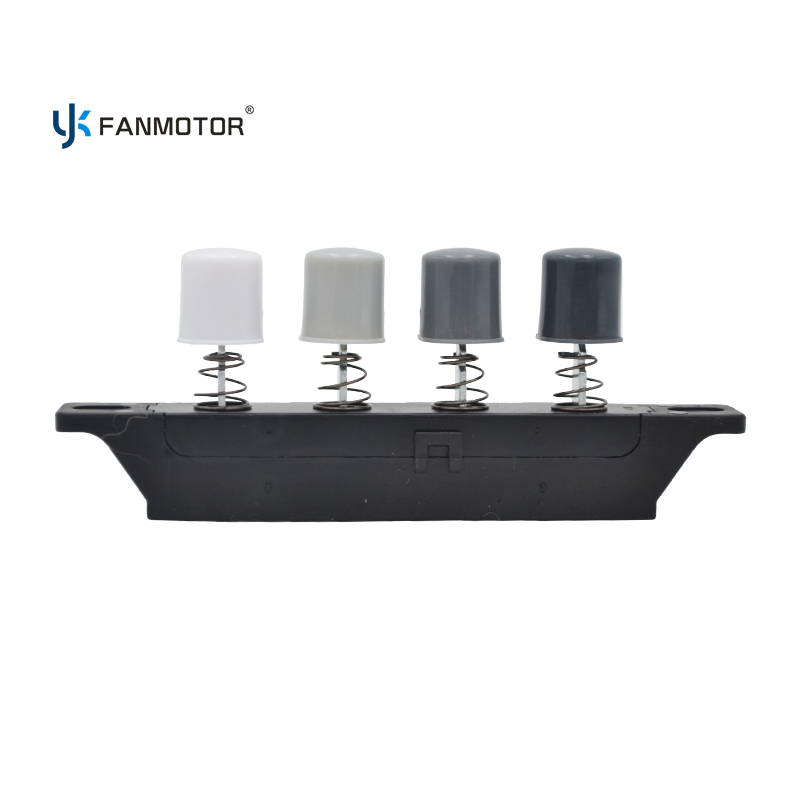

The YKFANMOTOR 418-032 is a 3-speed, 4-key push button fan control switch developed for household electric fans. Its four positions - OFF, 1, 2 and 3 - give a clear, tactile step control that is easy to operate and easy to assemble. The ABS / POM housing and tin-plated copper alloy terminals keep contact resistance stable, supporting a mechanical life of over 30,000 cycles and an electrical life of 10,000 cycles. Rated 250V AC / 1A and operating from -10C to +85C, it suits table and stand fans in both home and commercial settings. Custom housing colours can be produced to match your fan design, and free spare parts are supplied after delivery. Lead time is about 20 days for 1-50,000 units; larger volumes can be scheduled on request.
Key Features
3-speed control with 4 push buttons (OFF / 1 / 2 / 3) for clear, step-by-step fan speed switching
ABS + POM housing with tin-plated copper alloy terminals for stable, low-resistance contact
Rated 250V AC / 1A, suited to household table and stand fans
Mechanical life over 30,000 cycles and electrical life 10,000 cycles for long service
Custom housing colours available; free spare parts provided as after-sales support
Product Specifications
Detailed Features and Technical Information
Model
418-032
Product Name
3-Speed Fan Switch (custom colours)
Switch Type
Push button switch
Rated Voltage / Current
250V AC / 1A
Positions / Keys
4 positions (OFF, 1, 2, 3)
Housing Material
ABS + POM
Terminal Material
Copper alloy, tin-plated
Operating Temperature
-10℃ ~ +85℃
Mechanical Life
Over 30,000 cycles
Electrical Life
10,000 cycles
Colour
Custom colours available
Warranty
1 year
Applications

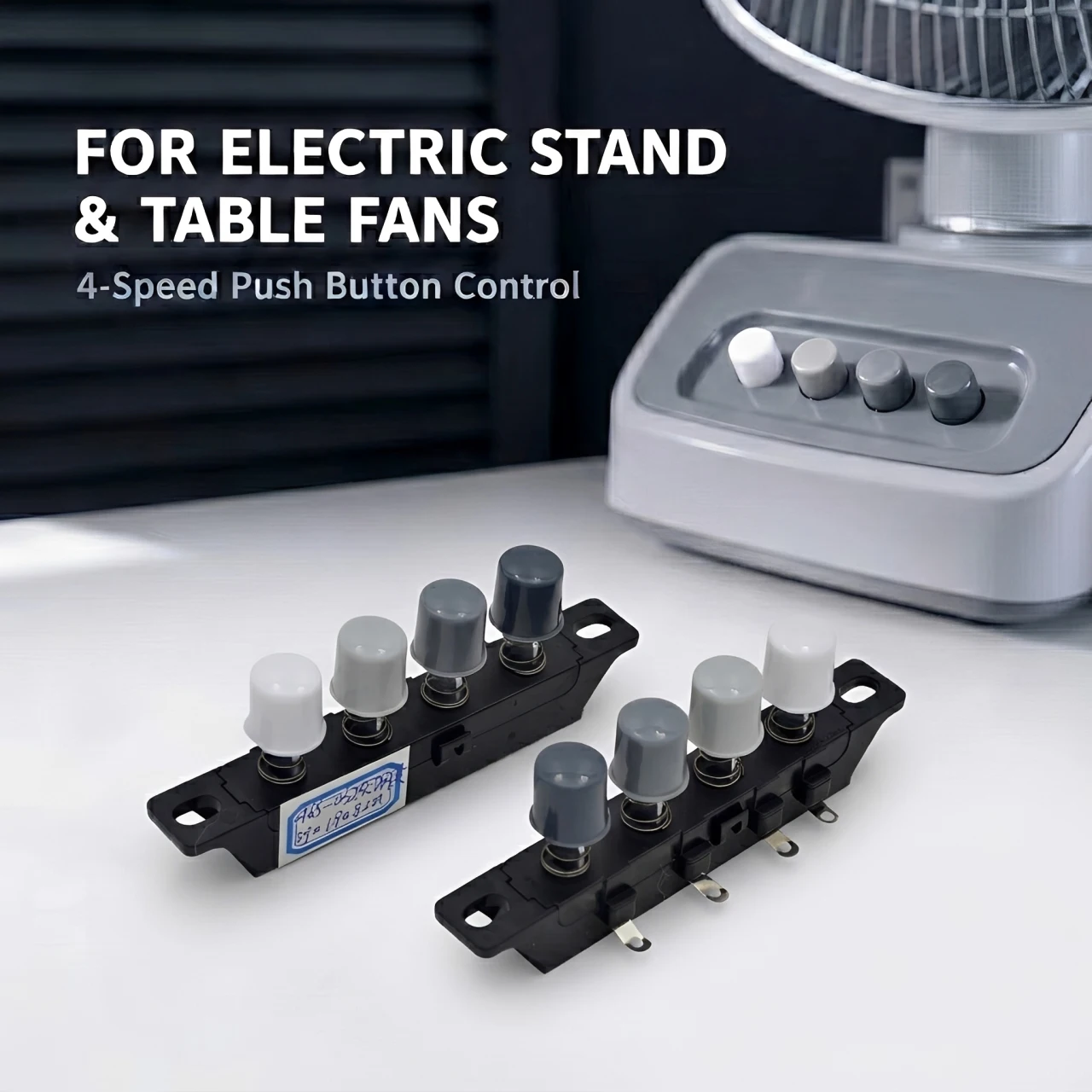

Household table / stand fans (home and commercial)
FAQ
What is the difference between a 4-key and a 5-key fan switch?
A 4-key switch gives OFF plus 3 speeds (OFF / 1 / 2 / 3). A 5-key switch adds one more function: a 4th speed , an independent oscillation key, or a light key.
What are the electrical ratings of your fan switches?
All models on this page are rated 250V AC / 1A. The KQ-165C 5-key switch is rated 1A at both 125V and 250V AC, which makes it suitable for 110–120V as well as 220–240V markets.
Can you customise the colour of the switch?
Yes. The 418-032 3-speed 4-key switch is available in custom colours. Colour customisation is subject to the model's minimum order quantity — 10,000 pcs for most push-button models.
Can I get a sample before placing a bulk order?
Yes — samples can be arranged for evaluation. Please confirm the sample arrangement with our sales team.
What payment terms do you accept?
Payment terms are confirmed with each quotation, as they depend on order value and destination. Tell us your market and order size and our sales team will send the applicable terms together with the quotation.
• 3-speed control with 4 push buttons (OFF / 1 / 2 / 3) for clear, step-by-step fan speed switching • ABS + POM housing with tin-plated copper alloy terminals for stable, low-resistance contact • Rated 250V AC / 1A, suited to household table and stand fans • Mechanical life over 30,000 cycles and electrical life 10,000 cycles for long service • Custom housing colours available; free spare parts provided as after-sales support
Model Number: 418-032 Product Name: 3-Speed Fan Switch (custom colours) Switch Type: Push button switch Rated Voltage / Current: 250V AC / 1A Positions / Keys: 4 positions (OFF, 1, 2, 3) Housing Material: ABS + POM Terminal Material: Copper alloy, tin-plated Mechanical Life: Over 30,000 cycles Electrical Life: 10,000 cycles Operating Temperature: -10C ~ +85C Application: Household table / stand fans (home and commercial) Colour: Custom colours available Brand: YKFANMOTOR Place of Origin: Guangdong, China Warranty: 1 year After-sales Service: Free spare parts Lead Time: 1-50,000 units: approx. 20 days; larger volumes on request
Applications: - Household table / stand fans (home and commercial) Customization: - Colour / finish options: Custom colours available - Custom colours and OEM / ODM supported - send us your drawing or sample - Samples can be provided for evaluation
MOQ: 10,000 pieces Lead time: 1-50,000 units: approx. 20 days; larger volumes on request Payment terms: FOB / CIF / CFR / EXW Shipping port: Guangzhou, Zhongshan, Shenzhen FAQ Q: What is the minimum order quantity? A: 10,000 pieces. Q: How long is the lead time? A: 1-50,000 units: approx. 20 days; larger volumes on request. Q: Can you customize the colour or print our brand? A: Yes. Custom colours and OEM / ODM are supported - send us your drawing or sample. Q: Can I get a sample before ordering? A: Samples can be provided for evaluation; contact us with your specification.
