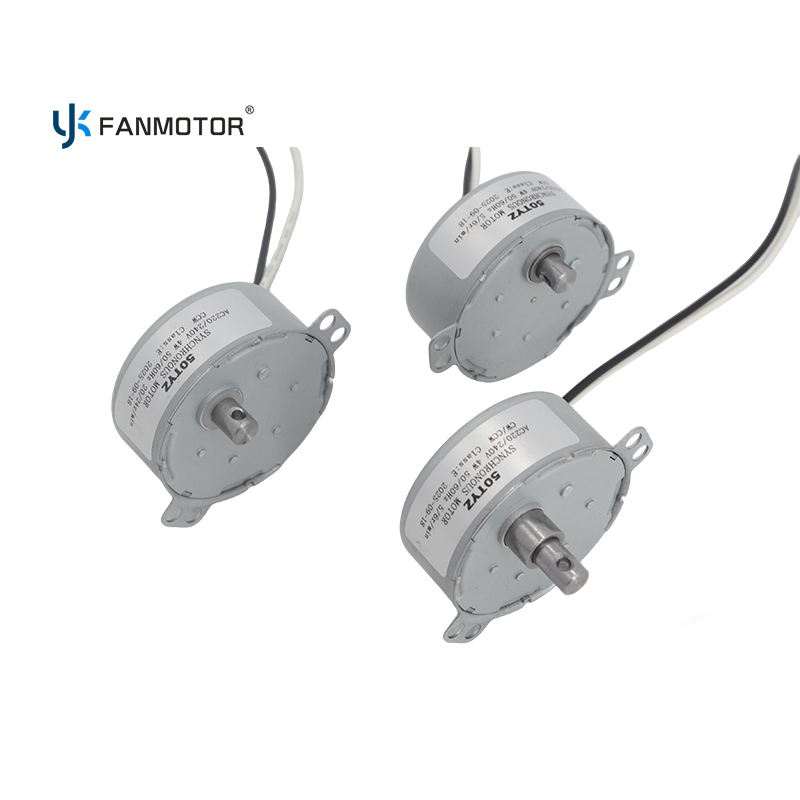

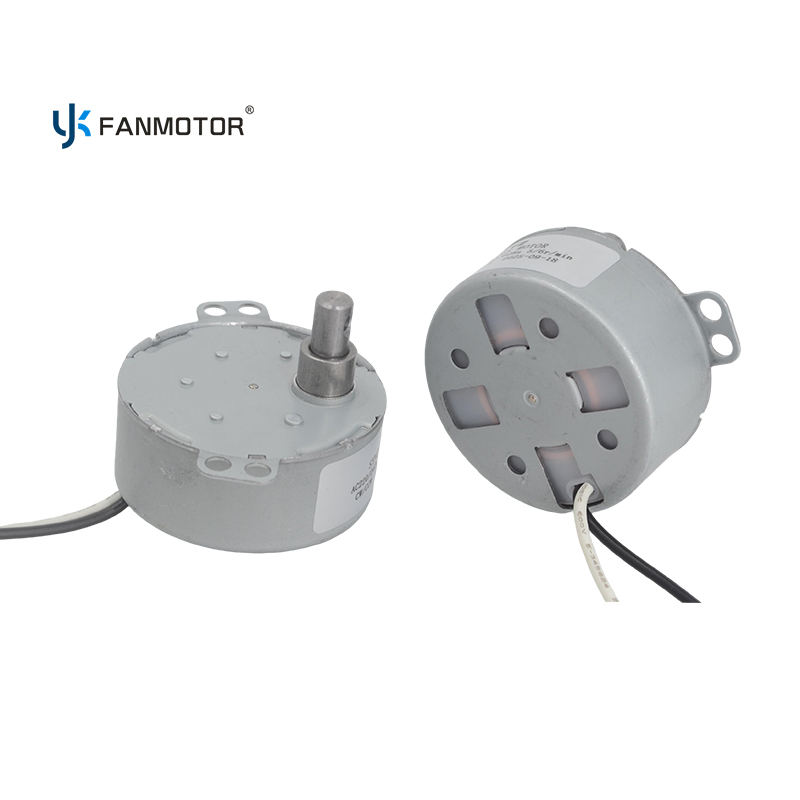

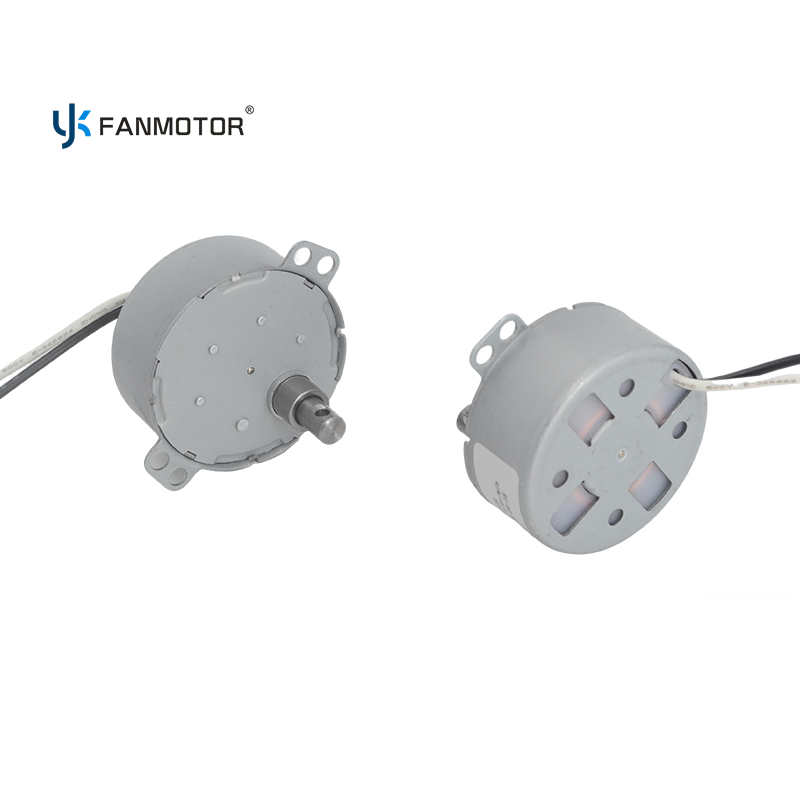

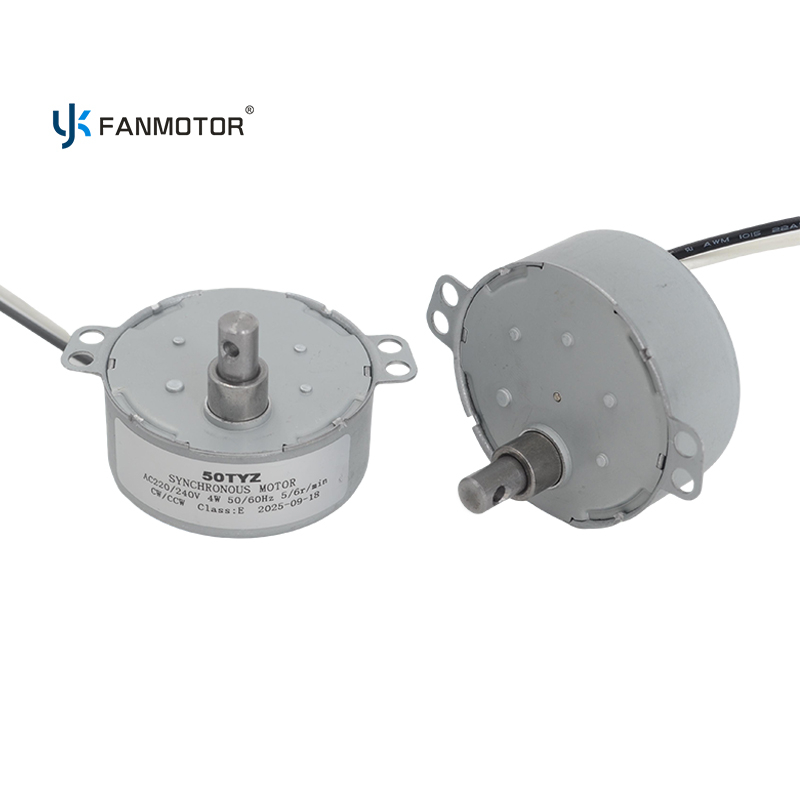

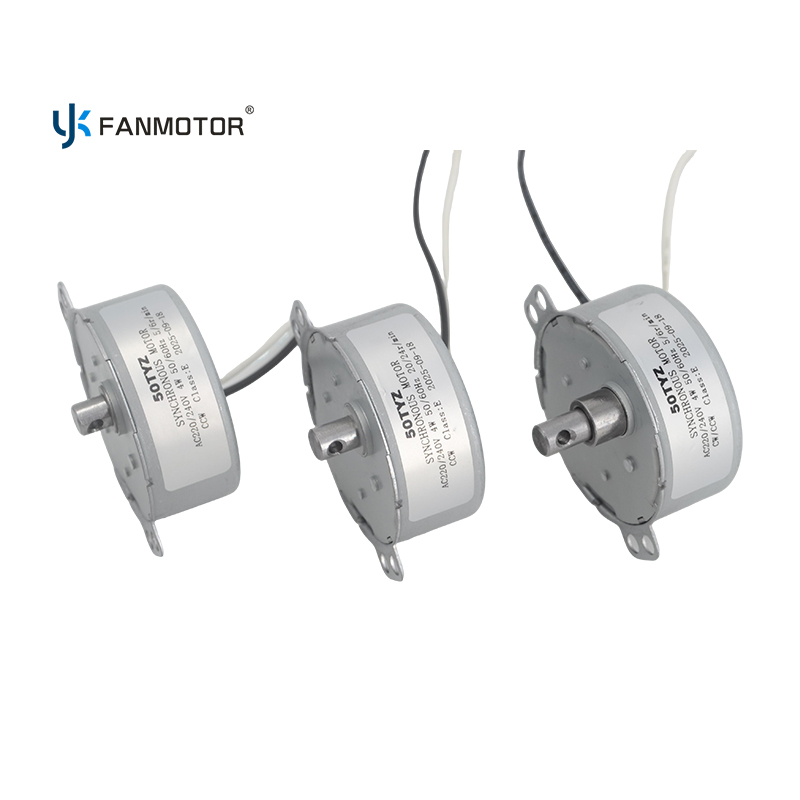

The 50TYZ Reversible Permanent Magnet Synchronous Motor is a professional-grade drive solution engineered for reliability and efficiency. Operating on AC 220-240V (compatible with 50/60Hz global frequency standards), it supports both clockwise (CW) and counter-clockwise (CCW) rotation—delivering exceptional versatility for diverse application needs.
With a rated power of 4W and a precise low-speed range of 5/6RPM, this motor balances steady rotational motion with minimal energy consumption, reducing long-term operating costs. Its robust design, combined with safety-focused features like Class E insulation and a fully enclosed structure, ensures consistent performance across home and light-industrial environments.
As a factory-direct product, it comes with flexible customization options to match specific equipment requirements, making it a preferred choice for manufacturers of household appliances, small automation devices, and precision machinery.

| Parameter | Details |
|---|---|
| Product Name | Reversible Claw Pole Synchronous Motor |
| Model | 50TYZ |
| Motor Type | Synchronous Motor (Permanent Magnet) |
| Phase | Single Phase |
| Rated Voltage | AC 220-240V |
| Rated Frequency | 50/60Hz |
| Rated Power | 4W |
| Rated Speed | 5/6RPM |
| Rotation Direction | CW (Clockwise) / CCW (Counter-Clockwise) |
| Insulation Class | Grade E |
| Protection Feature | Explosion-Proof, Totally Enclosed |
| Certifications | CCC, CE, RoHS |

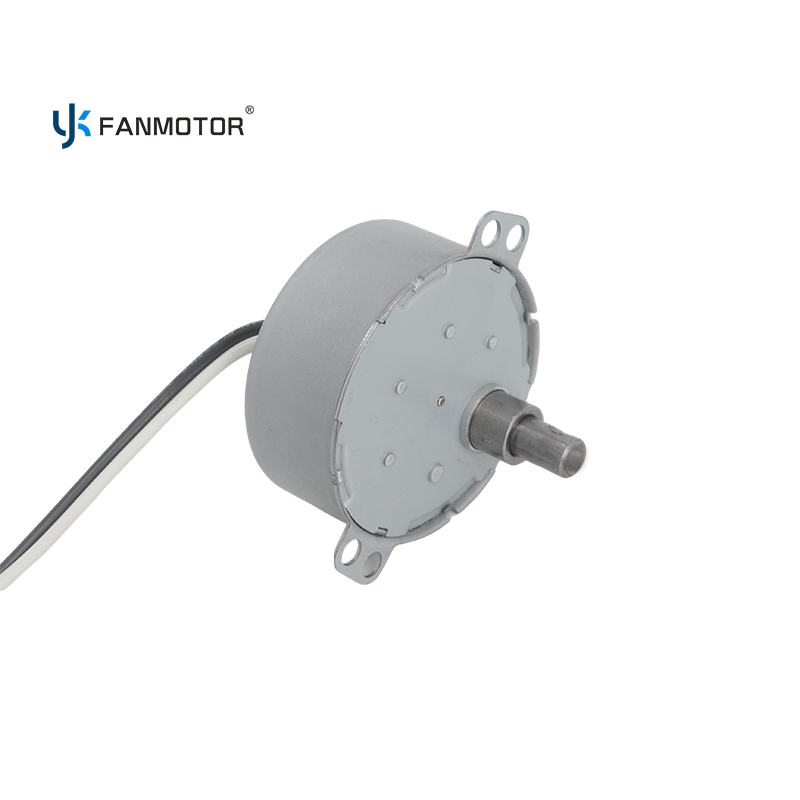

| Shaft Structure | Metal T-Shaped Shaft (with M3 Threaded Hole) |
| Customization Service | OEM / ODM (Parameters, Appearance, Branding) |
This 50TYZ synchronous motor is designed for scenarios requiring low-power, precise slow-speed rotation. Its main and extended applications include:
Household Electric Fans (Stand/Table/Wall Fans)
Small Home Appliances (Air Purifiers, Humidifiers)
Low-Power Automation Devices
We offer multiple logistics solutions to meet global delivery needs: Express Delivery (DHL, FedEx, UPS); Air Freight; Sea Freight.

The motor adopts Class E insulation, which meets international electrical safety standards and ensures safe operation in various home and light-industrial environments.
It is primarily designed for household electric fans (providing steady slow-speed rotation for air circulation). It also works with other low-power, slow-speed devices like small appliances, automation components, and precision machinery.
Yes, we offer comprehensive OEM/ODM customization services. You can customize motor parameters (voltage, speed, power), appearance (size), and branding (logo printing). We also accept small-batch orders and sample customization—just provide your detailed requirements or drawings.
- Customized products: Delivery time is determined by the complexity of the customization plan (typically 20-30 days; we will confirm the exact timeline with you after evaluating your needs).
As a direct factory, we offer competitive pricing, reliable quality, and flexible customization for the 50TYZ motor. Whether you need standard models or tailored solutions, contact us now for a detailed quote or sample request!
