Customizable AC Pure Copper 3-Speed Standing Pedestal Fan Motor

Availability:


Product Description


The YK Series standing fan motor is a high-performance single-phase AC motor specifically engineered for standing and pedestal fans. As a leading standing fan motor manufacturer, we prioritize both quality and affordability, ensuring our motors deliver consistent performance while maintaining competitive pricing.

Crafted with pure copper windings and precision-engineered components, this motor offers excellent electrical conductivity and heat dissipation, extending its service life even under continuous operation. The motor features a robust design with multiple speed settings (3-speed standard), allowing for flexible airflow control to suit different environments and user preferences.

Available in various specifications to match 16-inch, 18-inch, and 20-inch standing fans, our motor supports voltage options including 110V/60Hz and 220V/50Hz, making it suitable for global markets. Whether you're a fan manufacturer or a wholesaler, our standing fan motors provide a reliable solution with customizable options to meet your specific requirements.

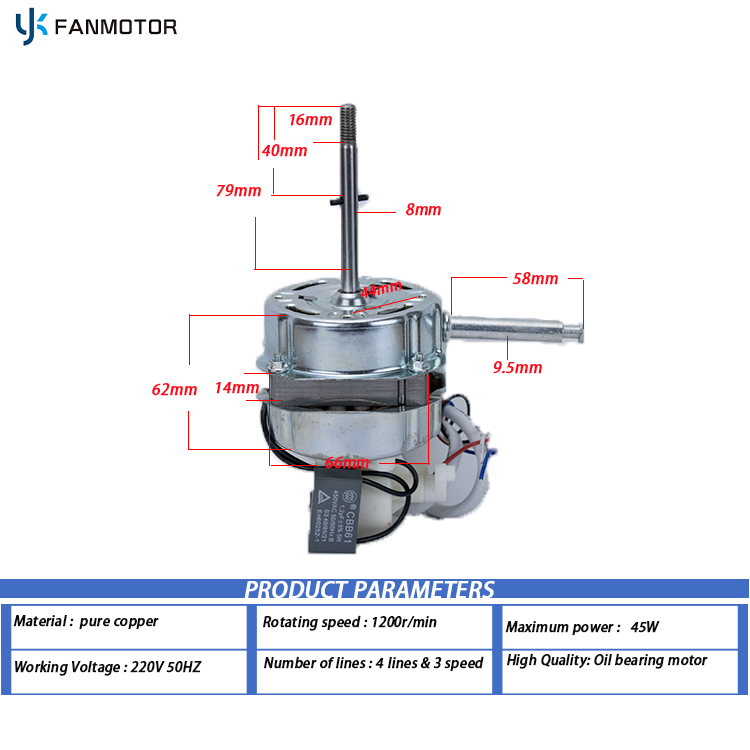

standing fan motor



Product Advantages

✓Pure Copper Winding

High-purity copper windings ensure efficient energy conversion, lower temperature rise, and longer service life compared to aluminum alternatives.

✓Competitive Pricing

Factory-direct supply eliminates middlemen, offering the best standing fan motor price without compromising on quality.

✓Multiple Speed Settings

Standard 3-speed control system provides flexible airflow adjustment, suitable for various cooling needs and fan designs.

✓Global Voltage Compatibility

Available in 110V/60Hz and 220V/50Hz versions, compatible with power systems in North America, Europe, Asia, and other regions.

✓Customizable Specifications

Support OEM/ODM services with adjustable parameters including power, speed, and dimensions to match your specific fan models.

✓Quiet Operation

Precision bearings and balanced rotor design minimize noise during operation, ensuring a comfortable environment.

Product Parameters

Parameter Specification
Model YK-16, YK-18, YK-20 (corresponding to fan size)
Type Single-phase asynchronous motor
Application 16"/18"/20" standing fans, pedestal fans
Voltage 110V/60Hz, 220V/50Hz (customizable)
Power 35W-60W (depending on model)
Speed 1100-1400 r/min (3-speed adjustable)
Winding Material Pure copper
Insulation Class Class E
Protection Grade IP20
Number of Poles 2 poles
Packaging Export carton with foam protection


Application Scenarios

Our standing fan motors are widely used in various pedestal and standing fan models, including:16/18/20 inch standing fans for living room,bedroom,office and so on.


234

About Our Company

YKFANMOTOR

YKFANMOTOR is a professional standing fan motor manufacturer with years of experience in motor production and sales. Based in Guangdong, China, we specialize in developing and manufacturing high-quality AC motors for various fan types, including standing fans, table fans, exhaust fans, and more.

Our factory is equipped with advanced production equipment and testing instruments, ensuring strict quality control from raw material selection to finished product inspection. We have a professional R&D team that continuously improves motor performance and develops new models to meet market demands.

With a focus on "quality first, customer foremost," we provide competitive standing fan motor prices and comprehensive after-sales service. Our products are exported to over 30 countries and regions, including Southeast Asia, the Middle East, Africa, and South America, earning trust from customers worldwide.

厂房集合-2

Frequently Asked Questions

Can you provide samples before mass production?

Yes, we offer sample services. You can order 1-3 samples to test quality and compatibility with your fans. Sample prices are slightly higher than bulk prices to cover processing costs, but this difference will be deducted from your subsequent bulk order payment. Samples are usually shipped within 3-5 business days.

Do you accept custom specifications for standing fan motors?

Absolutely. We provide comprehensive OEM/ODM services. We can customize voltage (110V-240V), power (30W-70W), speed settings, wire length, and even motor dimensions to match your specific fan designs. Simply provide your technical requirements or drawings, and our engineering team will develop a suitable solution.

What is your minimum order quantity (MOQ) for standing fan motors?

Our standard MOQ is 1000 pieces per model. For first-time customers or trial orders, we can negotiate a slight price adjustment. For custom models with special tooling requirements, the MOQ may be higher (2000+ pieces) to cover development costs.

How long is the warranty period for your standing fan motors?

We provide a 2-year warranty for all our standing fan motors from the date of delivery. This covers manufacturing defects and performance issues under normal operating conditions.

What are your payment terms and delivery time?

We accept T/T (30% deposit, 70% before shipment), L/C at sight, and Western Union for small orders. Delivery time is typically 15-25 days after receiving the deposit, depending on order quantity and customization requirements.
