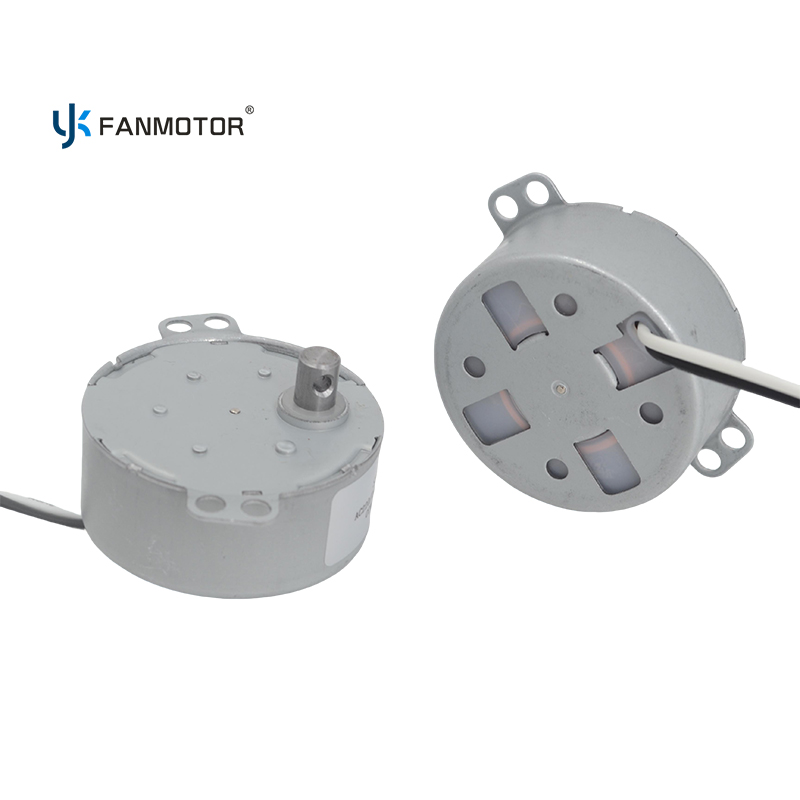

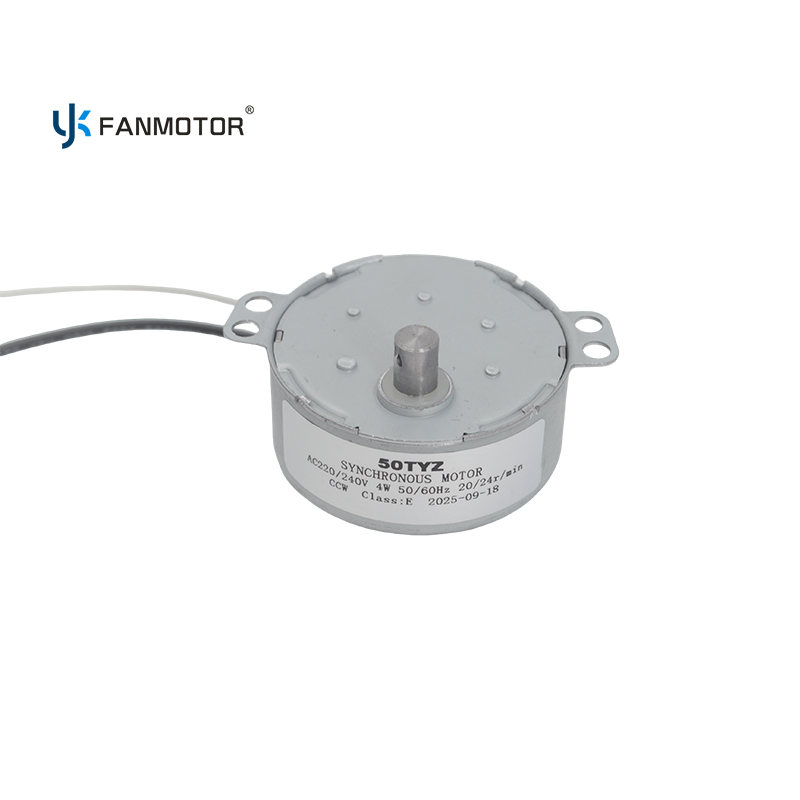

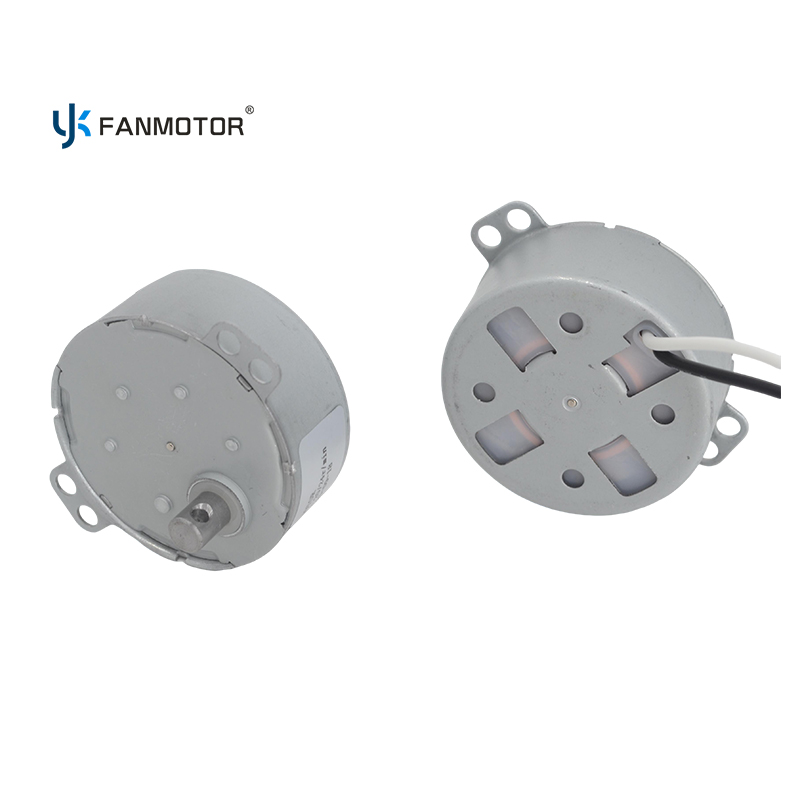

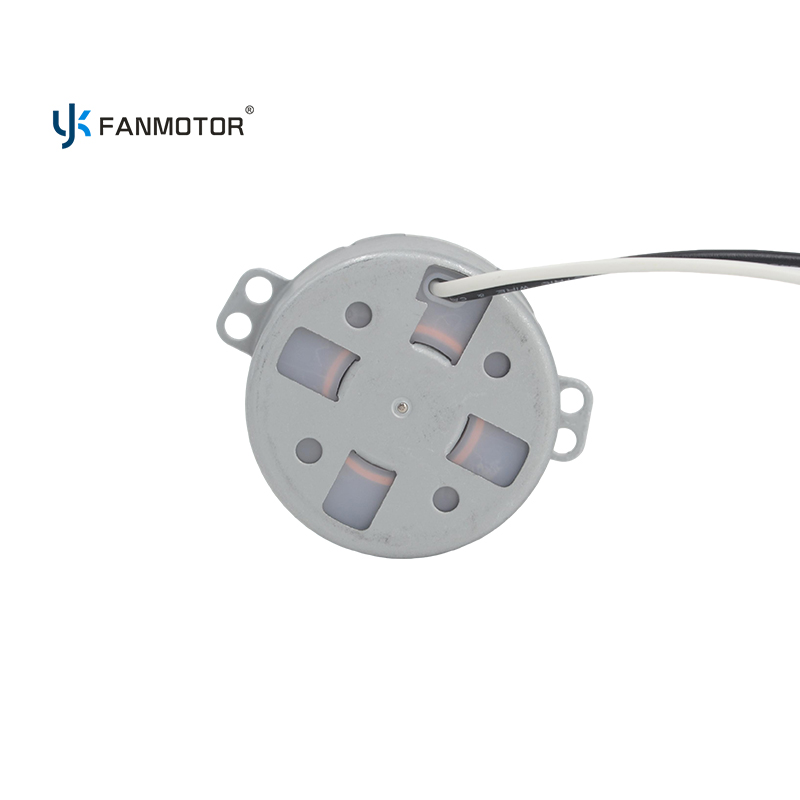

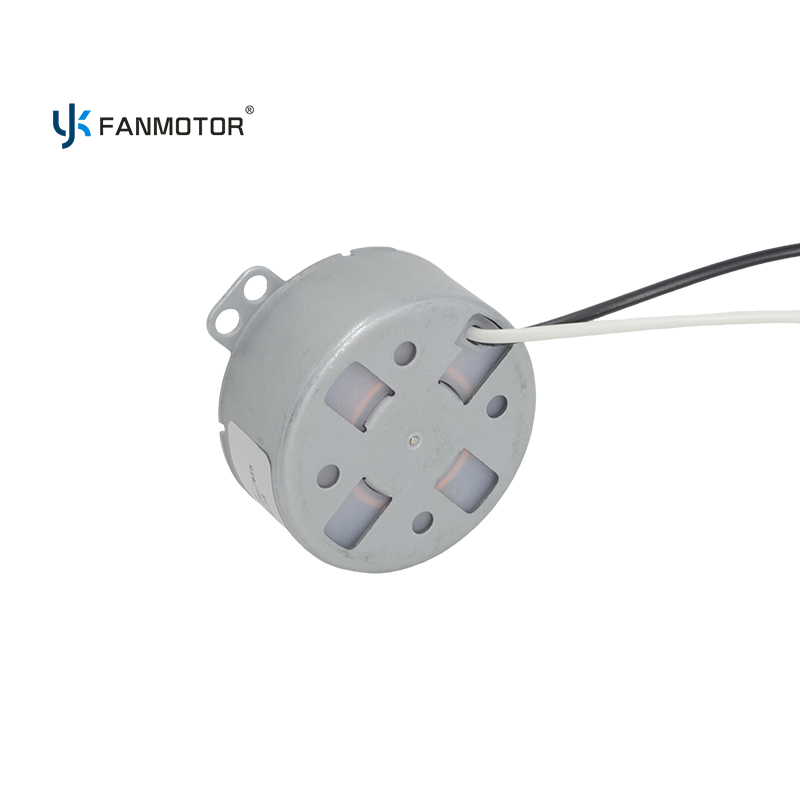

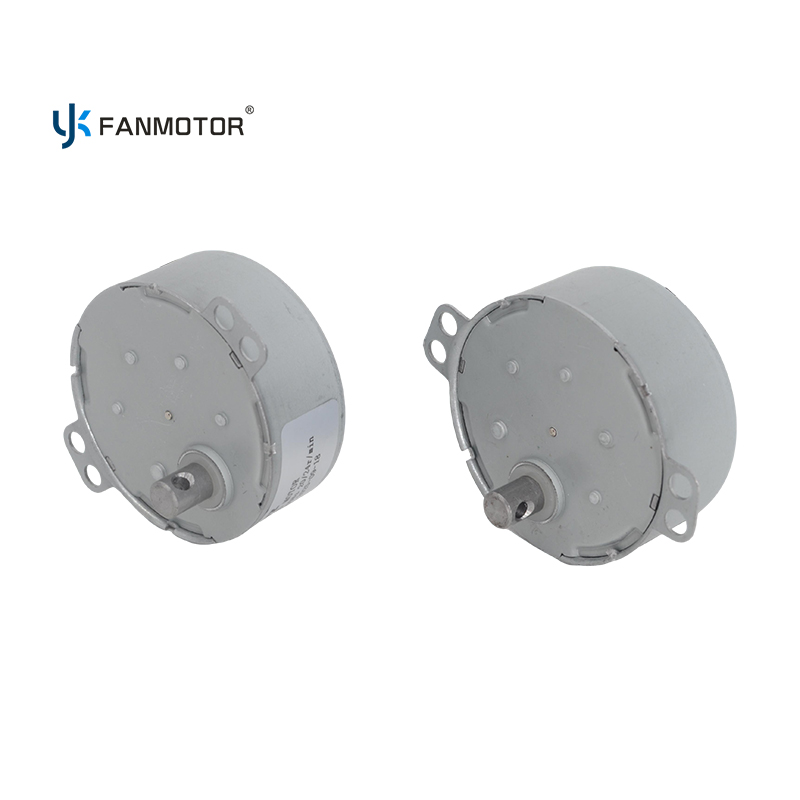

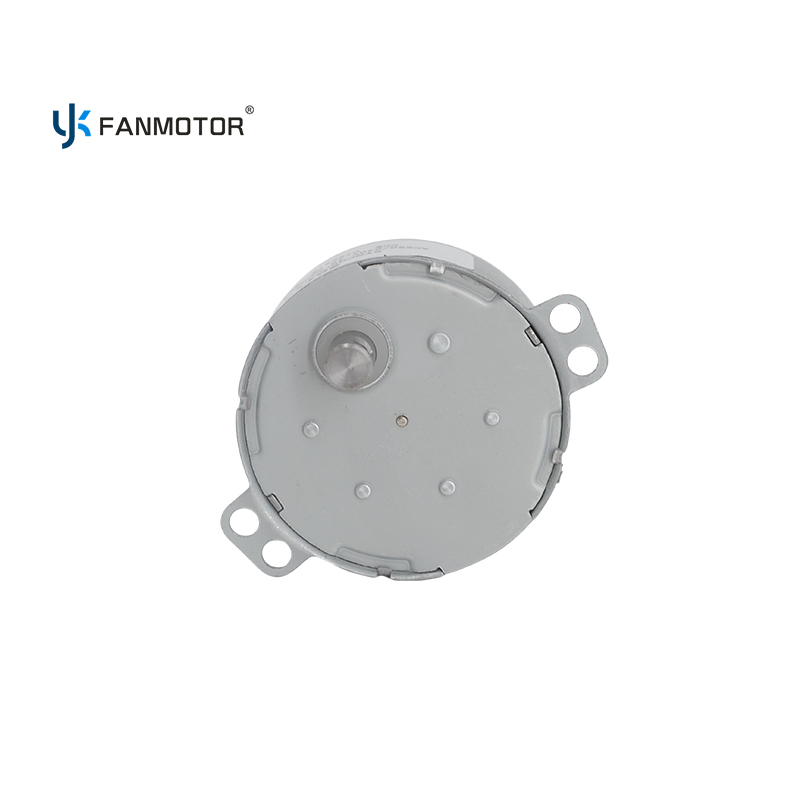

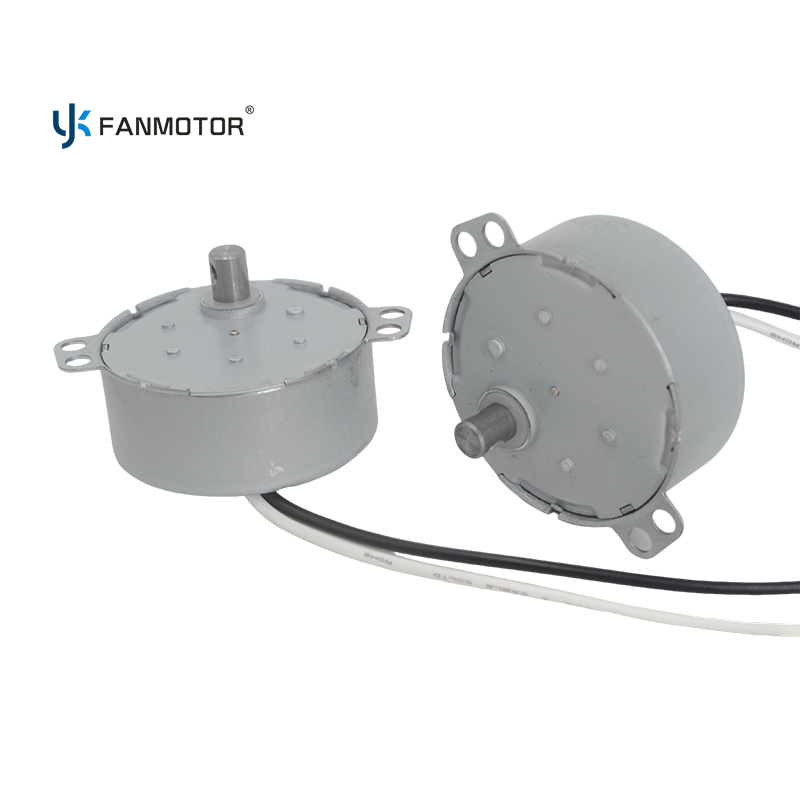

Electric Wall Fan Guide Shaking 50TYZ Synchronous Motor CCW 20/24r/min, 4W energy-saving synchronous motor for wall/stand fans, enabling smooth wind guide shaking & uniform air circulation.





| Parameter | Details |
| Product Name | Claw Pole Permanent Magnet Synchronous Motor |
| Motor Type | Synchronous Motor |
| Model | 50TYZ-2 |
| Rated Voltage | 220/240VAC |
| Rated Frequency | 50/60Hz |
| Rated Power | 4W |
| Rotation Direction | CCW (Counter-Clockwise, customizable) |
| Rated Speed | 20/24 RPM |
| Protection Class | Totally Enclosed |
| Insulation Class | Grade E |
| Certifications | CCC, CE, RoHS |
| Application | Electric Stand Fans, Pedestal Fans, Wall Fans |
| Customization Service | OEM, ODM (rotation direction, speed, appearance) |
| Mounting Type | Snap-on Mounting |
Compatible with Major Fan Brands: Perfectly fits Midea, Airmate, and other mainstream fan brands—no need for interface modifications.
Household Stand Fans Commercial Wall Fans Office Pedestal Fans Retail Store Cooling Fans Residential Wall-Mounted Fans
This 50TYZ-2 synchronous motor is specially designed for the wind guide and shaking system of stand/wall fans. Its steady 20/24r/min speed ensures the fan spreads air evenly across the room, eliminating local hot spots and improving overall cooling effect.
It adapts to diverse scenarios: in homes, it provides comfortable airflow for living rooms and bedrooms; in offices, it meets the cooling needs of open workspaces; in commercial areas (like convenience stores or small shops), it maintains a cool environment for customers and staff. With strong compatibility and reliable performance, it's an ideal choice for fan manufacturers and repair service providers.



Ready to Source This 50TYZ Fan Motor?As a direct factory, we offer competitive pricing, reliable quality, and flexible customization for synchronous motor. Whether you need standard models for fan production or customized solutions, contact us now for a detailed quote or sample request! |

Guangzhou Yuexun Electric Appliance Co., Ltd. (branded as UK FANMOTOR) is a professional manufacturer focusing on high-quality motors and parts. Our main products cover motors for fans, air conditioners, fryers, ovens, range hoods, atomizers, and more—with a core focus on synchronous motors for fan applications.

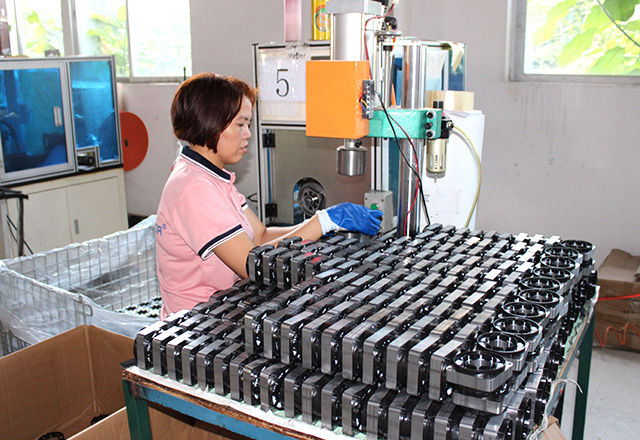

Our factory is located in Guangdong, China, equipped with advanced production lines and precision testing equipment. Backed by a team of experienced engineers and technicians, we implement strict quality control throughout the production process (from raw material inspection to final product testing) to ensure every motor meets high standards.
With years of industry experience, we have built a solid reputation among global customers. We not only provide standard motor products but also offer comprehensive OEM/ODM services—from product design, parameter customization to packaging branding—to fully meet customers' specific production needs.


Yes, it is designed to meet the needs of both scenarios. It works for household stand fans (bedrooms, living rooms) and commercial wall fans (offices, stores)—as long as the fan's power and size requirements match the motor's specifications.
The standard speed is fixed at 20/24r/min, but we offer speed customization through OEM/ODM services. If you have specific speed needs (e.g., 15RPM, 30RPM), please provide detailed requirements, and our engineering team will confirm feasibility and quotation.
Absolutely. We offer comprehensive installation support, including detailed installation guides, dimension drawings, and online consultation. Our technical team is available to answer questions about mounting, wiring, and compatibility during the assembly process.
Yes, we provide samples for testing and evaluation. Please contact our sales team to discuss sample quantity, pricing, and lead time. Generally, samples can be delivered within 3-7 days after confirmation.
If a quality problem occurs within the warranty period (based on the order agreement), we will provide free replacement of faulty parts or send new motors. You only need to contact our after-sales team with order information and problem descriptions, and we will handle it promptly (usually within 24 hours).
The standard model adopts CCW rotation, but we can customize CW rotation or dual-direction (CW/CCW) rotation through OEM services. Please note your rotation direction needs when placing an order, and we will adjust the motor's internal structure accordingly.
