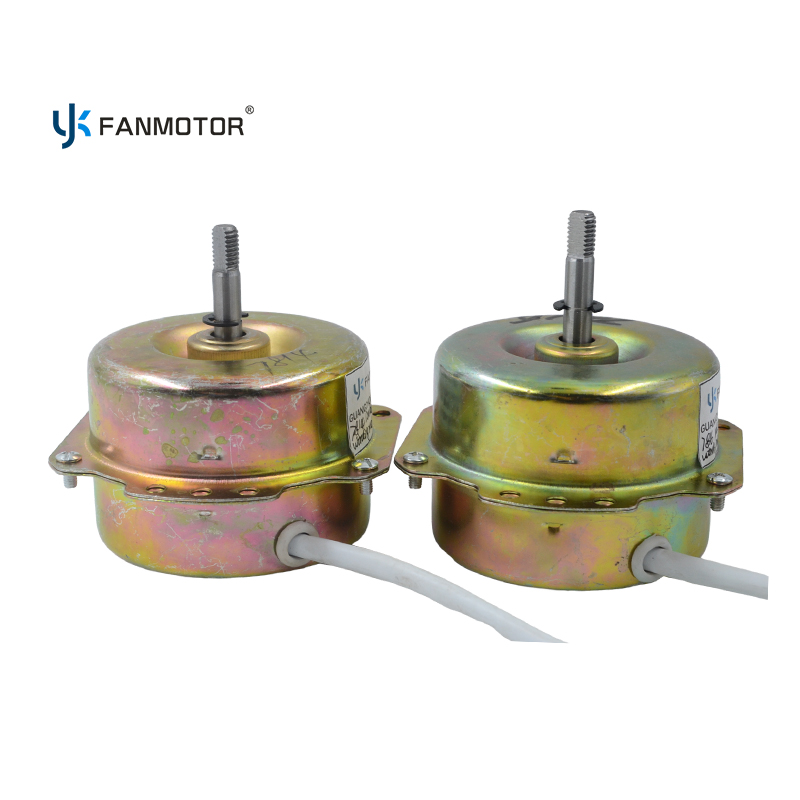

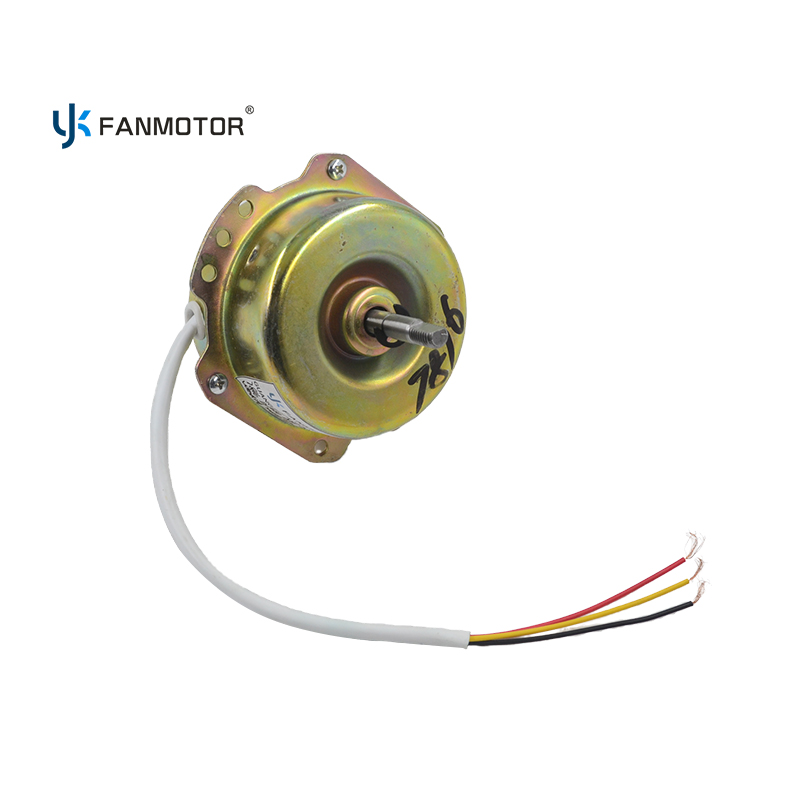

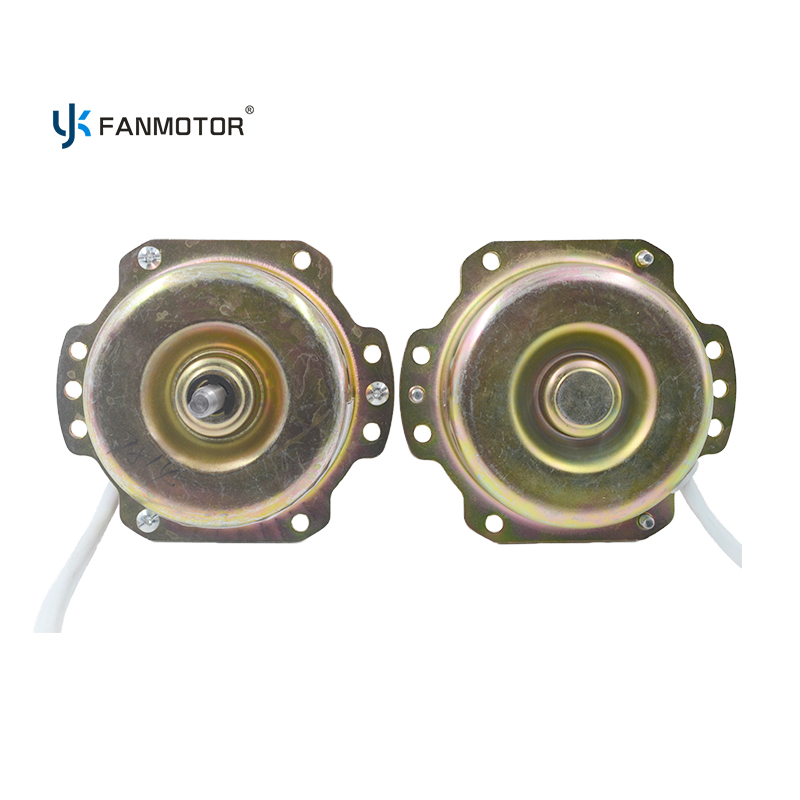

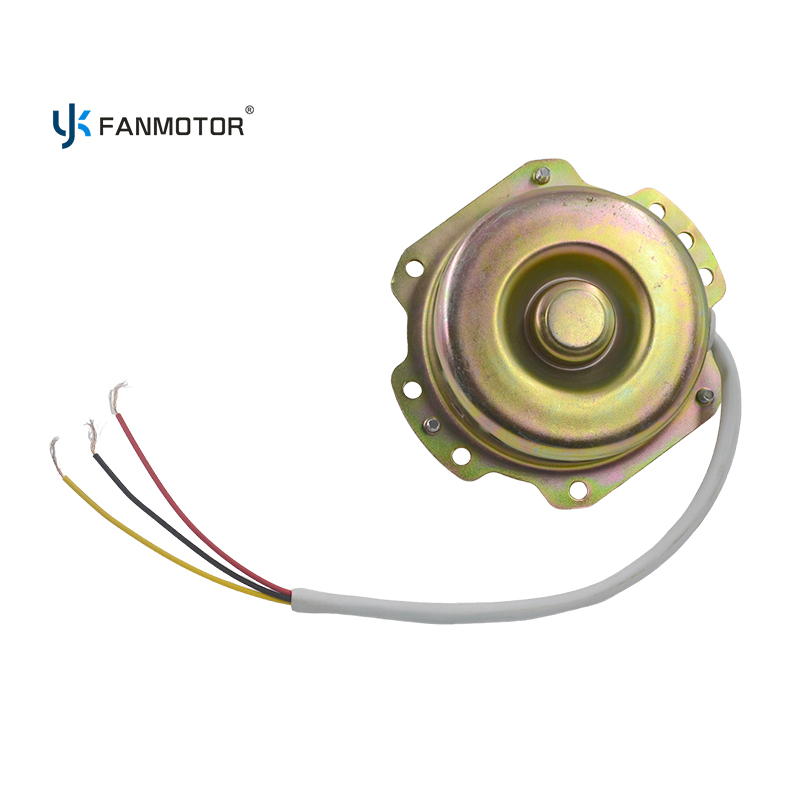

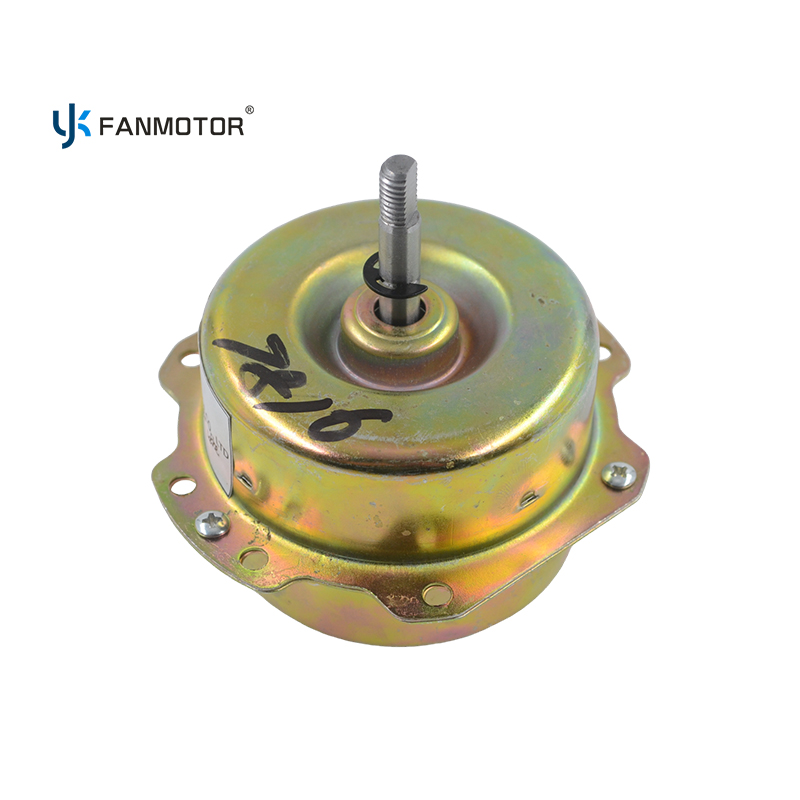

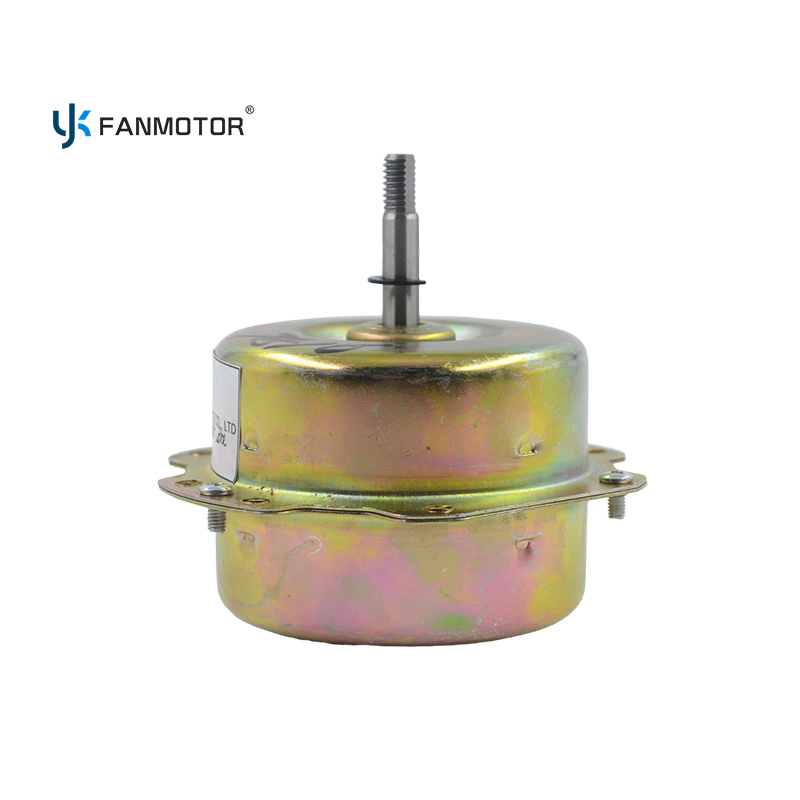

1. Durable Double Ball Bearing Design
The double ball bearing structure reduces friction and extends lifespan, making it ideal for continuous operation in kitchens, bathrooms, or workshops. The robust design minimizes maintenance and withstands dust and moisture.
2. 100% Copper Wire Windings for High Efficiency
Premium copper wire ensures excellent conductivity and heat dissipation, maintaining stable performance at IE1 efficiency. This reduces energy loss and enhances durability compared to aluminum alternatives.
3. Global Voltage Compatibility & Safety Certifications
With 208-240V/50-60Hz support and CCC/CE/RoHS compliance, the motor meets international safety standards, suitable for global markets. The single-phase design simplifies installation in various exhaust fan models.
4. Compact Sizing for Multi-Diameter Fans
Available in stator sizes 7814/16/18mm, the motor fits 6/8/10 inch exhaust fans, offering versatile airflow solutions for small bathrooms, commercial kitchens, or industrial ventilation systems.
Product name | Exhaust fan motor |
Application | 6/8/10 inch exhaust fan motor |
Stator Size | 7814/16/18mm |
Motor bearing | Double ball bearing |
AC Voltage | 208-230/240V |
Frequency | 50/60Hz |
Efficienct | IE1 |
Certification | CCC CE RoHS |
Poles | 2 Poles |
Power | 20-40W |
Wire winding | 100% Copper Wire |
Phase | Single phase |

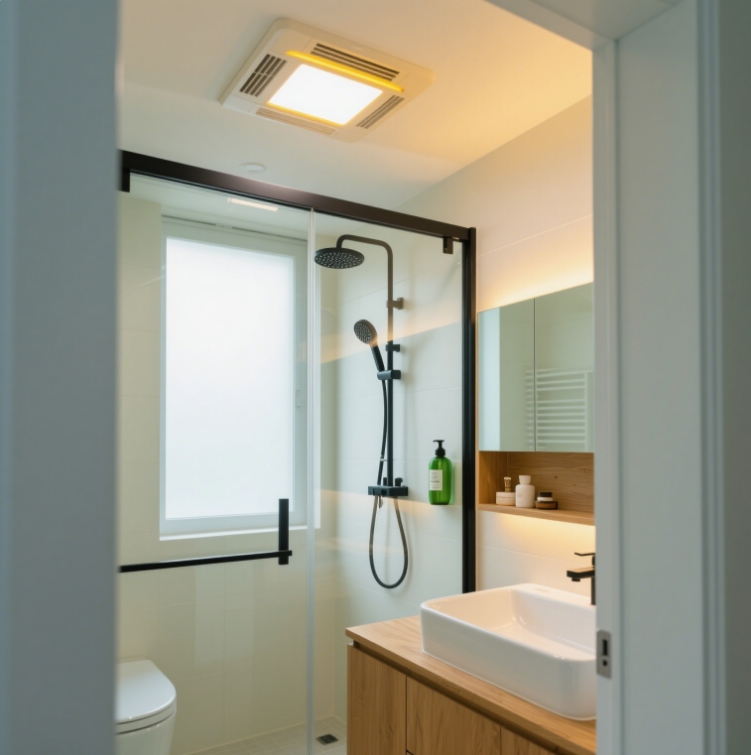

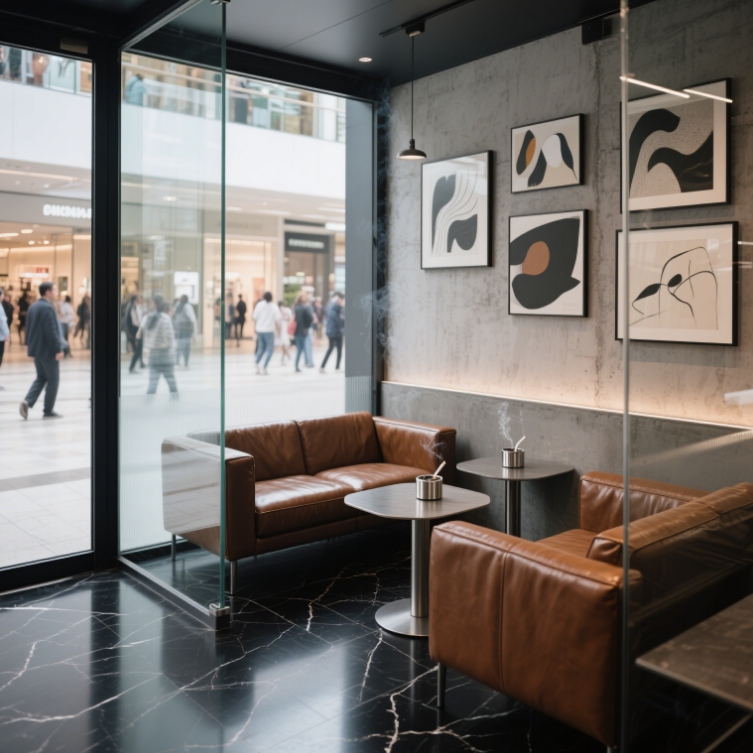

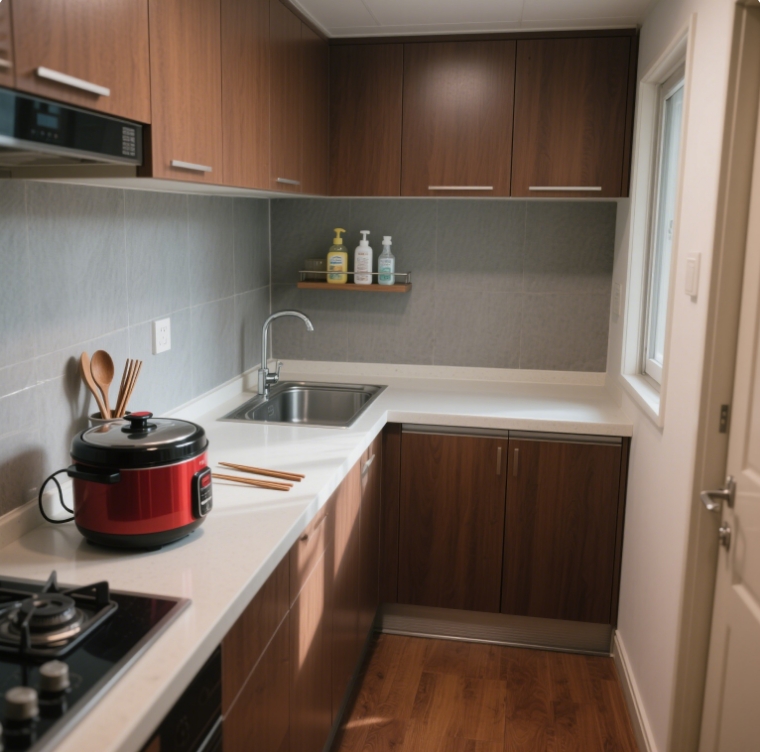

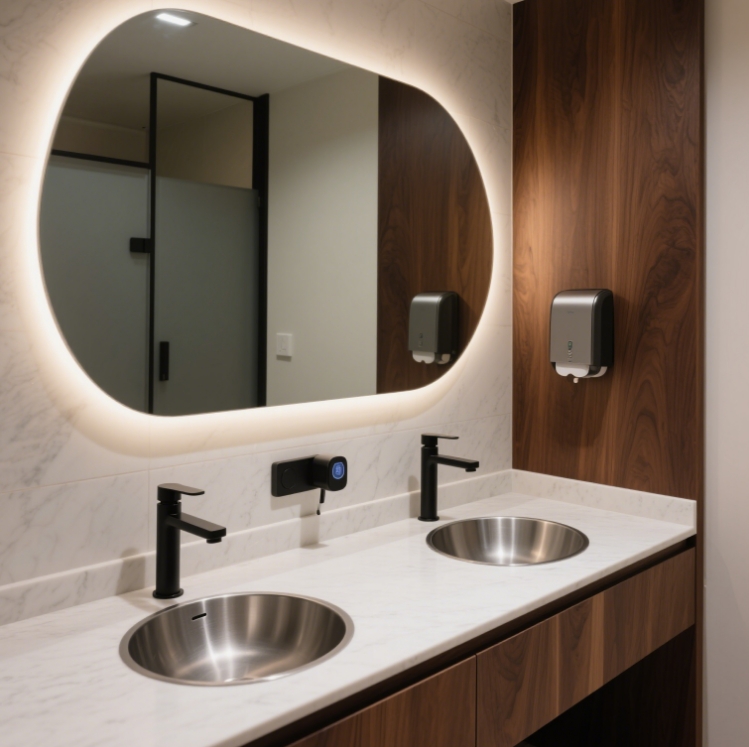

Exhaust fans are used to exhaust fumes, moisture, odors, harmful gases and dissipate heat. They are commonly found in kitchens, bathrooms, factories, public places, etc.
1. Improve indoor air quality:
The exhaust fan generates airflow through the collaboration of the motor and fan blades, which can effectively exhaust the dirty air in the kitchen, bathroom and other places to enhance the indoor environment.
2. Regulate temperature and humidity:
During use, the exhaust fan is able to regulate the temperature and humidity of the room, avoiding mold and odor caused by humidity.
3. Remove harmful gases:
The exhaust fan can quickly remove harmful gases and solvent volatiles from the room to ensure the safety of the living environment.
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
