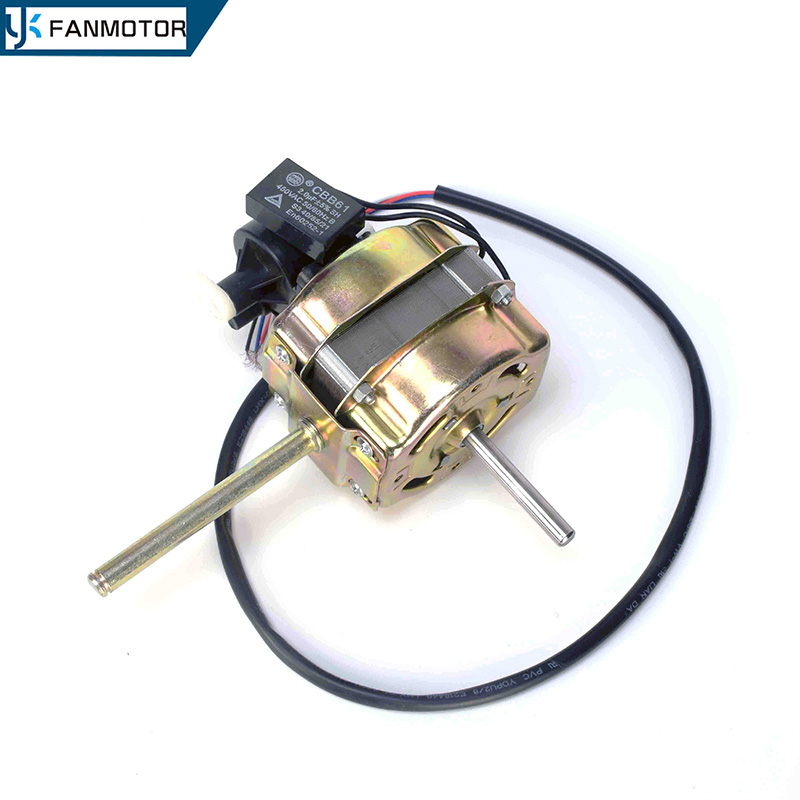

AC High Speed Stand table Fan Motor

In our daily life, table fan motors play a huge role in our production and life. Part of the fans we use every day are composed of table fan motors. So, what is a table fan motor? Next, we look at the answer.

A large number of motors are manufactured with small ratings for the operation of a single-phase AC supply. The motors that are built with fractional horsepower sizes are called small motors. They are most useful in homes, offices, businesses, and many more. Since the requirements of the applications differ widely and manufacturing industries develop several types of motors. In such a way that their operating characters meet demands. Single-phase AC motors are cheaper, more reliable, simple in construction, and very easy to repair. This article describes a shaded pole motor and its working.

The main component of a mini fan is an AC motor, and its working principle is that the energized coil rotates under the force of a magnetic field, so that the mini fan blades rotate. The conversion formed of energy is that electrical energy is mainly converted into mechanical energy. At the same time, due to the resistance of the coil, it is inevitable that part of the electrical energy will be converted into heat energy. Generally, the motors of mini fans (using 220V AC) are capacitor split-phase single-phase motors. It has two windings: the main winding (running winding); the secondary winding (starting winding). The main winding is directly connected to the 220v power supply, and the secondary winding is connected to the 220v power supply after the capacitor in series.

A table fan motor is a motor with a fan hub and blades. There are evenly distributed slots along the outer circumference of the fan hub. The blades are inserted into the slots. The blades of the table fan motor are connected to the fan by permanent connection methods such as welding and bonding. The hub becomes one. So, what types of table fan motors are there? Next, we have a look at the answer

The shaded pole motor is one of the single-phase AC motors, usually using cage-shaped skew-slot cast aluminum rotors. It is divided into salient pole type shaded pole motor and hidden pole type shaded pole motor according to the different shape and structure of the stator. It is applied to the warmer fan motor.

Shaded pole motors are very common in our lives, such as wall fan motors and so on. You can see him in air conditioners or refrigerators. The drain pump used in the air conditioner embedded machine is a typical shaded pole motor with a low defect rate, while the shaded pole motor in the refrigerator works synchronously when the compressor is working and blows out the cold temperature of the evaporator, which can also be said to be a circulating fan motor. However, do you really know what a shaded pole motor is and how to choose it?

Air-conditioners are an excellent choice for summers, but they are not cost-effective and require constant maintenance. Therefore, a Wall Fan motor is a budget-friendly option that every home needs to have. Wall Fan motor is a cheaper and sustainable option as compared to air-conditioners. Wall Fan motors operate at different speeds to generate airflow, thereby providing cool air to the surroundings.

Nowadays, there are many types of electric fans, including large ones and small ones. So what is a small electric fan? A mini fan, as the name suggests, refers to an electric fan with a small size and low power, which is also convenient to carry.

A warmer fan motor is essentially a heater that operates by using a fan to push air over a heating element. When the air passes over the heating element, it gets heated up and is consequently pushed out of the heater. In this way, a warmer fan motor warms up a room. This article introduces some aspects of the warmer fan motor.

When we use the fan, we may encounter the table fan motor failure. Then, when the table fan motor sends a failure, how do we fix the table fan motor? Let's take a look next.
