Product Description

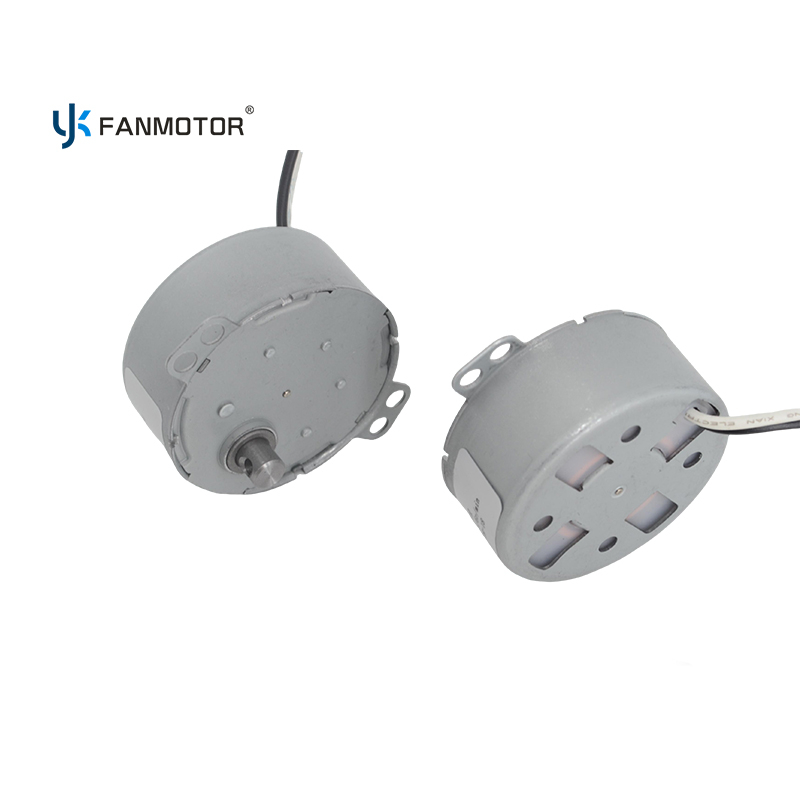

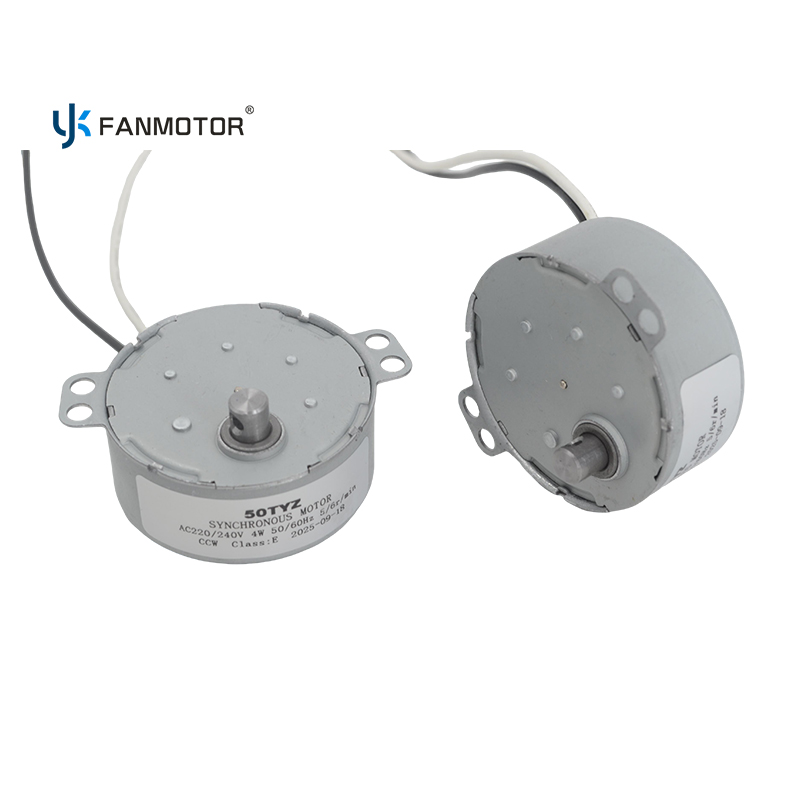

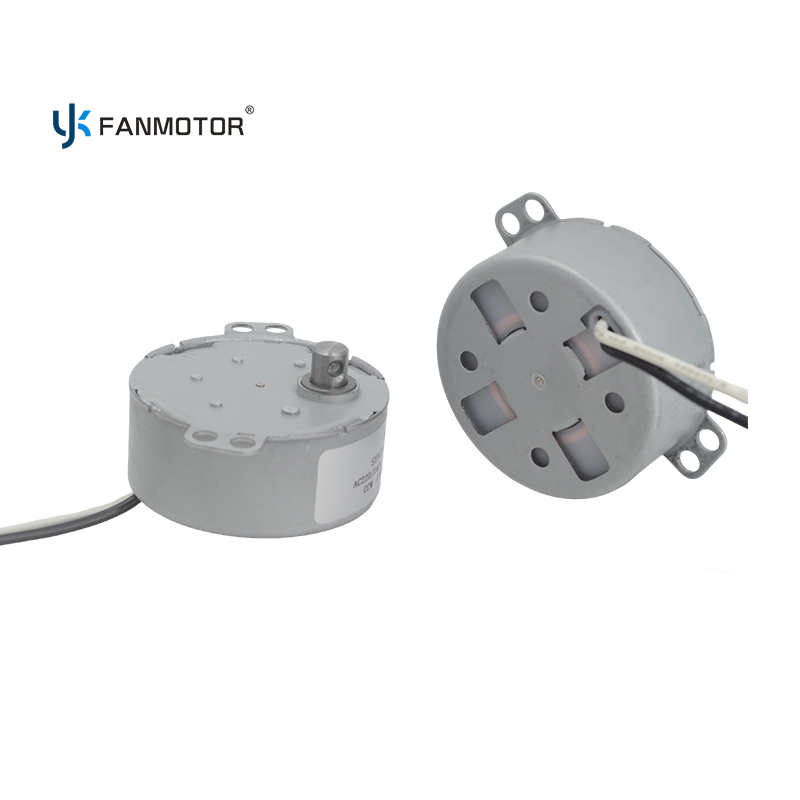

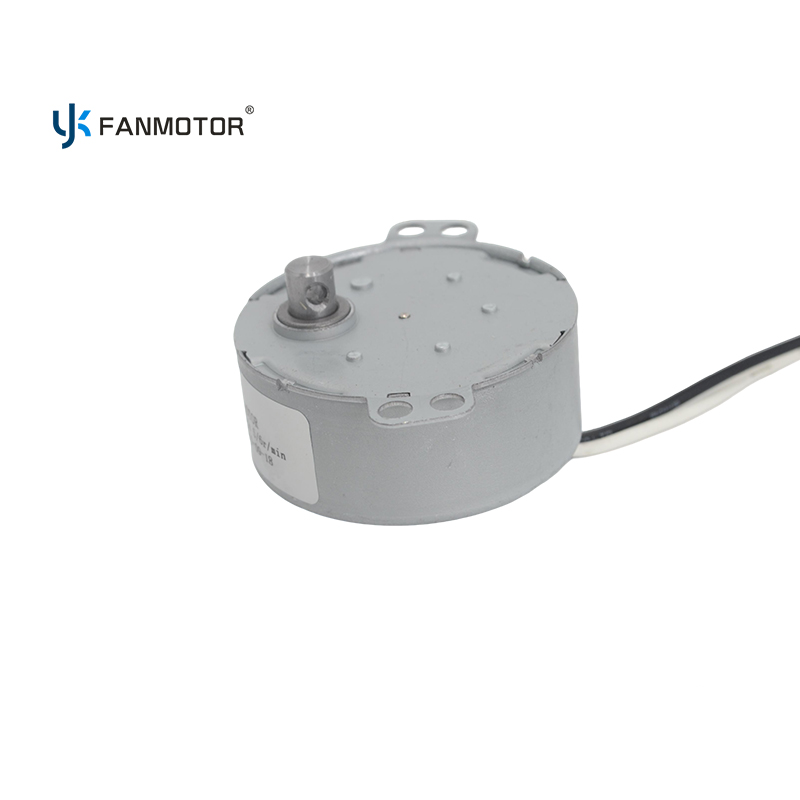

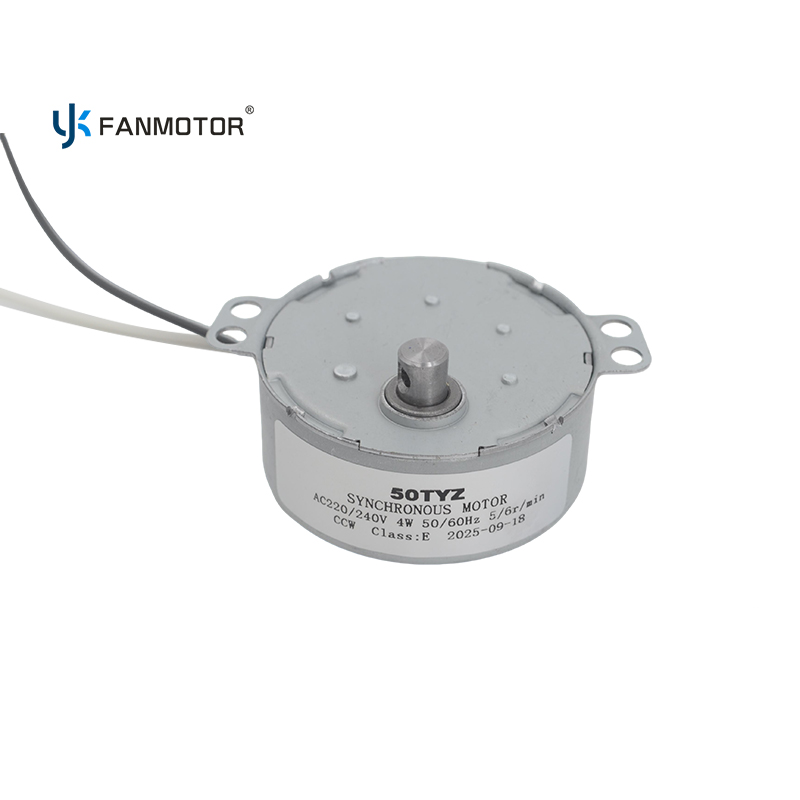

The 50TYZ Mini AC Claw Pole Permanent Magnet Synchronous Motor is a compact, high-performance drive solution engineered for versatility and efficiency. Designed to operate on AC 220/240V (compatible with 50/60Hz global frequency standards), it delivers reliable performance across a wide range of low-speed application scenarios.
With a compact structure and 4W low rated power, this motor balances energy efficiency with stable operation—making it suitable for home appliances, climate control equipment, and small automation devices. Its default counterclockwise (CCW) rotation can be customized to meet specific equipment needs, while strict quality control and international certifications (CCC/CE/RoHS) ensure compliance with global safety and environmental standards.
Whether used in electric fans for steady air circulation, air purifiers for uniform airflow, or small automation devices for precise rotation, this mini synchronous motor provides consistent, quiet, and long-lasting performance—making it a preferred choice for manufacturers and equipment integrators worldwide.
Product Highlights
Stable Low-Speed Performance
Rated speed of 5/6 r/min, ensuring precise, slow rotation without fluctuations—perfect for scenarios requiring controlled movement, like fan air circulation or precision equipment.
Flexible Rotation Direction

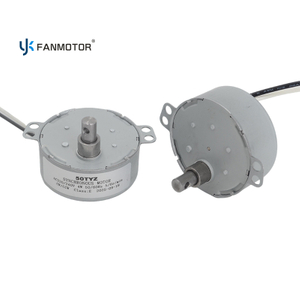

Default CCW (counterclockwise) rotation; supports customization to CW (clockwise) or reversible (CW/CCW) to match diverse equipment operation needs.
Explosion-proof design enables use in flammable environments; noise level ≤40dB—quiet enough for home/office appliances without disturbing daily life.
4W rated power reduces energy consumption, while Grade E insulation ensures safe, long-term operation—lowering both energy costs and maintenance needs.
Global Voltage Compatibility
Works with AC 220/240V and 50/60Hz frequency—adapts to electrical standards in Europe, Asia, Americas, and other global markets without voltage adapters.
Technical Specifications
| Parameter | Details |
| Product Name | Claw Pole Synchronous Motor |
| Model | 50TYZ-1 |
| Motor Type | Mini AC Claw Pole Permanent Magnet Synchronous Motor |
| Phase | Single-phase |
| Rated Voltage | AC 220/240V |
| Input Current | 25-500mA |
| Rated Frequency | 50/60Hz |
| Rated Power | 4W |
| Insulation Class | Grade E |
| Rotation Direction | CCW (Counter-Clockwise); customizable to CW or CW/CCW |
| Rated Speed | 5/6 r/min |
| Noise Level | ≤40 dB |
| Certifications | CCC, CE, RoHS |
| Customization Service | OEM/ODM (rotation direction, parameters, appearance) |
Application Scenarios
Serves as the core component for steady air supply, ensuring uniform airflow distribution and quiet operation—enhancing user comfort in home environments.
Ready to Source the 50TYZ Mini Synchronous Motor?
As a direct factory, we offer competitive pricing, reliable quality, and flexible customization for the synchronous motor. Whether you need standard models for mass production or tailored solutions for specific equipment, contact us now for a detailed quote or sample request!
Get Factory Quote Now
About Our Factory
Guangzhou Yuexun Electric Appliance Co., Ltd. (branded as UK FANMOTOR) is a leading manufacturer of high-quality motors and parts, with a focus on fan motors for home and industrial applications. Established in 2017, we leverage over 28 years of professional experience in the fan motor industry to deliver reliable, cost-effective solutions to global customers.
Our factory, located in Guangdong, China, is equipped with advanced production lines and precision testing equipment—supporting an annual production capacity of 4 million units. We implement a strict quality control system covering every stage, from raw material inspection to finished product testing, ensuring each motor meets international standards.
We specialize in manufacturing motors for fans, air conditioners, fryers, ovens, range hoods, atomizers, and more. Beyond standard products, we offer tailored OEM/ODM customization services to meet specific customer requirements. Our products are exported to over 50 countries worldwide, earning us a solid reputation for quality, on-time delivery, and professional service.
Professional Manufacturer Good Quality Various Styles Precision Customization On-Time Delivery
FAQ
Is the 50TYZ motor compatible with both 50Hz and 60Hz frequency?
Yes, it supports a frequency range of 50/60Hz, making it suitable for use in different regional power grids (e.g., 50Hz in Europe/Asia, 60Hz in North America) without additional modifications.
What does Grade E insulation mean for the motor's use?
Grade E insulation allows the motor to withstand moderate temperature rises (maximum allowable temperature of 120°C), ensuring safe and stable operation in common home and industrial environments—preventing overheating and extending service life.
What customization options are available for this motor?
We offer comprehensive OEM/ODM customization, including rotation direction (CW/CCW/reversible), parameters (speed, voltage, power), appearance (size), and branding (logo printing). Simply provide your drawings, samples, or specific requirements, and our engineering team will develop tailored solutions.
Will the motor's noise affect its use in home appliances?
No. The motor's noise level is ≤40dB—equivalent to the sound of a quiet library. This low noise ensures it won’t disturb daily life when used in home appliances like fans, air purifiers, or humidifiers.
How is the warranty handled for quality issues?
The motor comes with a 3-month to 1-year warranty (based on order terms). If a quality issue is confirmed within the warranty period, we provide free parts replacement or repair services. For eligible cases, we also cover related logistics costs to ensure a hassle-free resolution.
