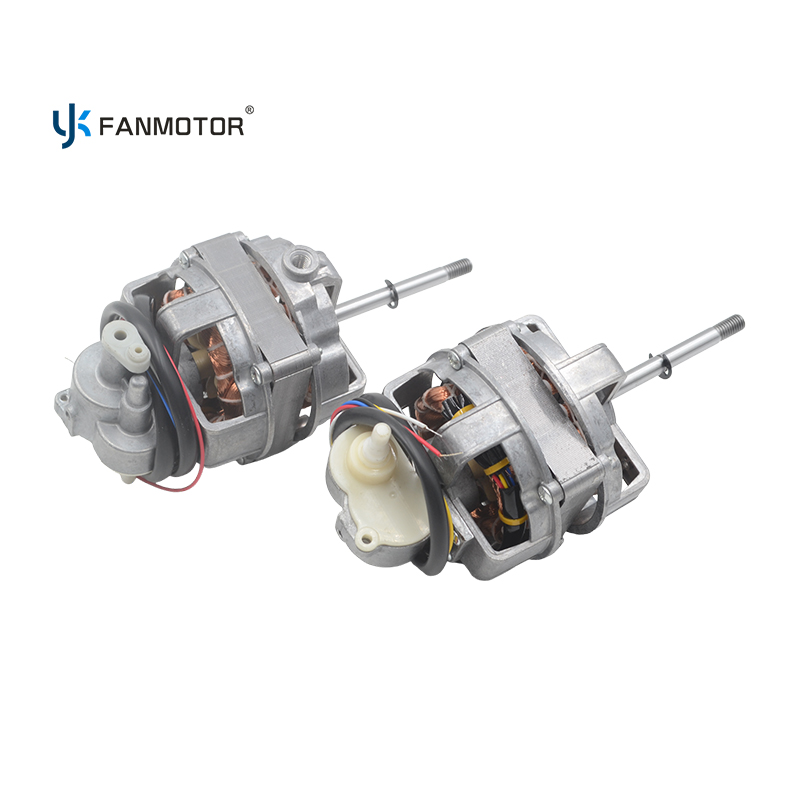

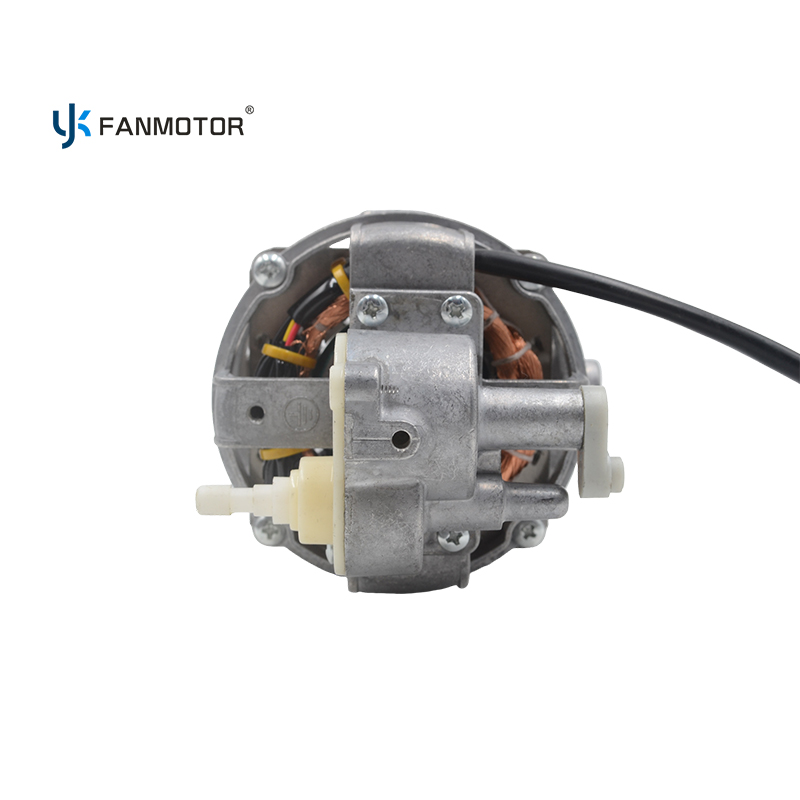

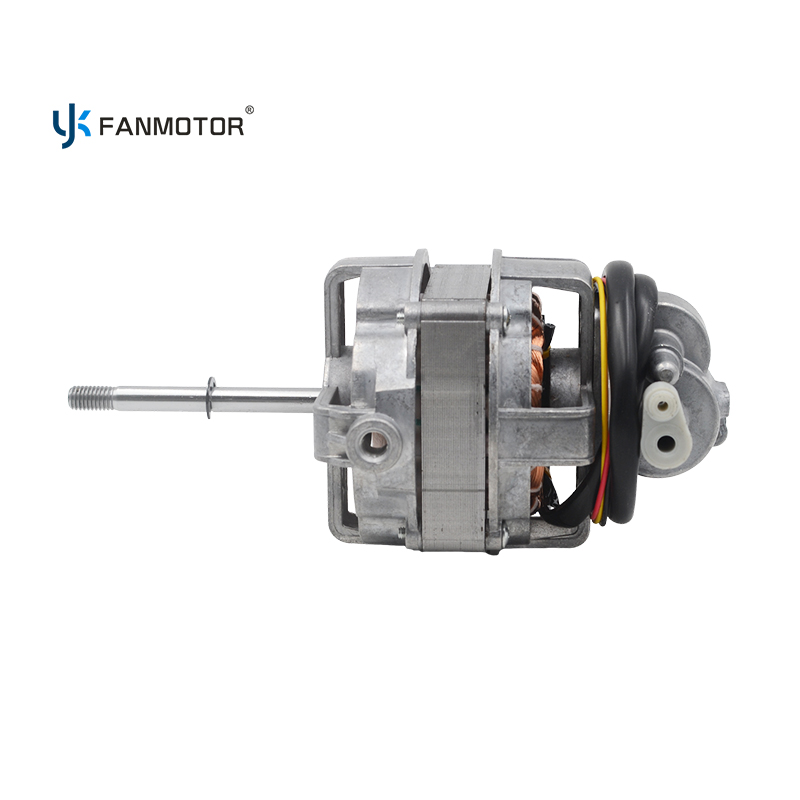

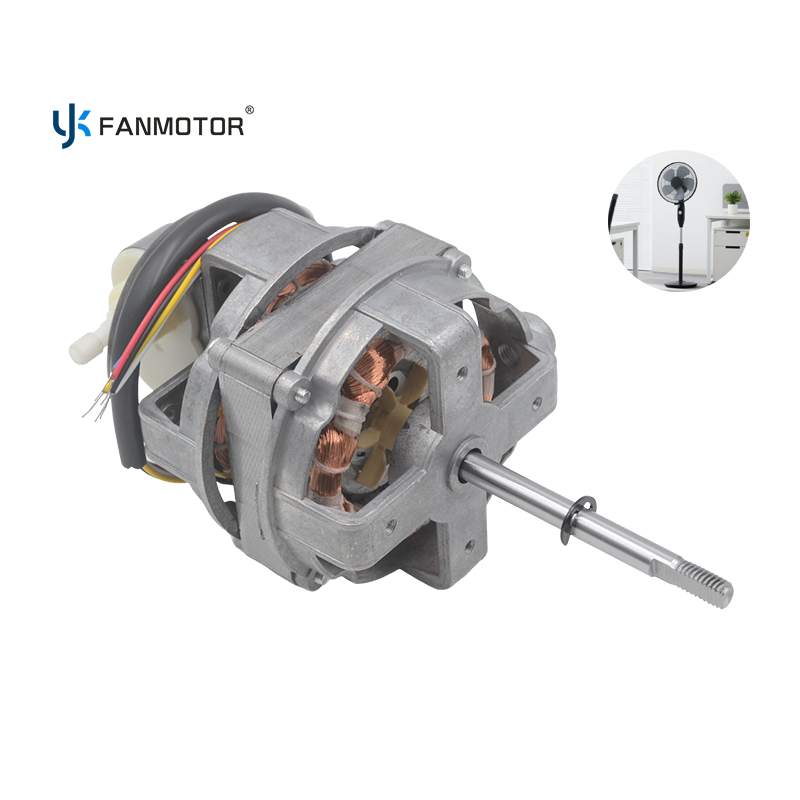

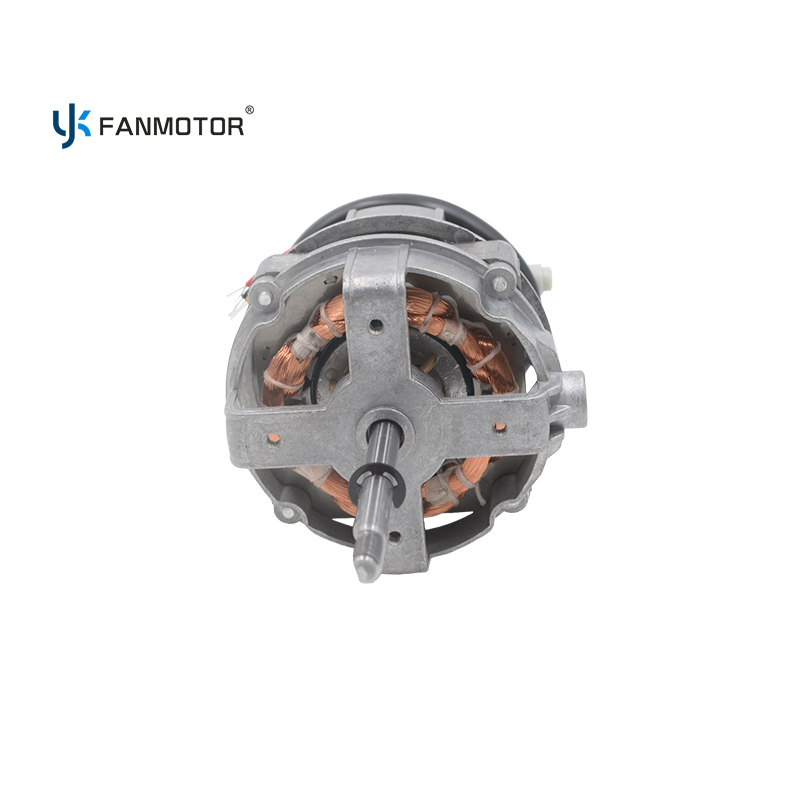

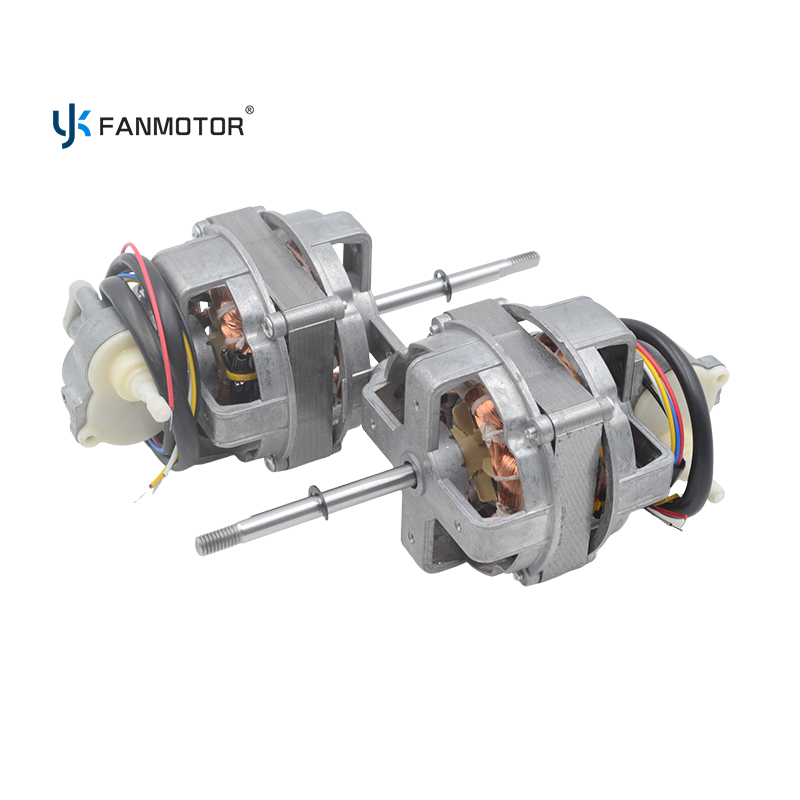

Custom 110V AC Single-Phase Copper Wire Fan Motor for Stand/Table Fan

Availability:

Product Overview

Our 110V Single-Phase Copper Wire Motor is the ideal power core for premium stand fans and table fans. Crafted with pure copper windings and precision engineering, it balances efficiency, durability, and quiet performance—perfect for homes, offices, restaurants, and light industrial use. As a trusted OEM/ODM partner, we offer fully customizable solutions to match your unique fan designs.

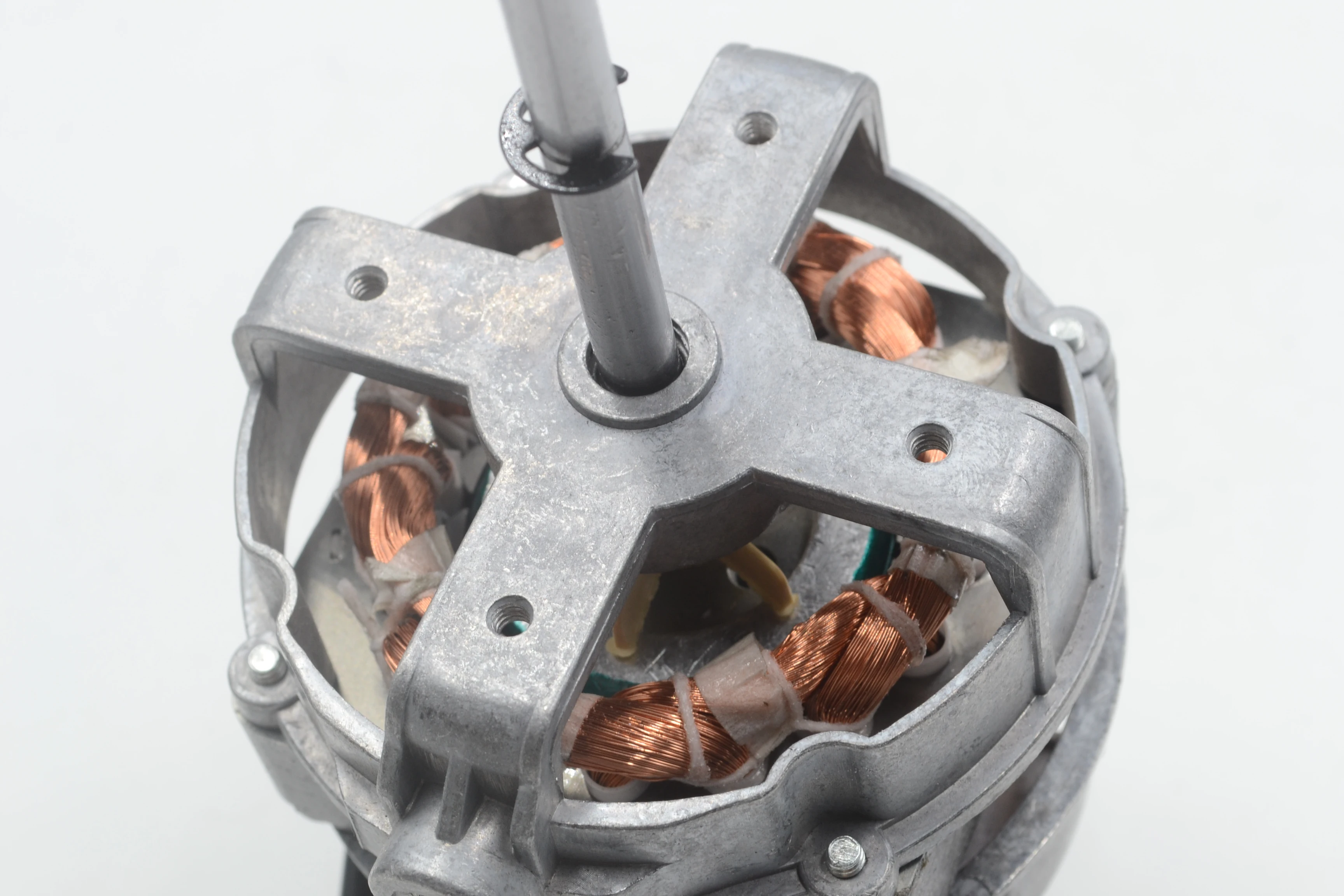

C45# Steel Shaft Aluminum Shell Copper Wire

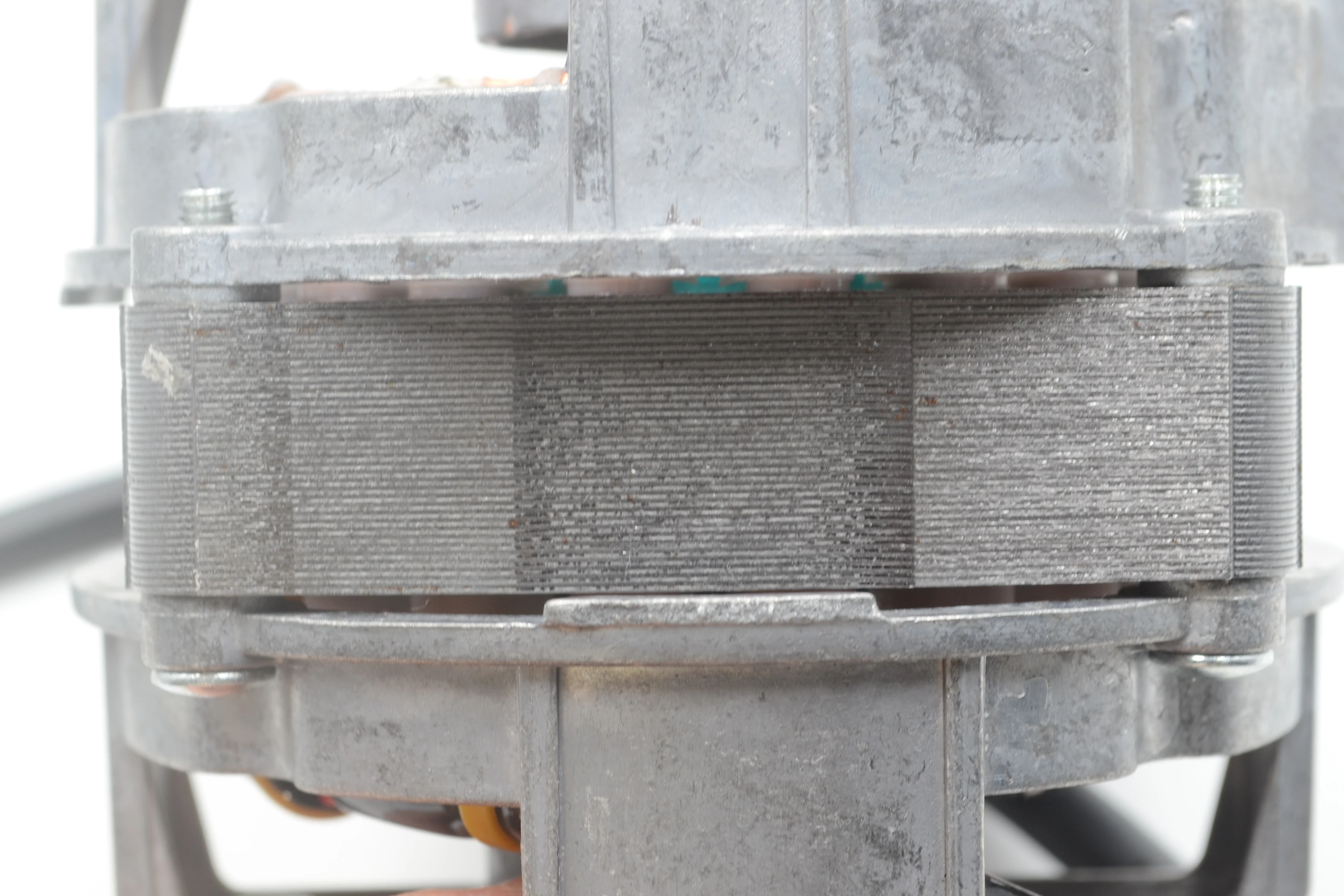

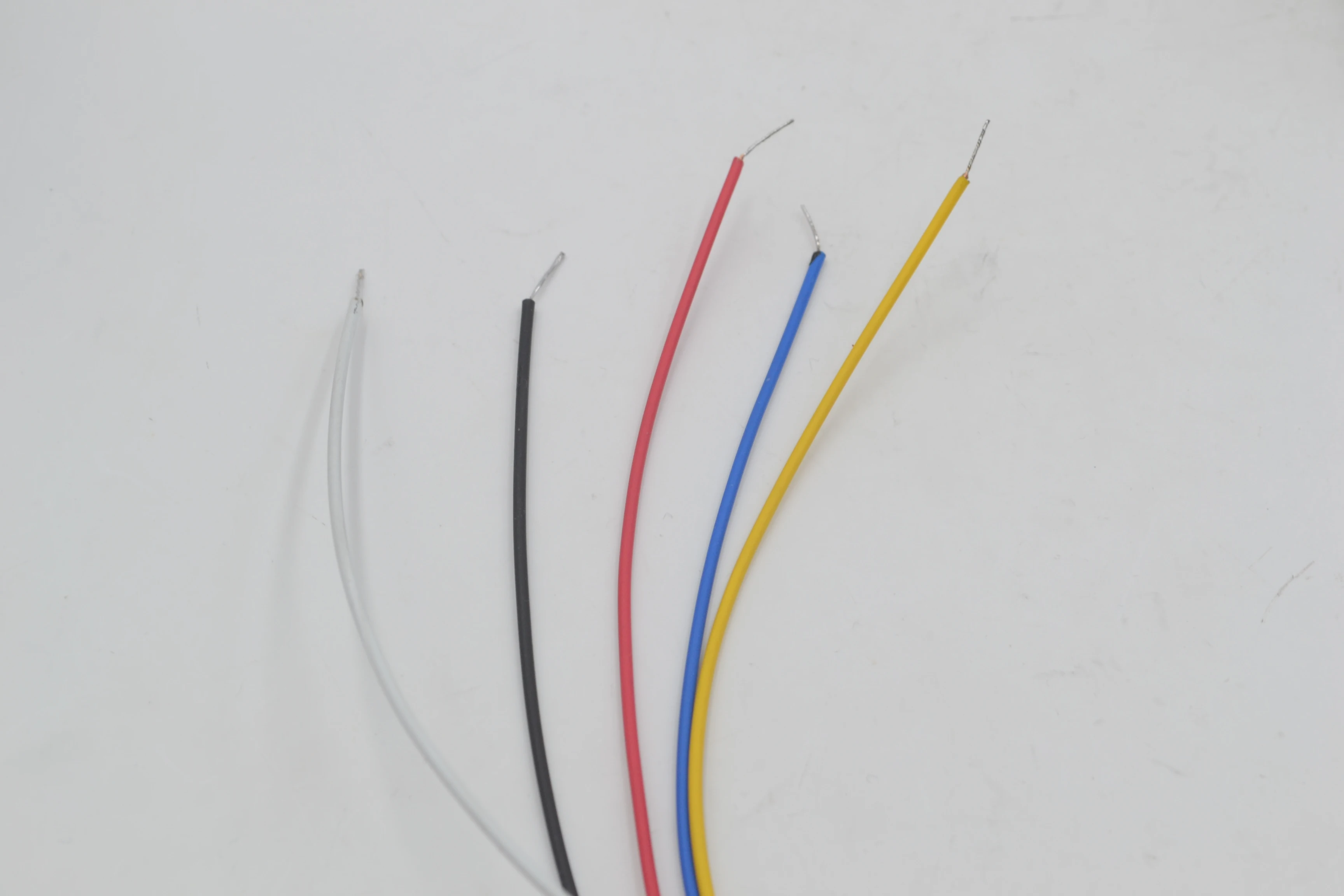

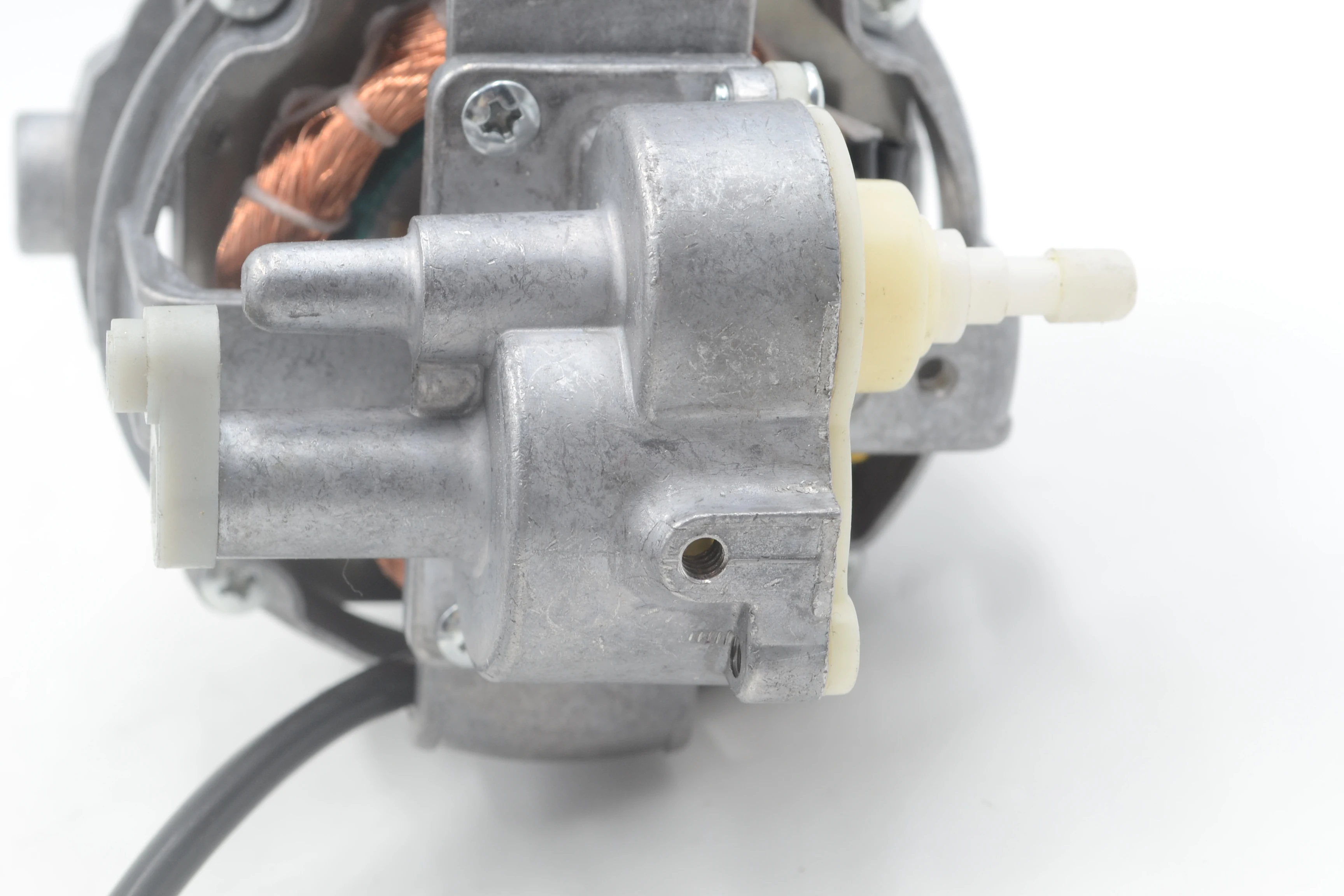

Silicon Steel Stator Metal Gearbox 5 Lines 3 Speeds

Key Advantages

  • Pure Copper Windings: 40% better conductivity than aluminum, lower operating temperatures, higher efficiency, and extended lifespan.

  • Quiet & Stable Operation: Optimized design minimizes noise/vibration, delivering consistent air delivery without disruptions.

  • Deep Customization: Tailor voltage (110V/60Hz standard, 220-240V/50Hz optional), power, size, shaft, windings, branding, and packaging. Includes drawing confirmation and sample testing.

  • Rugged Durability: Cast iron housing for heat dissipation, IP54 dust/water protection, and Class E insulation for safety.

  • Global Compliance: CE/RoHS certified, compatible with global markets.

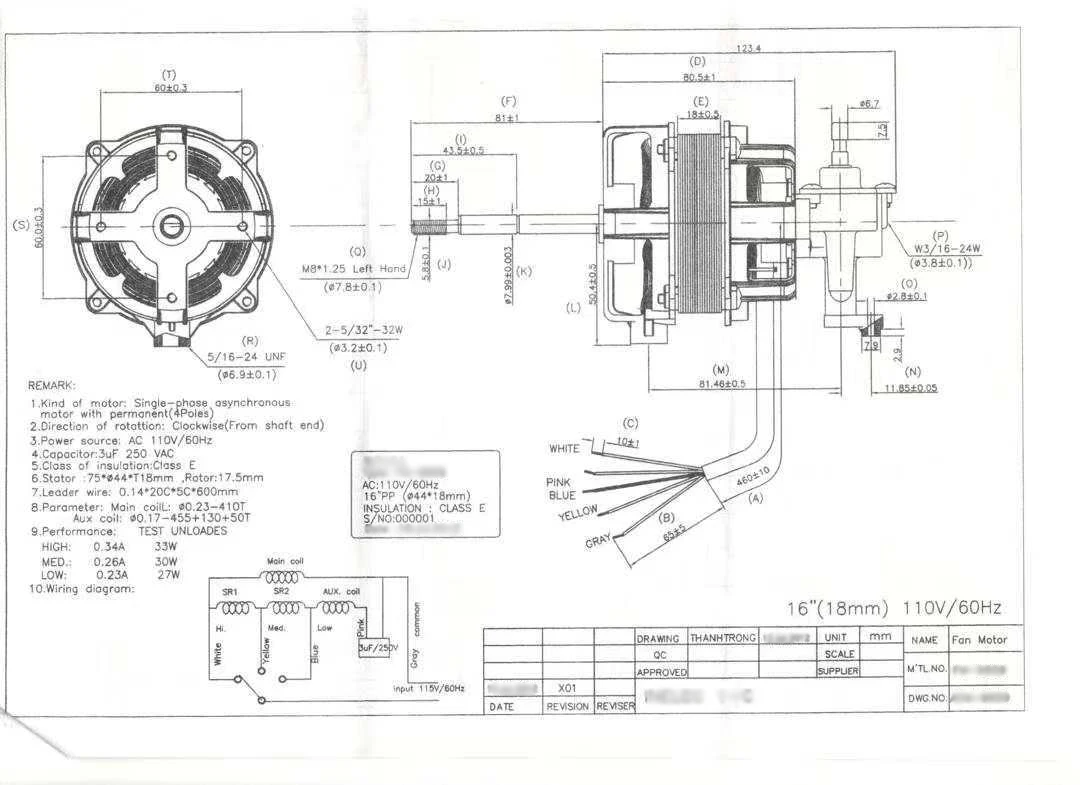

Technical Specifications

Item Details
Product Name Stand Fan Motor, Table Fan Motor
Motor Type AC Single Phase Asynchronous Motor (4 Poles)
Voltage/Frequency 110V/60Hz (Customizable: 220-240V/50Hz)
Rated Power 27W (Low) - 30W (Med) - 33W (High)
Winding Material Pure Copper (Aluminum/CCA optional)
Stator Size 75×18mm (Customizable)

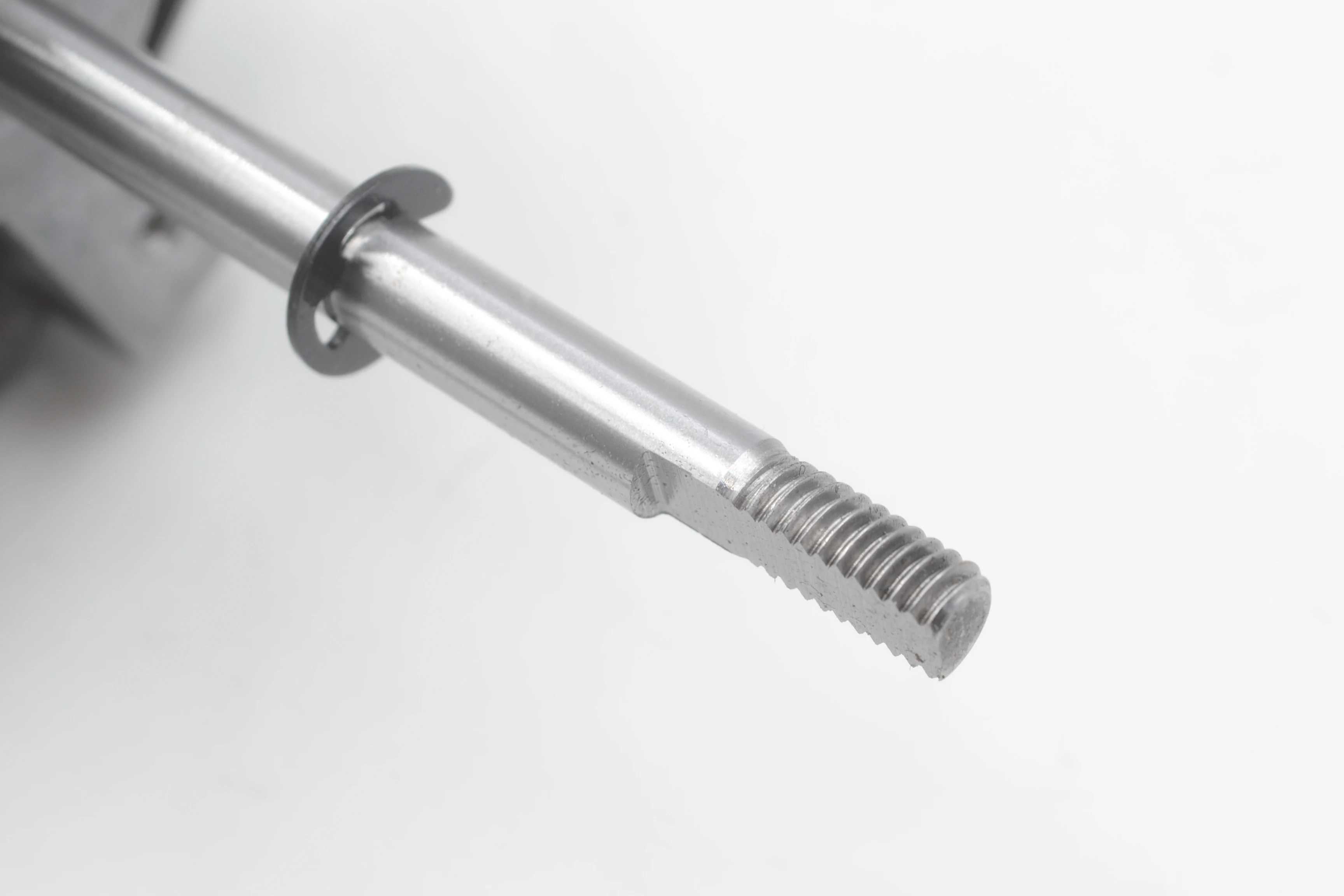

Shaft Material C45# Steel
Bearing Type Oil Bushing / Ball Bearing (Optional)
Rated Speed 1200 RPM
Speed Settings 3 Speeds
Rotation Direction Clockwise (From Shaft End)
Protection Rating IP54
Certifications CE, RoHS

Application Scenarios

Residential (bedrooms, living rooms), commercial (offices, restaurants), light industrial (small workshops), and OEM/ODM fan manufacturing.

Why Choose Us?

  • Direct manufacturer pricing (no middlemen)

  • Professional engineering & customization support

  • Strict quality control (full load, noise, durability testing)

  • Flexible order quantities (small-batch to large OEM)

  • Global logistics & customs documentation support

  • ISO-certified, with 7+ years of motor manufacturing experience

Customization Process

  1. Consult with our team to share requirements

  2. Receive customized drawings & quotation

  3. Test and confirm samples

  4. Mass production with quality control

  5. Global delivery with professional packaging

Contact Us

Enhance your fan products with our reliable, customizable motor. Reach out to discuss your OEM/ODM needs!
